Heat Jacketed Gate Valve, ASTM A216 WCB, DIN 3352, DN100, PN40

Key Specifications / Features

Heat Jacketed Gate Valve Maker: DIN 3352 Gate Valves with Heating Steam Double-Jacketed, DN100, PN40, ASTM A216 WCB, OS&Y, DN50-DN150, Bolted Bonnet, RF.

Hits: 8
Categories: Gate Valve
Tags: ASTM A216 WCB Gate Valve , DIN 3352 Gate Valve , DN100 Gate Valve

Request a quote

Detail Information

DN100 PN40 Gate Valve with Heat Jacket, WCB, DIN 3352, Jacketed Gate Valves, Double-jacketed Gate Valves, OSY Cast Steel WCB

This DN50 gate valve is one of the recent batches of our fresh heating jacketed gate valves whose diameter ranges from DN50 to DN150.

Quick Detail

Type	Gate Valve
Nominal Diameter	DN50-DN150
Nominal Pressure	PN40
Construction	Heat Jacket Type, OS&Y, Bolted Bonnet
Connection	RF
Design & Manufacture	DIN 3352
F to F Dimension	DIN 3202-F5
Flange End Dimensions	EN 1092-1/B1
Test & Inspection	EN 12266-1/2
Body Material	ASTM A216 WCB+STL
Wedge Material	WCB+13Cr
Temp. Range	-29～425℃
Media	W.O.G.etc

Features
- Heat Jacket-- prevents the valve body from being corroded by insulation media.
- Outside Screw and Yoke
- Bolted Bonnet and Pressure Seal
- Flexible and solid wedge, fully guided
- Welding seat rings or Renewable seat rings
- Rising stem and non-rising stem
- Available with gear operator
- Low torque design, smooth surface stem.

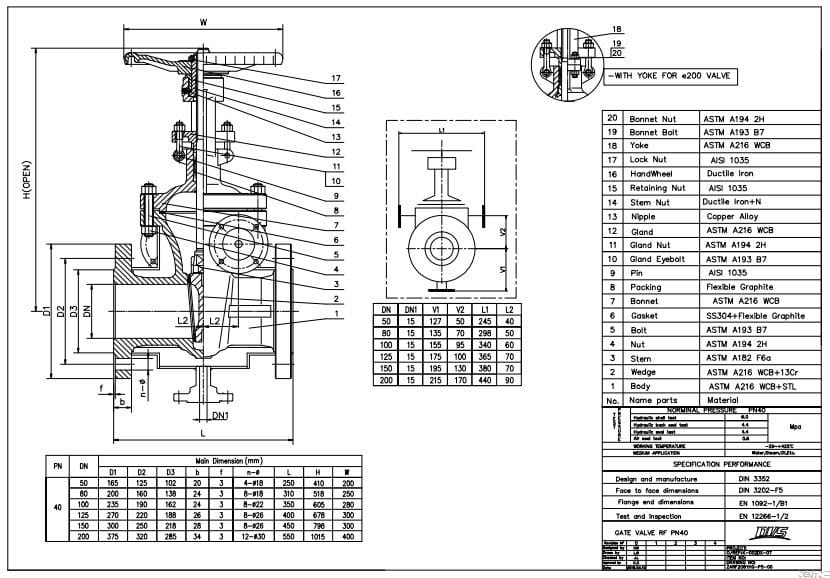

Technical Drawing

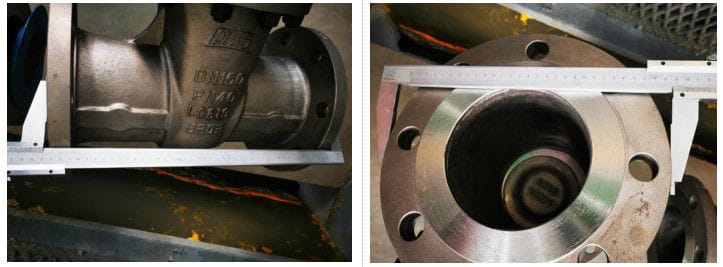

Dimension Check

Witnessing Tests

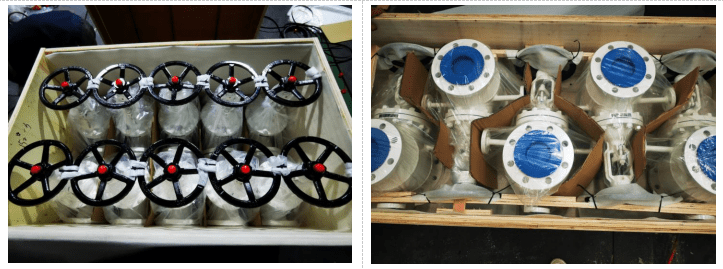

Packing

Product Application

Kelly valves can be widely used in varieties of industries, such as petrochemical, pipeline, oil & gas, marine, water treatment, power station industries and etc.
