ASTM A182 F304L Gate Valve, 1/2 Inch, CL1500, API 602
Key Specifications / Features
Stainless Steel ASTM A182 F304L Gate Valve Maker: Stainless Steel Gate Valve, ASTM A182 F304, ASTM A182 F304L, 1/2 Inch, CL1500, API 602, OS&Y.
- Hits: 3
- Categories: Gate Valve
- Tags: ASTM A182 F304L Gate Valve , ASTM A182 F304 Gate Valve , 1/2 Inch Gate Valve
Detail Information
1/2 Inch 1500LB Stainless Steel Gate Valve API 602
Quick Detail
Features
--Superior flow rates & small friction loss
--Comparatively shorter end to end dimension
--Low torque value for closing and opening the valve
--Flexible wedge for better seating and ease of operation
--Smooth finish and superior sealing for seat face
--Optimized wedge design for minimized seat leakage
--Every valve is manufactured with a specific number on the body for traceability
--Excellent performance of stem packing for low fugitive emissions

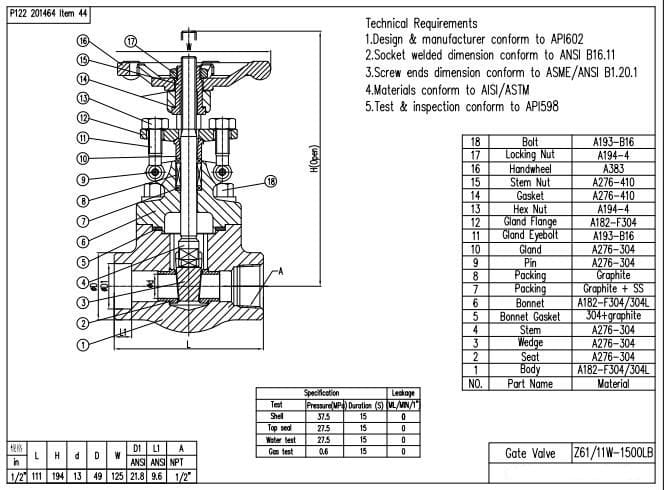

Technical Drawing

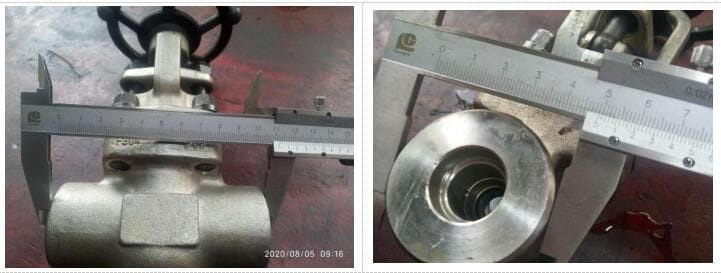

Dimension Check

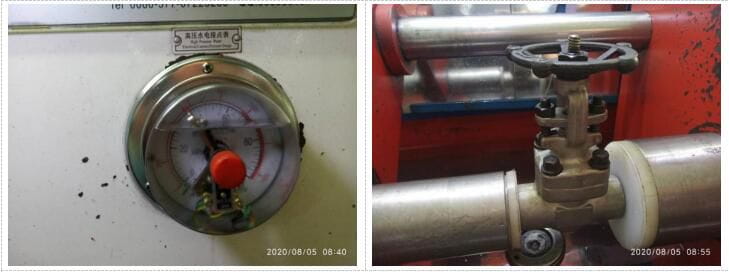

Witnessing Tests

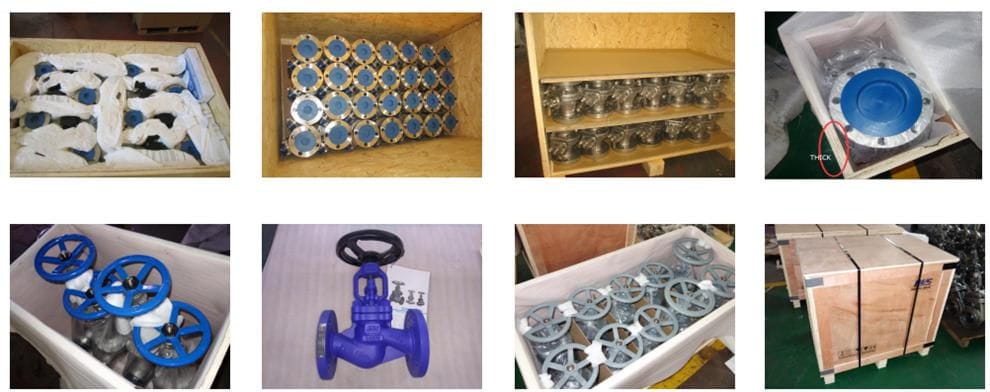

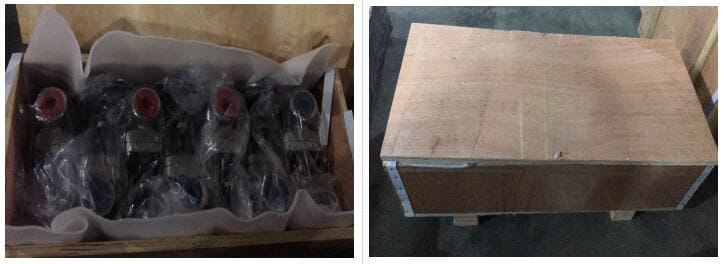

Packing
In Kelly, we make sure-
Every valve is clean and dry.
What do we do?
-Clean the valve before packing
-Add anti-rust oil
-Add flange cover
No damage to valves in delivery. How do we achieve this?
-Fix the valve with iron wire
-Separate the valve with soft material
-Layer the valve with plywood
Strongbox and clear shipping mark
Quick Detail
| Type | Gate Valve |
| Size | 1/2 Inch |
| Design Pressure | 1500 LB |
| Construction | B.B., Solid Wedge, Renewable Seat, OS&Y |
| Connection Type | FNPT |
| Operation Type | Handwheel |
| Body Material | ASTM A182 F304, ASTM A182 F304L |
| Wedge Material | ASTM A182 F304 |
| Stem Material | ASTM A276-304 |
| Design Code | API 602 |
| End Connection | ANSI B16.11 |
| Test & Inspection | API 598 |
| Medium | Water, Oil and Gas |
| Origin | China |
Features
--Superior flow rates & small friction loss
--Comparatively shorter end to end dimension
--Low torque value for closing and opening the valve
--Flexible wedge for better seating and ease of operation
--Smooth finish and superior sealing for seat face
--Optimized wedge design for minimized seat leakage
--Every valve is manufactured with a specific number on the body for traceability
--Excellent performance of stem packing for low fugitive emissions
Technical Drawing
Dimension Check
Witnessing Tests
Packing
In Kelly, we make sure-
Every valve is clean and dry.
What do we do?
-Clean the valve before packing
-Add anti-rust oil
-Add flange cover
No damage to valves in delivery. How do we achieve this?
-Fix the valve with iron wire
-Separate the valve with soft material
-Layer the valve with plywood
Strongbox and clear shipping mark
