GGG40 Concentric Butterfly Valve, DN100, PN10, API 609
Key Specifications / Features
DN100 PN10 butterfly valve is made according to API 609 standard. The valve body is made of GGG40 + EPDM. It has the structural characteristics of medium line type. Its connection mode is EN 1092-2B. And it has worm gear operation mode.
- Hits: 11
- Categories: Butterfly Valve
- Tags: Concentric Butterfly Valve , GGG40 Butterfly Valve , DN100 Butterfly Valve
Detail Information
DN100 PN10 Concentric Butterfly Valve GGG40 API 609 Worm Gear
Features
1. The valve stem axis, butterfly plate center, and body center are in the same position;
2. Simple and convenient structure, reducing the flow resistance of fluid passing through the valve.

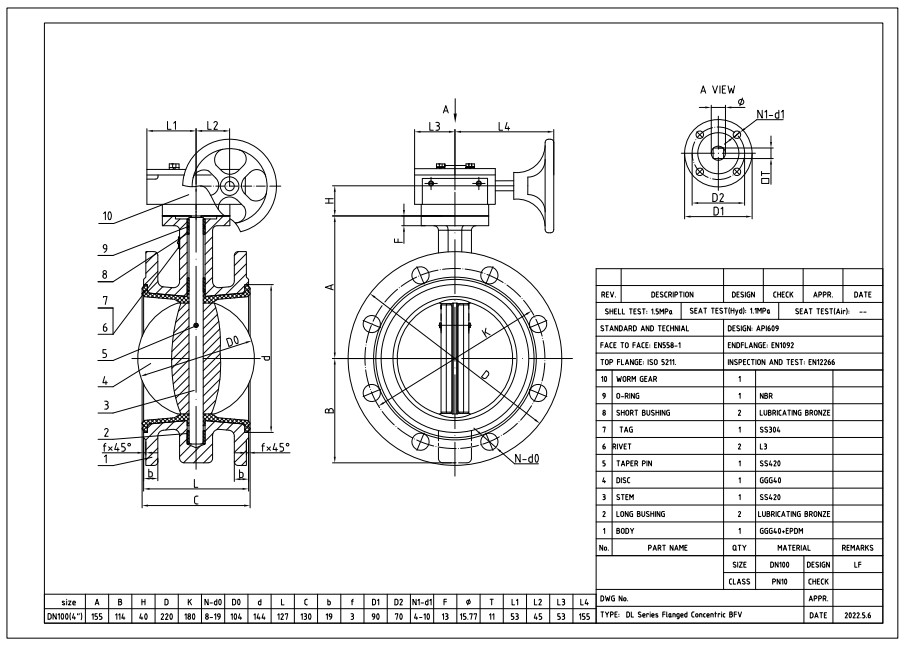

Technical Drawing

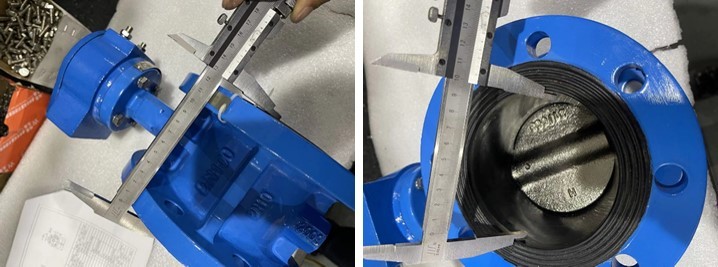

Dimension Checking

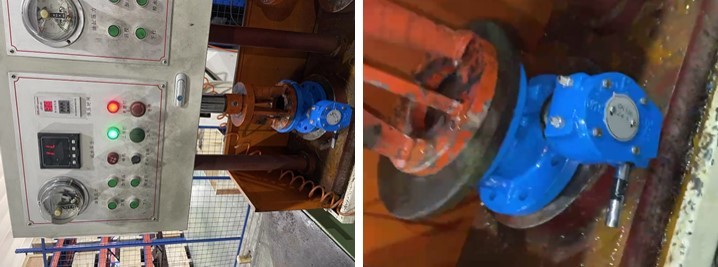

Pressure Testing
Painting

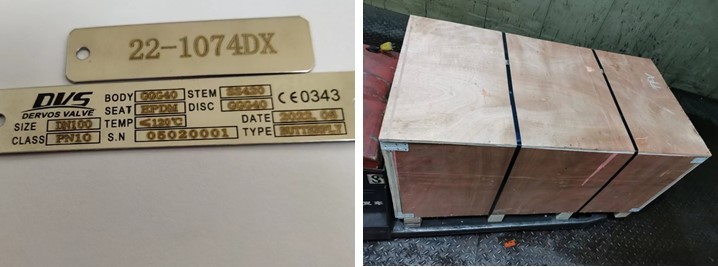

Nameplate & Packing

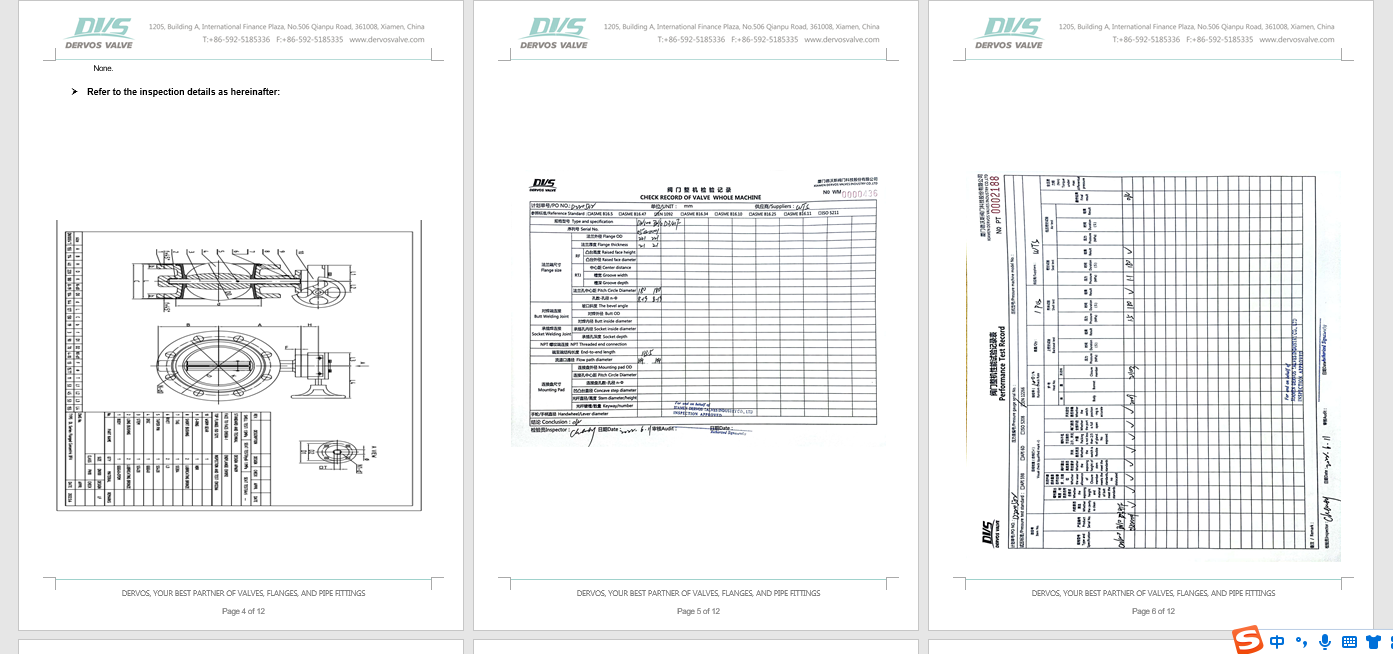

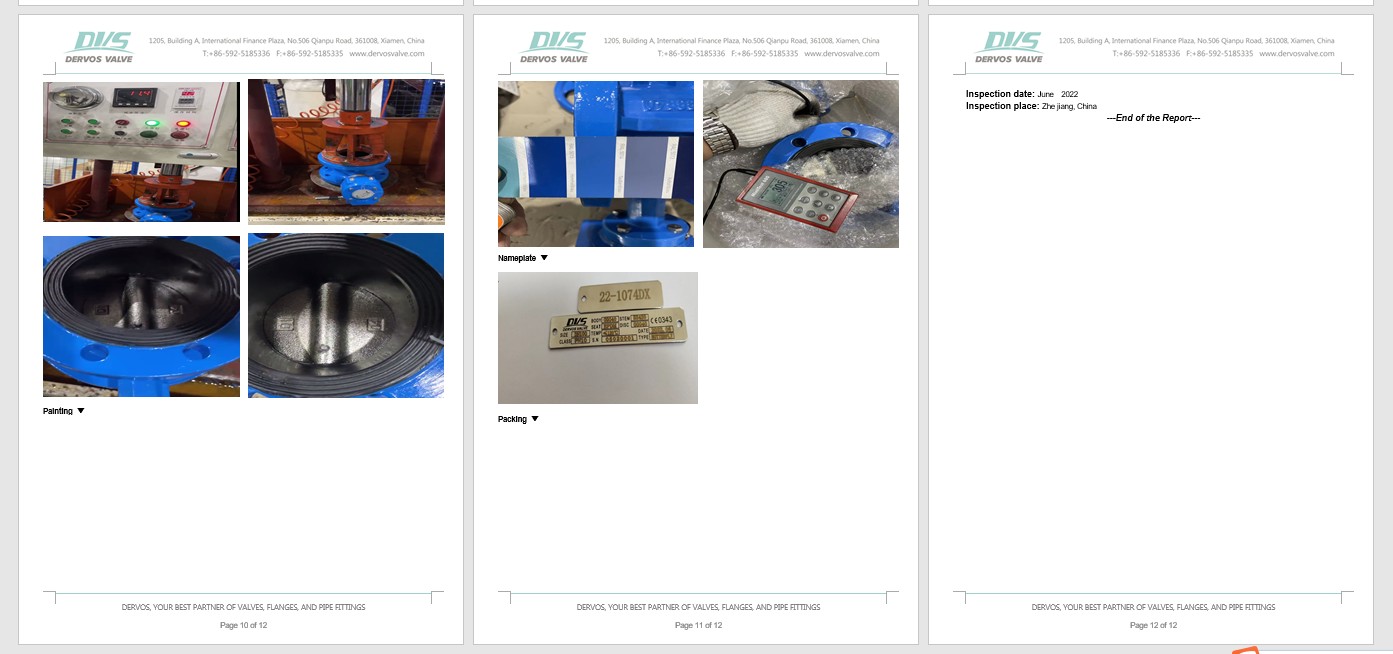

Inspection report
Features
1. The valve stem axis, butterfly plate center, and body center are in the same position;
2. Simple and convenient structure, reducing the flow resistance of fluid passing through the valve.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
