ASTM A182 F304 Single Plate Wafer Check Valve, DN80, PN40
Key Specifications / Features
DN80 PN40 check valve is made according to API 594 standard. The valve body is made of ASTM A182 F304. It has the structural characteristics of lift type. Its connection mode is wafer type.
- Hits: 6
- Categories: Wafer Check Valve
- Tags: ASTM A182 F304 Check Valve , Single Plate Check Valve , DN80 Check Valve
Detail Information
DN80 PN40 Single Plate Wafer Type Check Valve F304 API 594
Features
1. Short structural length, small volume, and lightweight;
2. Both horizontal and vertical pipelines can be used for easy installation;
3. The overall structure is simple and compact, with a beautiful appearance, long service life, and high reliability.

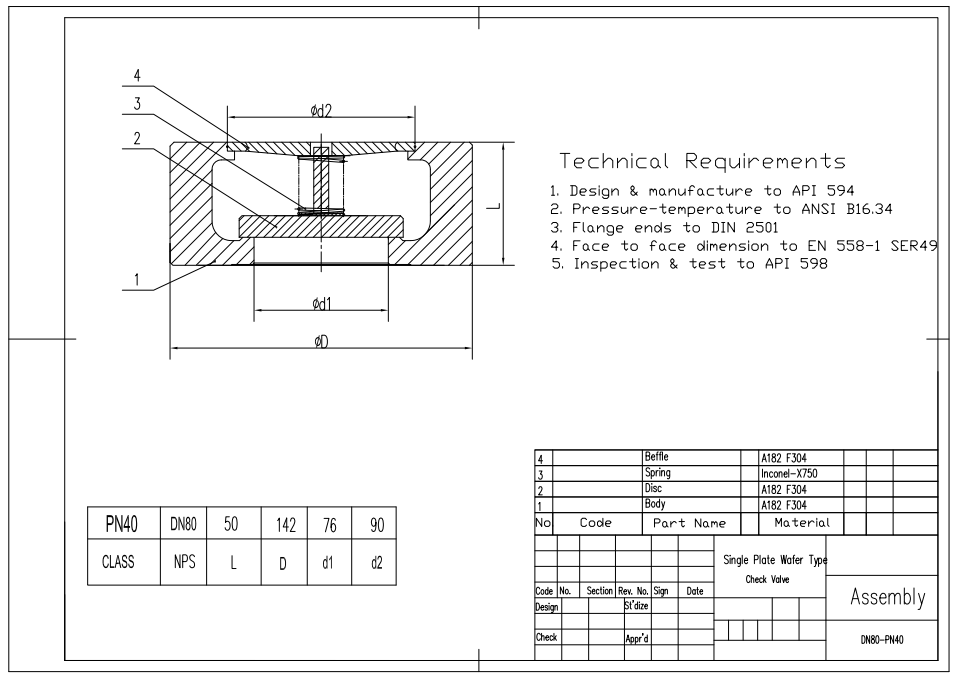

Technical Drawing

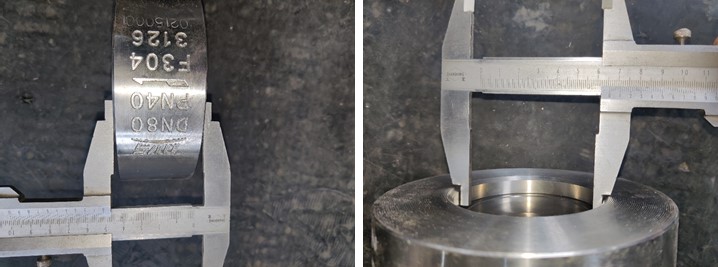

Dimension Checking

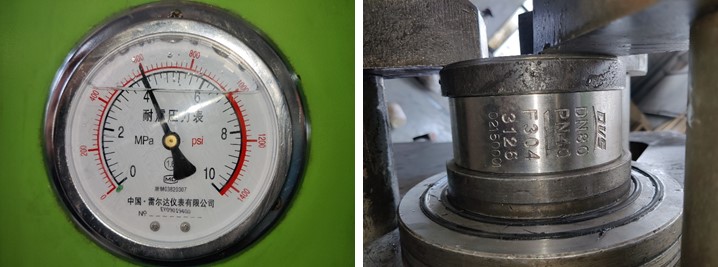

Pressure Testing

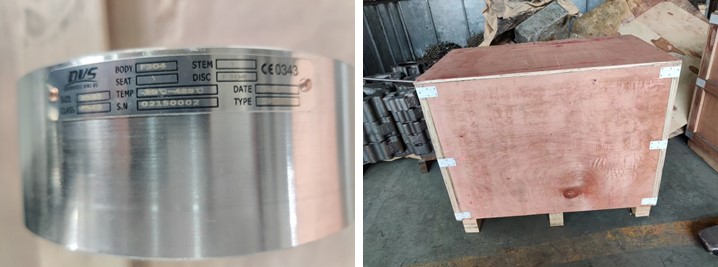

Nameplate & Packing

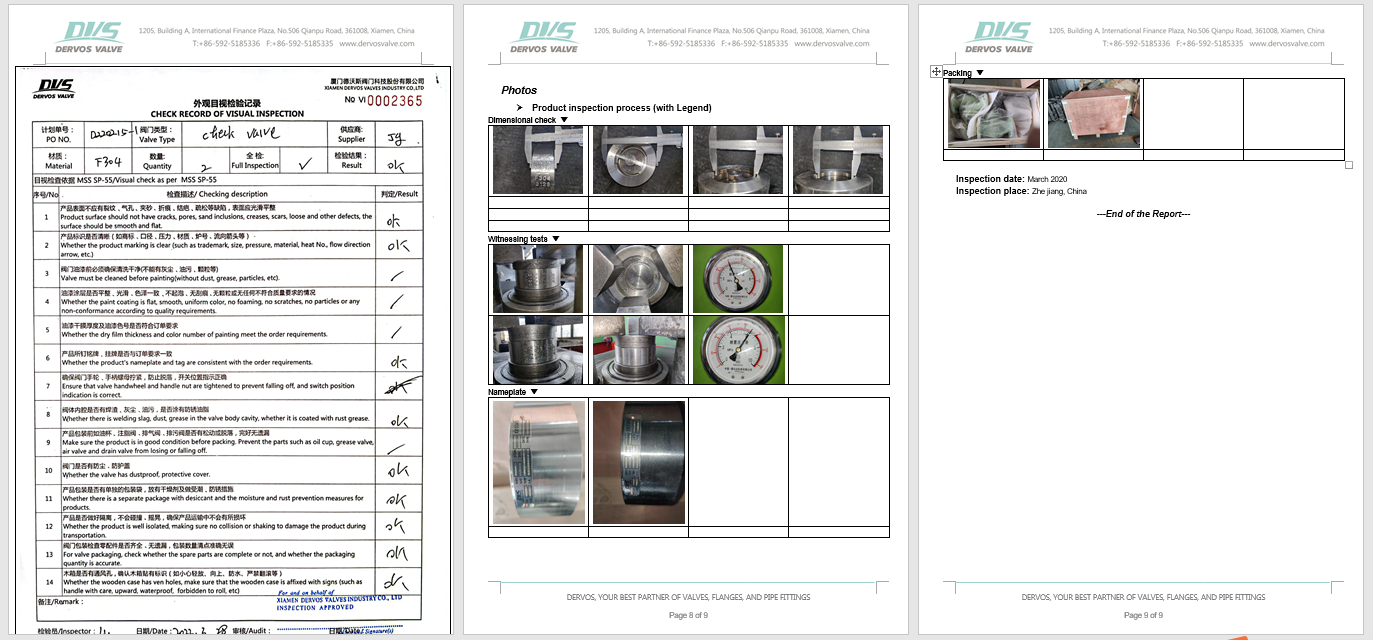

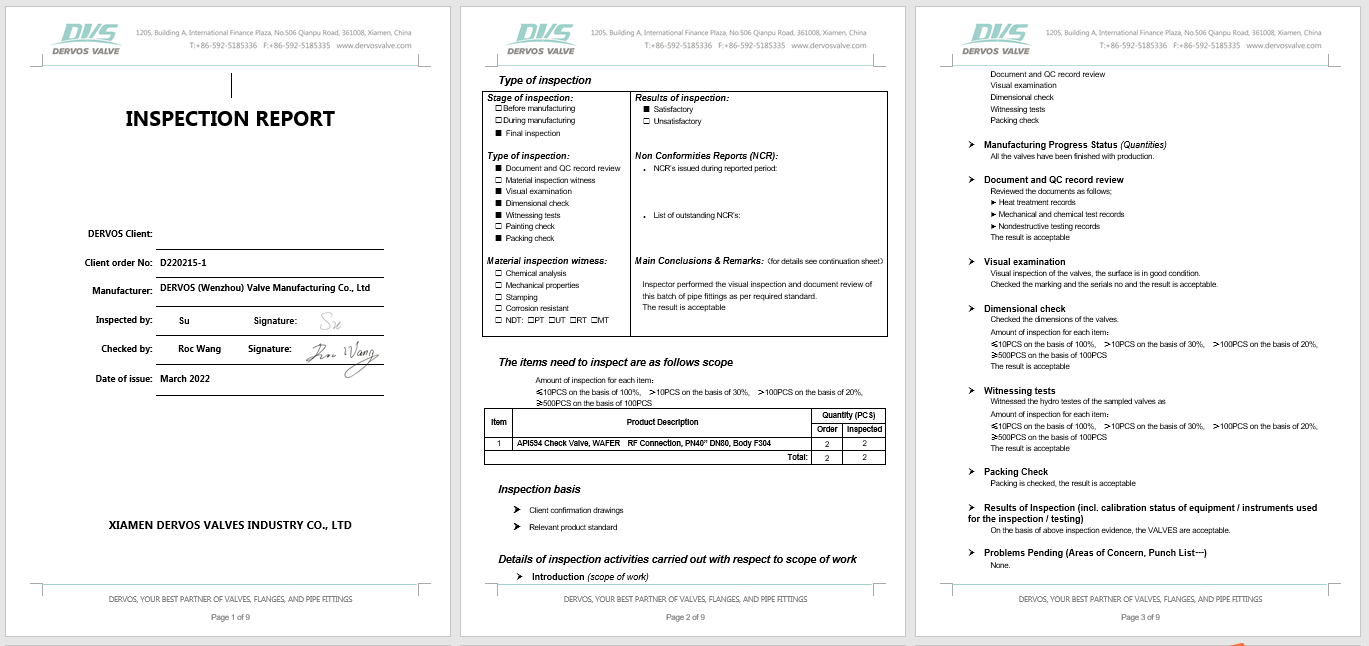

Inspection report
Features
1. Short structural length, small volume, and lightweight;
2. Both horizontal and vertical pipelines can be used for easy installation;
3. The overall structure is simple and compact, with a beautiful appearance, long service life, and high reliability.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
