Dual Plate Check Valve, ASTM A351 CF8M, 3IN, CL150, API 594
Key Specifications / Features
3 Inch CL150 check valve is made according to API 594 standards. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of dual plate. Its connection mode is wafer.
- Hits: 7
- Categories: Wafer Check Valve
- Tags: ASTM A351 CF8M Check Valve , 3 Inch Check Valve , DN80 Check Valve
Detail Information
API 594 3 Inch CL150 Dual Plate Wafer Type Check Valve CF8M
Features
1. Both horizontal and vertical pipelines can be used for easy installation;
2. The valve disc closes quickly and the water hammer pressure is low.

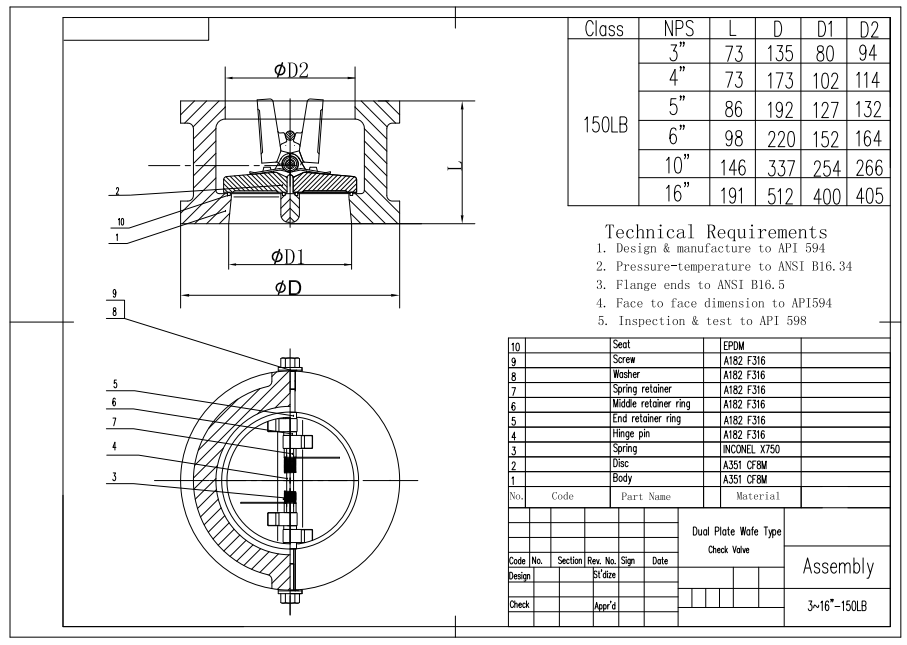

Technical Drawing

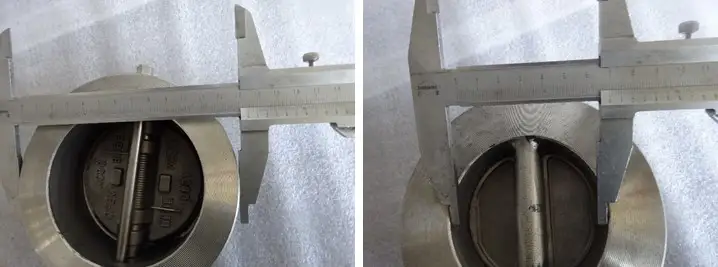

Dimension Checking

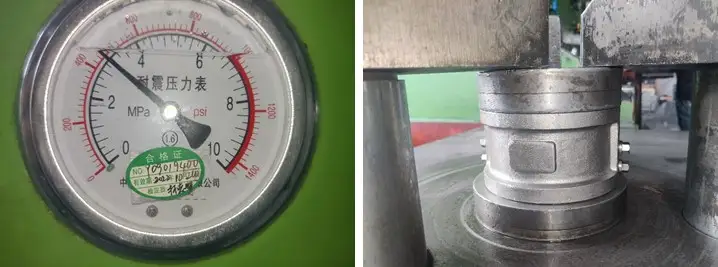

Pressure Testing

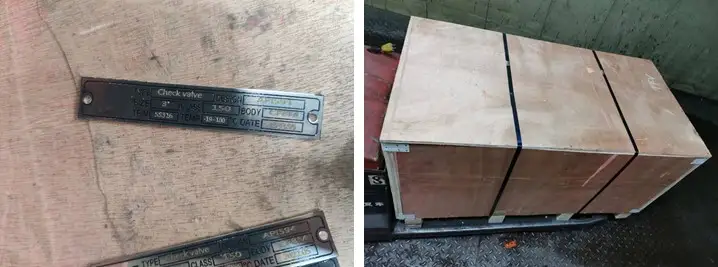

Nameplate & Packing

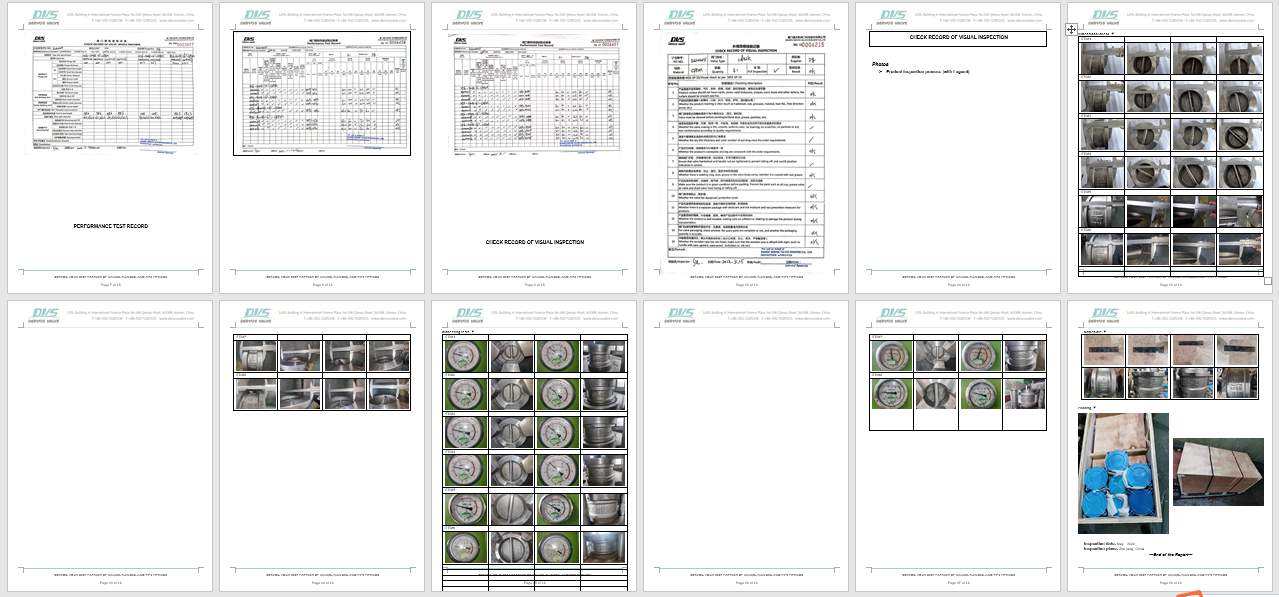

Inspection report
Features
1. Both horizontal and vertical pipelines can be used for easy installation;
2. The valve disc closes quickly and the water hammer pressure is low.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
