Dual Plate Wafer Check Valve, API 594, A350 LF2, 4 IN, 150 LB
Key Specifications / Features
4 Inch 150 LB check valve is made according to API 594 standard. The valve body is made of ASTM A350 LF2+316. It has the structural characteristics of dual plate. Its connection mode is wafer.
- Hits: 27
- Categories: Wafer Check Valve
- Tags: Dual Plate Check Valves , API 594 Check Valve , ASTM A350 LF2 Check Valve
Detail Information
4 Inch 150 LB Dual Plate Wafer Type Check Valve LF2 API 594
Features
1. Short structural length, small volume, and light weight;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.

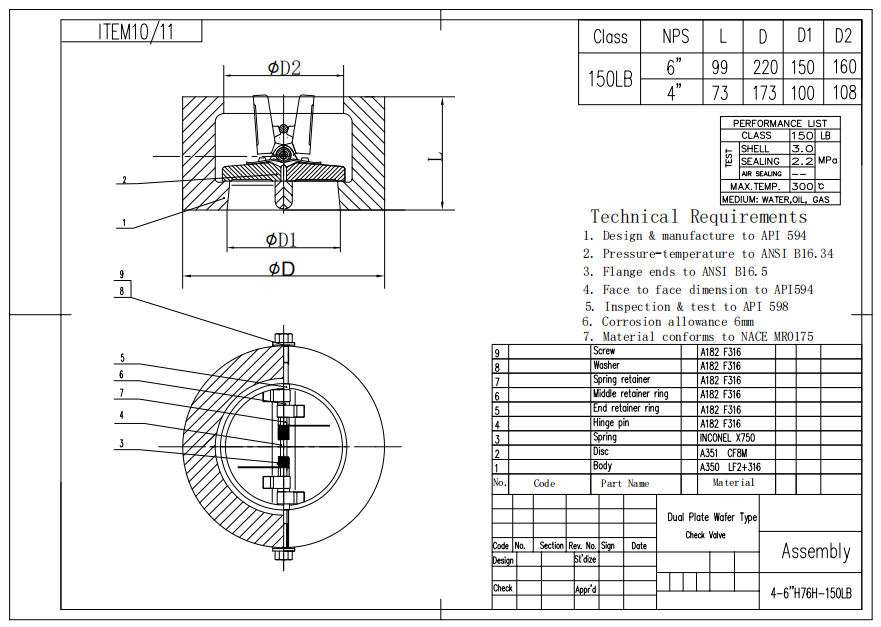

Technical Drawing

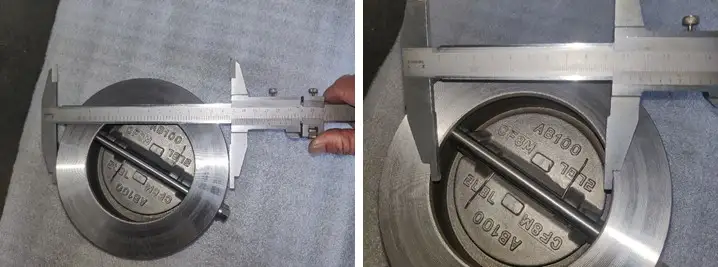

Dimension Checking

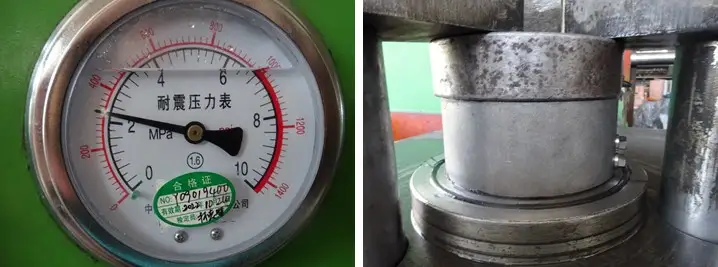

Pressure Testing

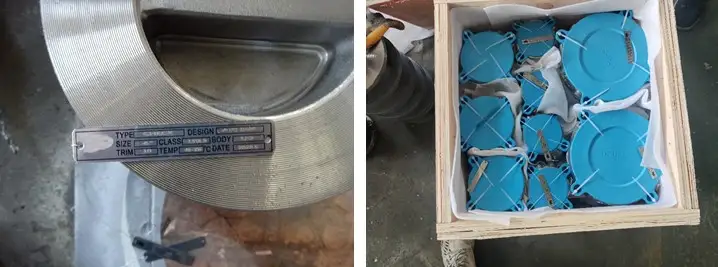

Nameplate & Packing

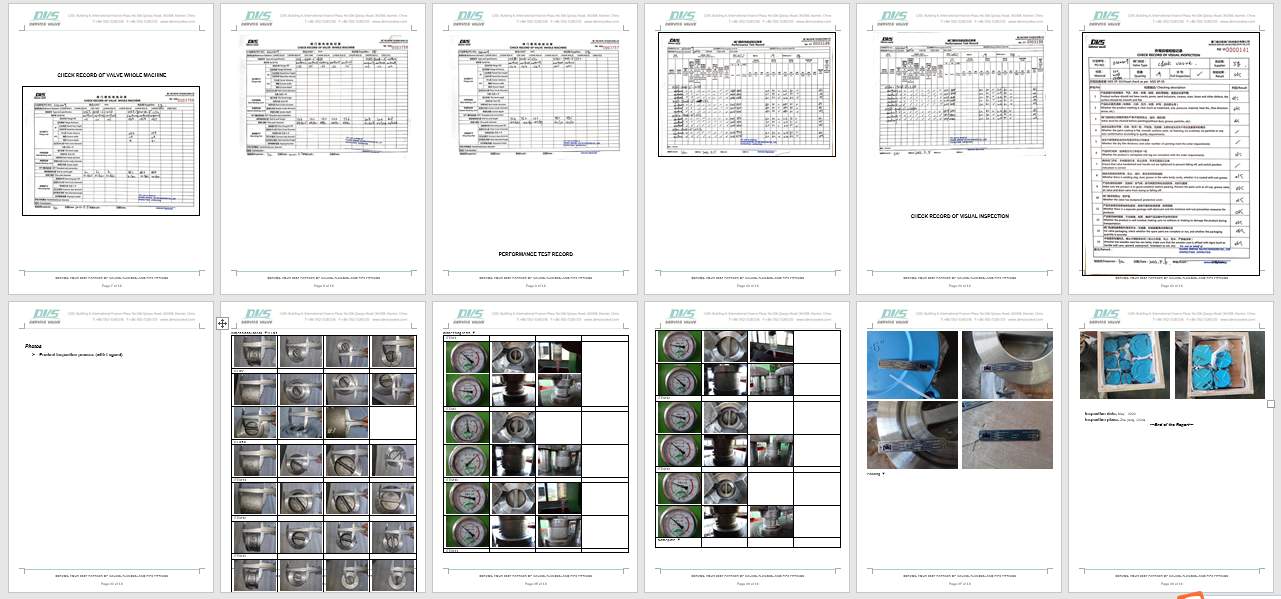

Inspection report
Features
1. Short structural length, small volume, and light weight;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
