Double Eccentric Lug Butterfly Valve, API 609, 4 Inch, 150 LB
Key Specifications / Features
Double Eccentric Lug Butterfly Valve Provider: Double Eccentric Butterfly Valve, Two-offset, API 609, ASTM A216 WCB, 4 Inch, Class 150 LB, Lug Type, RF.
- Hits: 9
- Categories: Butterfly Valve
- Tags: 4 Inch Butterfly Valve , Class 150 LB Butterfly Valve , Double Eccentric Butterfly Valve
Detail Information
Double Eccentric Butterfly Valve Lug Type, 4 inch, 150 LB, Lug Type Butterfly Valves, Two-offset Butterfly Valves, ASTM A216 WCB Valves, Actuated Butterfly Valves.
Quick Detail
Features
•Bidirectional Sealing
•Replaceable Seat
•Two-offset design
•Minimal switching friction
•Easy repair and maintenance
•Reliability and long service life
Technical Drawing
Dimensional Check
Witness Tests
Our Main Product Range
With a complete product range, Kelly product lists cover gate, globe, check, ball, butterfly, check, plug valve and strainers. We can also provide marine valve, pressure reducing valve, control globe valve, wellhead valve and so on.
About Kelly
Xiamen Kelly Valves Industry Co.,Ltd (stock code 861601), founded in June 2008, is a one-stop industrial valves supplier integrated of R&D, manufacture, resource integration, and trade service. For 12 years, Kelly has been committed to finding solutions for industrial needs and providing professional service for both general and specialized valves.
Quick Detail
| Type | Butterfly Valve |
| Nominal Diameter | 4 Inch |
| Nominal Pressure | Class 150 LB |
| Construction | Lug Type, Bi-dimensional Seals |
| Connection | RF |
| Operation | Gearbox |
| Design & Manufacture | API 609 |
| End to End Dimension | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Body Material | ASTM A216 WCB |
| Disc Material | ASTM A351 CF8M |
| Media | W.O.G |
Features
•Bidirectional Sealing
•Replaceable Seat
•Two-offset design
•Minimal switching friction
•Easy repair and maintenance
•Reliability and long service life

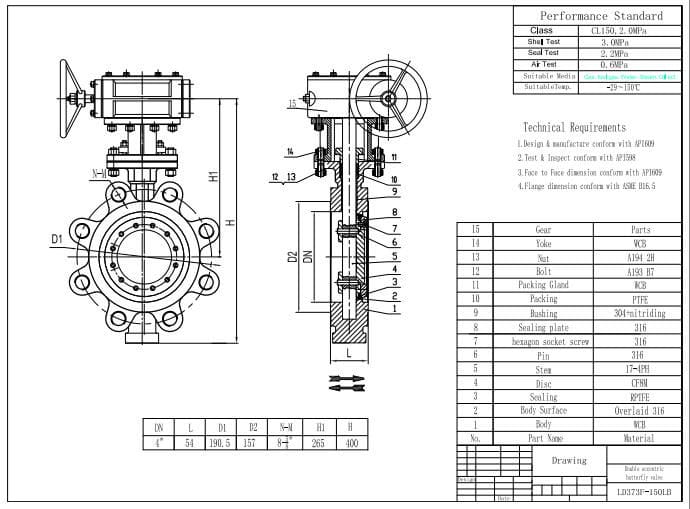

Technical Drawing

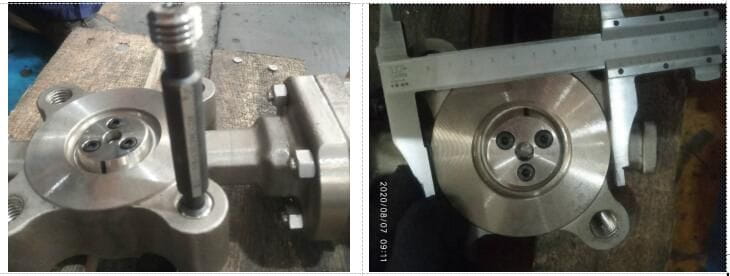

Dimensional Check

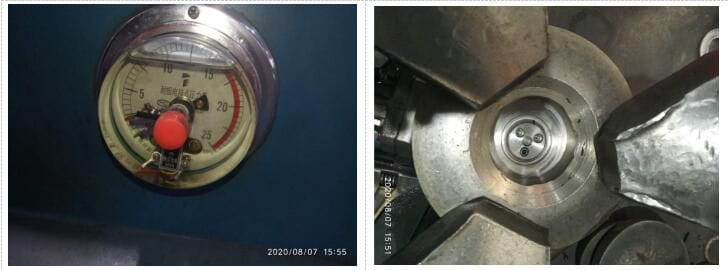

Witness Tests

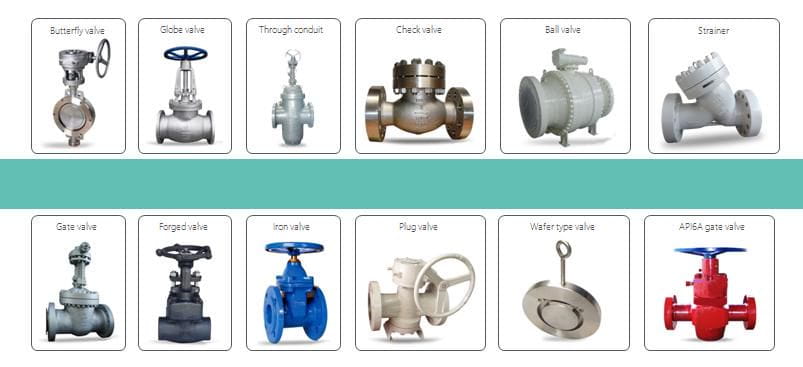

Our Main Product Range
