Double Eccentric Butterfly Valve, A351 CF8M, 4 Inch, 150 LB
Key Specifications / Features
Double Eccentric Butterfly Valve Supplier: Double Eccentric Lug Type Butterfly Valve, ASTM A351 CF8M, 4 Inch, Class 150 LB, API 609, Lever Operated.
- Hits: 13
- Categories: Butterfly Valve
- Tags: Double Eccentric Butterfly Valve , ASTM A351 CF8M Butterfly Valve , 44 Inch Butterfly Valve
Detail Information
On this page
Stainless Steel High Performance Butterfly Valves
Lug Type Butterfly Valves
Double Eccentric Butterfly Valves
4 Inch Butterfly Valves
Quick Detail
Design features
1. Valves are high performance with offset seat and double eccentric disc design.
2. Valve seats are designed for full pressure, bidirectional sealing.
3. Valve is equipped with upper and lower low friction bearings.
4. One-Piece shaft design equipped with Blow-Out Proof and Anti-Static devices.
5. Patented Seat Retainer Ring fixed without bolts and offering complete uninterrupted seal face. 6. Valve has integral body stop to prevent over travel

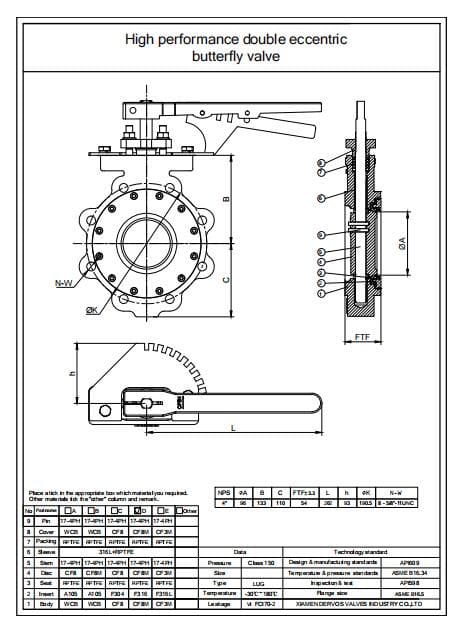

Technical Drawing

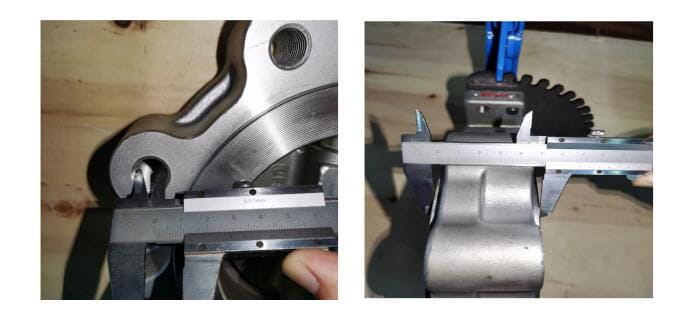

Dimension Check
Packing
Our Service
Kelly customer service is one of our biggest competitive advantages. In Kelly, we provide-
1. Quotation within 24 hours or no later than 3 days
This will let you meet the quotation submission deadline and enhance your working efficiency.
2. Weekly status report of your order
In this way, you will have a clear picture of your order. You do not need to waste time on pushing us for status update.
3. An 18-month warranty period
A warranty certificate will issued after shipment and you will not have any concern after buying valves.
4. Solutions to complaints within 3 days
Quick and responsible actions to complaints will protect your reputation and reduce the financial loss as much as possible.
Lug Type Butterfly Valves
Double Eccentric Butterfly Valves
4 Inch Butterfly Valves
Quick Detail
| Type | Butterfly Valve |
| Size | 4 Inch |
| Design Pressure | 150LB |
| Construction | Double Eccentric |
| Connection Type | Lug Type |
| Operation | Lever Operated |
| Design Code | API 609 |
| Temp&Pressure | ASMEB16.34 |
| Flange Size | ASMEB16.5 |
| Test & Inspection | API 598 |
| Body Material | ASTM A351 CF8M |
| Temperature Range | -30℃~180℃ |
| Application | Water, Oil, Gas |
Design features
1. Valves are high performance with offset seat and double eccentric disc design.
2. Valve seats are designed for full pressure, bidirectional sealing.
3. Valve is equipped with upper and lower low friction bearings.
4. One-Piece shaft design equipped with Blow-Out Proof and Anti-Static devices.
5. Patented Seat Retainer Ring fixed without bolts and offering complete uninterrupted seal face. 6. Valve has integral body stop to prevent over travel
Technical Drawing
Dimension Check
Packing
Our Service
Kelly customer service is one of our biggest competitive advantages. In Kelly, we provide-
1. Quotation within 24 hours or no later than 3 days
This will let you meet the quotation submission deadline and enhance your working efficiency.
2. Weekly status report of your order
In this way, you will have a clear picture of your order. You do not need to waste time on pushing us for status update.
3. An 18-month warranty period
A warranty certificate will issued after shipment and you will not have any concern after buying valves.
4. Solutions to complaints within 3 days
Quick and responsible actions to complaints will protect your reputation and reduce the financial loss as much as possible.
