ASTM A216 WCB Concentric Lug Butterfly Valve, DN250, PN16
Key Specifications / Features
ASTM A216 WCB Concentric Butterfly Valve Supplier: Lug Type Butterfly Valve, Concentric Type, EN 593, ASTM A216 WCB, DN250, PN16, Lever Operated.
- Hits: 17
- Categories: Butterfly Valve
- Tags: ASTM A216 WCB Butterfly Valve , Concentric Butterfly Valve , Lug Butterfly Valve
Detail Information
ASTM A216 WCB Concentric Lug Butterfly Valve, DN250, PN16
General Description
The lug version of the butterfly valve's design is similar to a 3-piece ball valve in that one end of the line can be taken off without having an effect on the opposing side.
Quick Details
Features
-Manual, pneumatic or electric actuators available.
-Rubber seat is non-collapsible, stretch resistant, and blowout proof.
-The precision machined disc ensures low operating torque and effective sealing.
-One piece shaft ensures dependability and positive disc positioning.
Technical Drawing
Dimension Check
Packing
FAQ
1. How long have you been in business and how long have you producing valves?
We have been in valve exporting industry for more than 10 years since foundation in 2008. Our business has expanded tremendously to five continents all around the world.
2. What are your main products and their advantages?
Our main products include gate, globe, check, ball, butterfly, plug valves and strainers, available in different materials, sizes and pressure, which are widely used in various industries.
3. Does Xiamen Kelly Valves Industry Co., Ltd. make products for other companies?
Yes, of course. We have a reference list with customer information like country, product type, order volume and some even with project name
General Description
The lug version of the butterfly valve's design is similar to a 3-piece ball valve in that one end of the line can be taken off without having an effect on the opposing side.
Quick Details
| Type | Butterfly Valve |
| Nominal Diameter | DN250 |
| Nominal Pressure | PN16 |
| Construction | Concentric Type; |
| Connection | Lug Type; |
| Operation | Lever |
| Design & Manufacture | EN 593 |
| End Connection | EN 1092/ ANSI B16.5 |
| F to F or E to E | EN 558-1 |
| Test & Inspection | EN 12266 |
| Body Material | ASTM A216 WCB |
| Disc Material | ASTM A351 CF8 |
| Working Temp. | -17˜80°C |
| Media | W.O.G |
Features
-Manual, pneumatic or electric actuators available.
-Rubber seat is non-collapsible, stretch resistant, and blowout proof.
-The precision machined disc ensures low operating torque and effective sealing.
-One piece shaft ensures dependability and positive disc positioning.

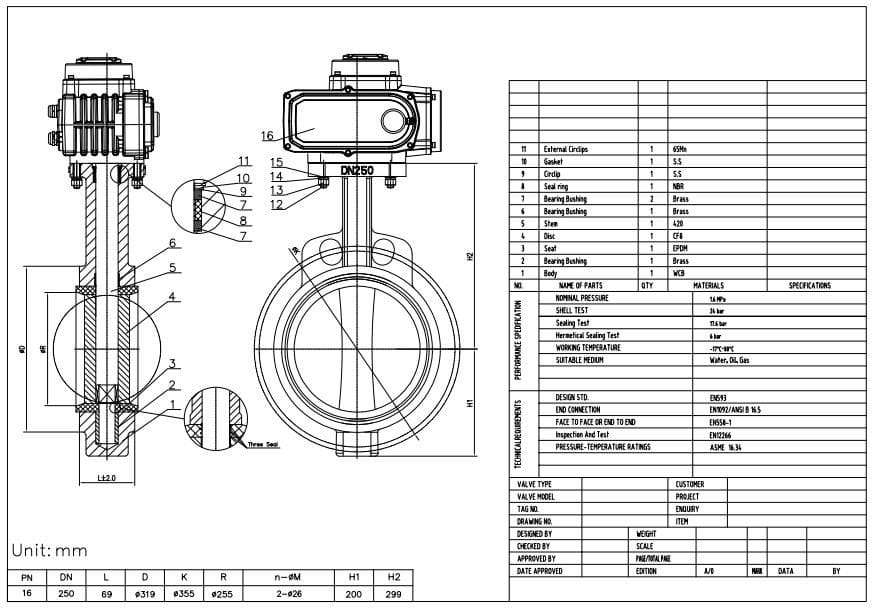

Technical Drawing

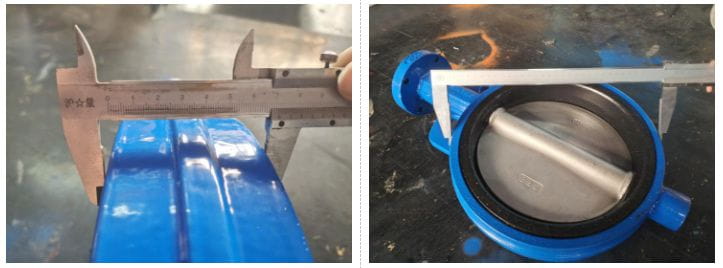

Dimension Check
Packing
FAQ
1. How long have you been in business and how long have you producing valves?
We have been in valve exporting industry for more than 10 years since foundation in 2008. Our business has expanded tremendously to five continents all around the world.
2. What are your main products and their advantages?
Our main products include gate, globe, check, ball, butterfly, plug valves and strainers, available in different materials, sizes and pressure, which are widely used in various industries.
3. Does Xiamen Kelly Valves Industry Co., Ltd. make products for other companies?
Yes, of course. We have a reference list with customer information like country, product type, order volume and some even with project name
