Key Specifications / Features
The DN100 PN40 Y-type strainer is designed according to the BS EN 13709 standard. It features a Y-shaped body made from EN 10213 1.0619 material. It has a mesh size of 0.25 mm and is built without a drain plug. The strainer is equipped with an RF (Raised Face) connection type, ensuring secure and reliable installation. This high-quality strainer is ideal for filtering debris from pipelines and ensuring smooth flow in various industrial applications.
- Model No.: Kelly-YST-20241221
- Hits: 7
- Categories: Pipe Strainer
- Tags: BS EN 13709 Strainer , Y Type Strainer , EN 10213 1.0619 Strainer
Detail Information
EN 10213 1.0619 Y Strainer, BS EN 13709.
Features
1. Compact design, small size, minimal space occupation, easy to install and maintain in various pipeline systems.
2. Optimization design of flow channels. Being able to filter impurities while maintaining low fluid pressure loss, improving system efficiency.

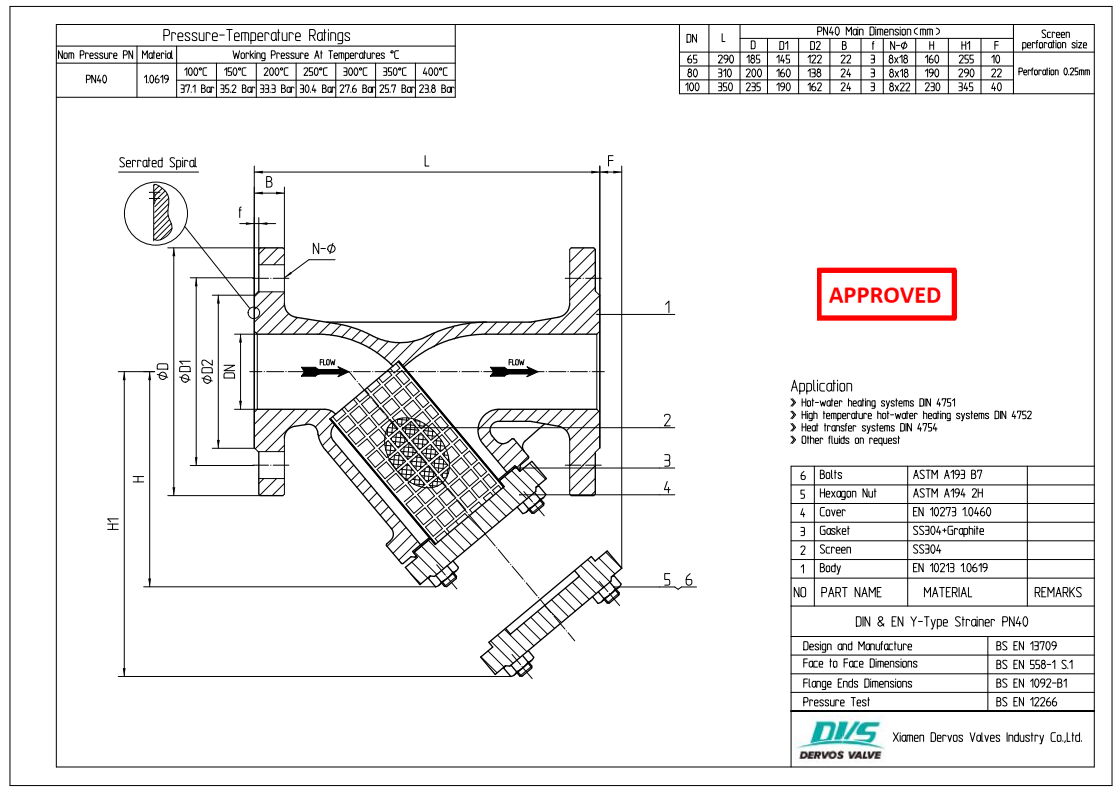

Technical Drawing

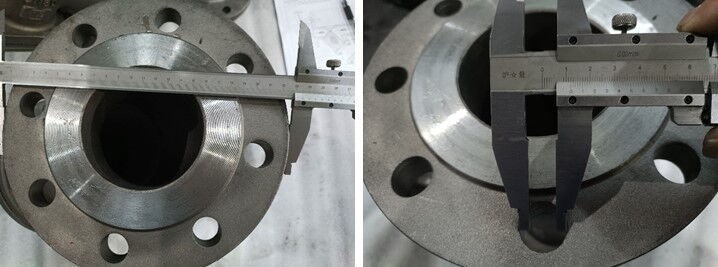

Dimension Checking

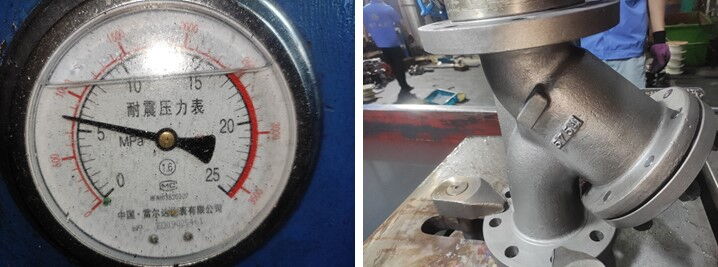

Pressure Testing

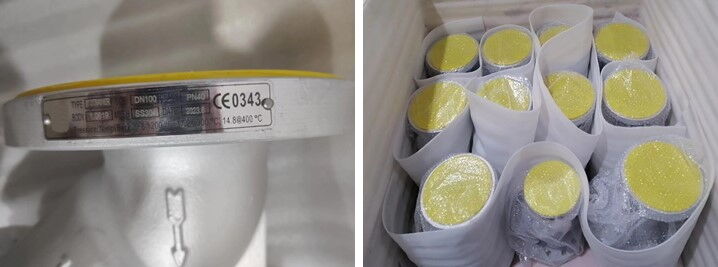

Nameplate & Packing

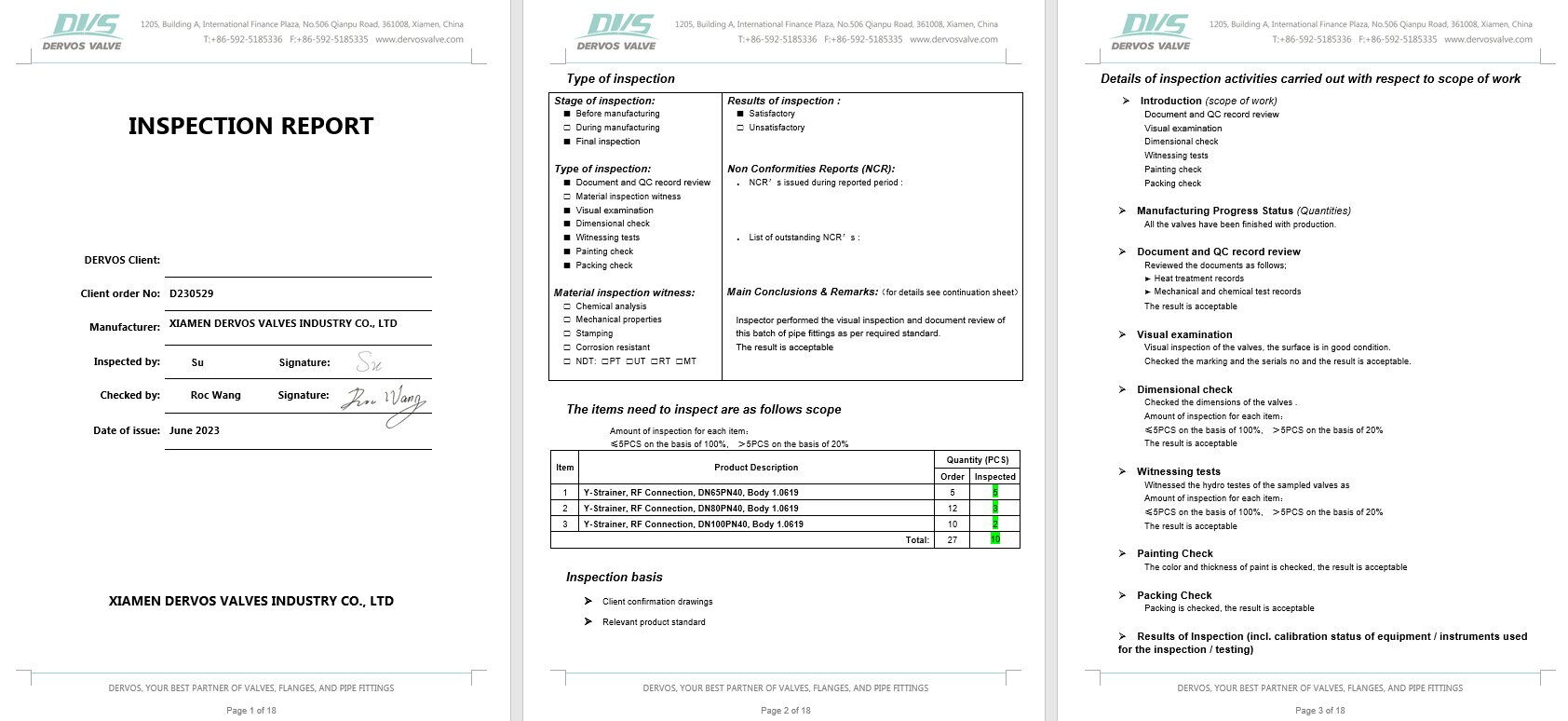

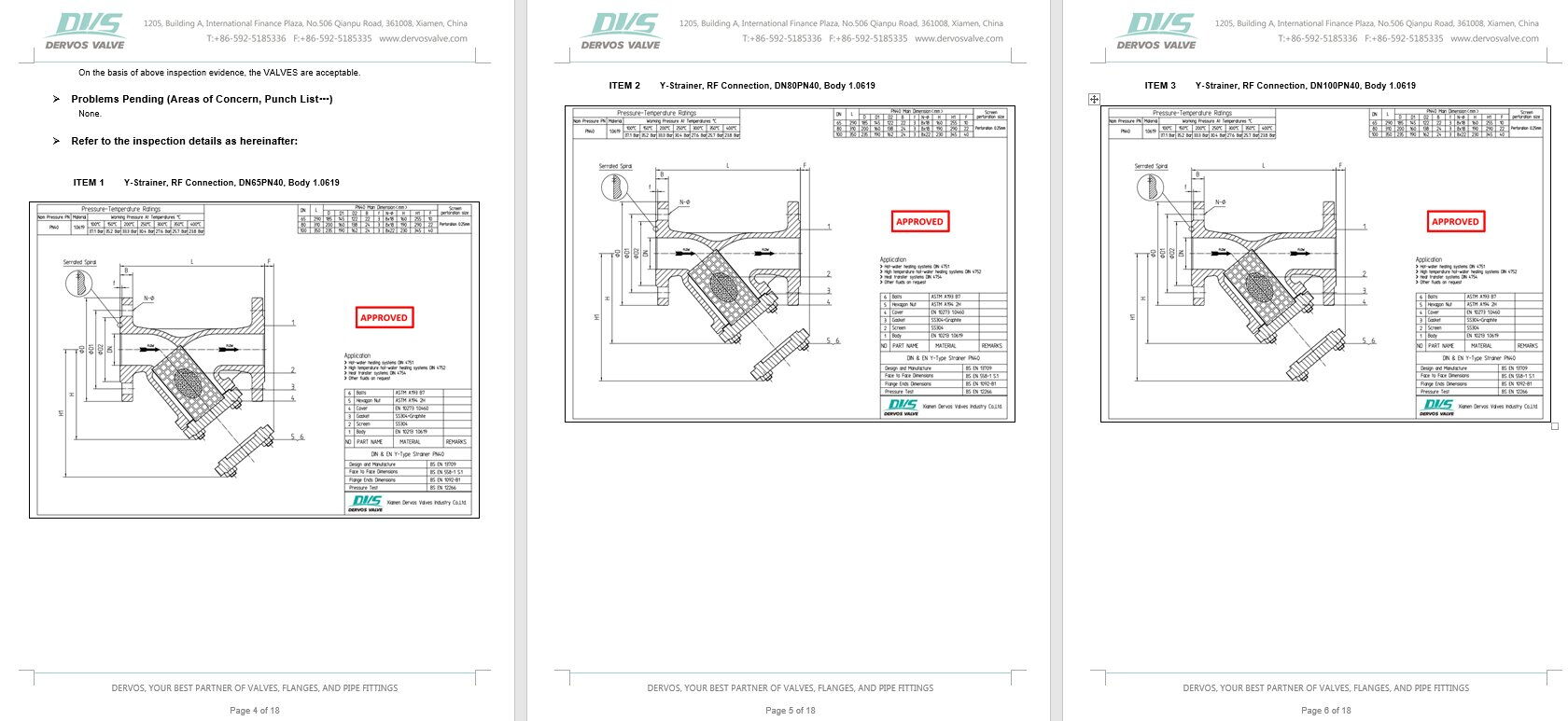

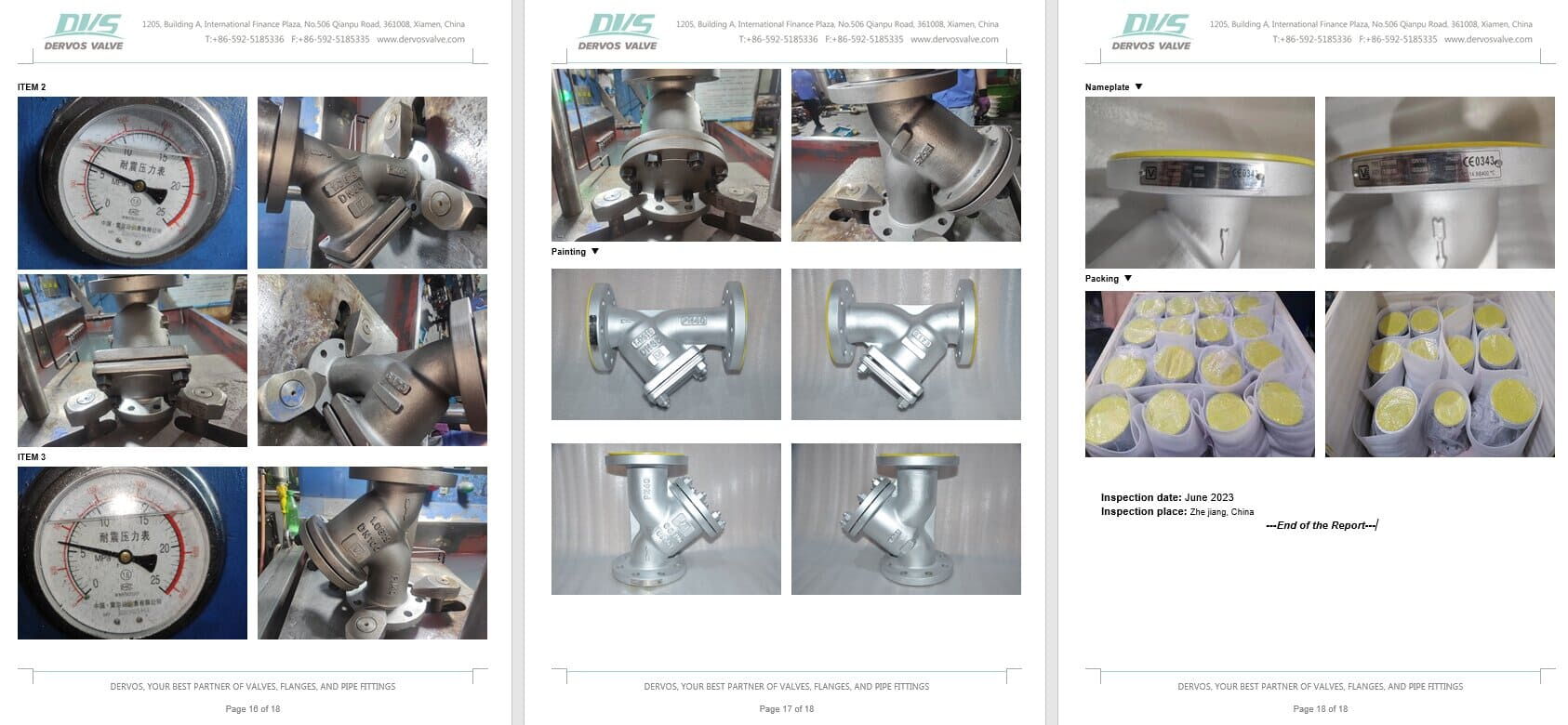

Inspection Report
