BS 5352 Globe Valve, DN40, PN100, A105+STL, RF, Hand Wheel
Key Specifications / Features
DN40 PN100 globe valve is made according to BS 5352 standard. The valve body is made of A105+STL. It has the structural characteristics of straight through type. Its connection mode is RF welding flange. And it has hand wheel operation mode.
- Hits: 5
- Categories: Globe Valve
- Tags: DN40 Globe Valve , PN100 Globe Valve , Flange Globe Valve
Detail Information
ASTM A105+STL Globe Valve BS 5352 DN40 PN100 RF Hand Wheel
Product Description
Features
1. The structure is simple and convenient for manufacturing and maintenance;
2. During opening and closing, there is no relative sliding between the valve disc and the sealing surface of the valve body, so there is no serious wear or abrasion.

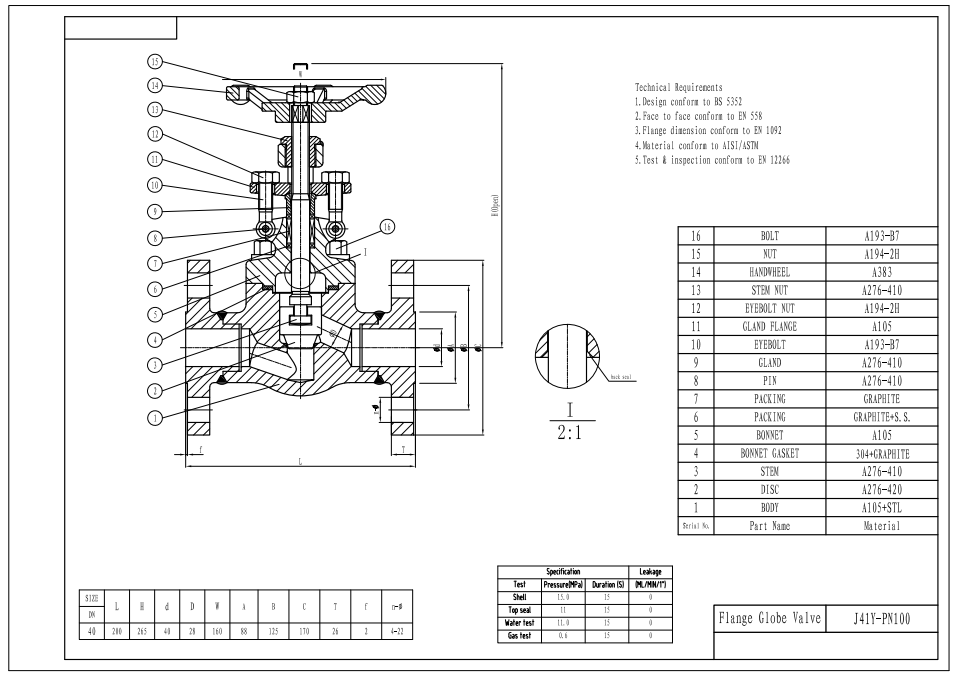

Technical Drawing

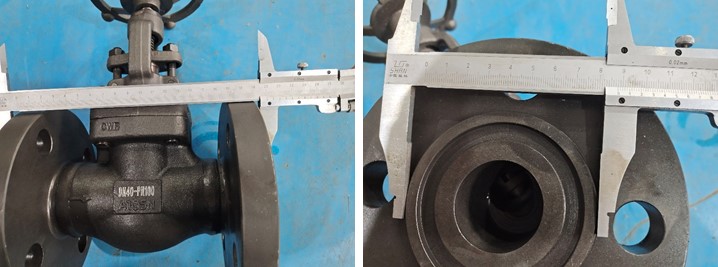

Dimension Checking

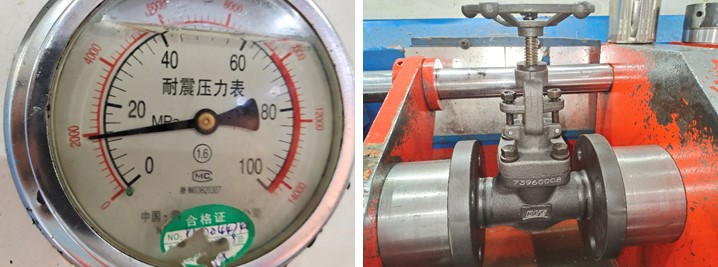

Pressure Testing

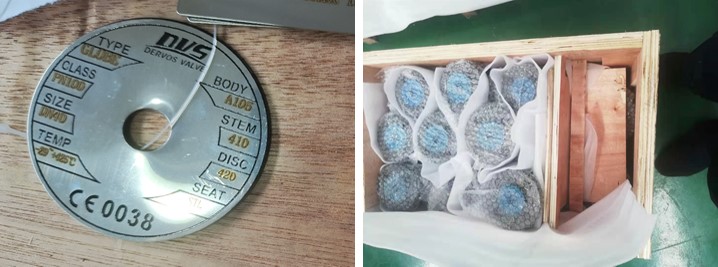

Nameplate & Packing
Company Brief Introduction
Specializing in valve industry over 15 years, Kelly becomes the leading vendor of gate, globe, check, ball, butterfly, plug valves and strainers. We serve oil and gas user such as LUKOIL, MOL, YPF with local partners.
Kelly show its advantages in:
1. Our partnerships with tens of stable suppliers allow us to provide customers with a wide range of high-quality products at a competitive price.
2. Each order is under strict quality control with inspection reports before delivery.
3. We value delivery time as much as our customers do. With the powerful purchasing system, we follow each order closely to secure on-time delivery.
4. One-stop solutions will be offered in a timely manner.
Product Description
| Type | Globe Valve |
| Size | DN40 |
| Pressure | PN100 |
| Connection | RF Welding Flange |
| Operation | Hand Wheel |
| Body Material | A105+STL |
| Design Norm | BS 5352 |
| Face to Face | EN 558 |
| Flange Dimension | EN 1092 |
| Material | AISI / ASTM |
| Test & Inspection Code | EN 12266 |
| Applicable Medium | Water, Oil and Gas |
Features
1. The structure is simple and convenient for manufacturing and maintenance;
2. During opening and closing, there is no relative sliding between the valve disc and the sealing surface of the valve body, so there is no serious wear or abrasion.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Company Brief Introduction
Specializing in valve industry over 15 years, Kelly becomes the leading vendor of gate, globe, check, ball, butterfly, plug valves and strainers. We serve oil and gas user such as LUKOIL, MOL, YPF with local partners.
Kelly show its advantages in:
1. Our partnerships with tens of stable suppliers allow us to provide customers with a wide range of high-quality products at a competitive price.
2. Each order is under strict quality control with inspection reports before delivery.
3. We value delivery time as much as our customers do. With the powerful purchasing system, we follow each order closely to secure on-time delivery.
4. One-stop solutions will be offered in a timely manner.
