ASTM A105 Angle Type Globe Valve, 3 Inch, 600 LB, API 602
Key Specifications / Features
3 Inch 600 LB globe valve is made according to API 602 standard. The valve body is made of A105+STL. It has the structural characteristics of 90° and bolt cover. Its connection mode is welding flange RF. And it has handwheel operation mode.
- Hits: 9
- Categories: Globe Valve
- Tags: ASTM A105 Globe Valve , 3 Inch Globe Valve , Class 600 LB Globe Valve
Detail Information
3 Inch 600 LB Angle Type Globe Valve RF A105 API 602 Handwheel
Features
1. Good sealing performance, low friction between sealing surfaces, and long service life;
2. Simple structure, convenient manufacturing and maintenance, small working stroke, and short opening and closing time.
Technical Drawing

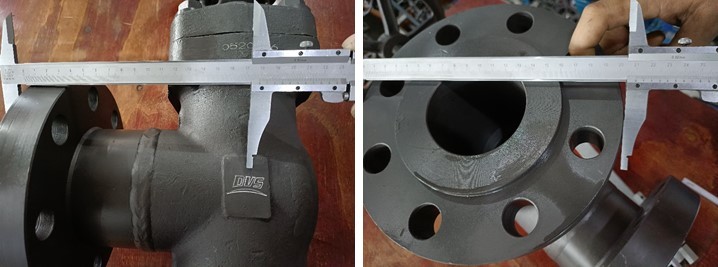

Dimension Checking

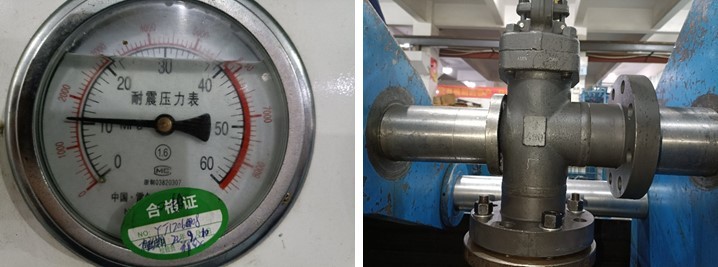

Pressure Testing

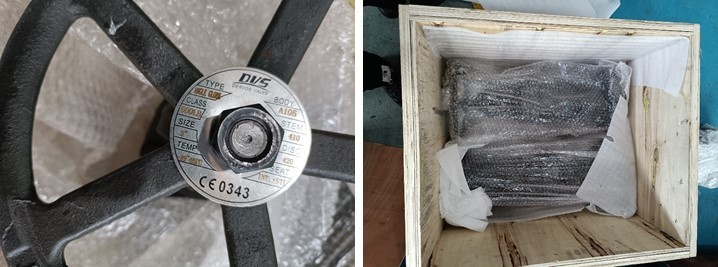

Nameplate & Packing

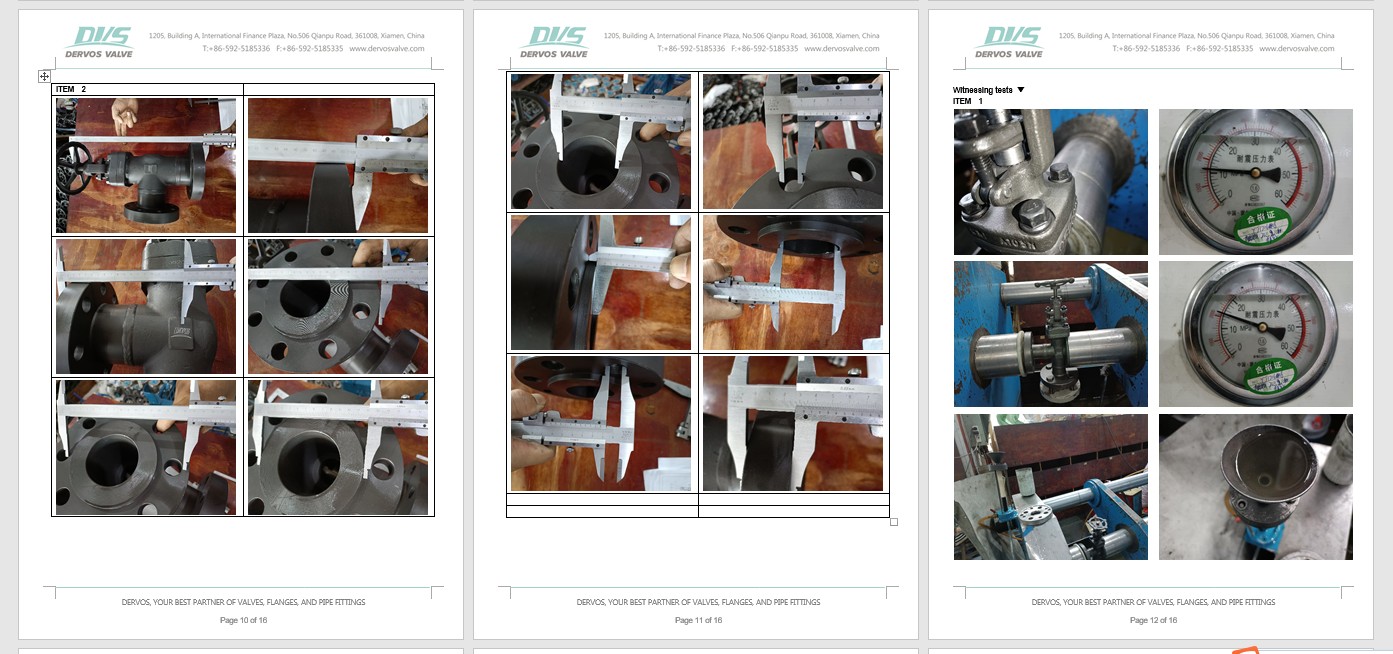

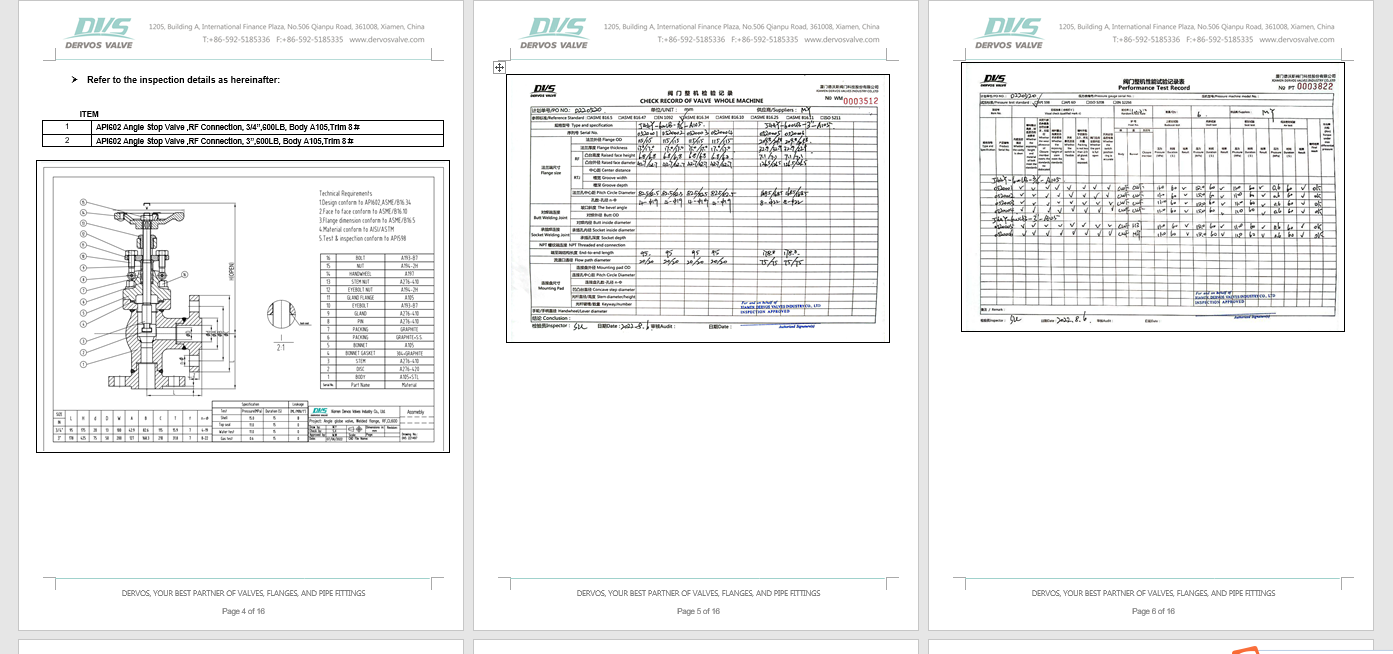

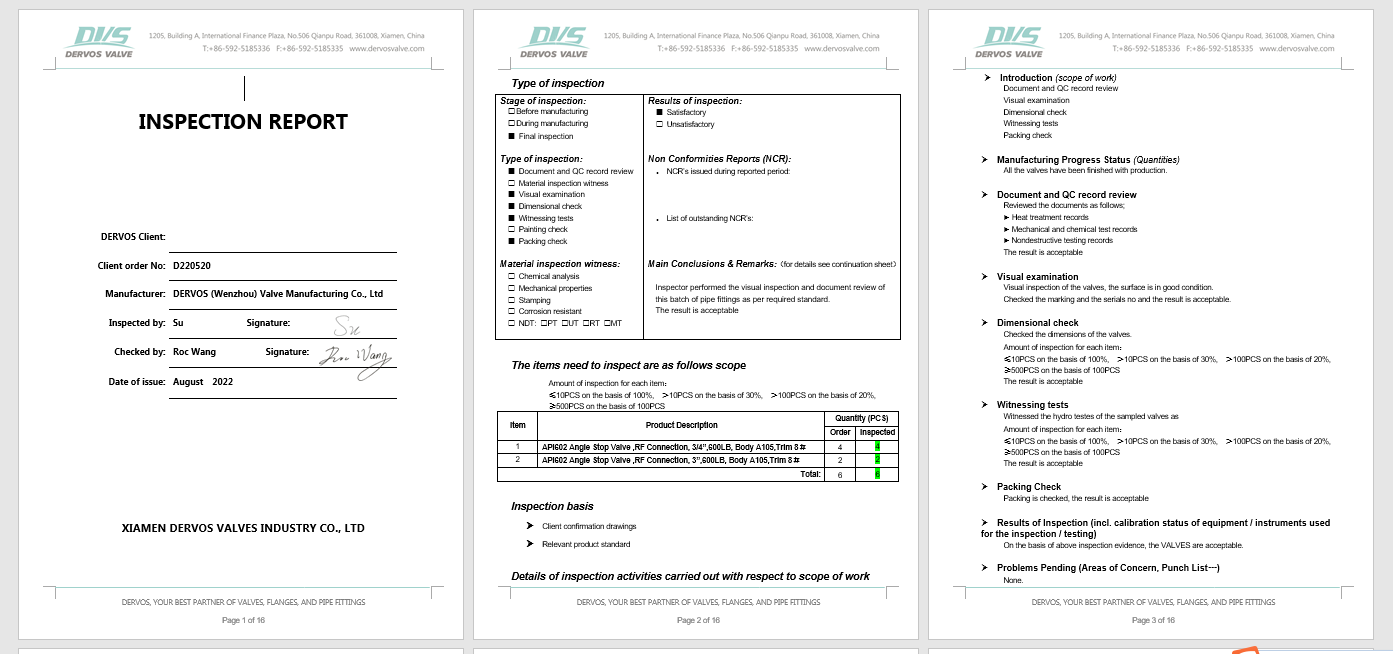

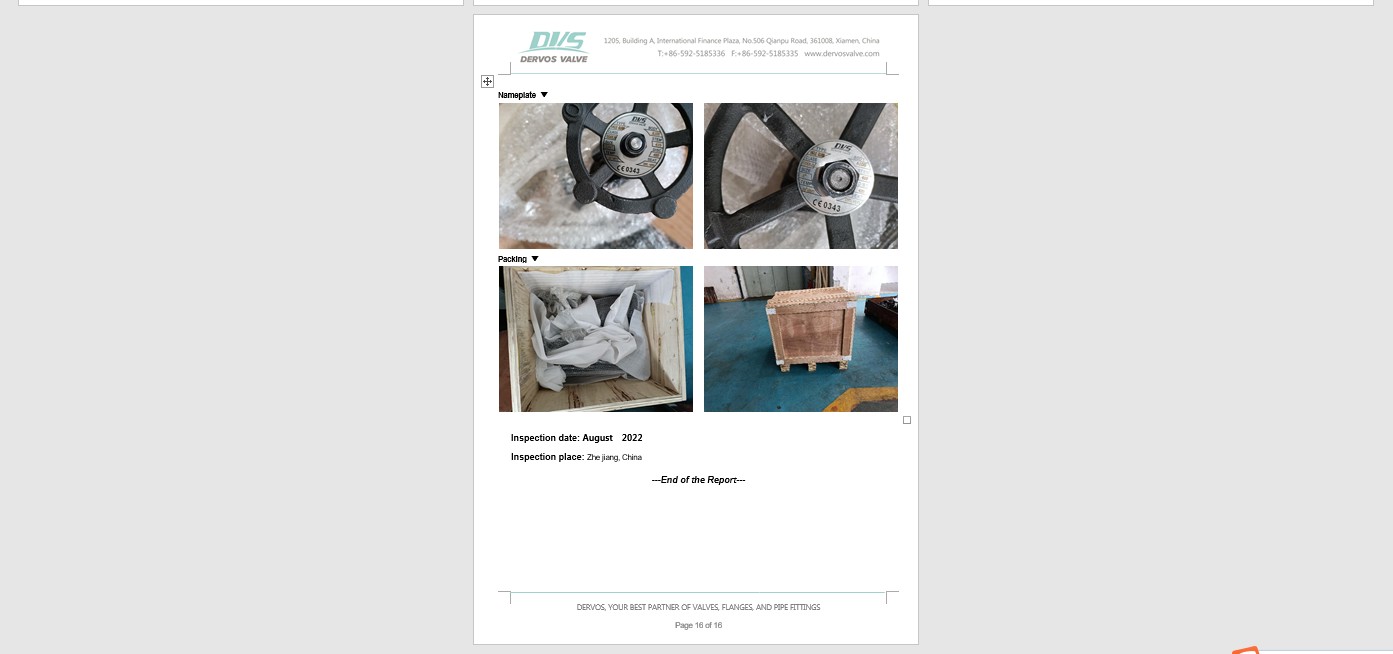

Inspection report
Features
1. Good sealing performance, low friction between sealing surfaces, and long service life;
2. Simple structure, convenient manufacturing and maintenance, small working stroke, and short opening and closing time.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
