BS 1873 Globe Valve, ASTM A351 CF8M, 4 Inch, 150 LB, RF
Key Specifications / Features
We Provide BS 1873 Globe Valves, Cast Steel Globe Valves, ASTM A351 CF8M, STL, 4 Inch, Class 150 LB, DN100, PN20, BS 1873, BB, RF Ends, HW-OP.
- Hits: 13
- Categories: Globe Valve
- Tags: BS 1873 Globe Valve , ASTM A351 CF8M Globe Valve , 4 Inch Globe Valve
Detail Information
4" 150 LB Cast Steel Globe Valve CF8M HW-OP BB RF
Introduction
4" 150 LB globe valve is made according to BS 1873 standard. The valve body is made of CF8M. It has the structural characteristics of a bolt cover, plug disc, standard flow, and body valve seat. Its connection mode is RF. And it has hand wheel operation mode.
Features
1. Simple structure, lightweight, good corrosion resistance;
2. Good sealing performance, low friction between sealing surfaces, long service life;
3. Small working stroke and short opening and closing time.

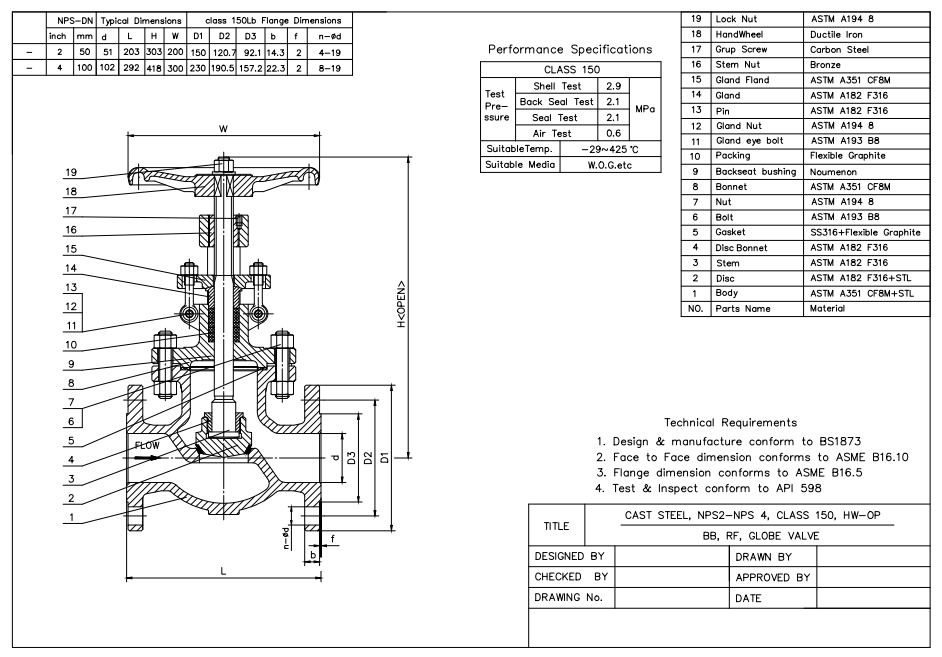

Technical Drawing

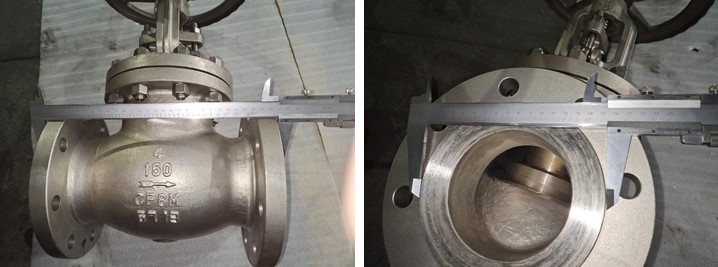

Dimension Checking

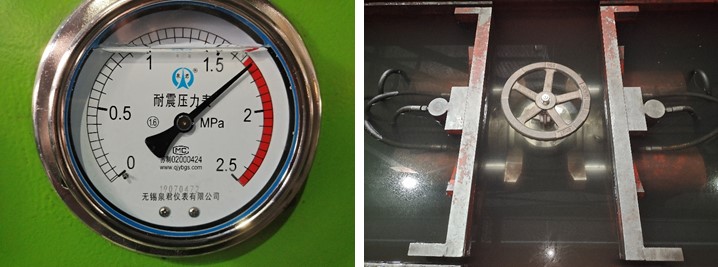

Pressure Testing

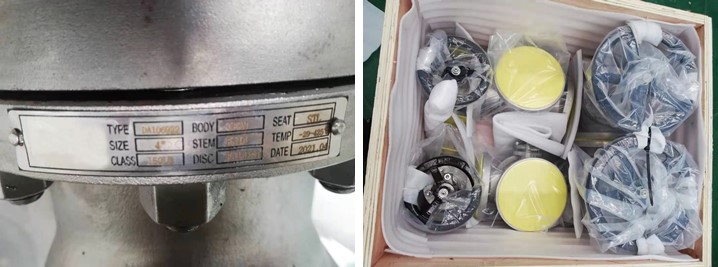

Nameplate & Packing

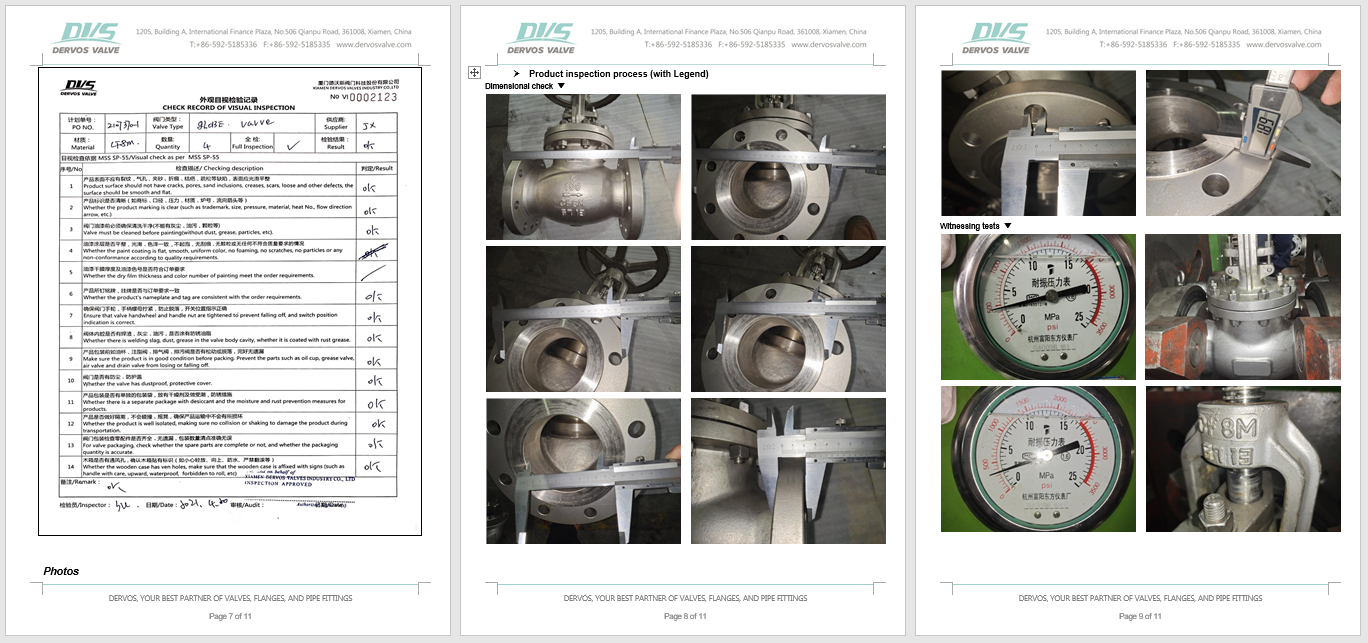

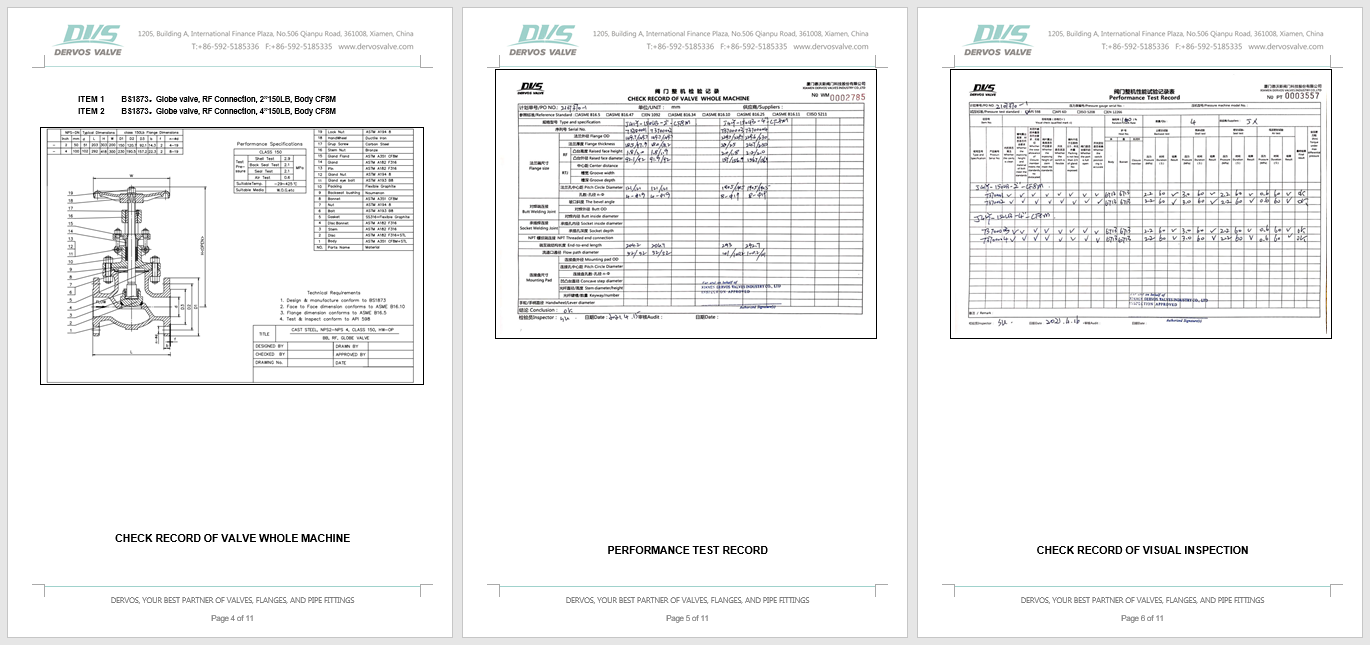

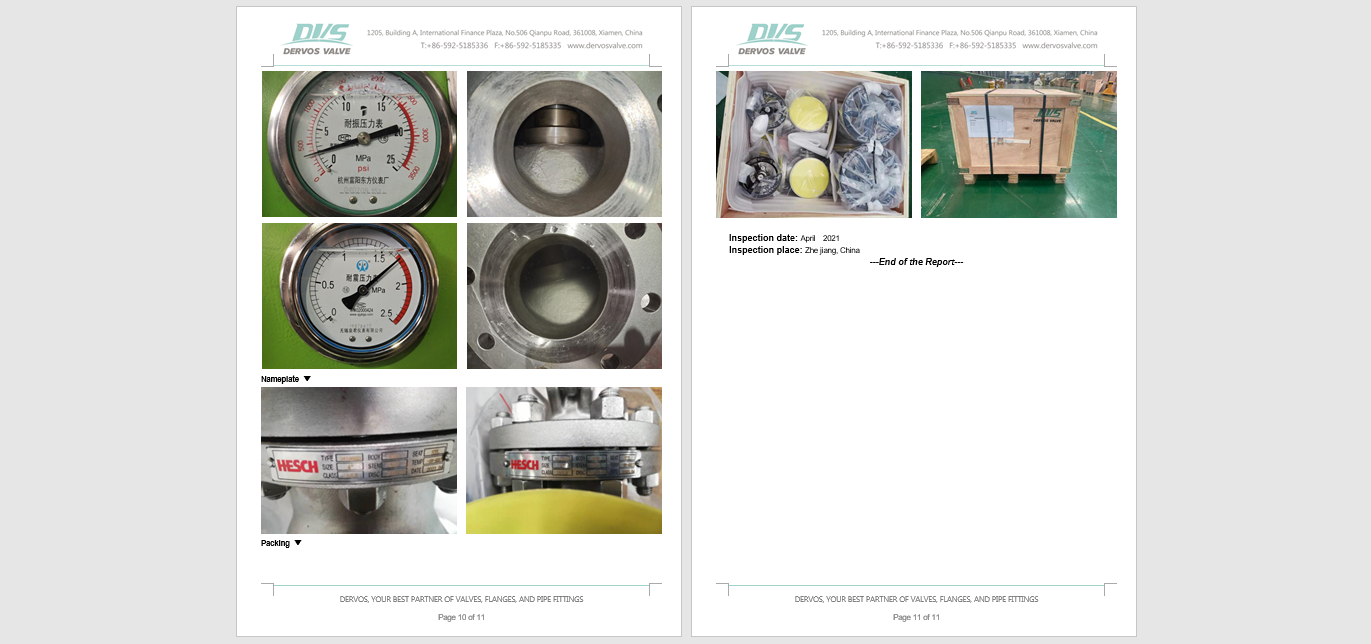

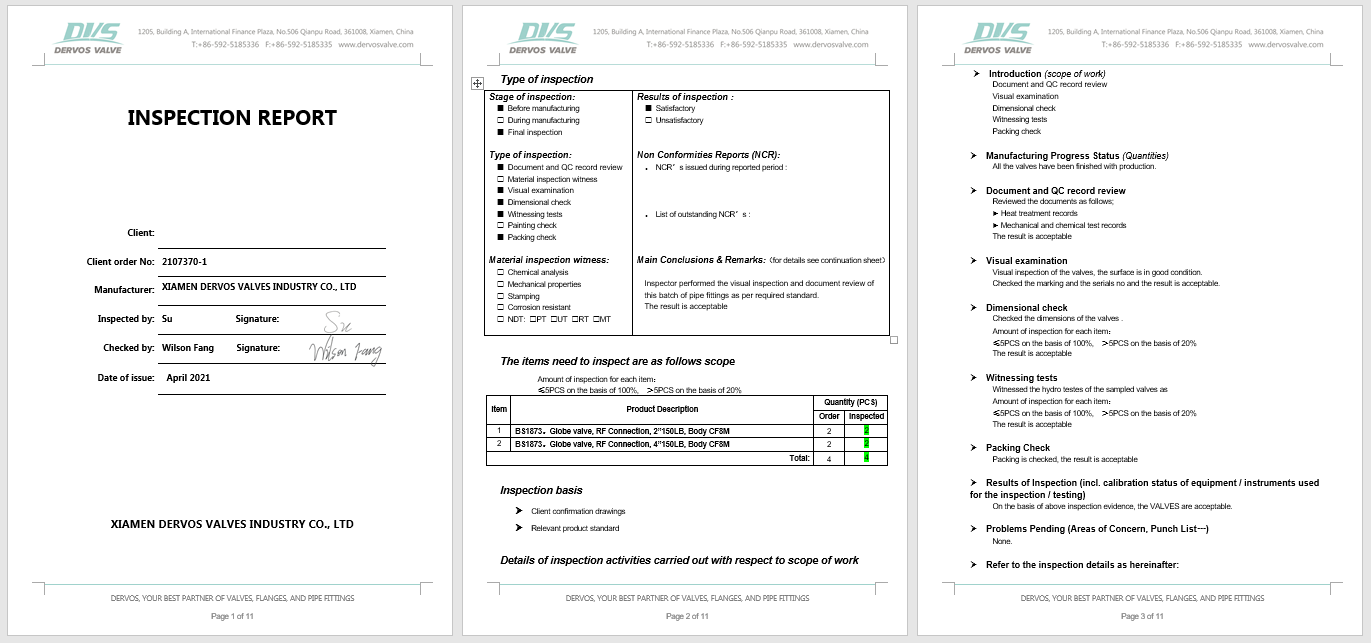

Inspection report
