Key Specifications / Features
We Provide ASTM A351 CF8M Globe Valves, ASTM A351 CF8M Cast Steel Globe Valves, 2 Inch, 150 LB, DN50, BS 1873, BB, RF, and Hand Wheel Operation.
- Hits: 0
- Categories: Globe Valve
- Tags: ASTM A351 CF8M Globe Valve , 2 Inch Globe Valve , Class 150 LB Globe Valve
Detail Information
2" 150 LB Cast Steel Globe Valve CF8M HW-OP BB RF
Introduction
2" 150 LB globe valve is made according to BS1873 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of a bolt cover, plug disc, standard flow, and body valve seat. Its connection mode is RF. And it has hand wheel operation mode.
Features
1. Reasonable structure, reliable sealing, excellent performance and beautiful appearance;
2. Good wear resistance, high-temperature resistance, corrosion resistance, abrasion resistance and long service life.

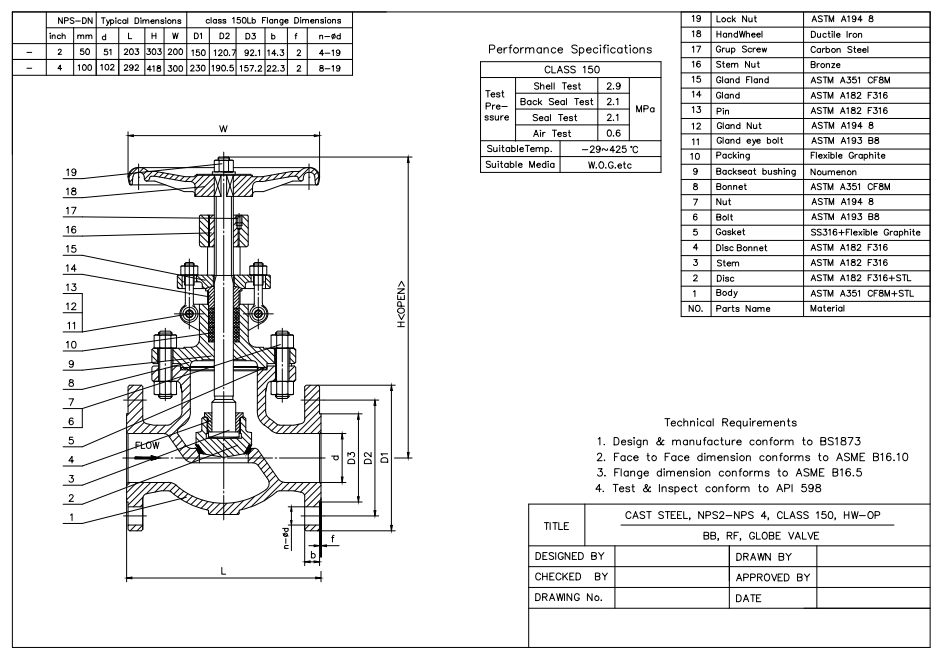

Technical Drawing

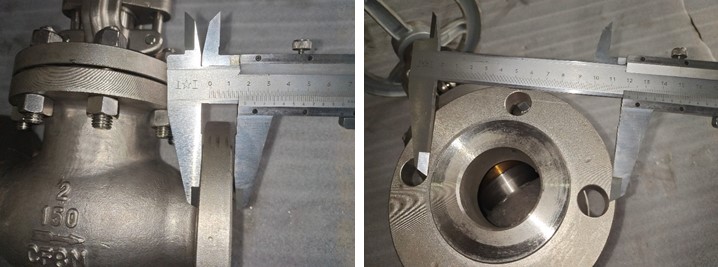

Dimension Checking

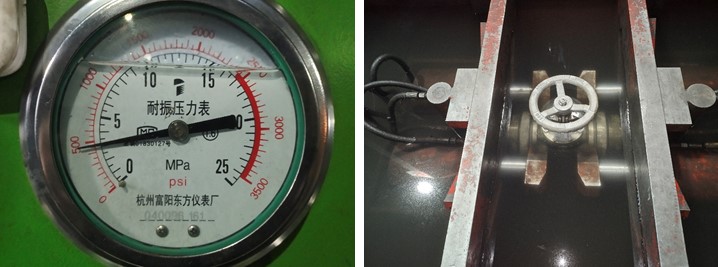

Pressure Testing

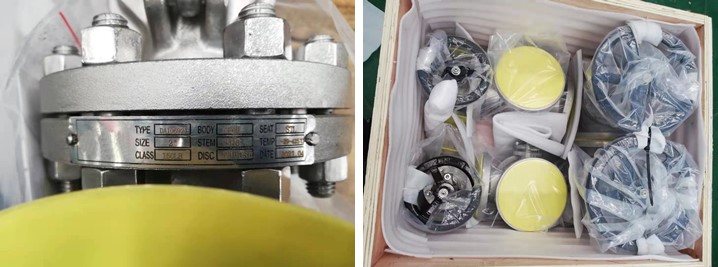

Nameplate & Packing

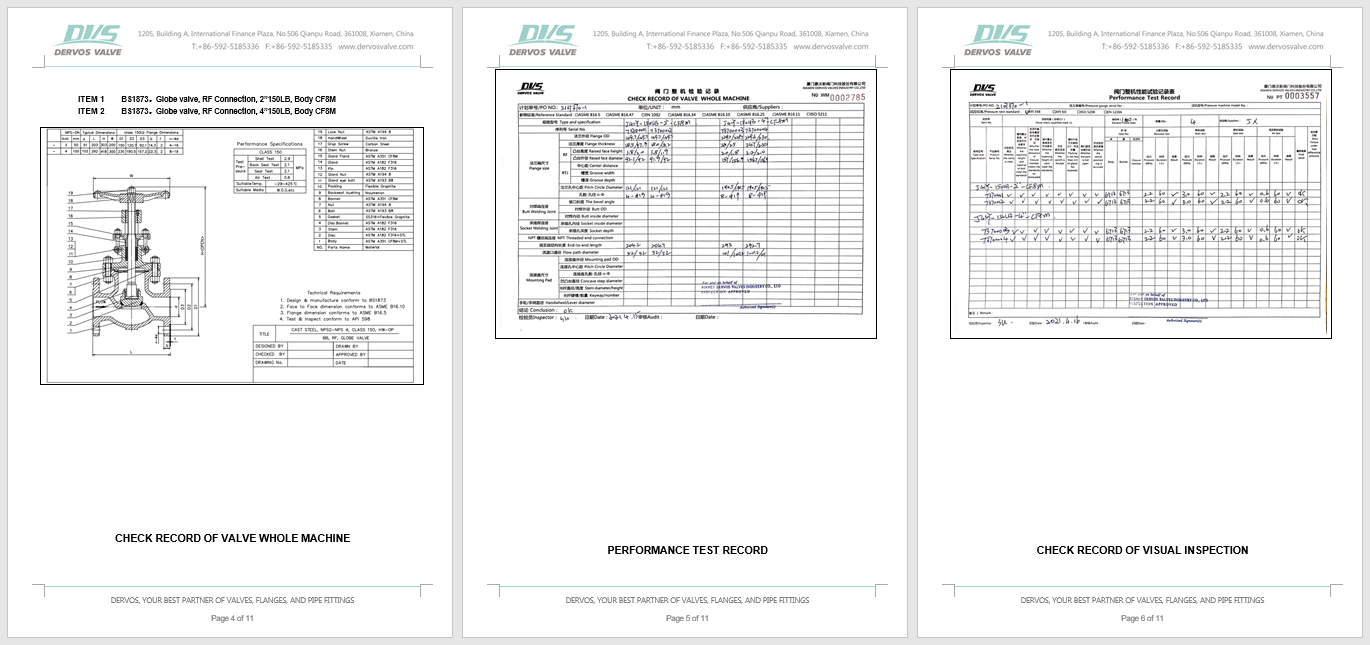

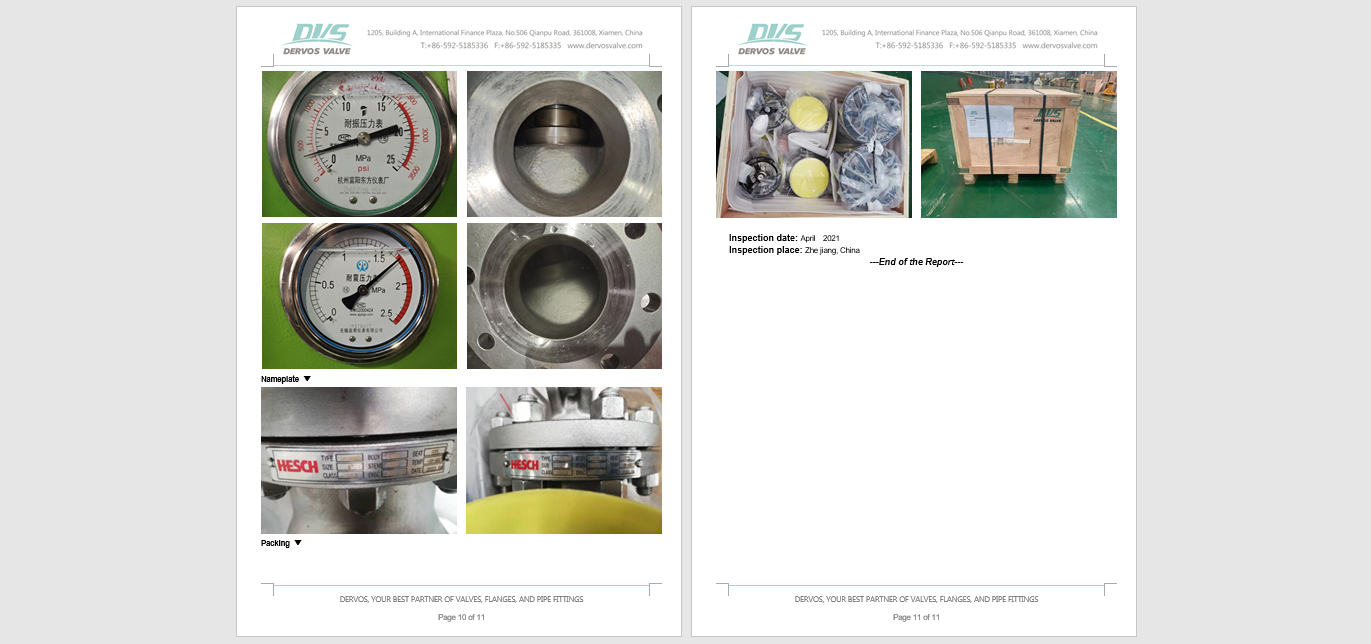

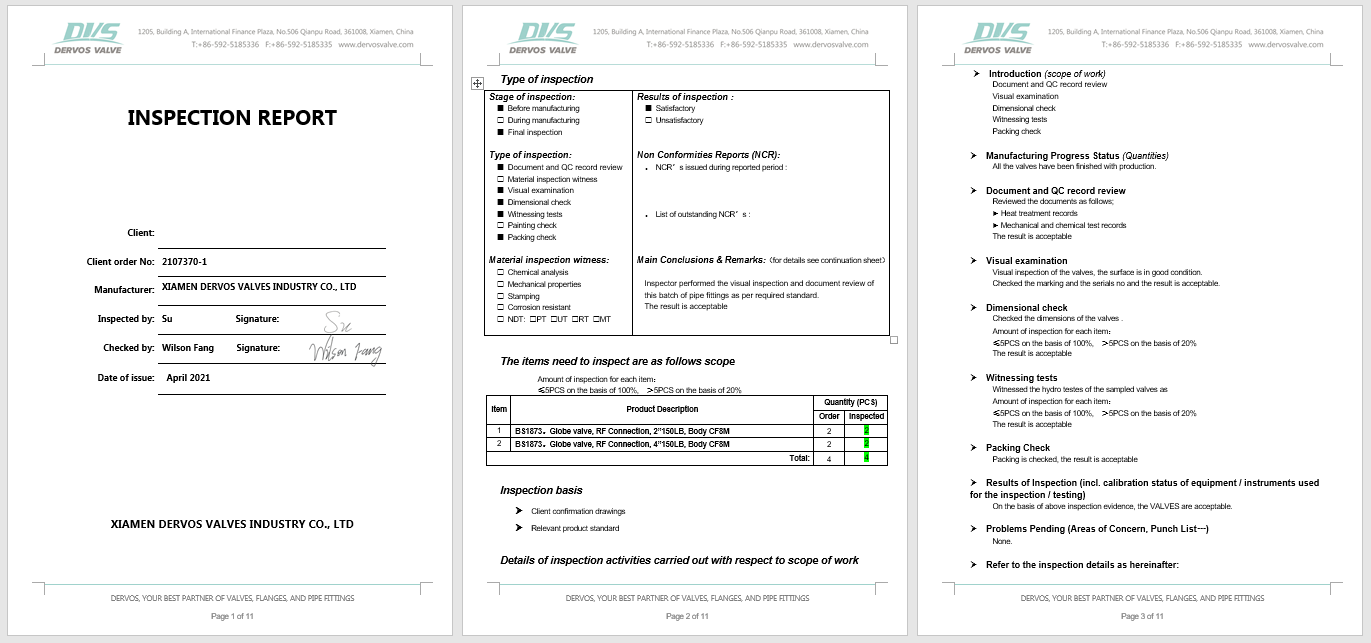

Inspection report
Introduction
2" 150 LB globe valve is made according to BS1873 standard. The valve body is made of ASTM A351 CF8M. It has the structural characteristics of a bolt cover, plug disc, standard flow, and body valve seat. Its connection mode is RF. And it has hand wheel operation mode.
Features
1. Reasonable structure, reliable sealing, excellent performance and beautiful appearance;
2. Good wear resistance, high-temperature resistance, corrosion resistance, abrasion resistance and long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
