ASTM A352 LCC Y Strainer, 12 Inch, 1500 LB, ASME B16.34, RTJ
Key Specifications / Features
12-inch 1500 LB Y type strainer is made according to ASME B16.34 standard. The valve body is made of ASTM A352 LCC. It has the structural characteristics of bolt cover, plug: SW connection, with DN20 1500 LB RTJ blind flange. Its connection mode is RTJ.
- Hits: 7
- Categories: Pipe Strainer
- Tags: ASTM A352 LCC Strainer , Y Strainers , 12 Inch Strainer
Detail Information
RTJ Connection, 12 Inch 1500 LB Y Type Strainer, Body LCC, ASME B16.34
Features
1. Widely used in industries such as water treatment, petrochemicals, pharmaceuticals, food, metallurgy, etc.;
2. Low manufacturing cost, high comprehensive cost-effectiveness, suitable for large-scale applications.

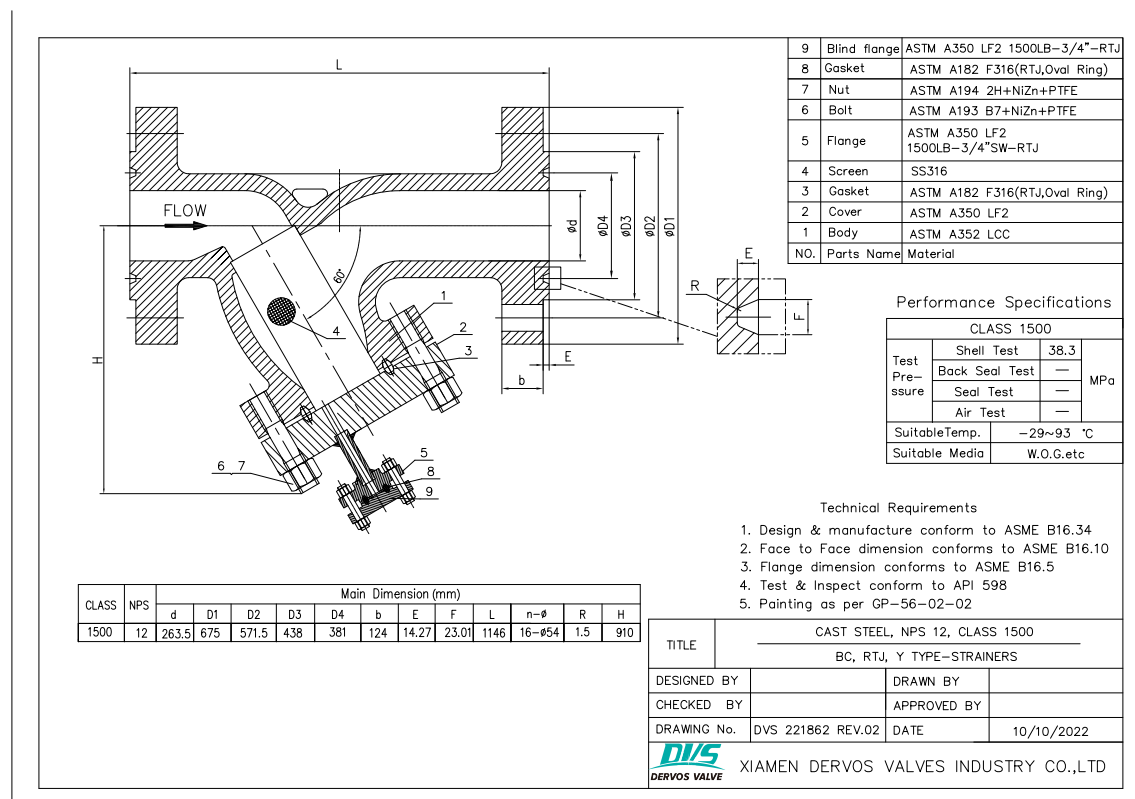

Technical Drawing

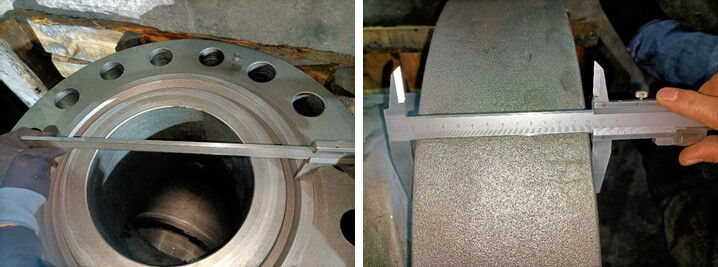

Dimension Checking

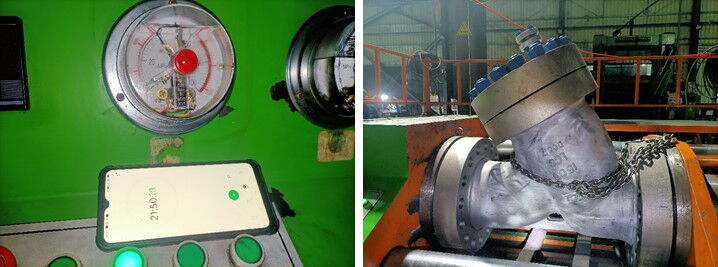

Pressure Testing

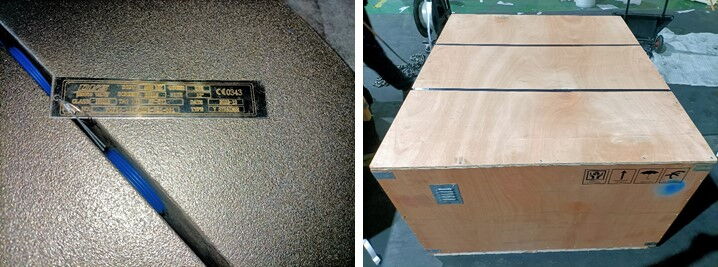

Nameplate & Packing

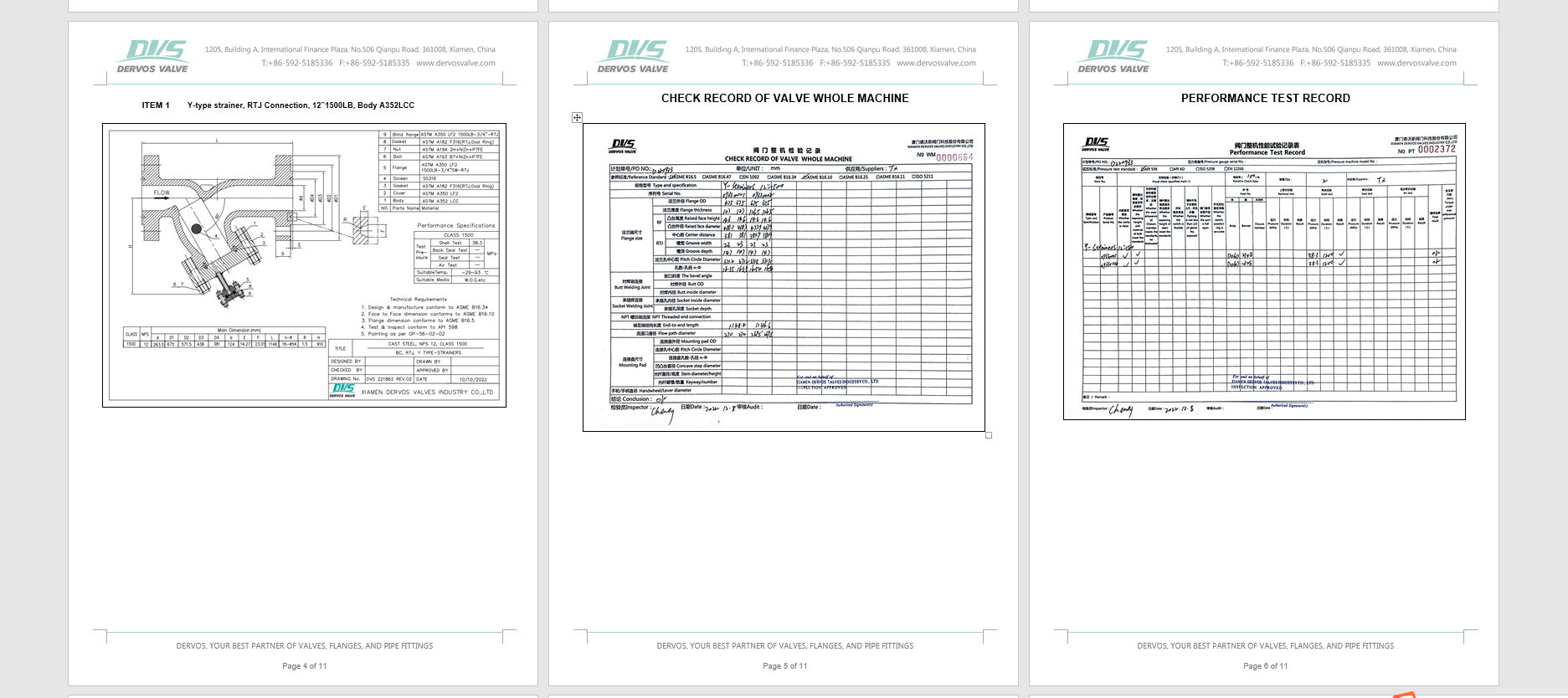

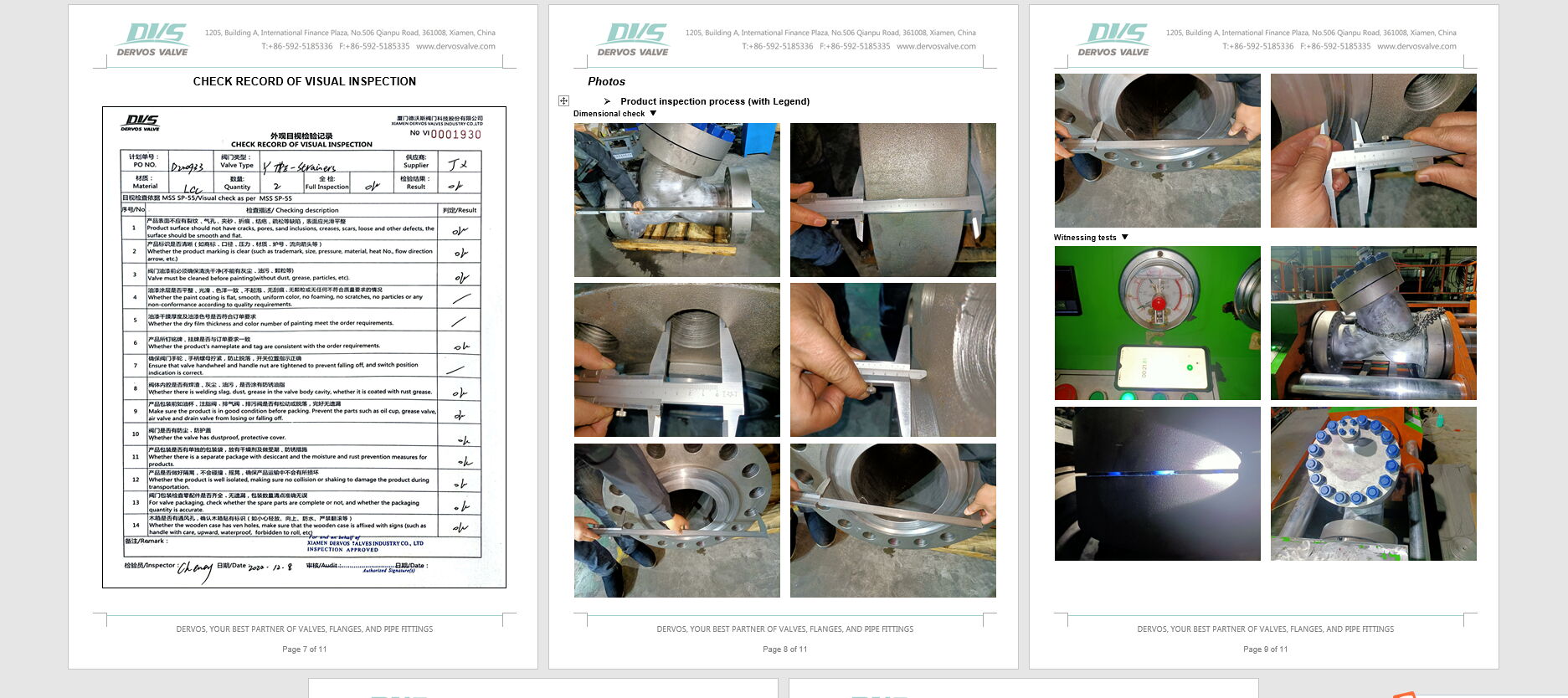

Inspection report
Features
1. Widely used in industries such as water treatment, petrochemicals, pharmaceuticals, food, metallurgy, etc.;
2. Low manufacturing cost, high comprehensive cost-effectiveness, suitable for large-scale applications.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
