API 594 Dual Plate Wafer Check Valve, 12 Inch, 150 LB, RF
Key Specifications / Features
We Provide API 594 Dual Plate Wafer Check Valves, API 594 Dual Plate Check Valves, 12 Inch, Class 150 LB, RF, ASTM A216 WCB, SS 316, and Wafer RF Ends.
- Hits: 6
- Categories: Wafer Check Valve
- Tags: API 594 Check Valve , Dual Plate Check Valves , Wafer Check Valve
Detail Information
API 12" 150 LB Dual Plate Wafer Check Valve (RF)
Introduction
12" 150 LB Wafer Check Valve is made according to API 594. The valve body is made of A216 WCB + 316. It has the structural characteristics of a double plate. Its connection mode is wafer RF type.
Features
1. Wafer structure, short length, small volume, lightweight and convenient installation.;
2. Good sealing performance, long service life, high reliability, and rapid closure of valve disc.

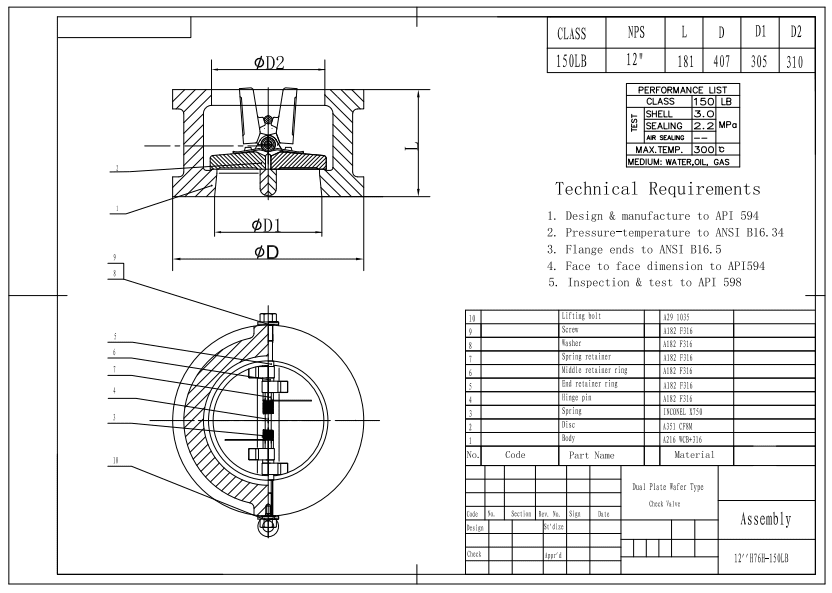

Technical Drawing

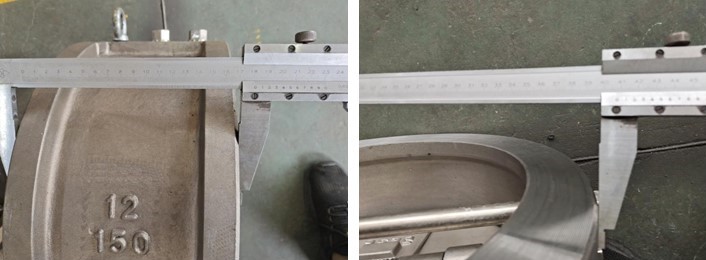

Dimension Checking

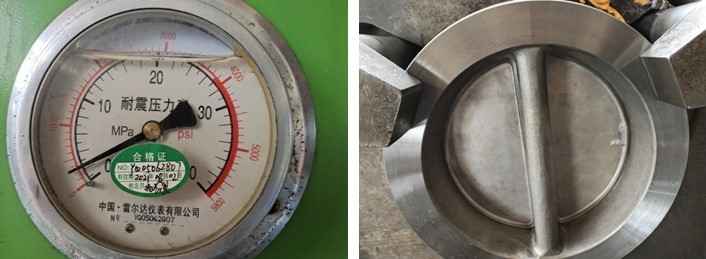

Pressure Testing

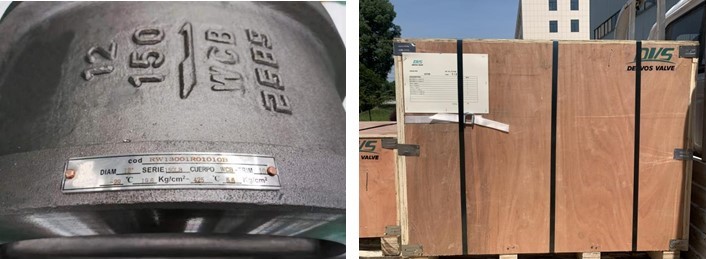

Nameplate & Packing

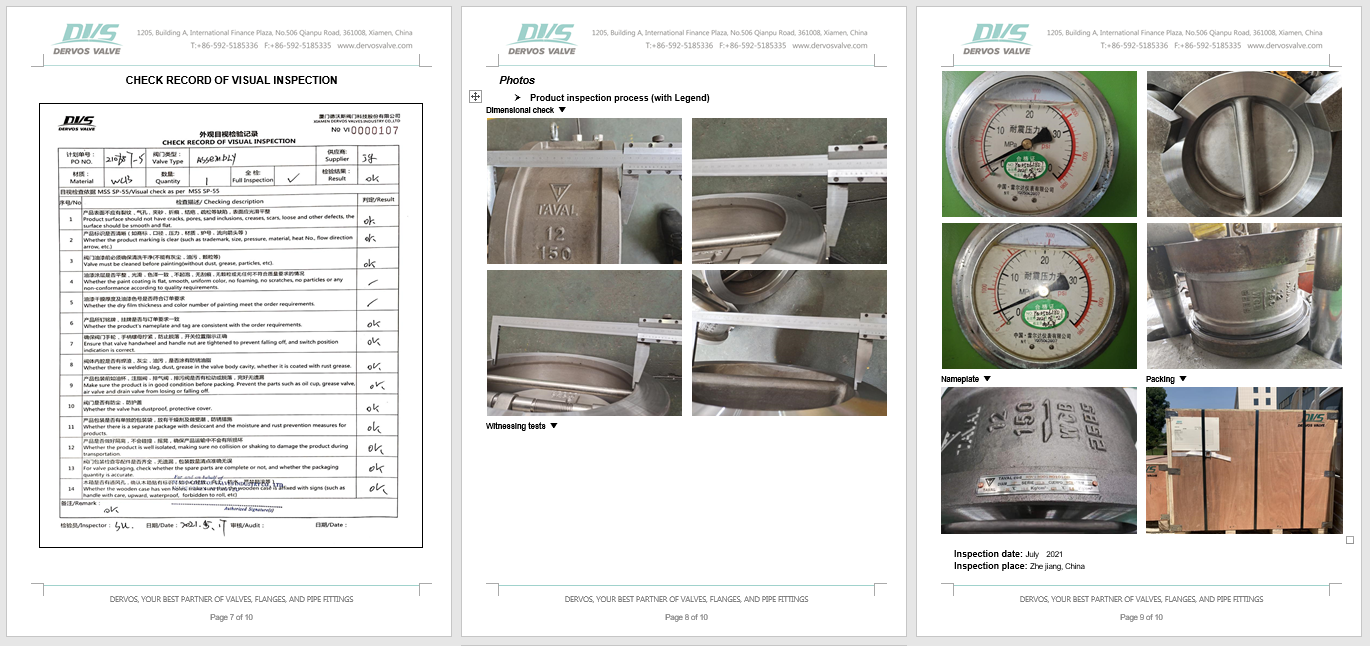

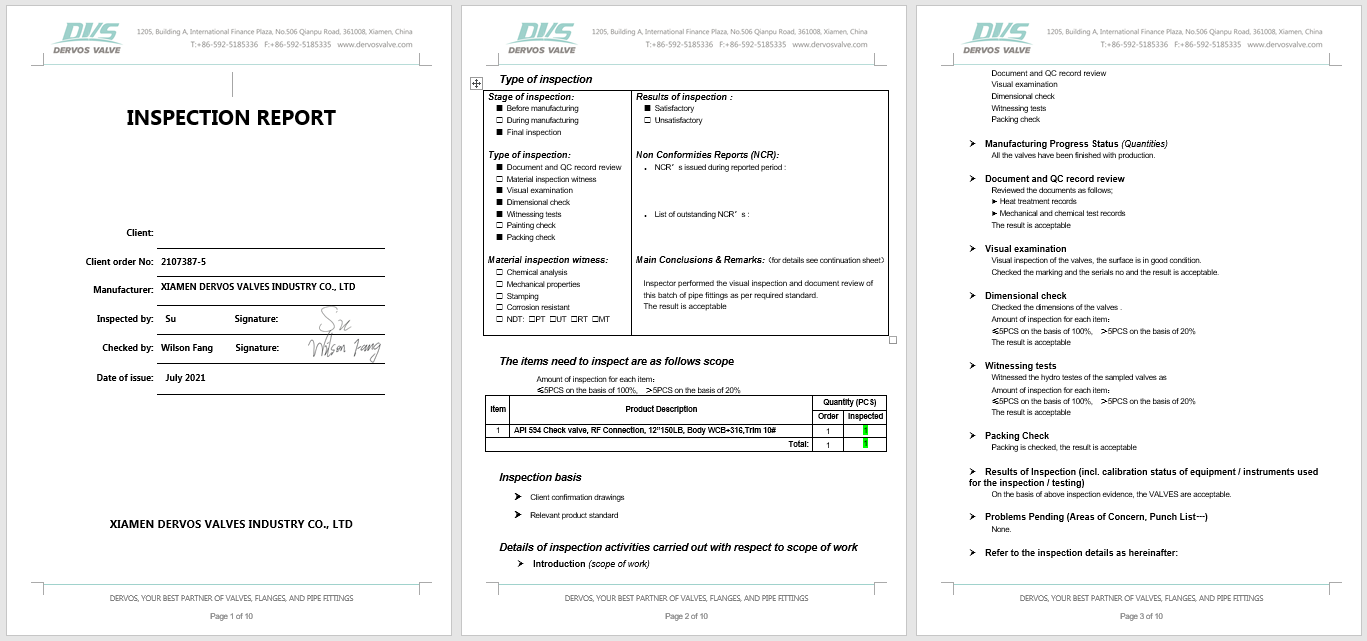

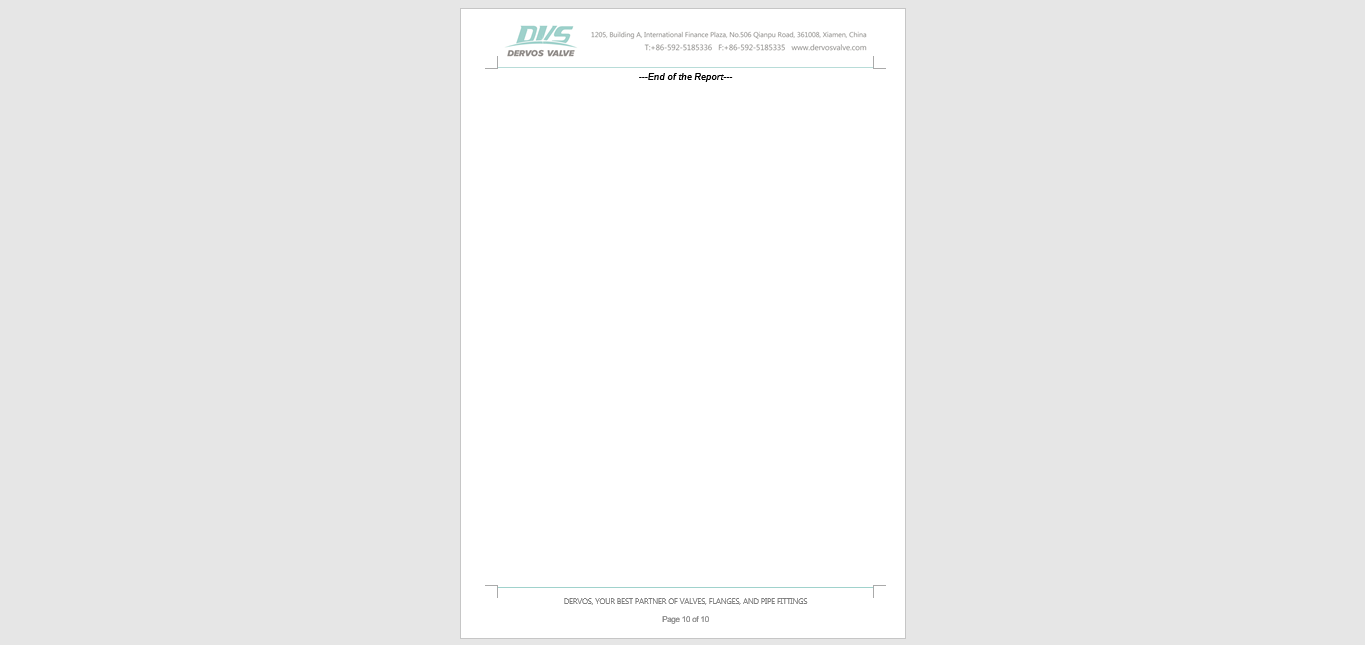

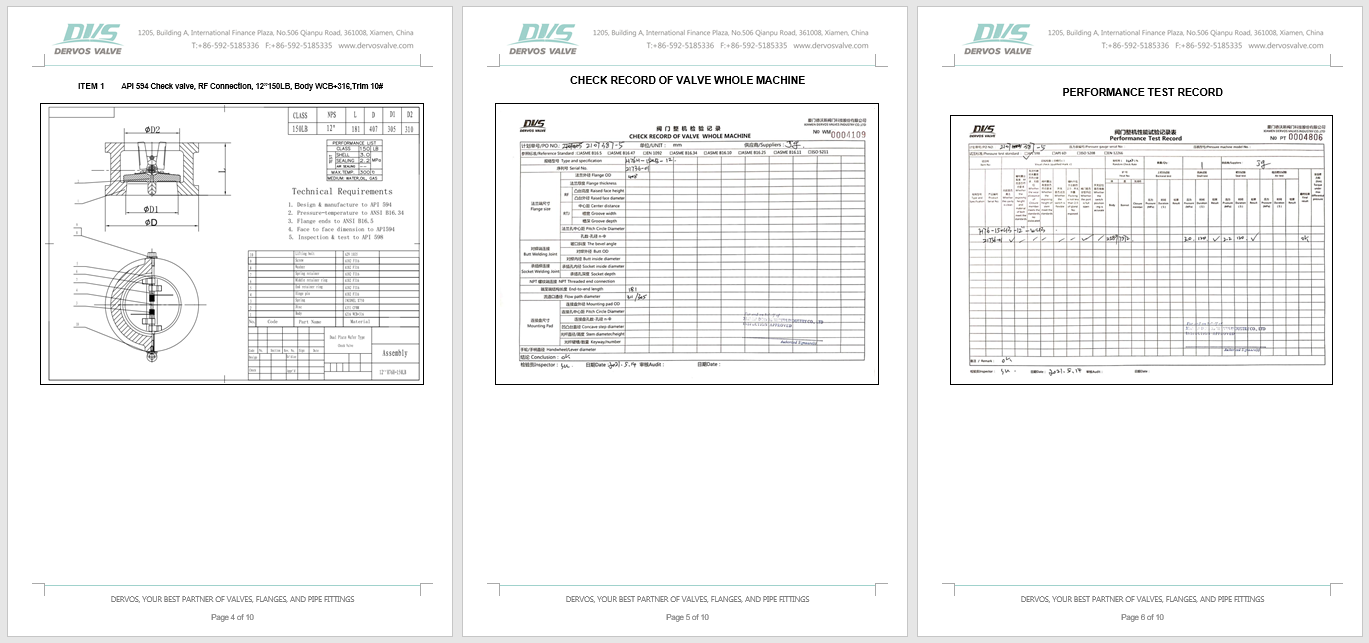

Inspection report
Introduction
12" 150 LB Wafer Check Valve is made according to API 594. The valve body is made of A216 WCB + 316. It has the structural characteristics of a double plate. Its connection mode is wafer RF type.
Features
1. Wafer structure, short length, small volume, lightweight and convenient installation.;
2. Good sealing performance, long service life, high reliability, and rapid closure of valve disc.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
