ASTM A351 CF8M Lug Butterfly Valve, API 609, 8 Inch, 150 LB
Key Specifications / Features
ASTM A351 CF8M Lug Butterfly Valve Factory: Lug Type Triple Eccentric Butterfly Valves, CF8M, 8 Inch, DN200, Class 150 LB, PN20, API 609, Zero leakage.
- Hits: 7
- Categories: Butterfly Valve
- Tags: Lug Butterfly Valve , ASTM A351 CF8M Butterfly Valve , API 609 Butterfly Valve
Detail Information
8" 150 LB Lug Type Triple Eccentric Butterfly Valve API 609
Introduction
8 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A351 Gr.CF8M. It has the structural characteristics of lug type and triple eccentric. And It is high-performance.
Features
1. It integrates regulation and cutting, and has strong controllability;
2. The opening torque is small, which eliminates the common jumping phenomenon when opening the valve;
3. Zero leakage, high temperature and high-pressure resistance.

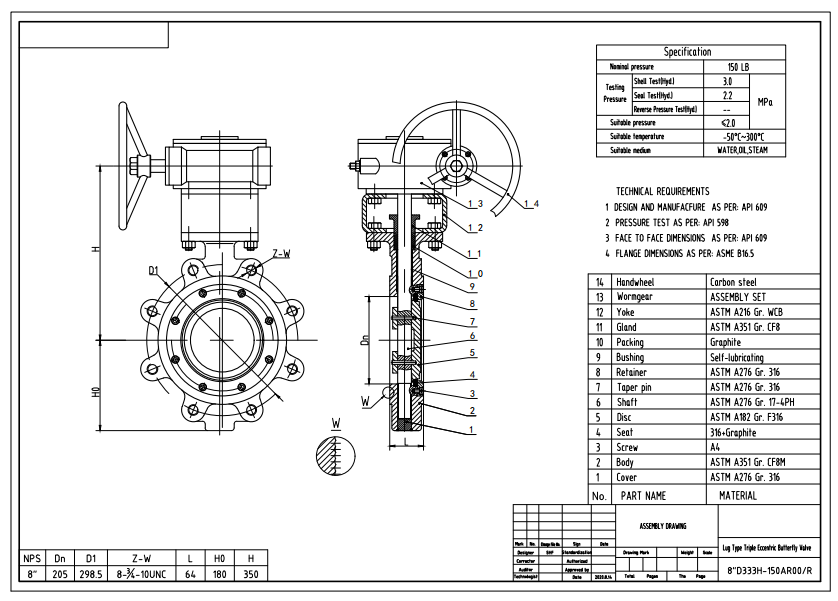

Technical Drawing

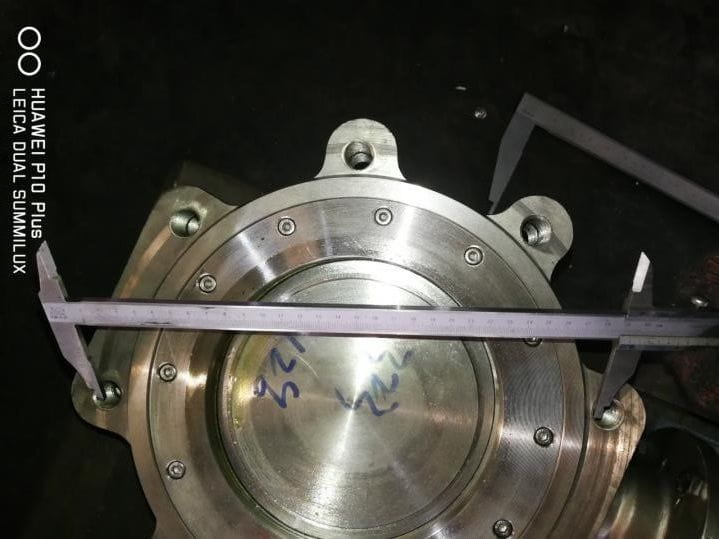

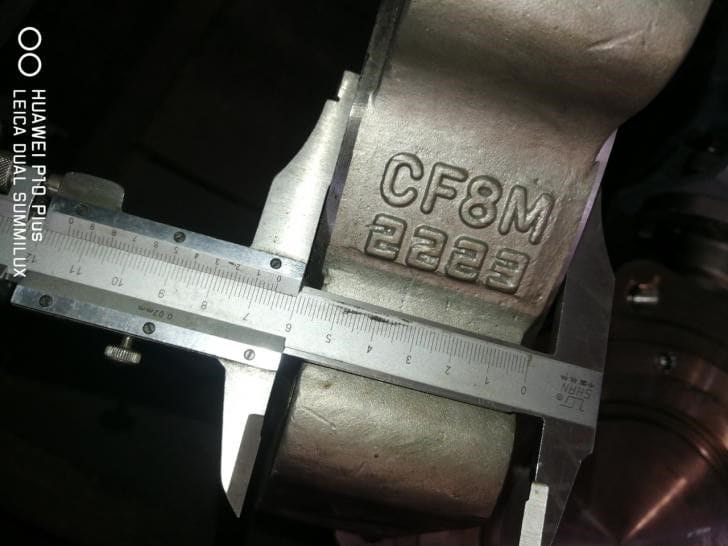

Dimension Check

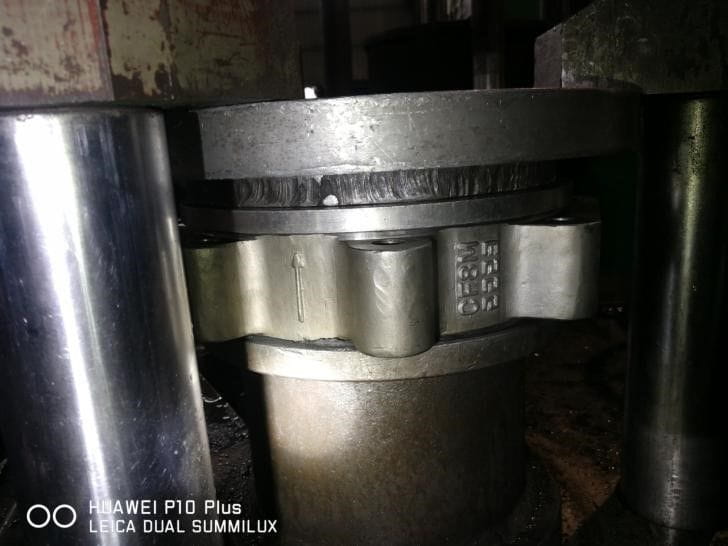

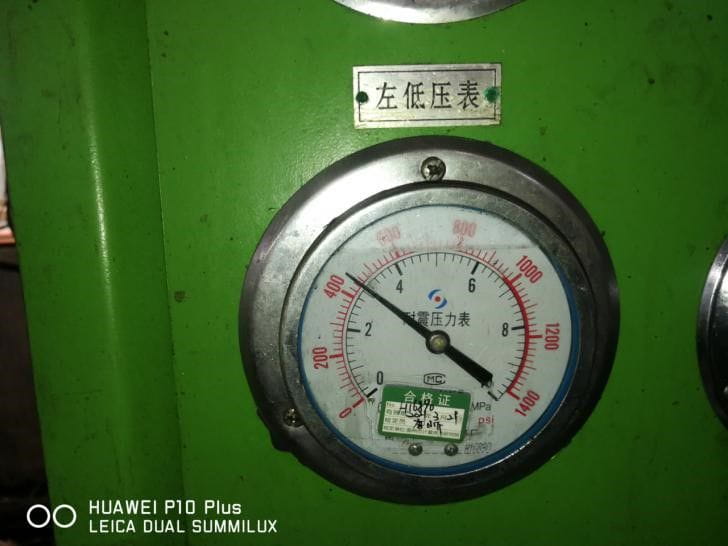

Witnessing Tests
Nameplate & Packing

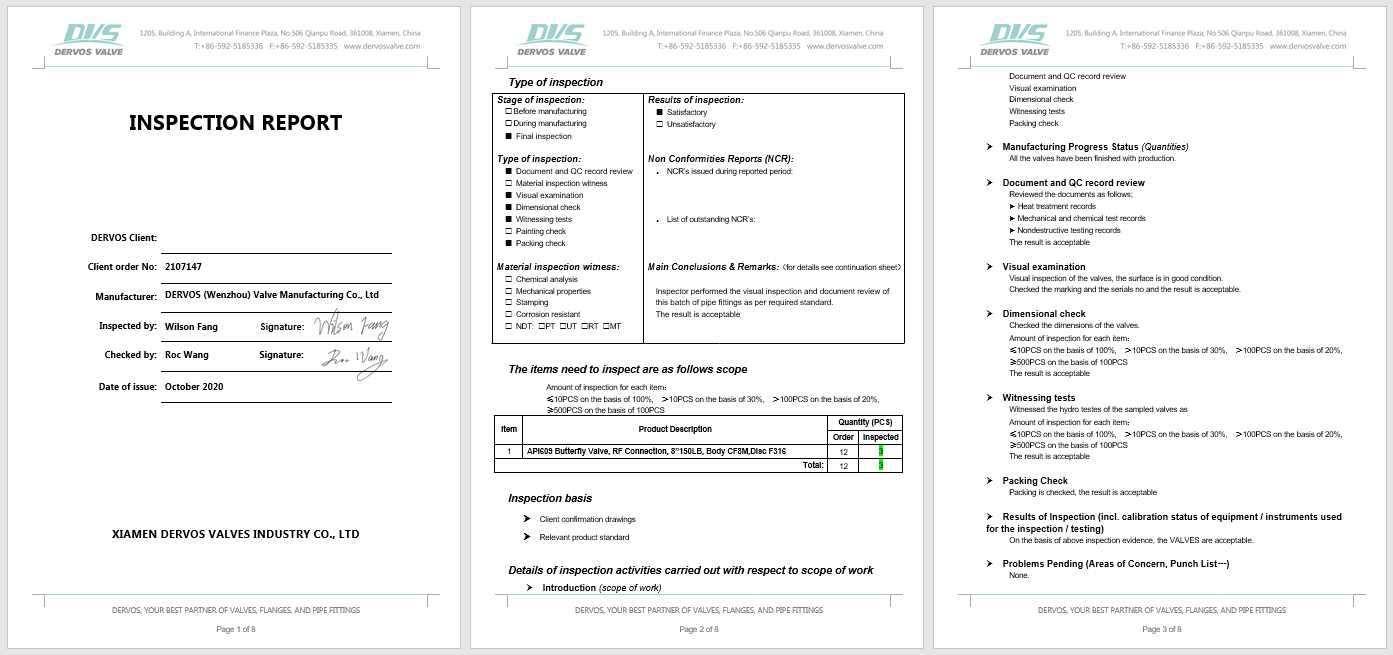

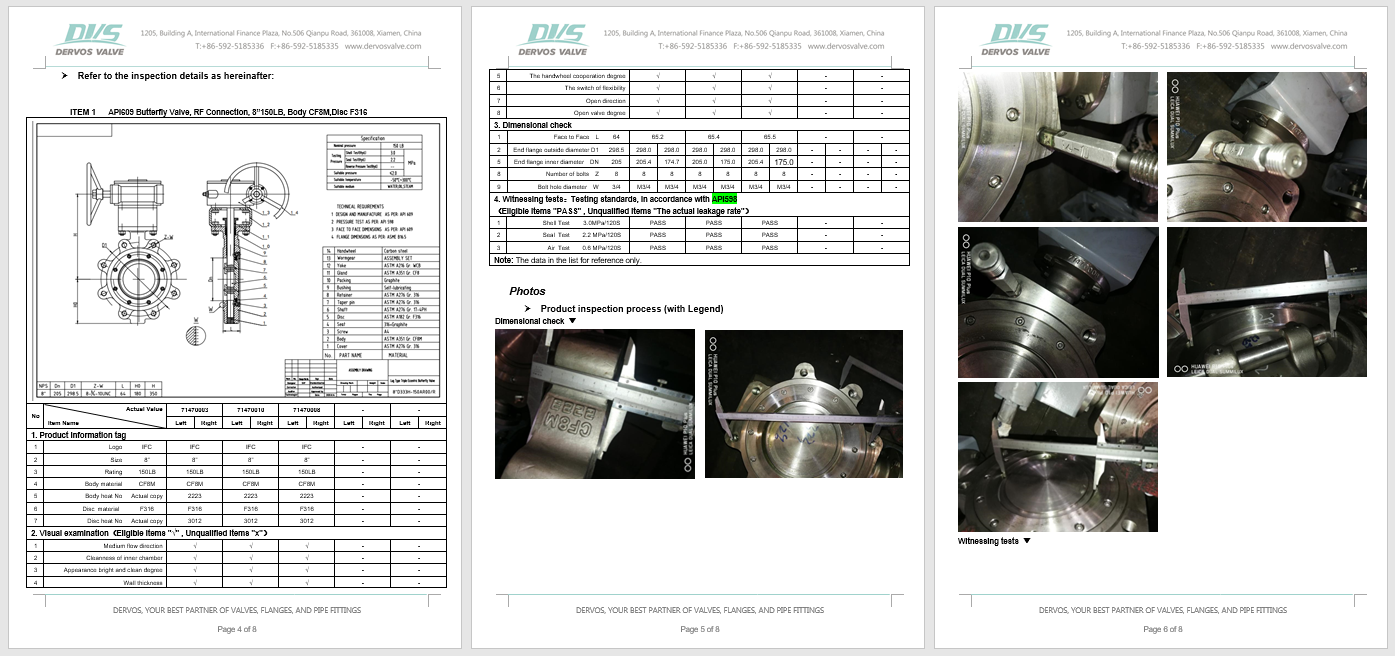

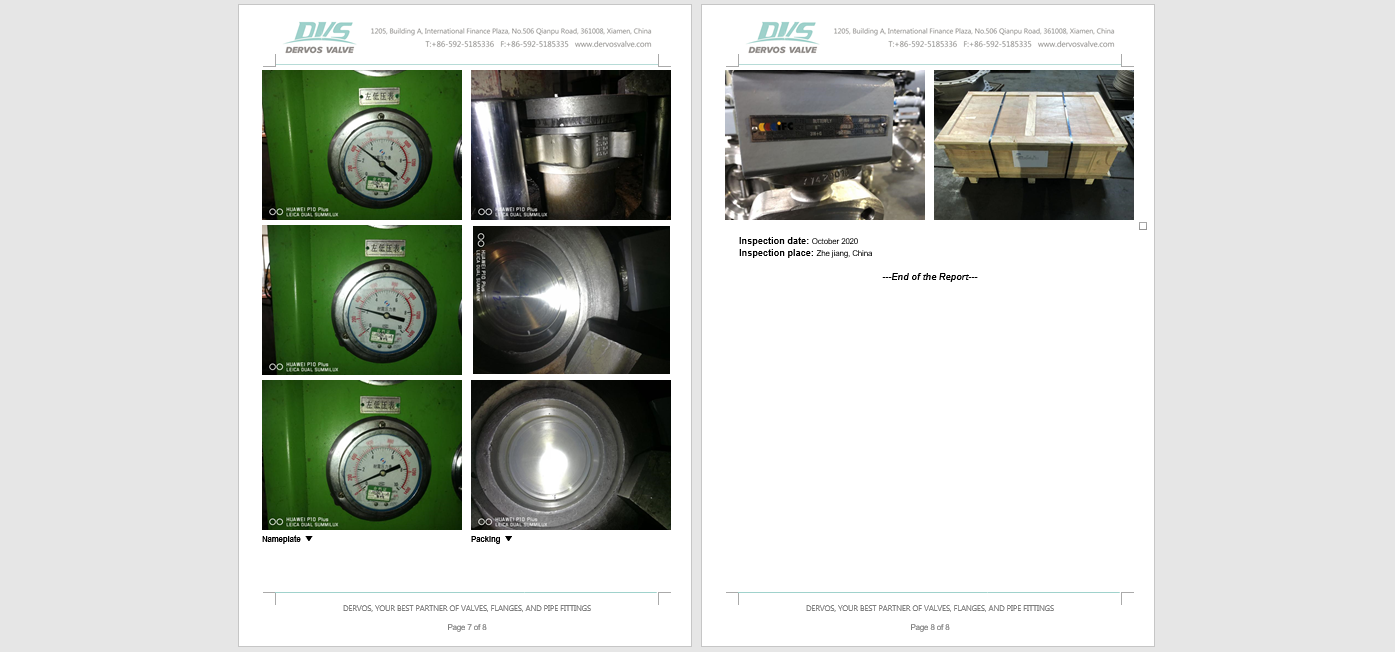

Inspection report
Introduction
8 Inch 150 LB butterfly valve is made according to API 609 standard. The valve body is made of ASTM A351 Gr.CF8M. It has the structural characteristics of lug type and triple eccentric. And It is high-performance.
Features
1. It integrates regulation and cutting, and has strong controllability;
2. The opening torque is small, which eliminates the common jumping phenomenon when opening the valve;
3. Zero leakage, high temperature and high-pressure resistance.
Technical Drawing
Dimension Check
 |
 |
Witnessing Tests
 |
 |
Nameplate & Packing
 |
 |
Inspection report
