ASTM A216 WCB OS&Y Gate Valve, 3 Inch, CL1500, API 600, BW
Key Specifications / Features
OS&Y Gate Valve Provider: ASTM A216 WCB OS & Y Gate Valve, Proven Pressure Seal, Non-Rotating Stem, Handwheel, BW, 3 Inch, Class 1500 LB, API 600.
- Hits: 8
- Categories: Gate Valve
- Tags: Handwheel Gate Valve , OS & Y Gate Valve , API 600 Gate Valve
Detail Information
API 600 3 inch 1500LB Gate Valve WCB Handwheel, OS & Y Valve, Resilient
Quick Detail
Features & benefits
1. Proven pressure seal design
2. Flexible wedge offers superior tightness of seats and freedom from sticking
3. Wedge guiding minimizes seat rubbing and scuffing resulting in long cycle life
4. Body made of superior strength forgings and optional cast steel
5. Stem seal offers a tight seal with little to no maintenance over long periods of time
6. Optional live-loading of packing
7. Non-rotating stem

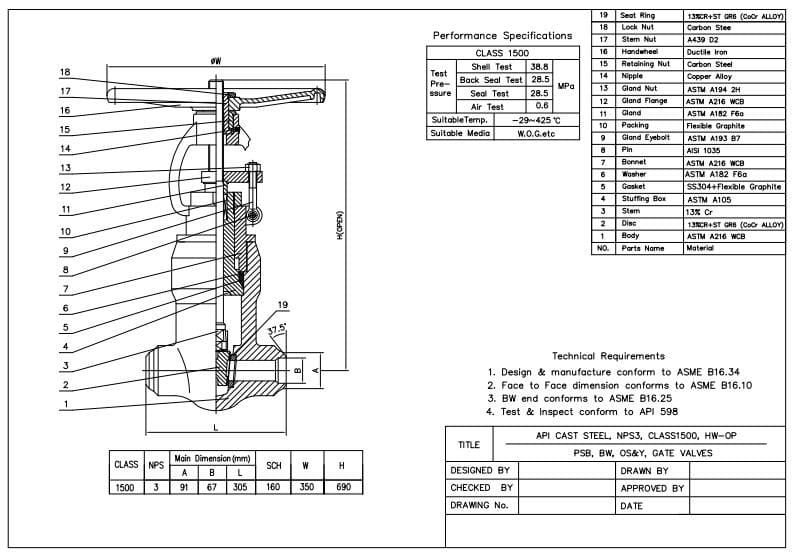

Technical Drawing

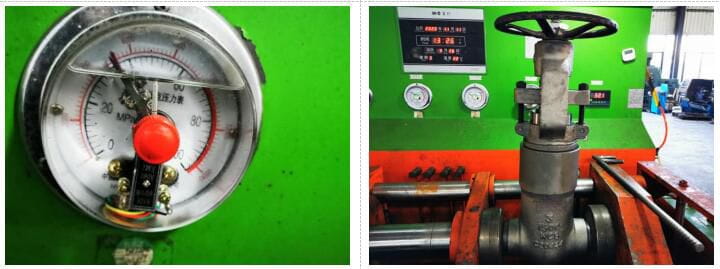

Witness Tests

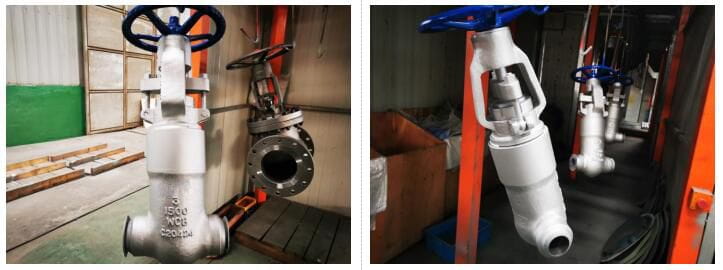

Painting

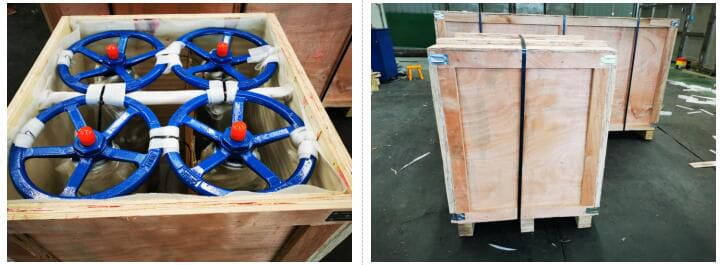

Packing
Extra Tests
In addition to regular hydraulic testing and air testing, Kelly could also do specials tests as per clients’ requests, such as PT test, RT test, UT test, cryogenic test, low leakage test, fireproof test, and hardness test and so on.
Quick Detail
| Type | Gate Valve |
| Size | 3 Inch |
| Design Pressure | CL 1500 |
| Construction | Bolted Bonnet, Flexible Wedge |
| Connection Type | Butt Weld (SCH160） |
| Operation Type | Handwheel |
| Body Material | A216 WCB |
| Trim Material | 13Cr |
| Design Code | ASME B16.34 |
| Face to Face | ASME B16.10 |
| BW End Connection | ASME B16.25 |
| Test & Inspect | API 598 |
| Medium | Water, Oil and Gas |
| Temperature | -29~425℃ |
| Origin | China |
Features & benefits
1. Proven pressure seal design
2. Flexible wedge offers superior tightness of seats and freedom from sticking
3. Wedge guiding minimizes seat rubbing and scuffing resulting in long cycle life
4. Body made of superior strength forgings and optional cast steel
5. Stem seal offers a tight seal with little to no maintenance over long periods of time
6. Optional live-loading of packing
7. Non-rotating stem
Technical Drawing
Witness Tests
Painting
Packing
Extra Tests
In addition to regular hydraulic testing and air testing, Kelly could also do specials tests as per clients’ requests, such as PT test, RT test, UT test, cryogenic test, low leakage test, fireproof test, and hardness test and so on.
