Bolted Bonnet Gate Valve, API 600, 2 Inch, 600 LB, WCB
Key Specifications / Features
Bolted Bonnet Gate Valve Manufacturer: BB Gate Valves, API 600, 2 Inch, 600 LB, ASTM A216 WCB, OS&Y, Non-rising Stem, RF Flanged Ends, Handwheel Operation.
- Hits: 14
- Categories: Gate Valve
- Tags: 2 Inch Gate Valve , Class 600 LB Gate Valve , ASTM A216 WCB Gate Valve
Detail Information
| Type | Gate Valve |
| Nominal Diameter | 2 Inch |
| Nominal Pressure | 600LB |
| Construction Type | Non-rising stem, Bolted Bonnet, OS&Y |
| Connection Type | Flanged |
| Operation Type | Handwheel Operation |
| Body Material | ASTM A216 WCB |
| Trim Material | ASTM A216 WCB+13Cr |
| Design Code | API 600 |
| End to End Code | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspect | API 598 |
| Medium | Water, Gas, Oil |
| Origin | China |
Features
1. Superior flow rates & small friction loss
2. Comparatively shorter end to end dimension
3. Low torque value for closing and opening the valve
4. Flexible wedge for better seating and ease of operation
5. Gearbox for ease of operation
6. Smooth finish and superior sealing for seat face
7. Optimized wedge design for minimized seat leakage
8. Every valve is manufactured with specific number on body for traceability
9. Excellent performance of stem packing for low fugitive emissions
10. Exceptional performance in wet or corrosive application

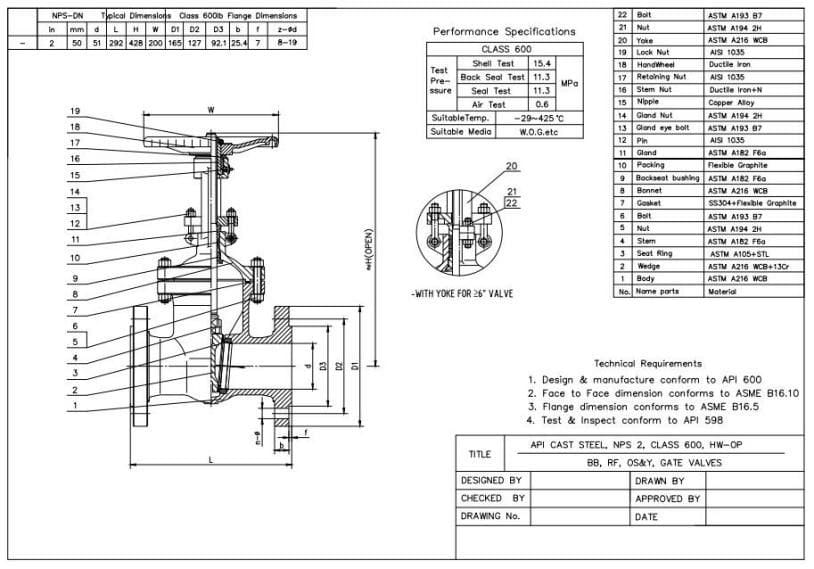

Technical Drawing

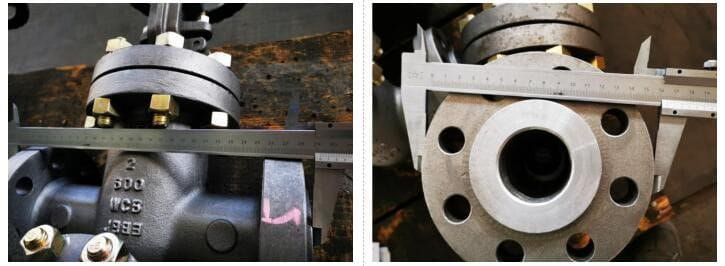

Dimension Check

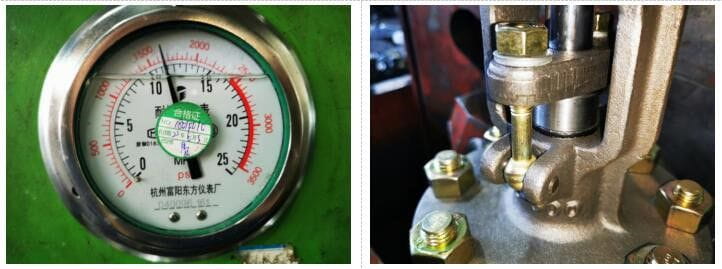

Witnessing Tests

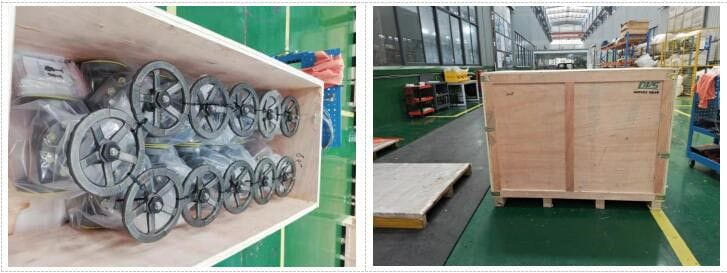

Packing
