ASTM A216 WCB Lift Check Valve, DN50, PN160, DIN 3840
Key Specifications / Features
ASTM A216 WCB Lift Check Valve Provider: Lift Type Check Valves, ASTM A216 WCB, DN50, 2 Inch, PN160, DIN 3840, High Pressure, Bolted Cover, Flange End.
- Hits: 14
- Categories: Lift Check Valve
- Tags: ASTM A216 WCB Check Valve , DN50 Check Valve , PN160 Check Valve
Detail Information
DIN Flanged Lift Check Valve, DN50, PN160, WCB, Piston Check Valve, WCB Lift Check Valve, PN160 Check Valve, DN50 Check Valve
The WCB lift check valve is designed according to DIN 3840. PN150 and DN50, namely it is 2 inch and can be put in an environment under 15 Mpa. What's more, the lift check valve is also referred to as a piston check valve.
Quick Detail
Features
Compact but extremely sturdy design for high pressure & temperature service
Bolted cover design, easy to open the cover
Piston type body guide disc
Perfect match of disc & seat ring
Other body or trim material optional

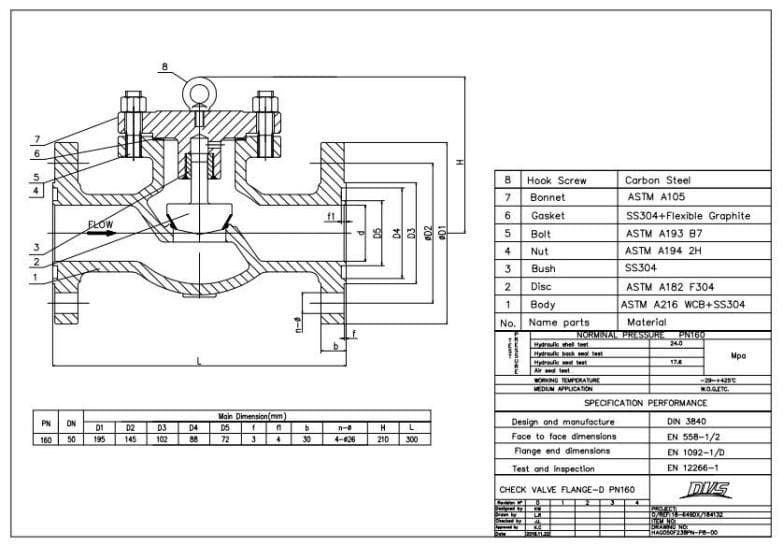

Technical Drawing
Our Service
Good customer service is as valuable as the product itself. In Kelly, we will offer a full range of customer service to make you feel easy when doing business with us.
Providing weekly production report
When production begins, you will get a production report weekly, so that you can have a good command of product status and report to your customer in the meantime.
Offering warranty of 18 months
18 months warranty period will be offered after shipment, no concern to purchase valve from Kelly.
Providing solutions within 3-days for complaints
All the complaints will be solved within 3 days, in this case, you can timely reply and solve problems for your customer, to relax them even when complaints happening.
The WCB lift check valve is designed according to DIN 3840. PN150 and DN50, namely it is 2 inch and can be put in an environment under 15 Mpa. What's more, the lift check valve is also referred to as a piston check valve.
Quick Detail
| Type | Check Valve |
| Size | DN50 |
| Pressure | PN160 |
| Construction | Lift Type, Piston Type |
| Connection | Flange End |
| Trim | ASTM A182 F304 |
| Body Material | ASTM A216 WCB + SS304 |
| Design Code | DIN 3840 |
| Face to Face Code | EN 558-1/2 |
| Flange End Dimensions | EN 1092-1/D |
| Test & Inspection Code | EN 12266-1 |
| Temperature Range | -29℃ - 425℃ |
| Medium | Water, Oil and Gas |
Features
Compact but extremely sturdy design for high pressure & temperature service
Bolted cover design, easy to open the cover
Piston type body guide disc
Perfect match of disc & seat ring
Other body or trim material optional
Technical Drawing
Our Service
Good customer service is as valuable as the product itself. In Kelly, we will offer a full range of customer service to make you feel easy when doing business with us.
Providing weekly production report
When production begins, you will get a production report weekly, so that you can have a good command of product status and report to your customer in the meantime.
Offering warranty of 18 months
18 months warranty period will be offered after shipment, no concern to purchase valve from Kelly.
Providing solutions within 3-days for complaints
All the complaints will be solved within 3 days, in this case, you can timely reply and solve problems for your customer, to relax them even when complaints happening.
