Key Specifications / Features
Cast Steel Swing Check Valve Manufacturer: Cast Steel ASTM A216 WCB Swing Check Valves, Bolted Cover, 2 Inch, Class 600 LB, DN50, PN100, API 6D, RF End.
- Hits: 1
- Categories: Swing Check Valve
- Tags: Cast Steel Check Valve , Swing Check Valve , ASTM A216 WCB Check Valve
Detail Information
API 2" 600 LB Cast Steel Swing Check Valve WCB BC RF
Introduction
2" 600 LB check valve is made according to API 6D standard. The valve body is made of WCB. It has the structural characteristics of bolt cover and swing type. Its connection mode is RF.
Features
1. The medium is only allowed to flow in one direction, and the flow in the opposite direction is prevented;
2. It can play the role of safety isolation.

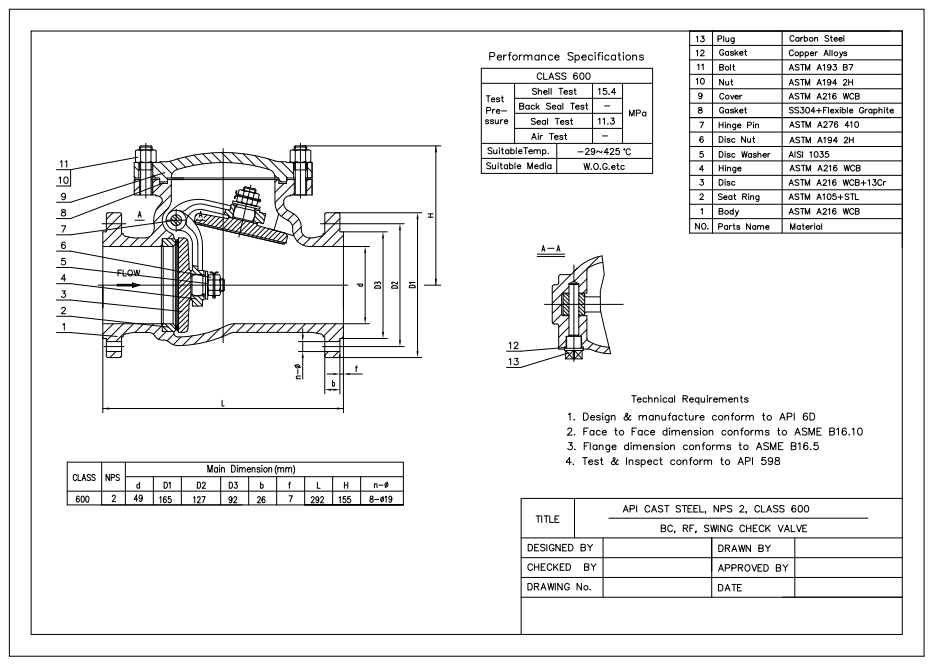

Technical Drawing

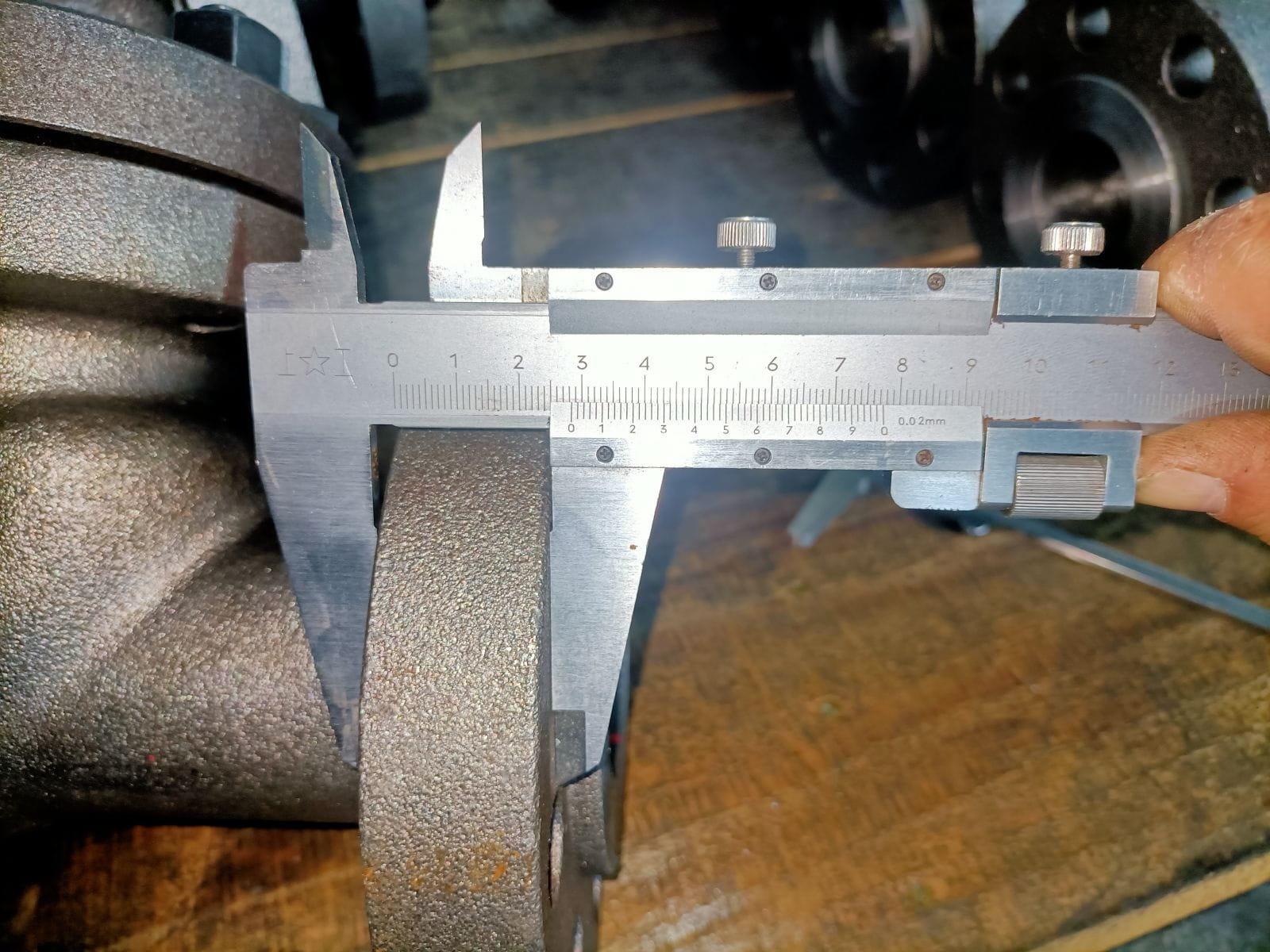

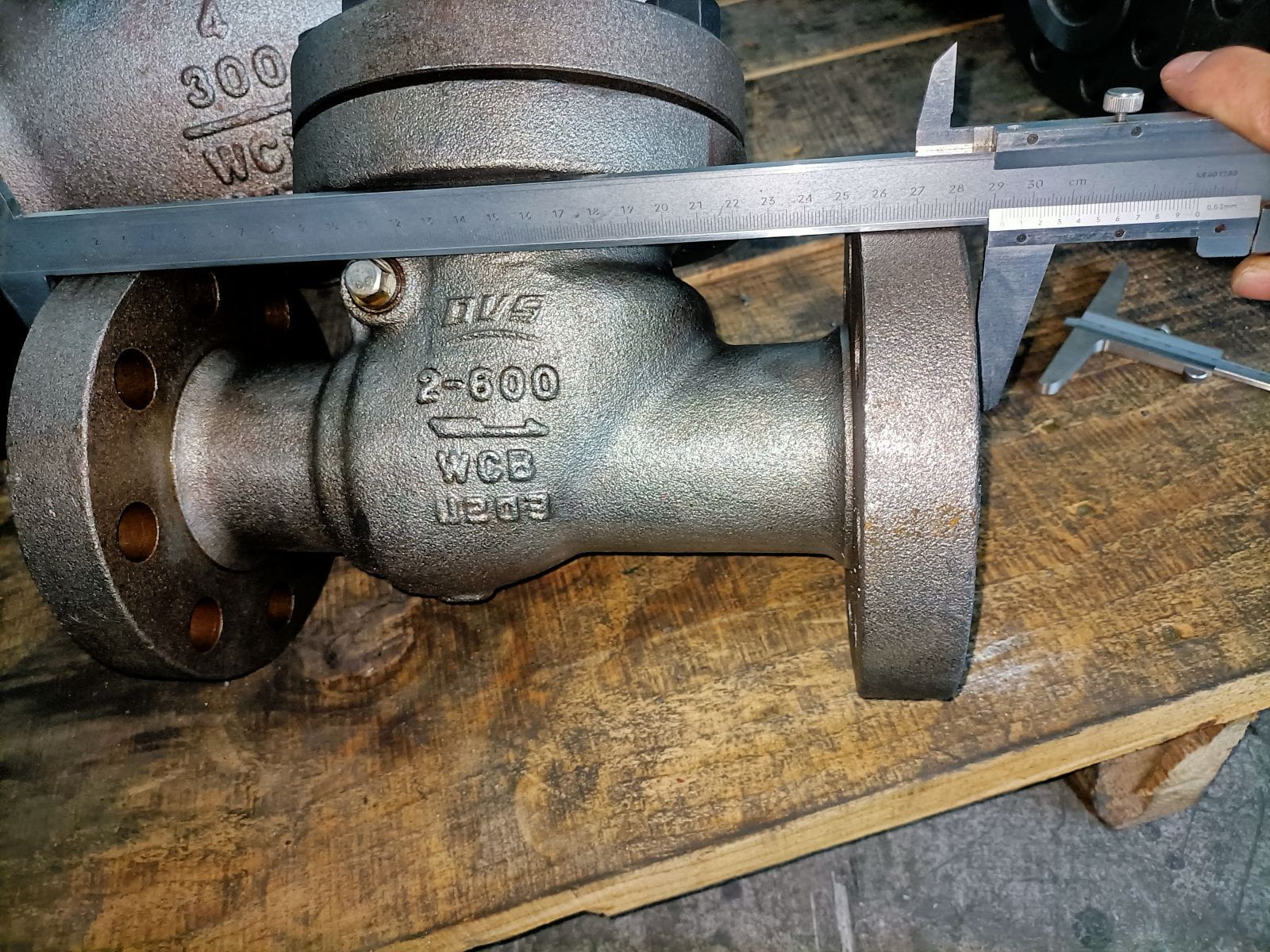

Dimension Checking

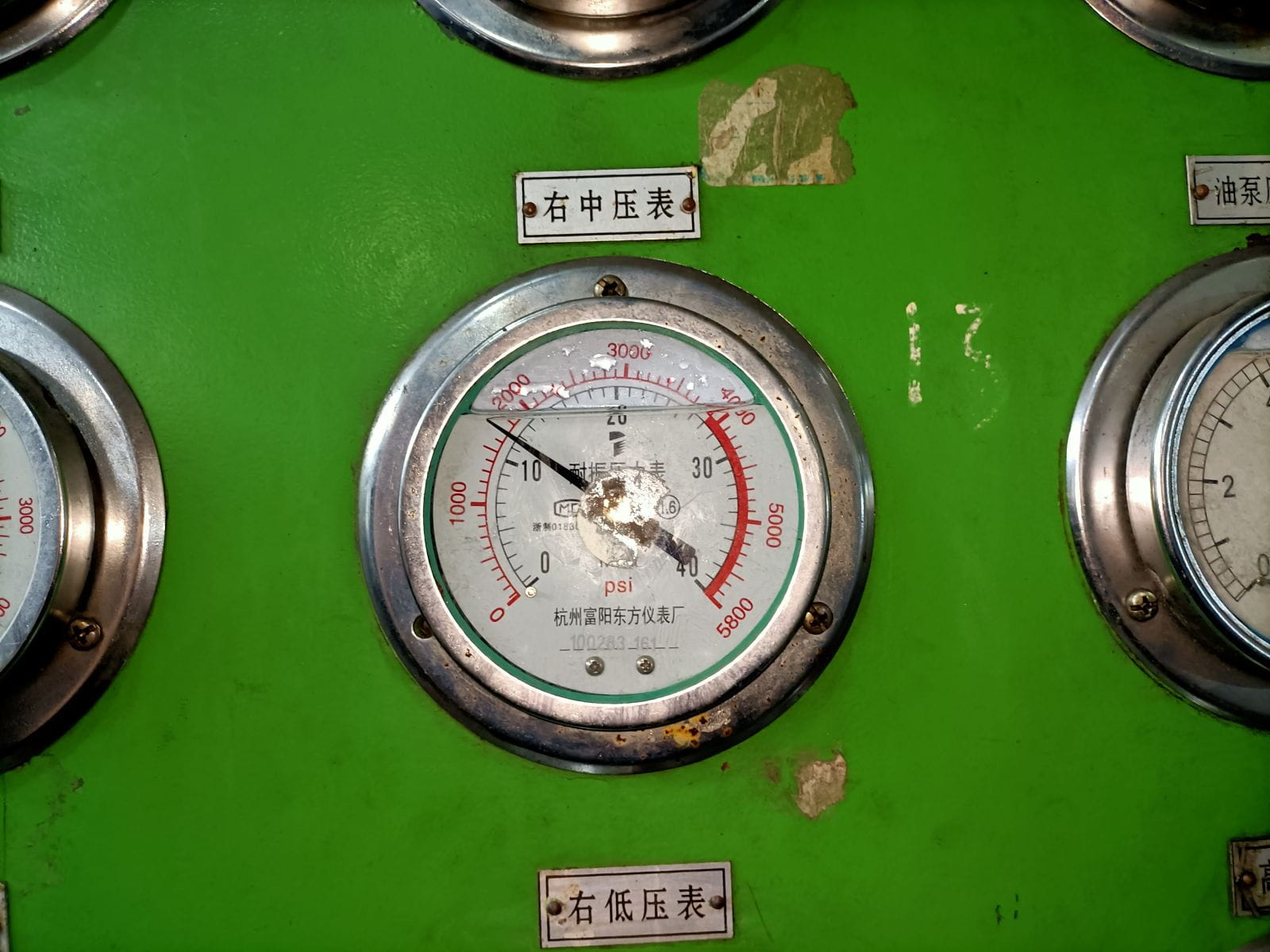

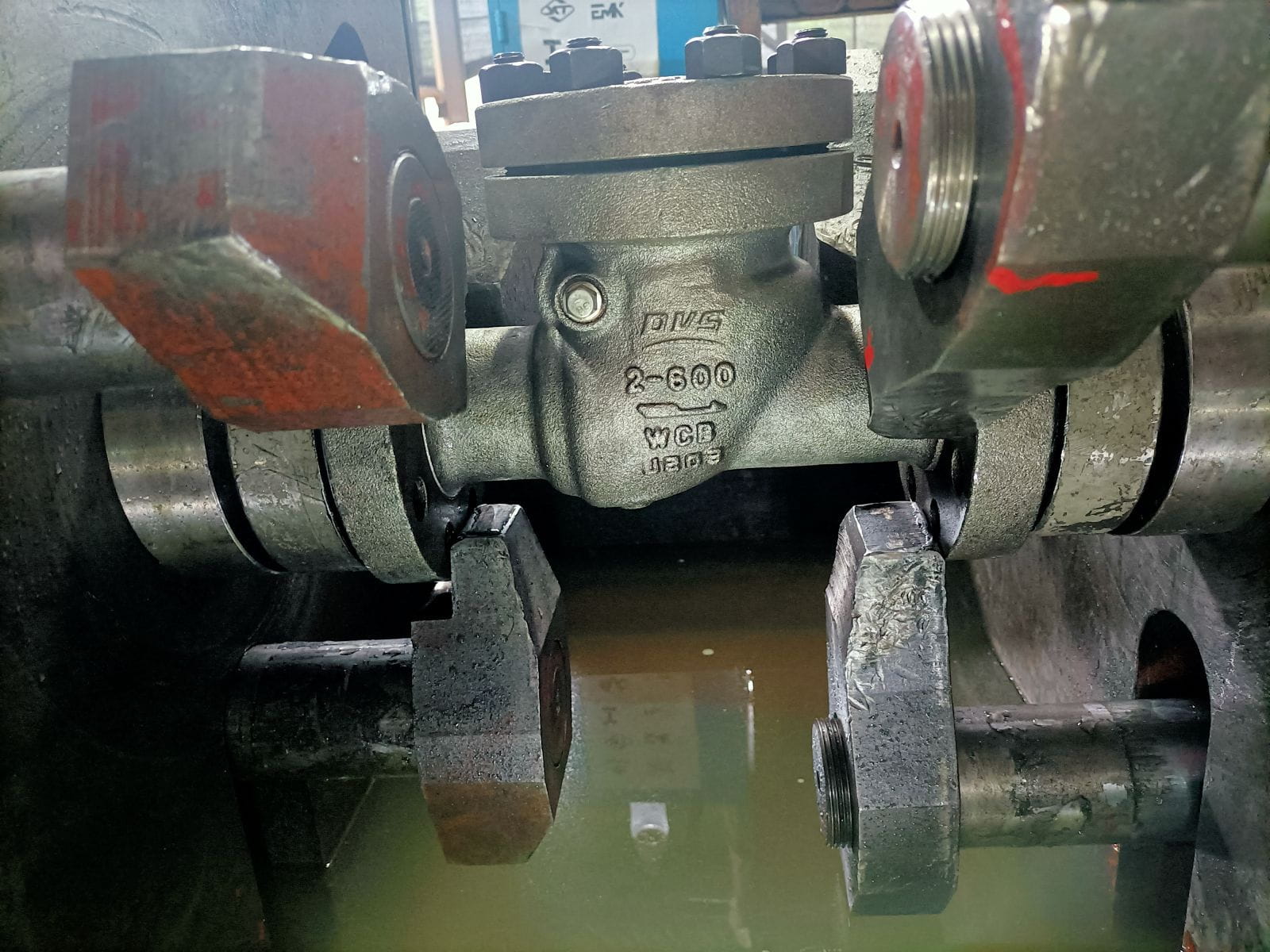

Pressure Testing

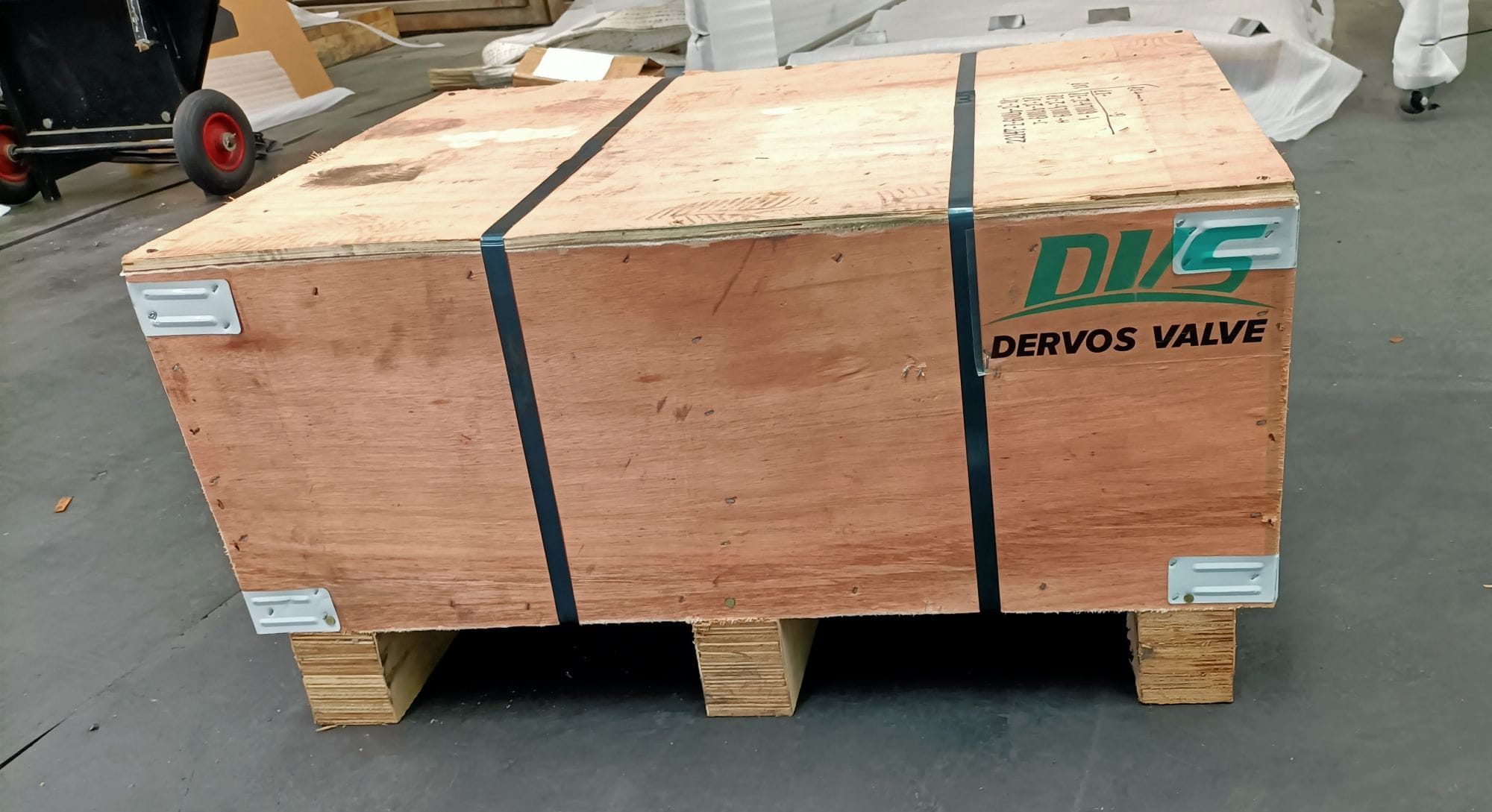

Packing

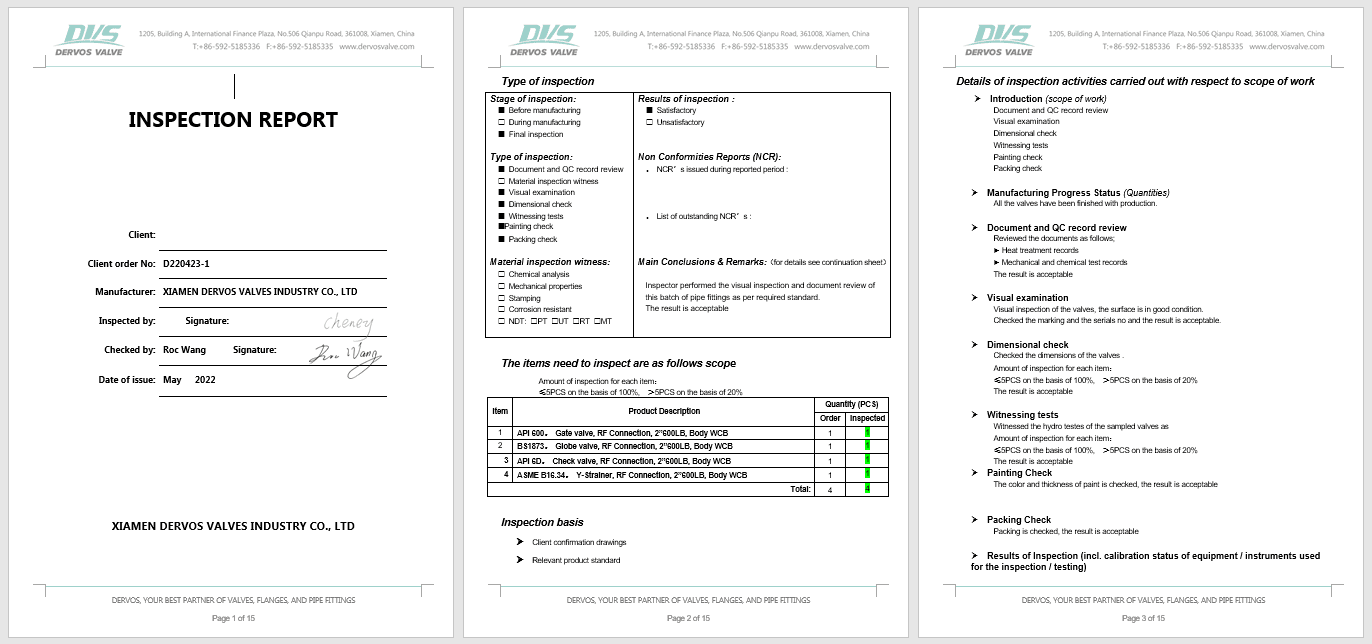

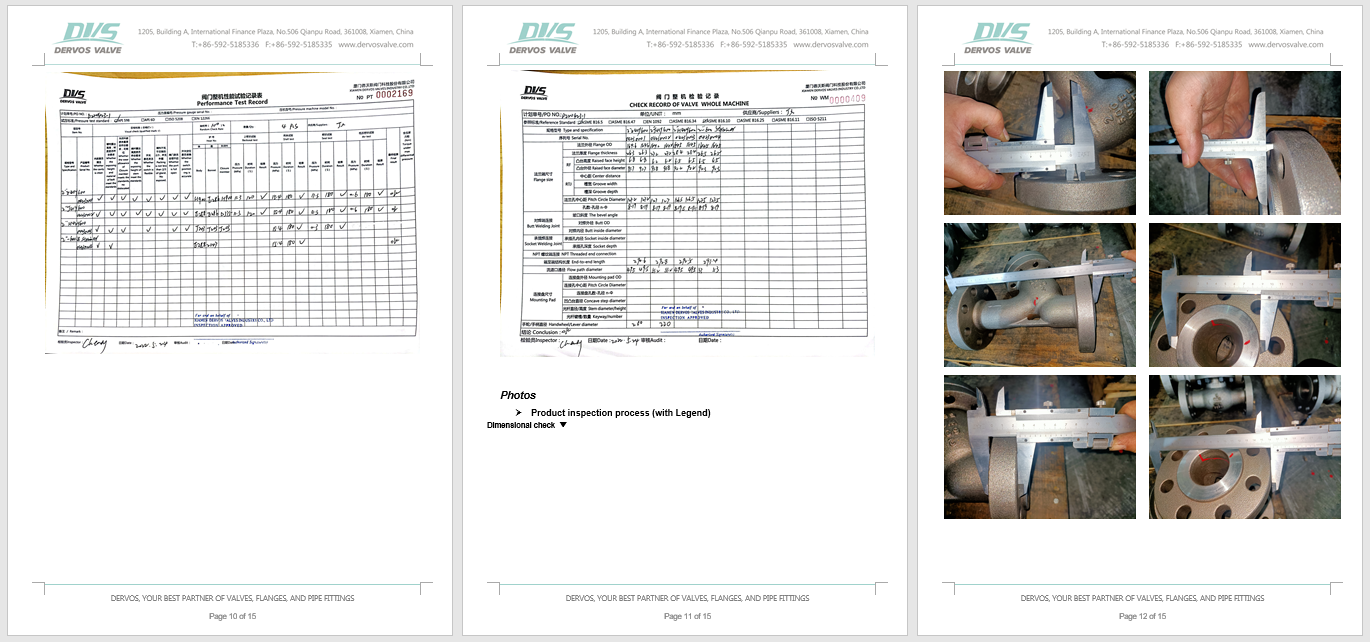

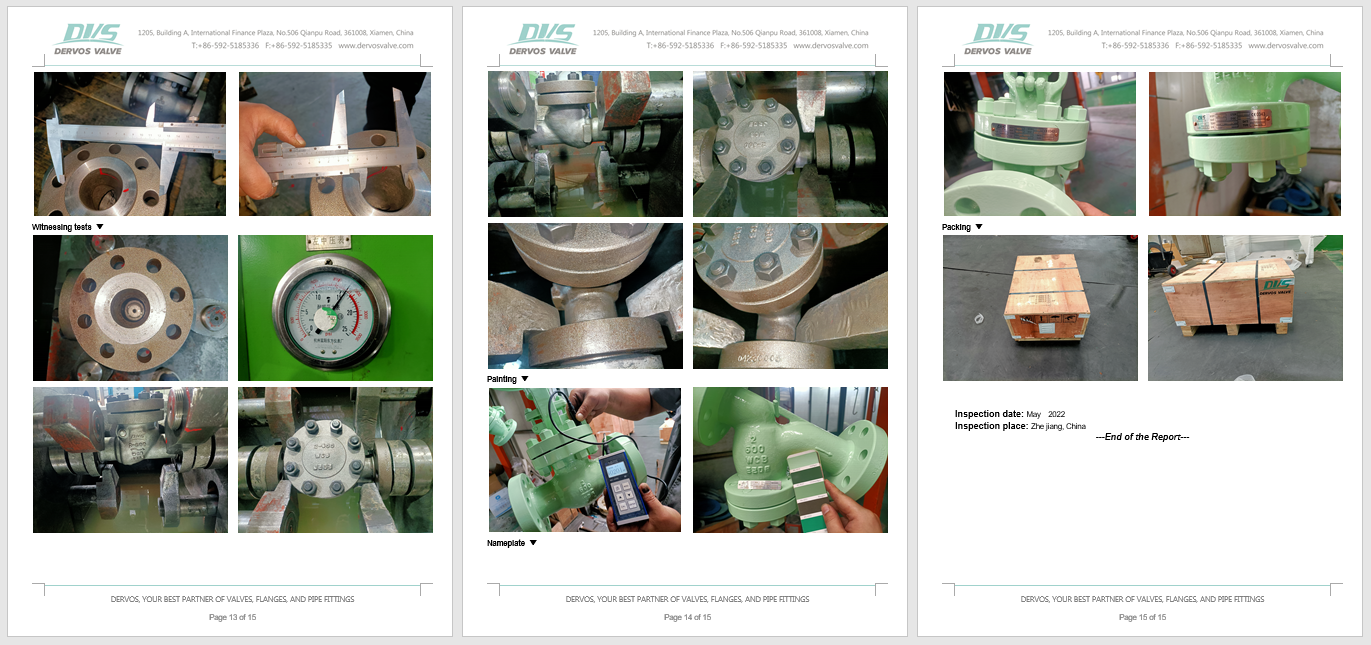

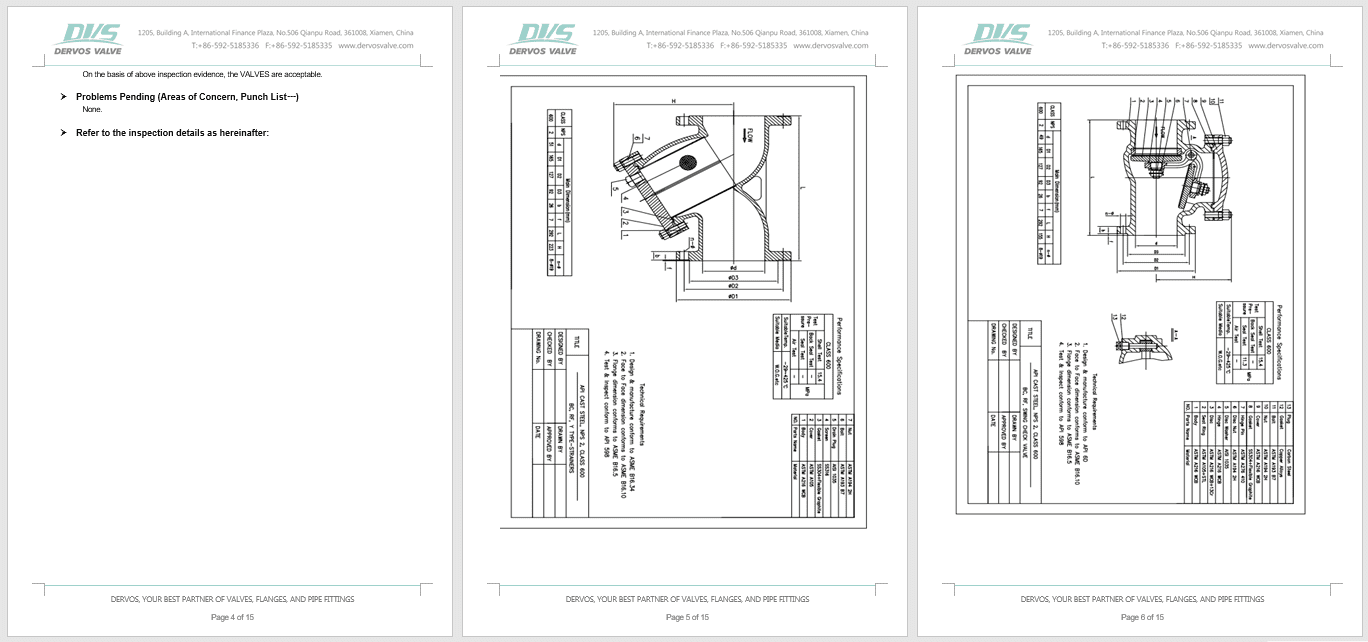

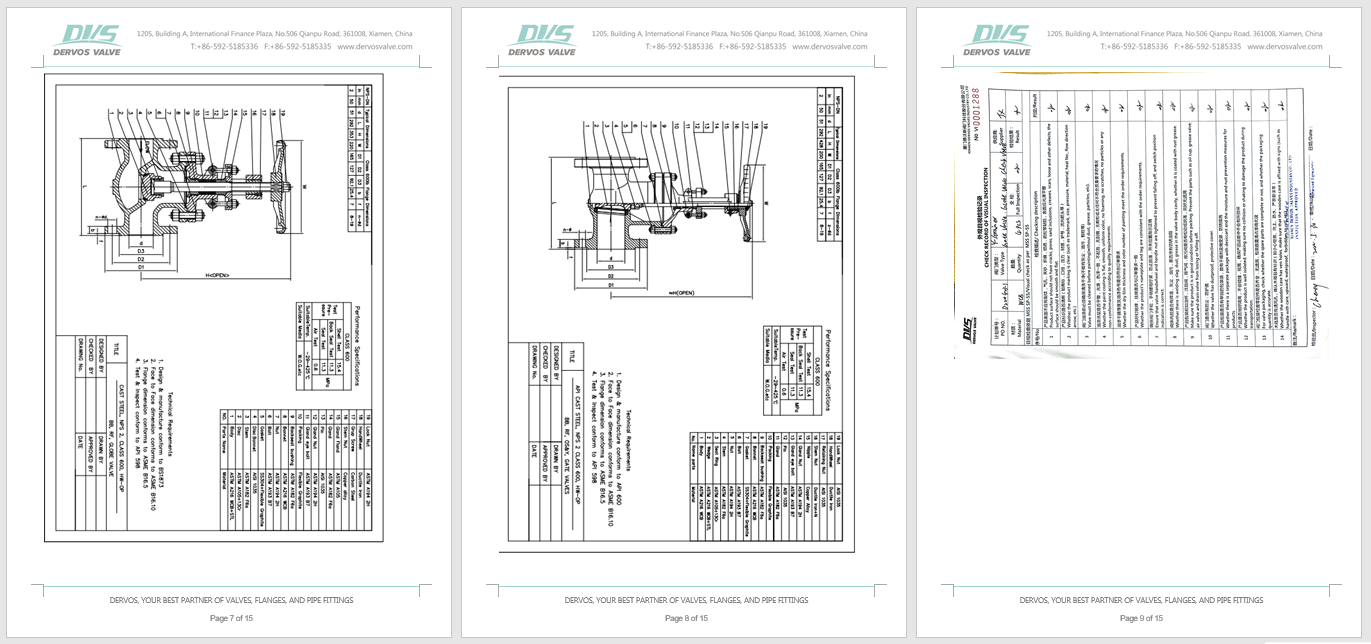

Inspection report
Introduction
2" 600 LB check valve is made according to API 6D standard. The valve body is made of WCB. It has the structural characteristics of bolt cover and swing type. Its connection mode is RF.
Features
1. The medium is only allowed to flow in one direction, and the flow in the opposite direction is prevented;
2. It can play the role of safety isolation.
Technical Drawing
Dimension Checking
 |
 |
Pressure Testing
 |
 |
Packing
 |
 |
Inspection report
