ASTM A216 WCB Lift Check Valve, 3 IN, 600 LB, ASME B16.34
Key Specifications / Features
ASTM A216 WCB Lift Check Valve Manufacturer: Lift Type Check Valves, ASTM A216 WCB, ASME B16.34, Class 3 Inch, DN80, 600 LB, PN100, RF Flange Ends.
- Hits: 7
- Categories: Lift Check Valve
- Tags: ASTM A216 WCB Check Valve , 3 Inch Check Valve , Class 600 LB Check Valve
Detail Information
Lift Check Valve 3 Inch RF WCB 600LB
The lift check valve has the construction of bolted bonnet and RF flange end. Made of carbon steel, the 3-inch check valve is designed for a pressure condition up to 600 LB.
Type: Check Valve
Nominal Diameter: 3 Inch, DN80
Nominal Pressure: Class 600 LB, PN100
Construction Type: Lift Type Check Valve
Connection Type: RF Flange
Body Material: ASTM A216 WCB
Design Code: ASME B16.34
End to End: ASME B16.10
Test & Inspect: API 598
Medium: Water, Gas, Oil
Temperature Range: -29℃ - +425℃
Origin: China

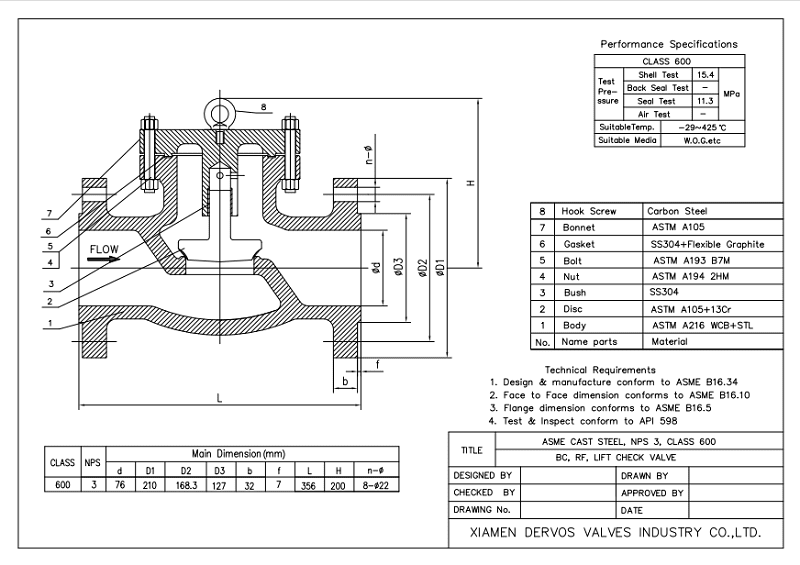

Technical Drawing
The lift check valve has the construction of bolted bonnet and RF flange end. Made of carbon steel, the 3-inch check valve is designed for a pressure condition up to 600 LB.
Type: Check Valve
Nominal Diameter: 3 Inch, DN80
Nominal Pressure: Class 600 LB, PN100
Construction Type: Lift Type Check Valve
Connection Type: RF Flange
Body Material: ASTM A216 WCB
Design Code: ASME B16.34
End to End: ASME B16.10
Test & Inspect: API 598
Medium: Water, Gas, Oil
Temperature Range: -29℃ - +425℃
Origin: China
Technical Drawing
