Pressure Seal Lift Check Valve, 1 IN, 2500 LB, API 602
Key Specifications / Features
Pressure Seal Lift Check Valve Provider: Lift Piston, Pressure-seal Bonnet Check Valves, API 602, Forged Steel ASTM A105, 1 Inch, Class 2500 LB, RTJ End.
- Hits: 7
- Categories: Lift Check Valve
- Tags: Non Return Check Valve , Class 2500 LB Check Valve , 1 Inch Check Valve
Detail Information
| Type | Non-Return Valve (Check Valve) |
| Nominal Size | 1 Inch |
| Nominal Pressure | 2500 LB |
| Construction | Lift piston, Pressure-sealed Bonnet |
| Connection | RTJ |
| Design & Manufacture | API 602 |
| End to End | ASME B16.10 |
| Flange Dimension | ASME B16.5 |
| Test & Inspection | API 598 |
| Body Material | ASTM A105 |
| Media | W.O.G. |
Features
--Compact Design for High Pressure & Temperature Condition
--Bolted Cover Design, Easy To Open The Cover
--Piston Type Body Guide Disc
--Assure Perfect Alignment of Disc & Seat Ring
--Spring-Loaded on request
--Pressure-sealed Bonnet, Higher The Pressure Gets, Better Sealing Performance The Bonnet Gets

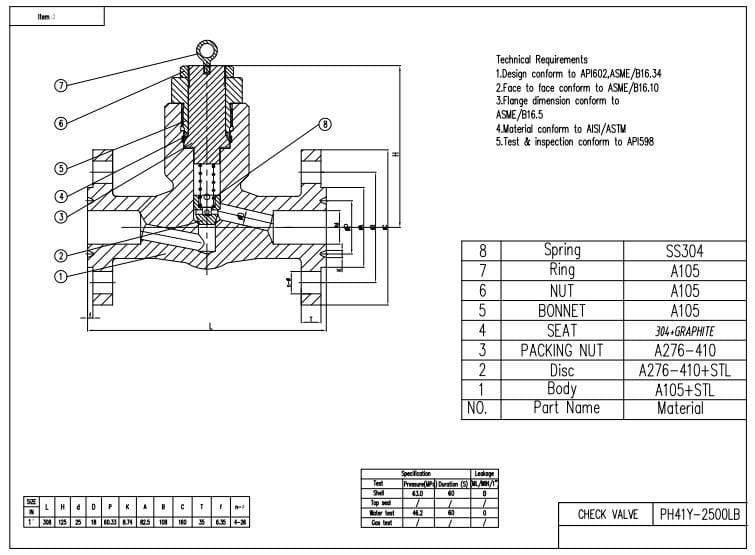

Technical Drawing

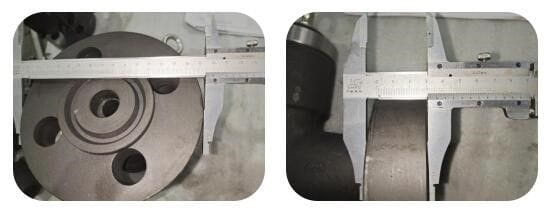

Dimension Check

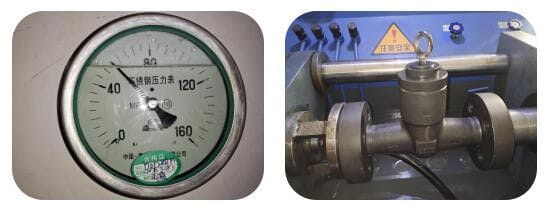

Witnessing Tests
