ASTM A216 WCB Swing Check Valve, 4 Inch, 600 LB, API 6D, RF
Key Specifications / Features
4 Inch 600 LB check valve is made according to API 6D standard. The valve body is made of ASTM A216 WCB. It has the structural characteristics of bolt cover, swing type and full bore. Its connection mode is RF.
- Hits: 12
- Categories: Swing Check Valve
- Tags: ASTM A216 WCB Check Valve , 4 Inch Check Valve , Class 600 LB Check Valve
Detail Information
Cast Steel 4 Inch 600 LB Swing Check Valve RF WCB API 6D
Features
1. Short structural length, small volume, light weight, and convenient installation;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.

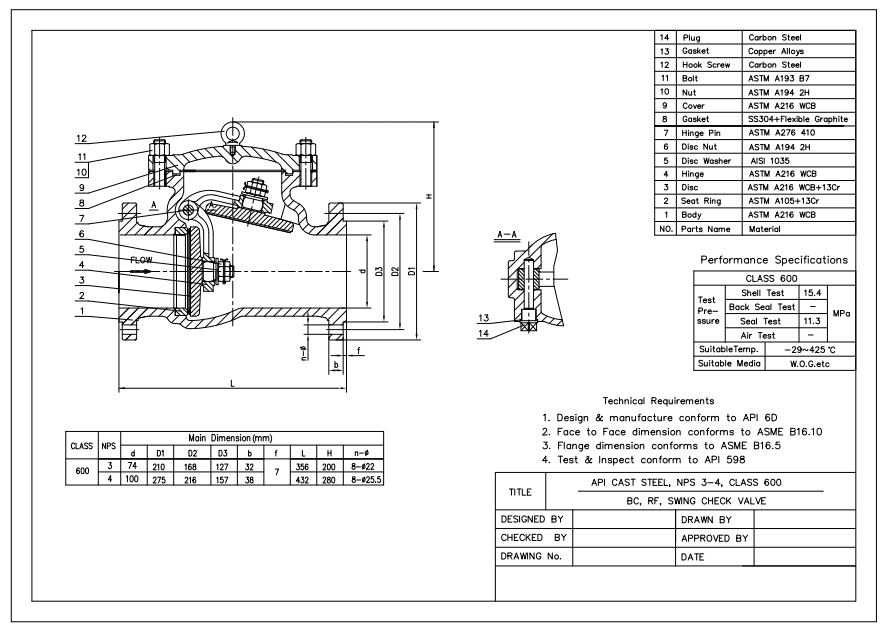

Technical Drawing

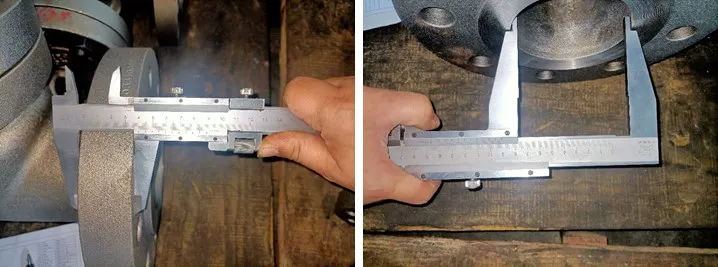

Dimension Checking

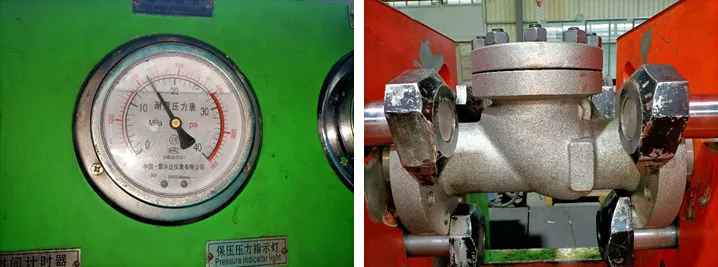

Pressure Testing

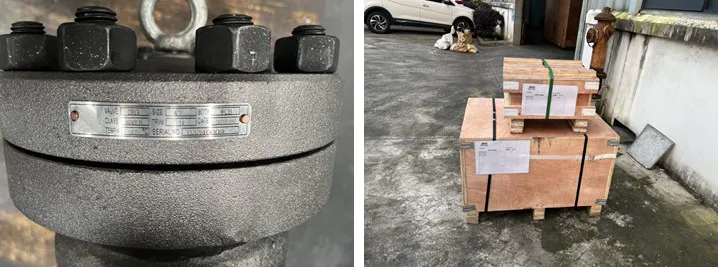

Nameplate & Packing

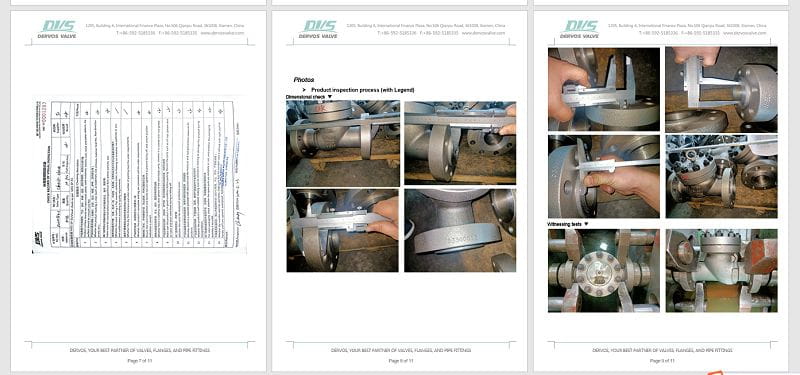

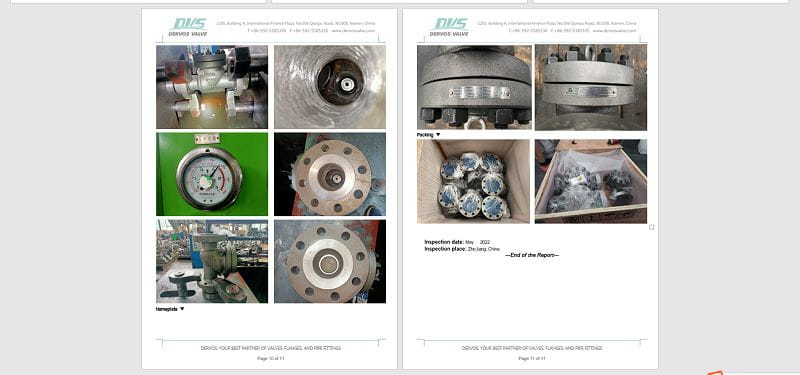

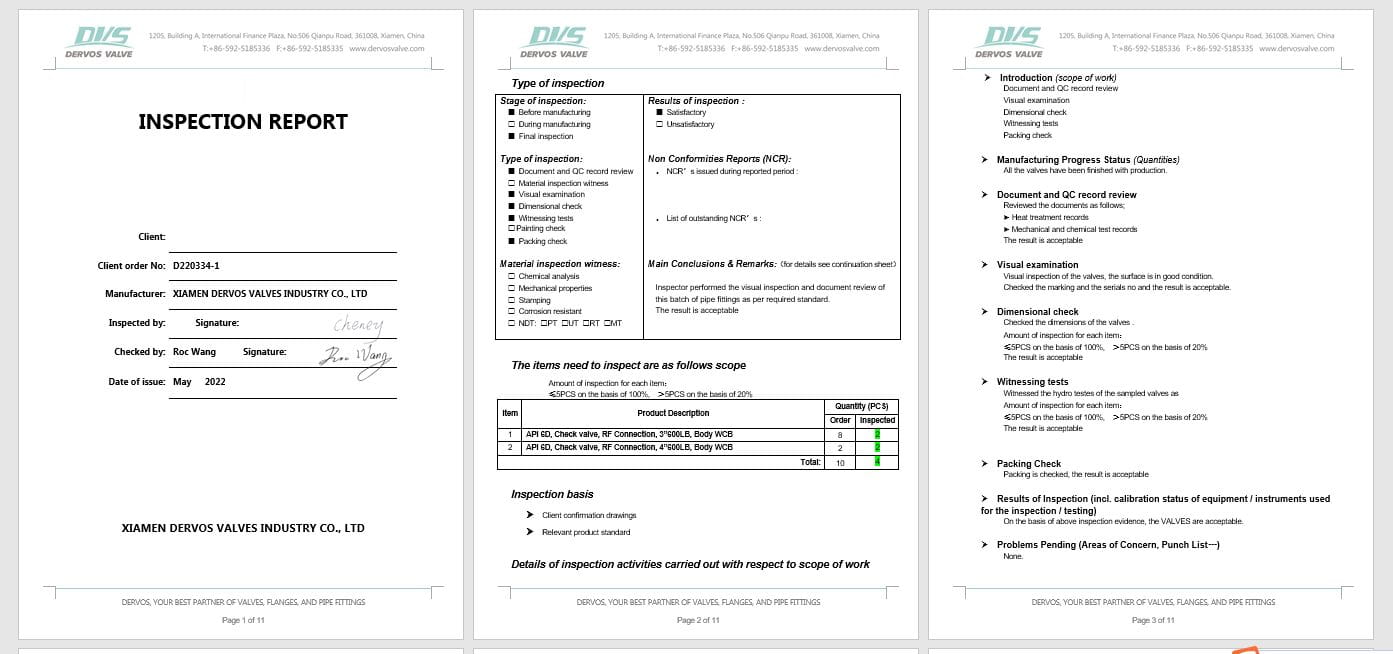

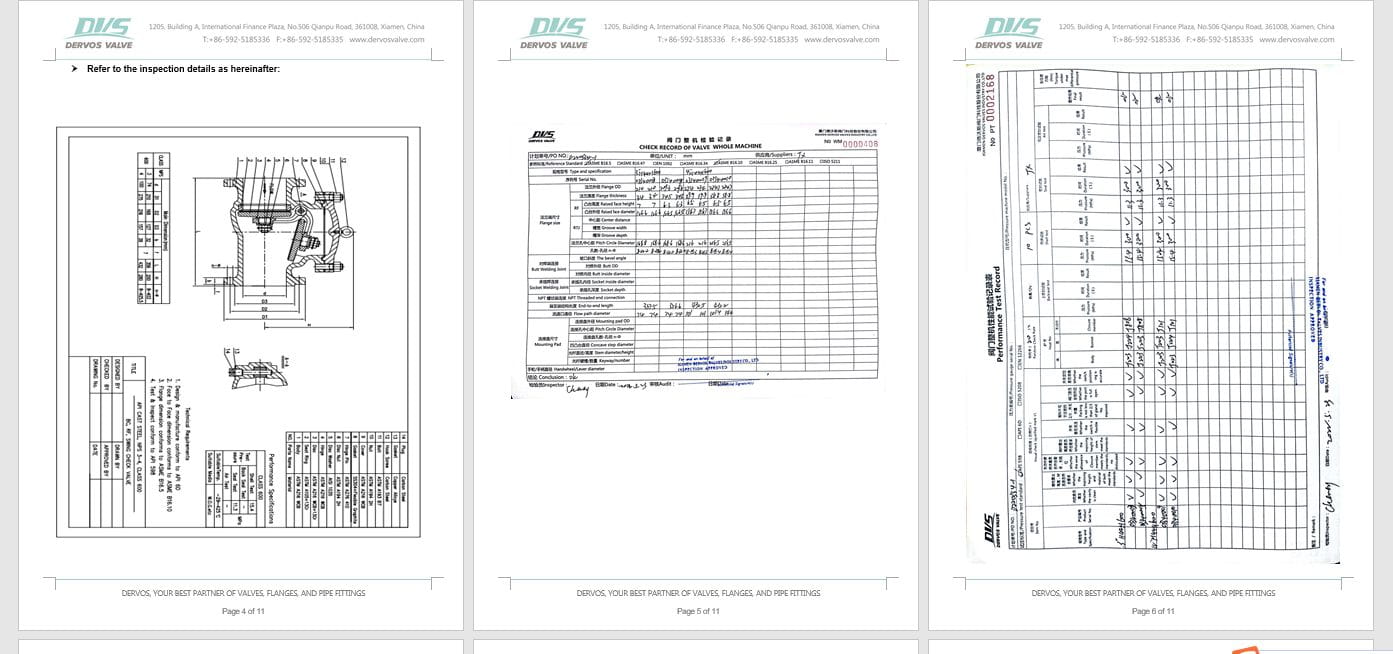

Inspection report
Features
1. Short structural length, small volume, light weight, and convenient installation;
2. Smooth flow channel, low fluid resistance, sensitive action, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
