Key Specifications / Features
We Provide ASTM A351 CF3M Gate Valves, Cast Steel Gate Valves, ASTM A351 CF3M Body, 3 x 5 Inch, 300 LB, API 600, BB, OS & Y, BW Ends, Handwheel Operation.
- Hits: 0
- Categories: Gate Valve
- Tags: ASTM A351 CF3M Gate Valve , CF3M Gate Valve , API 600 Gate Valve
Detail Information

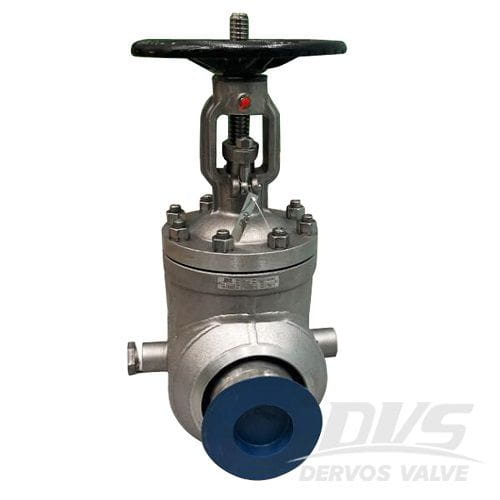

3" x 5" 300 LB Cast Steel Gate Valve HW-OP API 600 CF3M
Introduction
3" x 5" 300 LB gate valve is made according to API 600 standard. The valve body is made of CF3M. It has the structural characteristics of BB, OS & Y, elastic wedge and full jacket. Its packing is graphite braided packing with a spacer ring.
Features
1. The fluid resistance is small, the opening and closing are labor-saving, and the flow direction of the medium is unrestricted;
2. Simple structure, short structure length, good manufacturing process and wide application range.
3. The overall dimension is large, the opening requires a certain space, and the opening and closing time is long.

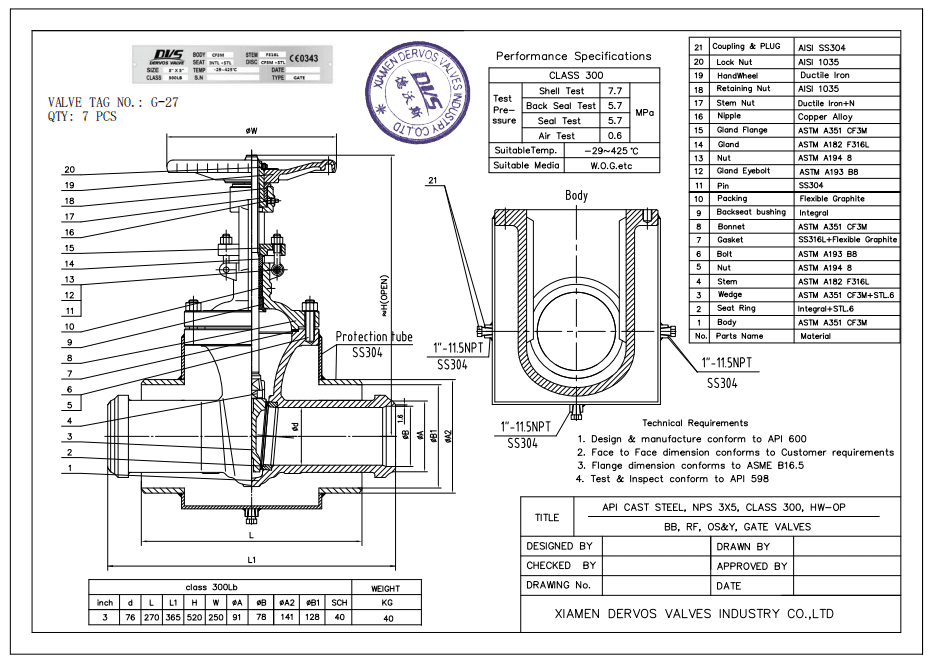

Technical Drawing

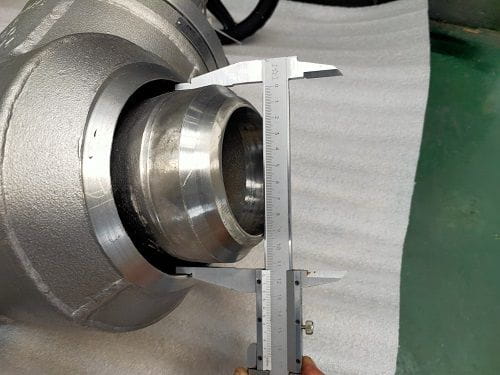

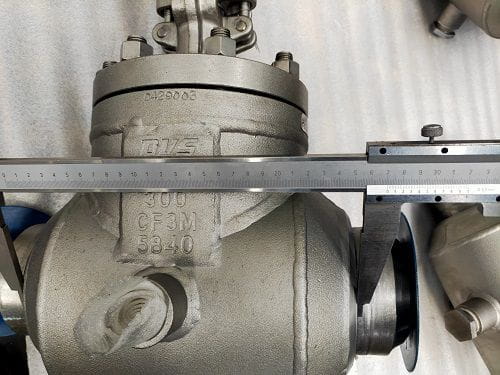

Dimension Checking

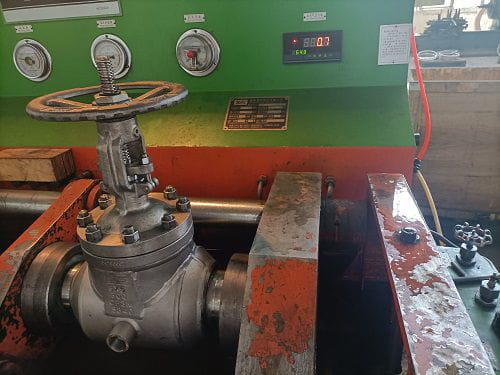

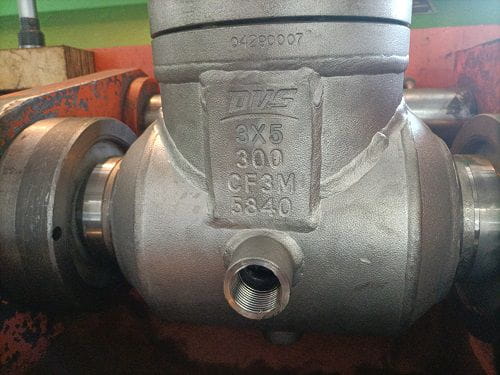

Pressure Testing

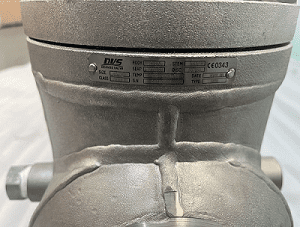

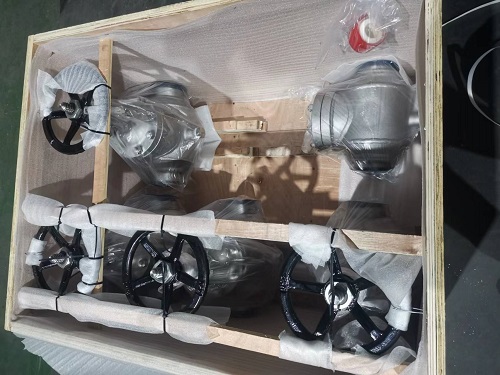

Nameplate & Packing

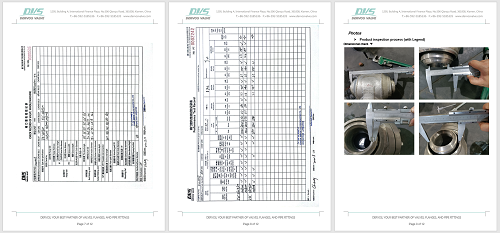

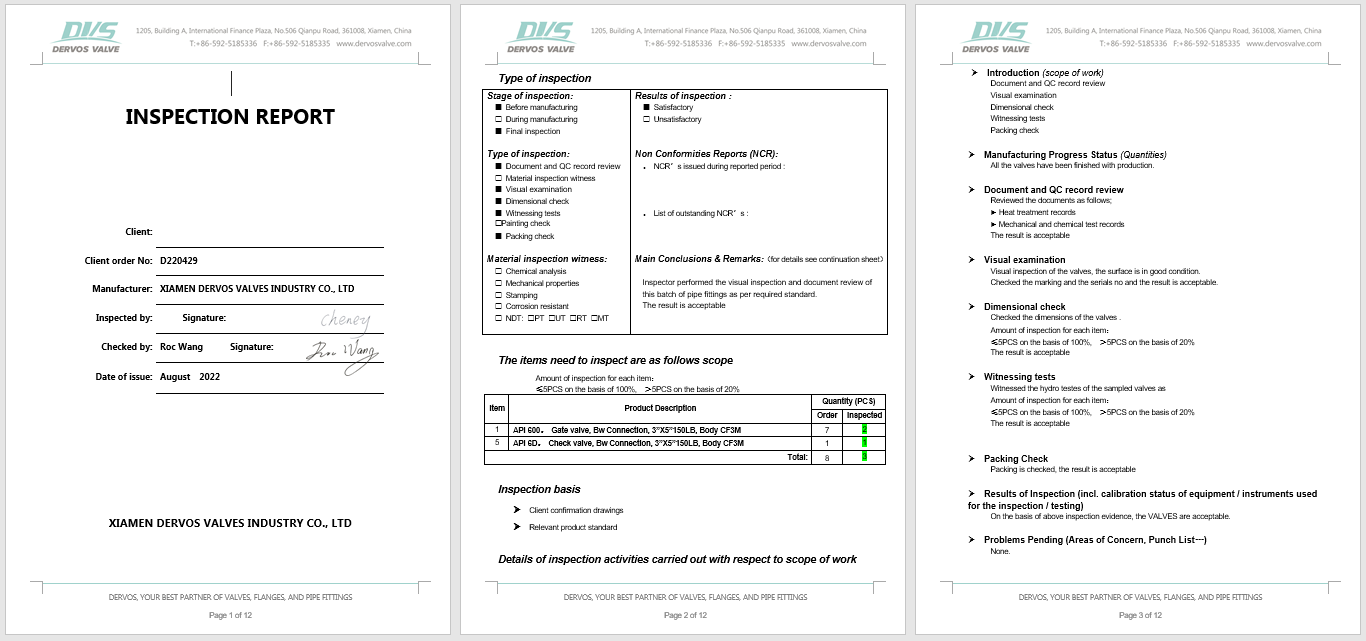

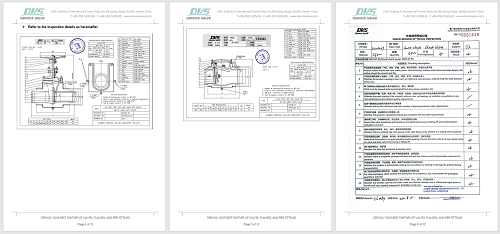

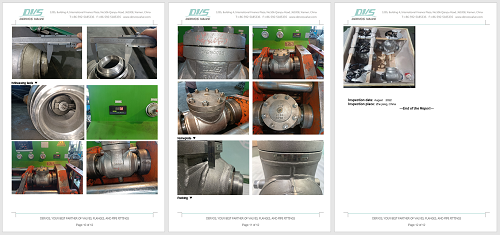

Inspection report
Introduction
3" x 5" 300 LB gate valve is made according to API 600 standard. The valve body is made of CF3M. It has the structural characteristics of BB, OS & Y, elastic wedge and full jacket. Its packing is graphite braided packing with a spacer ring.
Features
1. The fluid resistance is small, the opening and closing are labor-saving, and the flow direction of the medium is unrestricted;
2. Simple structure, short structure length, good manufacturing process and wide application range.
3. The overall dimension is large, the opening requires a certain space, and the opening and closing time is long.
Technical Drawing
Dimension Checking
 |
 |
Pressure Testing
 |
 |
Nameplate & Packing
Inspection report
