Key Specifications / Features
8 Inch 150 LB gate valve is made according to API 600 standards. The valve body is made of A352 LCB. It has the structural characteristics of a bolt cover, rising stem, OS & Y. Its connection mode is BW (SCH 40). It has a handwheel operation mode.
- Hits: 2
- Categories: Gate Valve
- Tags: Cast Steel Gate Valve , 8 Inch Gate Valve , 150 LB Gate Valve
Detail Information
8 Inch 150 LB Cast Steel Gate Valve BW API 600 Handwheel LCB
Features
1. Long service life, wide applicability, and effortless opening and closing;
2. Simple structure, short structural length, and high cost-effectiveness in production.

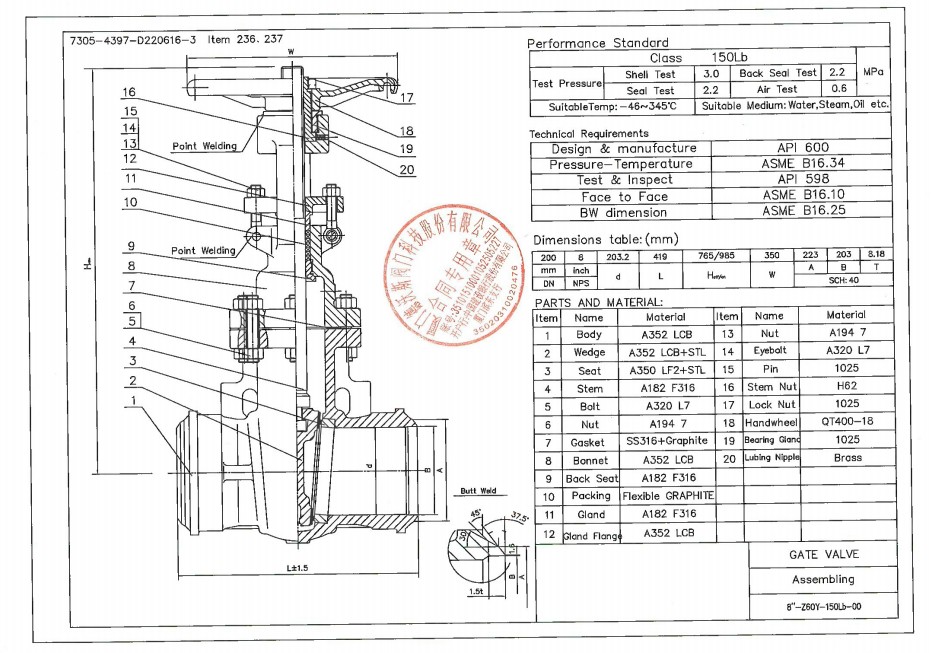

Technical Drawing

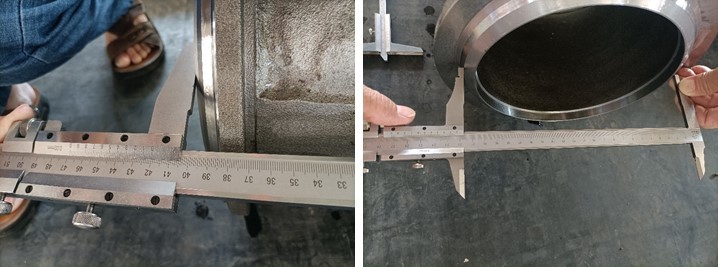

Dimension Checking

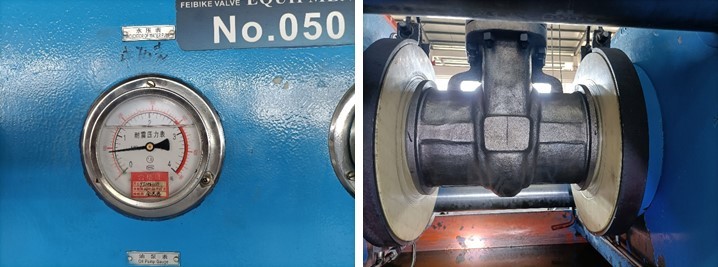

Pressure Testing

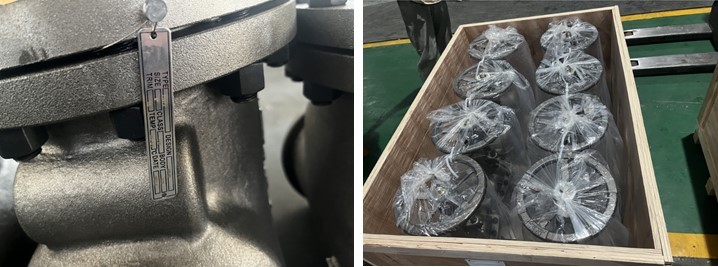

Nameplate & Packing

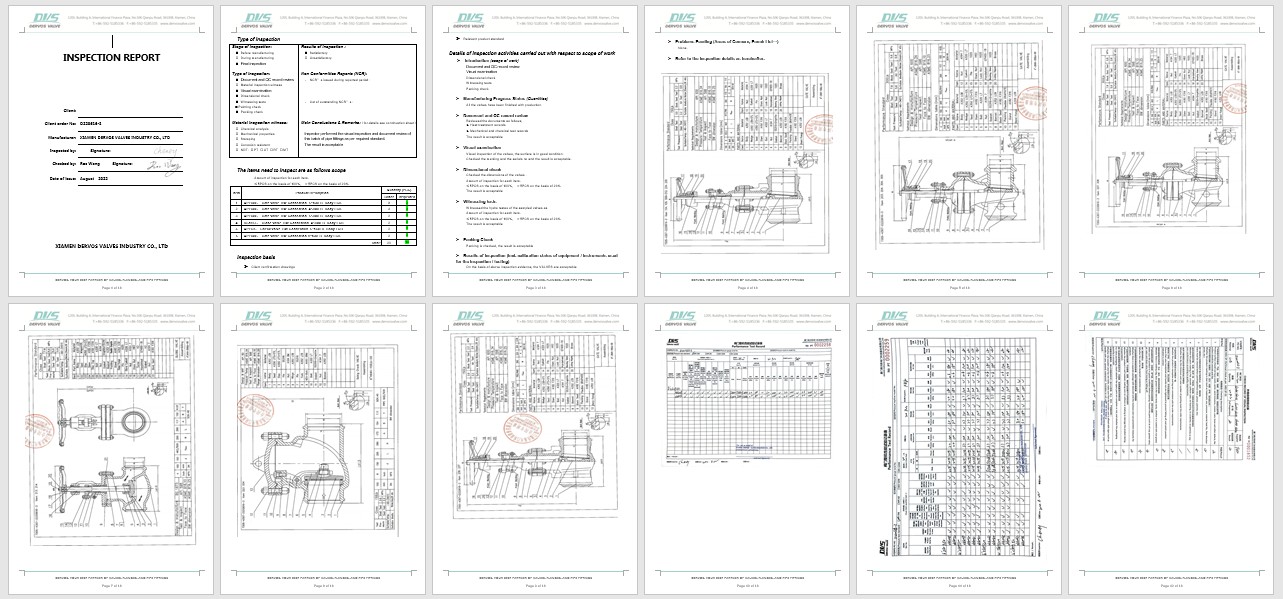

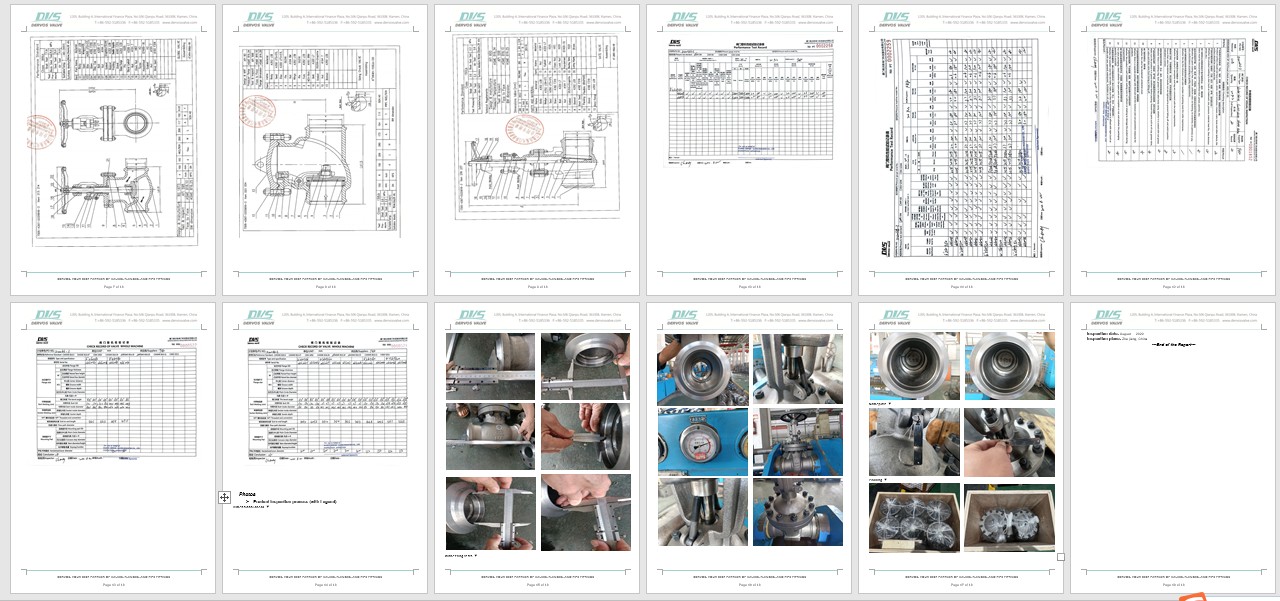

Inspection report
Features
1. Long service life, wide applicability, and effortless opening and closing;
2. Simple structure, short structural length, and high cost-effectiveness in production.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
