ASTM A182 F304L Solid Wedge Gate Valve, API 602, 1/2 IN, CL1500
Key Specifications / Features
ASTM A182 F304L Gate Valve Provider: Solid Wedge Gate Valve, 1/2 Inch, 1500 LB, API 602, ASTM A182 F304L, ASTM A182 F304, Bolted Bonnet, OS&Y, SW Ends.
- Hits: 13
- Categories: Gate Valve
- Tags: ASTM A182 F304 Gate Valve , Solid Wedge Gate Valve , Class 1500 LB Gate Valve
Detail Information
1/2 Inch 1500 LB F304 Gate Valve Solid Wedge Handwheel
Caste Gate Valves
Small Sized Valves
Chinese Gate Valve Manufacturer
F304L Gate Valves
Quick Detail
Features
--Full size or reduced size.
--Three bonnet types: bolted, welded, self-sealing.
--Excellent Sealing performance; Sealing surface enjoys good resistance wearing and abrasion.
--Compact structure, easy opening and closing, small height, convenient maintenance.

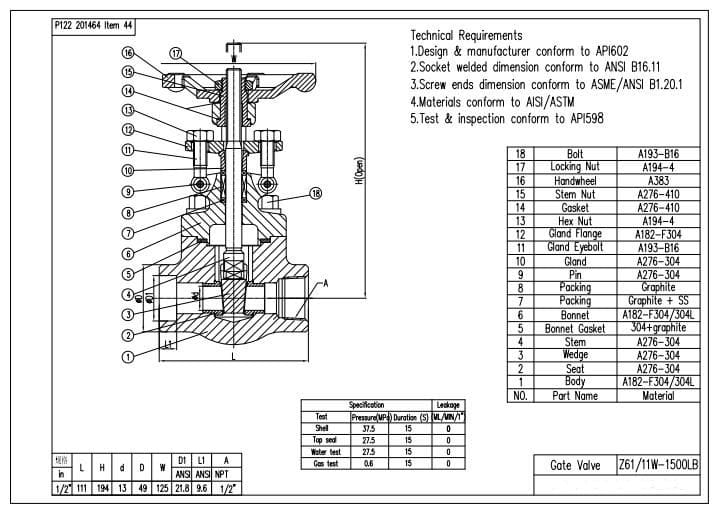

Technical Drawing

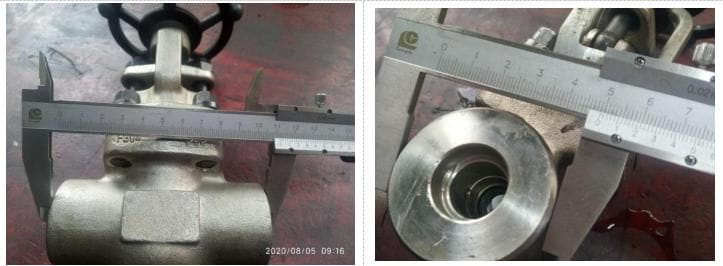

Dimension Check

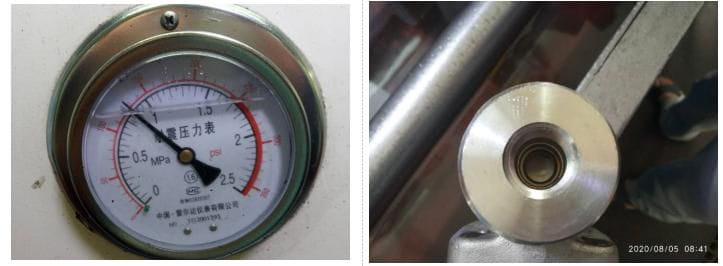

Witness Test

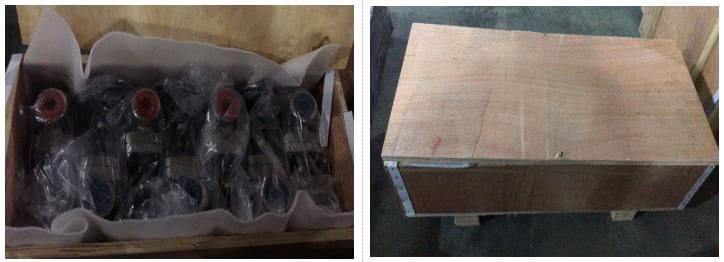

Packing

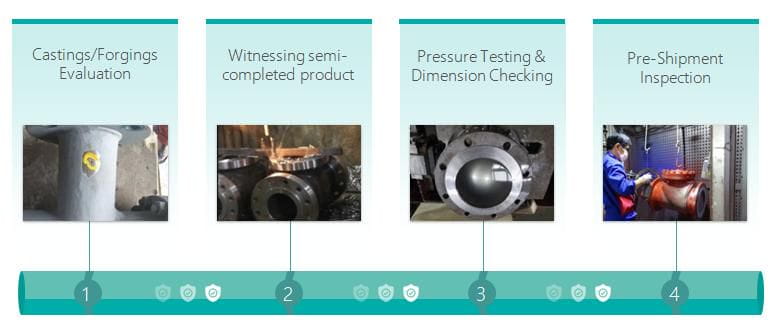

Kelly Quality Checking System
In Kelly, we control quality throughout the whole manufacturing process.
Casting inspection:
We can find out the problem of raw material, such as shoddy casting, unqualified wall thickness, chemical composition and so on, which ensure that you will not be cheated.
Machining Inspection:
On the one hand, we could ensure machining accuracy through this process. On the other hand, we could find out machining mistake as early as possible, to win more time for repairing and remaking.
Final Inspection:
Final inspection activities include document and QC record review, visual examination, dimension check, pressure test, painting and packing check. You don’t need to come and inspect in person and all the documents could be provided as proof.
Caste Gate Valves
Small Sized Valves
Chinese Gate Valve Manufacturer
F304L Gate Valves
Quick Detail
| Type | Gate Valve |
| Size | 1/2 Inch |
| Design Pressure | 1500 LB |
| Construction | Bolted Bonnet, Solid Wedge, OS&Y |
| Connection Type | Socket Weld (SW), FNPT |
| Operation Type | Handwheel Operation |
| Body Material | ASTM A182 F304, ASTM A182 F304L |
| Trim Material | #2 |
| Design Code | API 602 |
| Test&Inspection | API 598 |
| Screw Ends | ASME B1.20.1, ANSI B1.20.1 |
| Medium | Water, Oil and Gas |
| Origin | China |
Features
--Full size or reduced size.
--Three bonnet types: bolted, welded, self-sealing.
--Excellent Sealing performance; Sealing surface enjoys good resistance wearing and abrasion.
--Compact structure, easy opening and closing, small height, convenient maintenance.
Technical Drawing
Dimension Check
Witness Test
Packing
Kelly Quality Checking System
In Kelly, we control quality throughout the whole manufacturing process.
Casting inspection:
We can find out the problem of raw material, such as shoddy casting, unqualified wall thickness, chemical composition and so on, which ensure that you will not be cheated.
Machining Inspection:
On the one hand, we could ensure machining accuracy through this process. On the other hand, we could find out machining mistake as early as possible, to win more time for repairing and remaking.
Final Inspection:
Final inspection activities include document and QC record review, visual examination, dimension check, pressure test, painting and packing check. You don’t need to come and inspect in person and all the documents could be provided as proof.
