Key Specifications / Features
DN25 PN100 gate valve is made according to API 602 standard. The valve body is made of ASTM A105N. It has the structural characteristics of a rigid gate, bolt cover, and bracket. Its connection mode is EN 1092-1 D. And it has hand wheel operation mode.
- Hits: 0
- Categories: Gate Valve
- Tags: DN25 Gate Valve , PN100 Gate Valve , Forged Steel Gate Valve
Detail Information
DN25 PN100 Forged Steel Gate Valve A105N API 602 Handwheel
Features
1. It has high strength and corrosion resistance, and can withstand working conditions under high pressure and high-temperature environments;
2. Easy and flexible to operate, reliable sealing performance, and able to effectively prevent medium leakage.

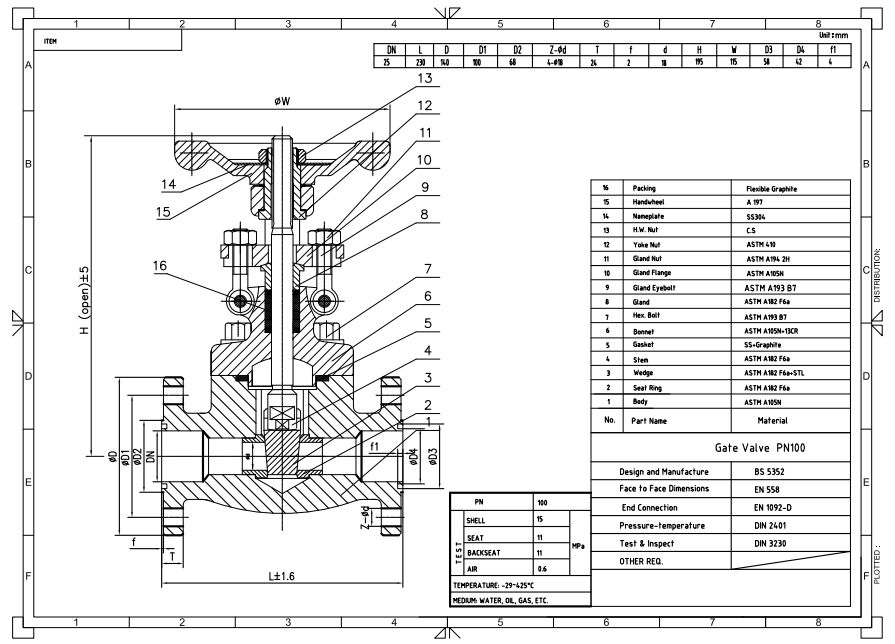

Technical Drawing

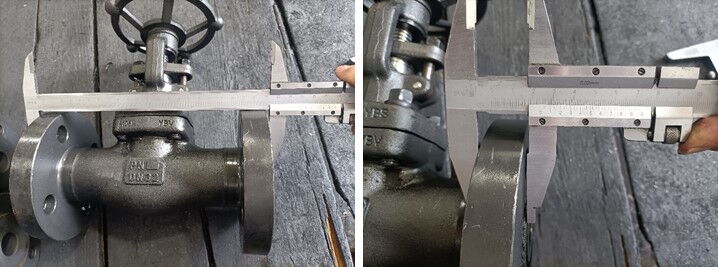

Dimension Checking

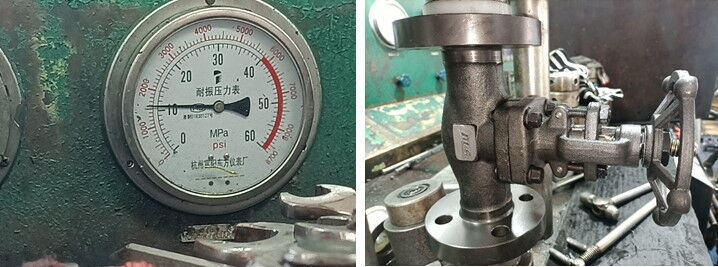

Pressure Testing

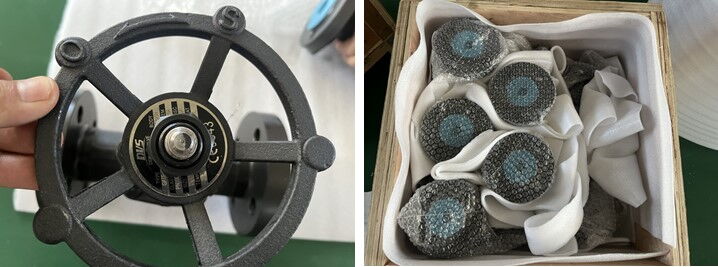

Nameplate & Packing

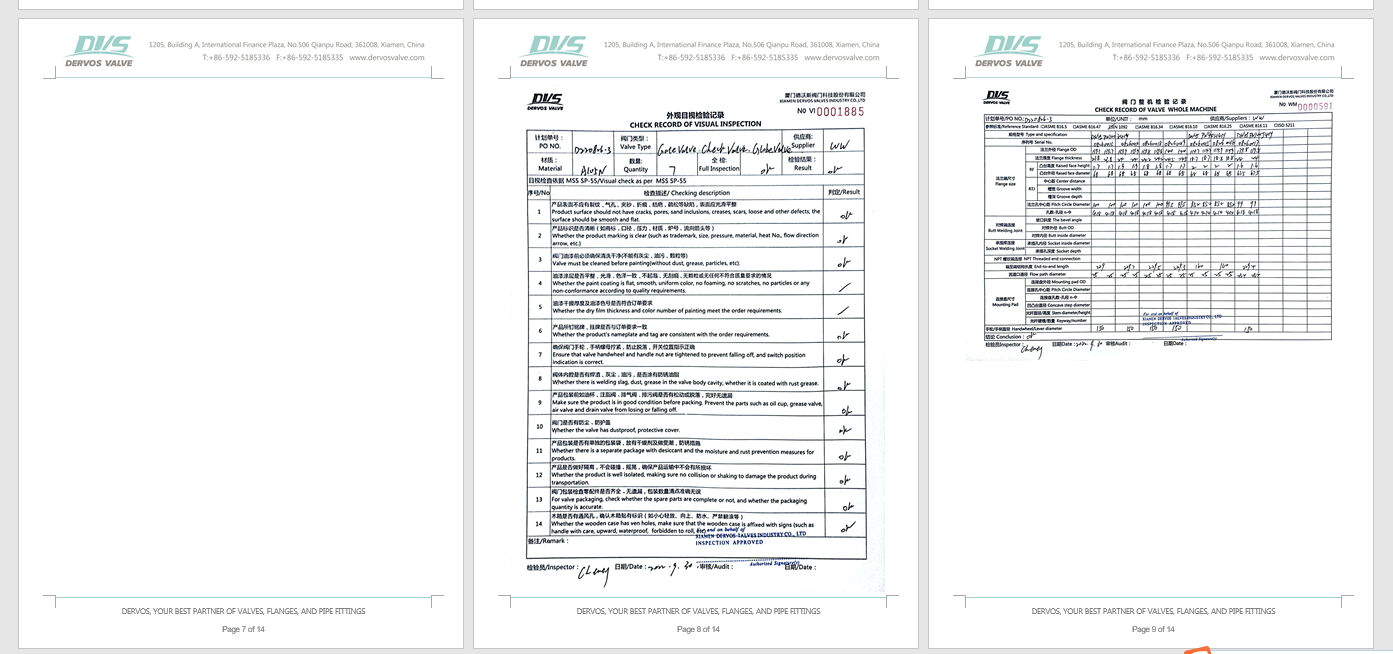

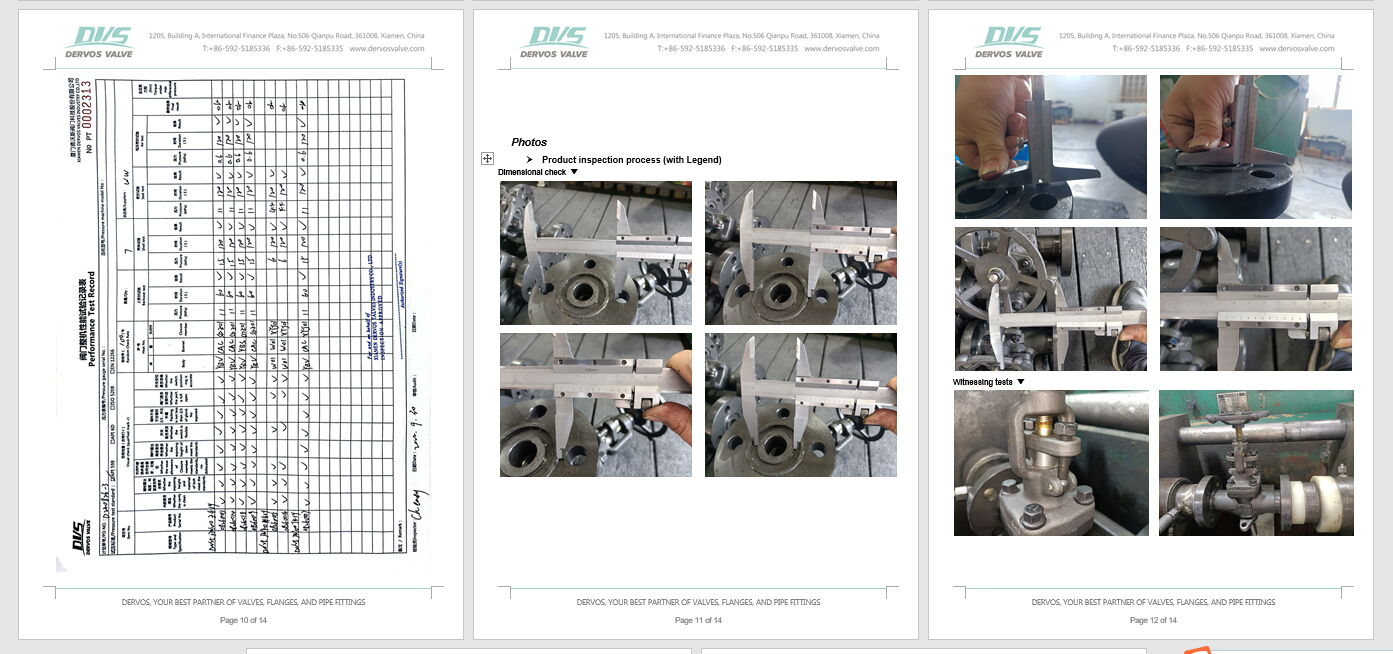

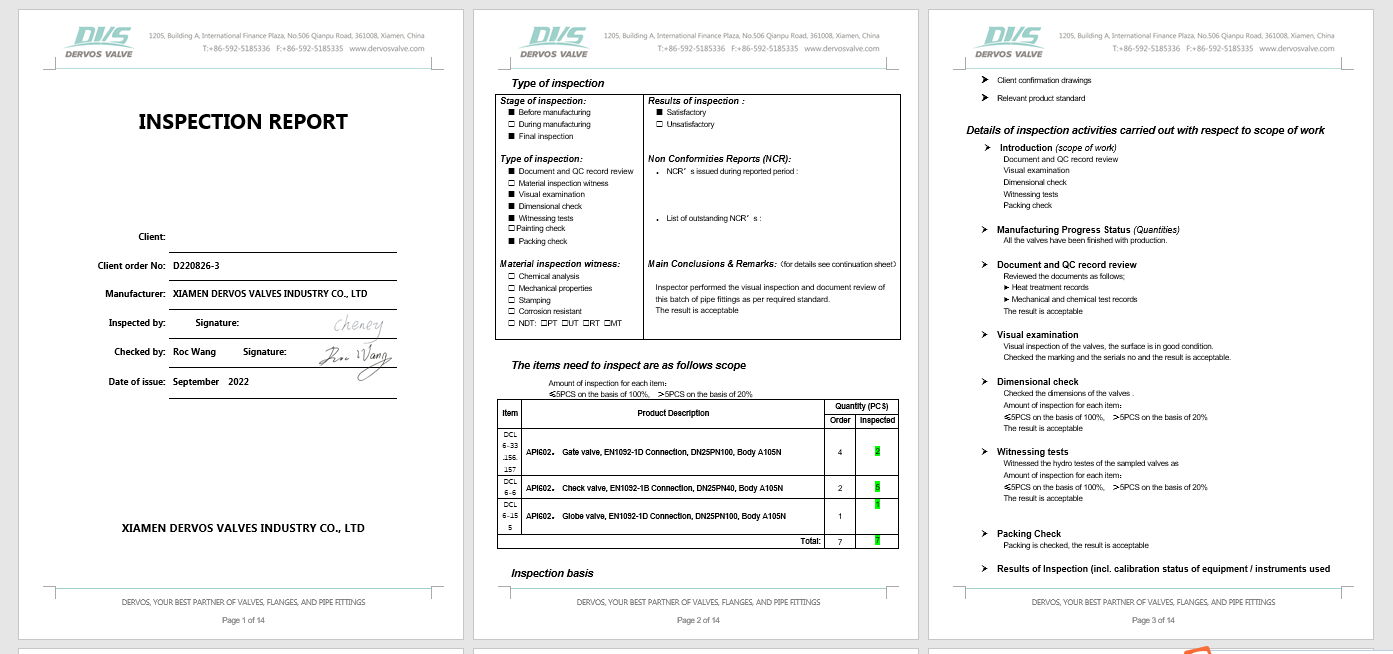

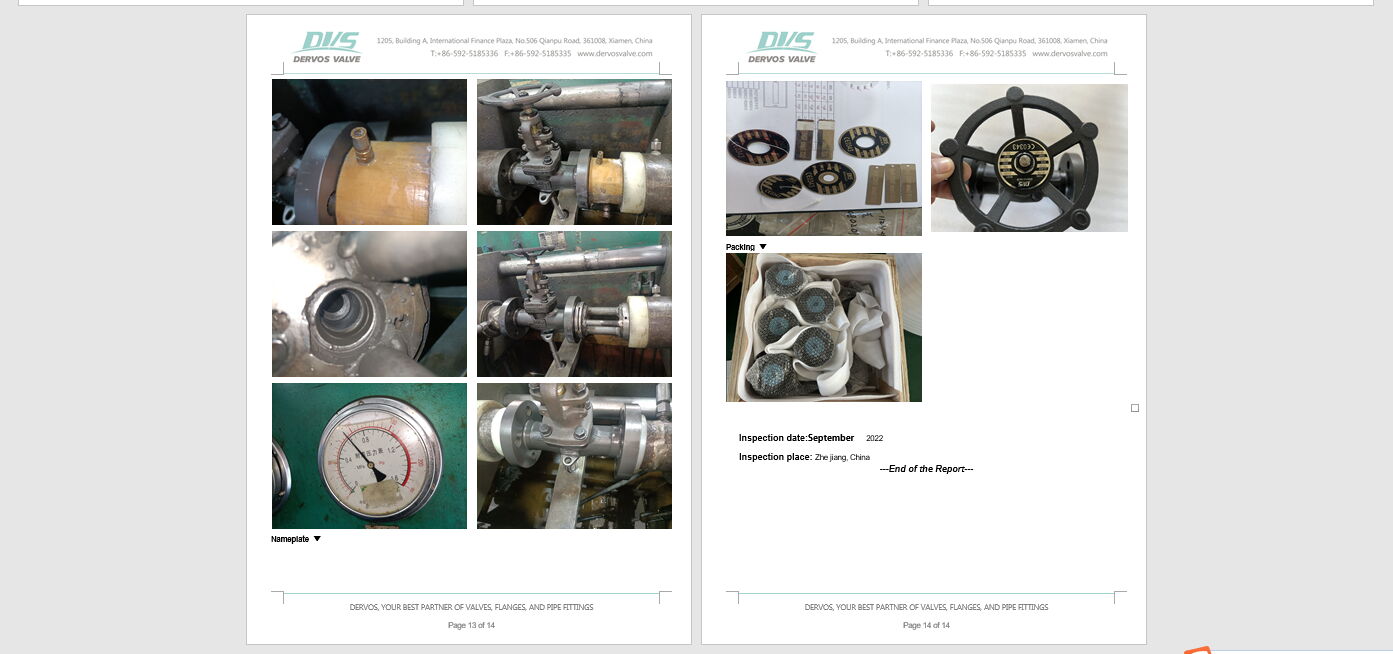

Inspection report
Features
1. It has high strength and corrosion resistance, and can withstand working conditions under high pressure and high-temperature environments;
2. Easy and flexible to operate, reliable sealing performance, and able to effectively prevent medium leakage.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
