ASTM A105N Rising Stem Gate Valve, 2 Inch, 800 LB, API 602
Key Specifications / Features
2 Inch 800 LB gate valve is made according to API 602 standards. The valve body is made of ASTM A105N. It has the structural characteristics of a rising stem. Its connection mode is SW. And it has hand wheel operation mode.
- Hits: 6
- Categories: Gate Valve
- Tags: ASTM A105N Gate Valve , 2 Inch Gate Valve , Class 800 LB Gate Valve
Detail Information
API 602 2 Inch 800 LB Forged Steel Gate Valve SW A105N Handwheel
Features
1. Simple structure, good sealing performance, and can effectively prevent medium leakage;
2. Usually controlled manually, electrically, pneumatically, etc., with flexible and convenient operation.

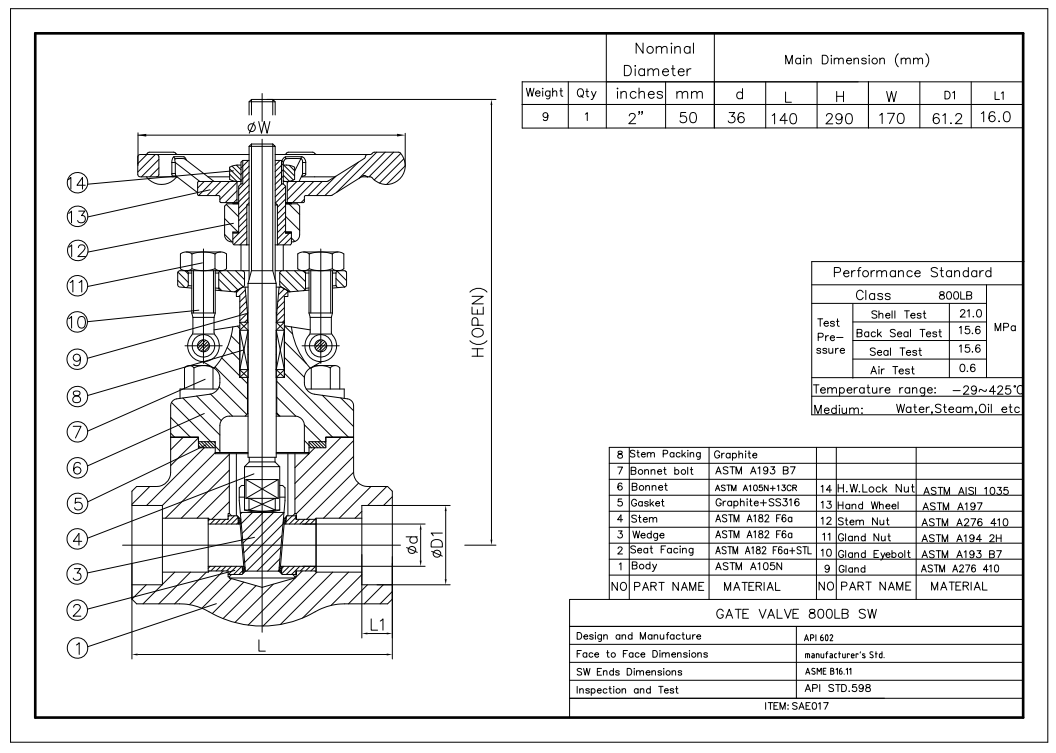

Technical Drawing

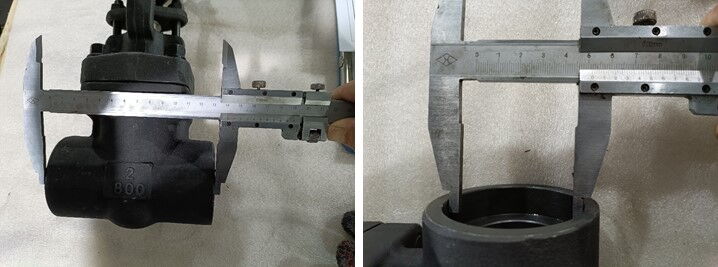

Dimension Checking

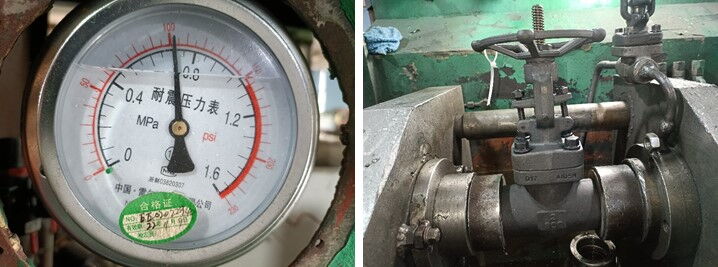

Pressure Testing

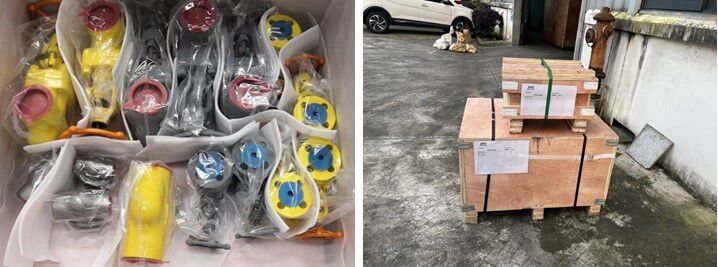

Packing

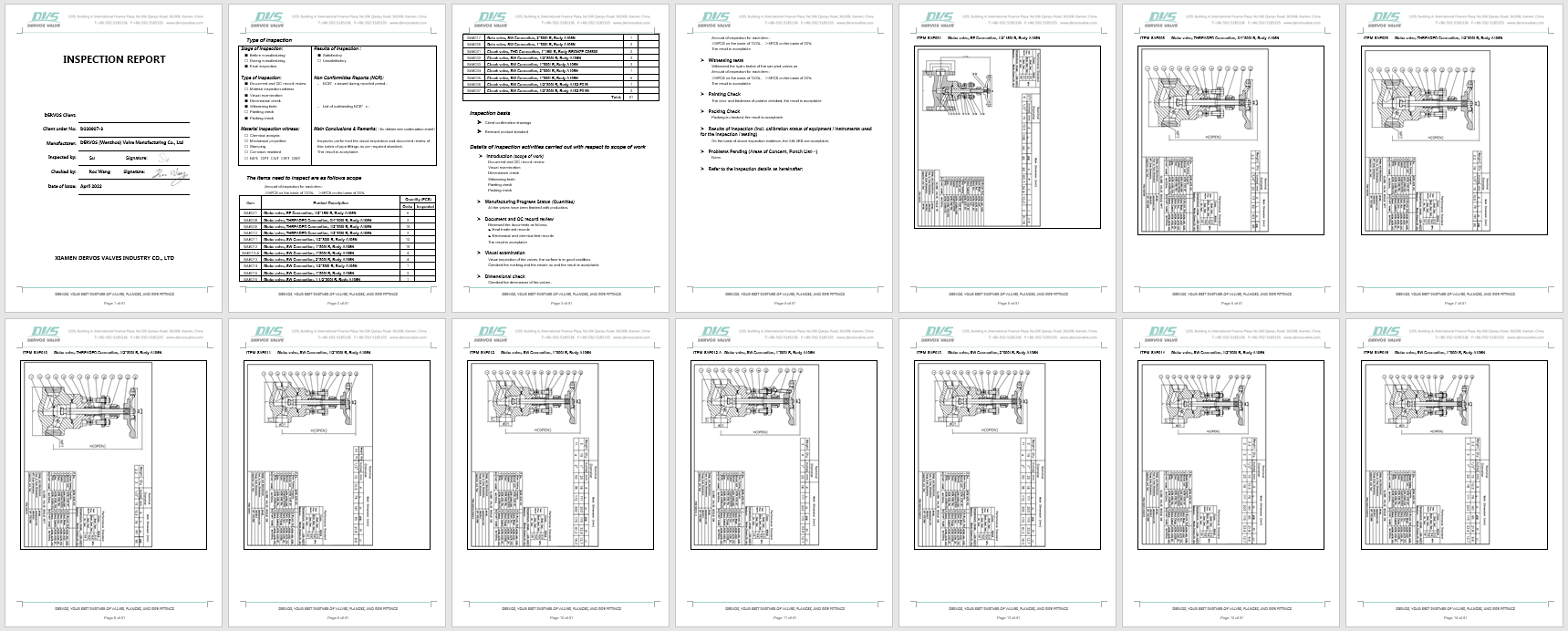

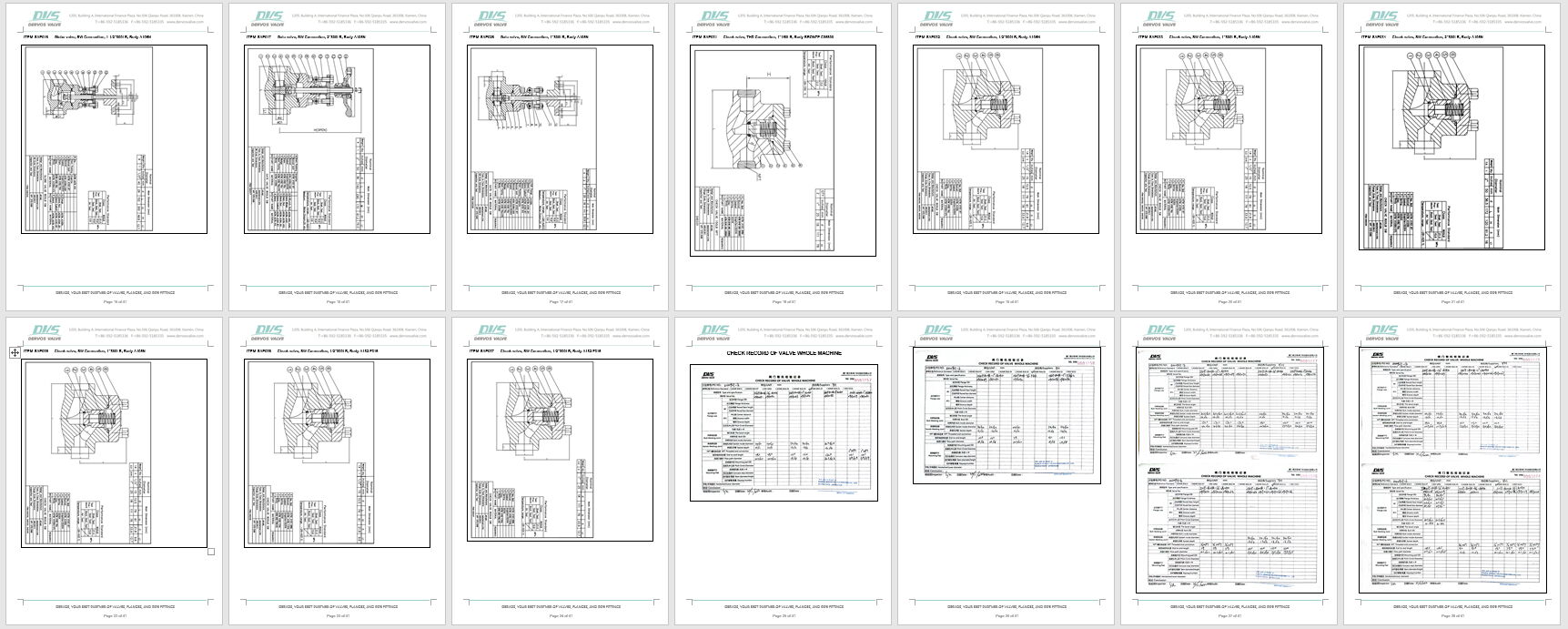

Inspection report
Features
1. Simple structure, good sealing performance, and can effectively prevent medium leakage;
2. Usually controlled manually, electrically, pneumatically, etc., with flexible and convenient operation.
Technical Drawing
Dimension Checking
Pressure Testing
Packing
Inspection report
