ASME B16.34 Change Over Valve, A216 WCB, 1-1/2 IN, CL300, RF
Key Specifications / Features
The 1-1/2 inch, Class 300 LB changeover valve is designed to ASME B16.34 standards, with a durable ASTM A216 WCB body. It features a bolted bonnet (BB), outside screw and yoke (OS&Y) construction, and a plug valve disc. The valve connects via RF flanges and is operated by a handwheel.
- Model No.: Kelly-COV-20241031-03
- Hits: 8
- Categories: Other Valve
- Tags: ASME B16.34 Change Over Valve , ASTM A216 WCB Change Over Valve , 1-1/2 Inch Change Over Valve
Detail Information
ASTM A216 WCB Change Over Valves, ASME B16.34, DN40, PN50.
Features
1. Changeover valves are highly pressure-resistant, making them suitable for medium- and high-pressure systems.
2. The flow direction can be easily switched via manual, pneumatic, or electric actuation, thanks to a simple, user-friendly design.

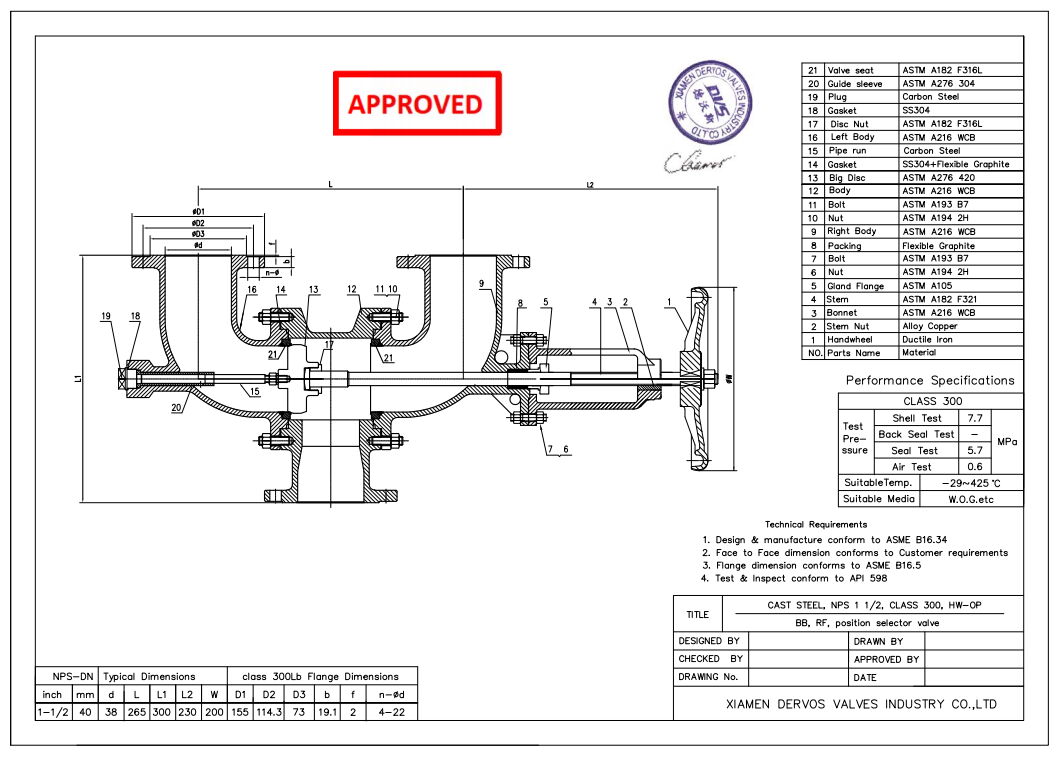

Technical Drawing

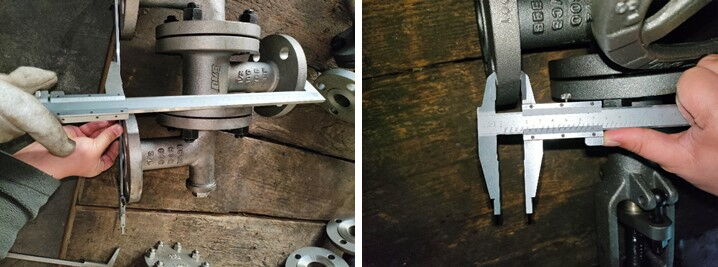

Dimension Checking

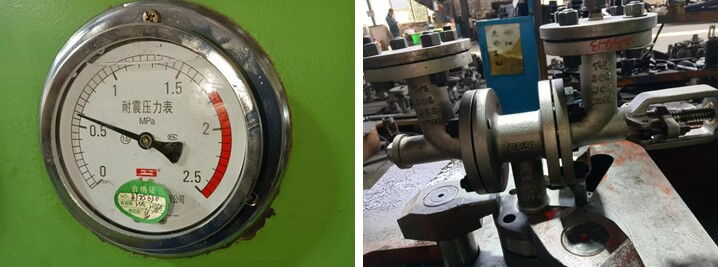

Pressure Testing

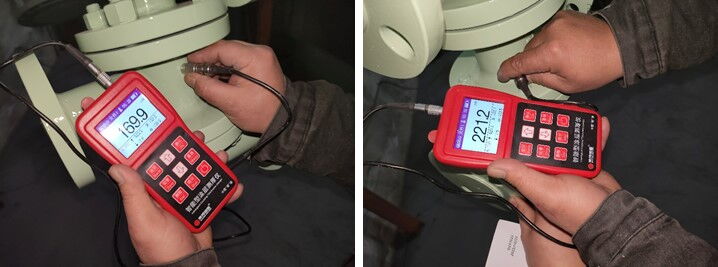

Painting
1. Changeover valves are highly pressure-resistant, making them suitable for medium- and high-pressure systems.
2. The flow direction can be easily switched via manual, pneumatic, or electric actuation, thanks to a simple, user-friendly design.
Technical Drawing
Dimension Checking
Pressure Testing
Painting

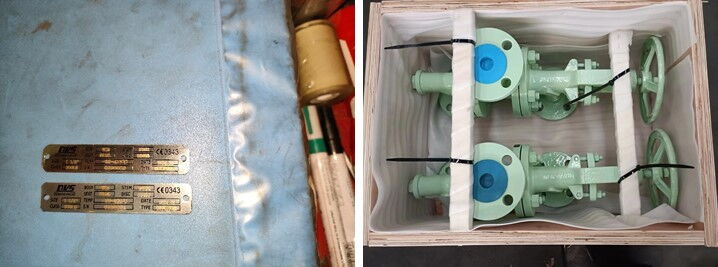

Nameplate & Packing

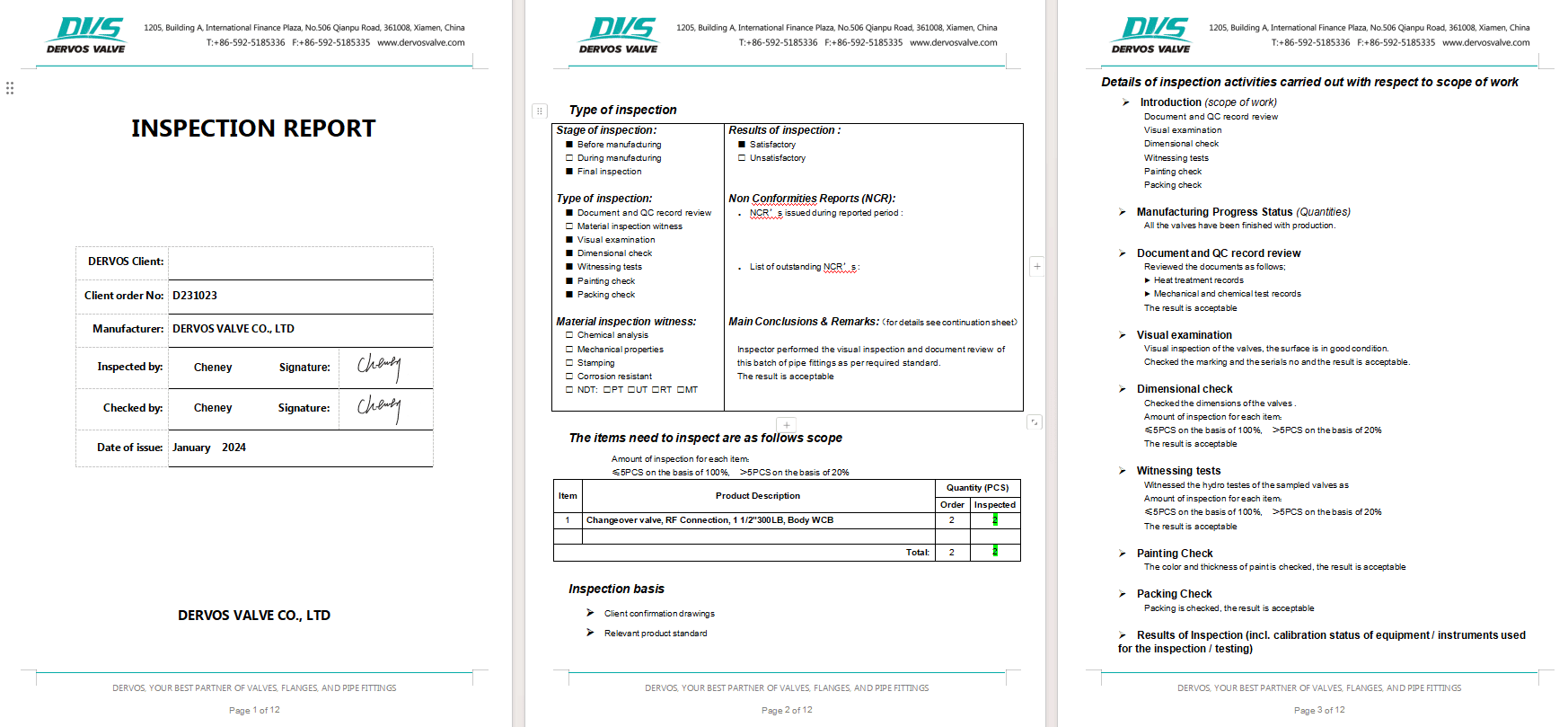

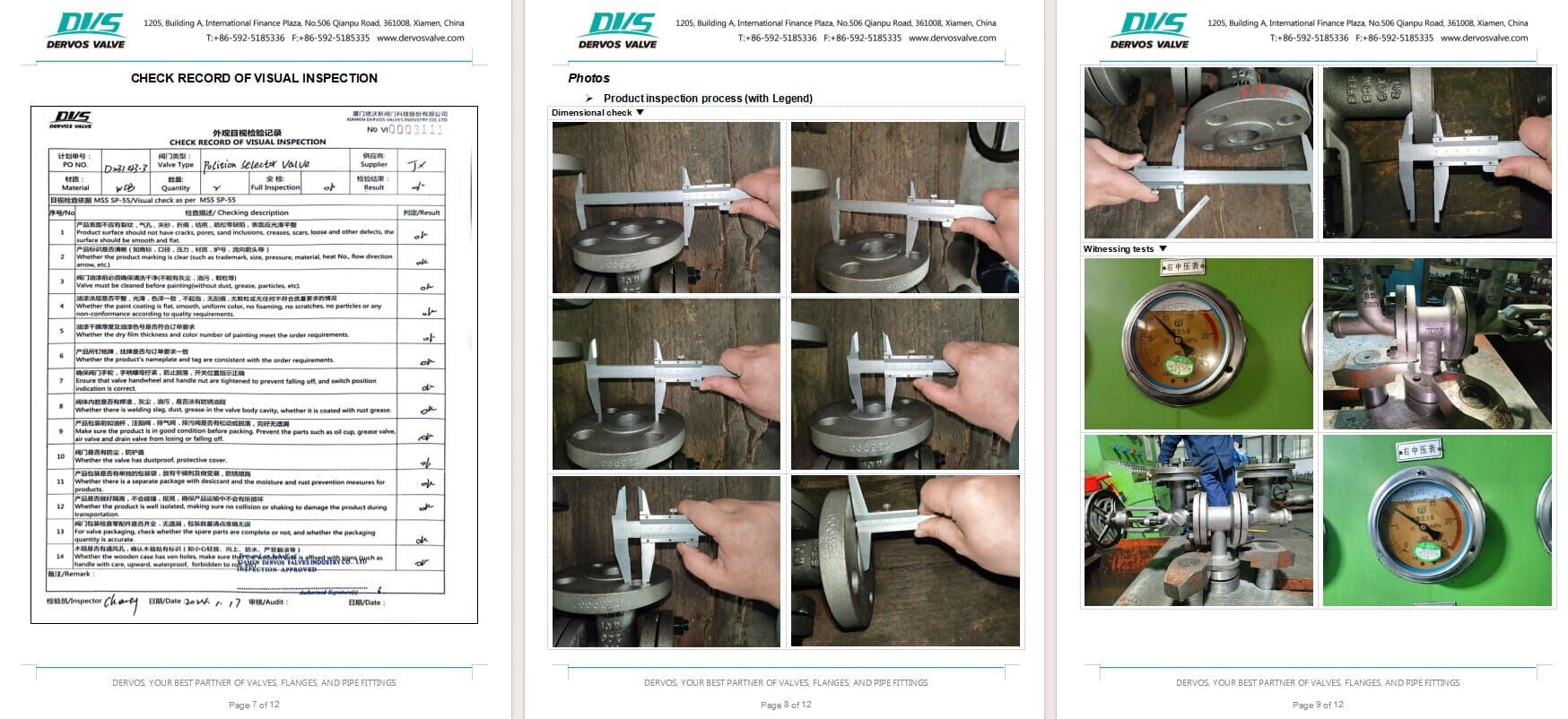

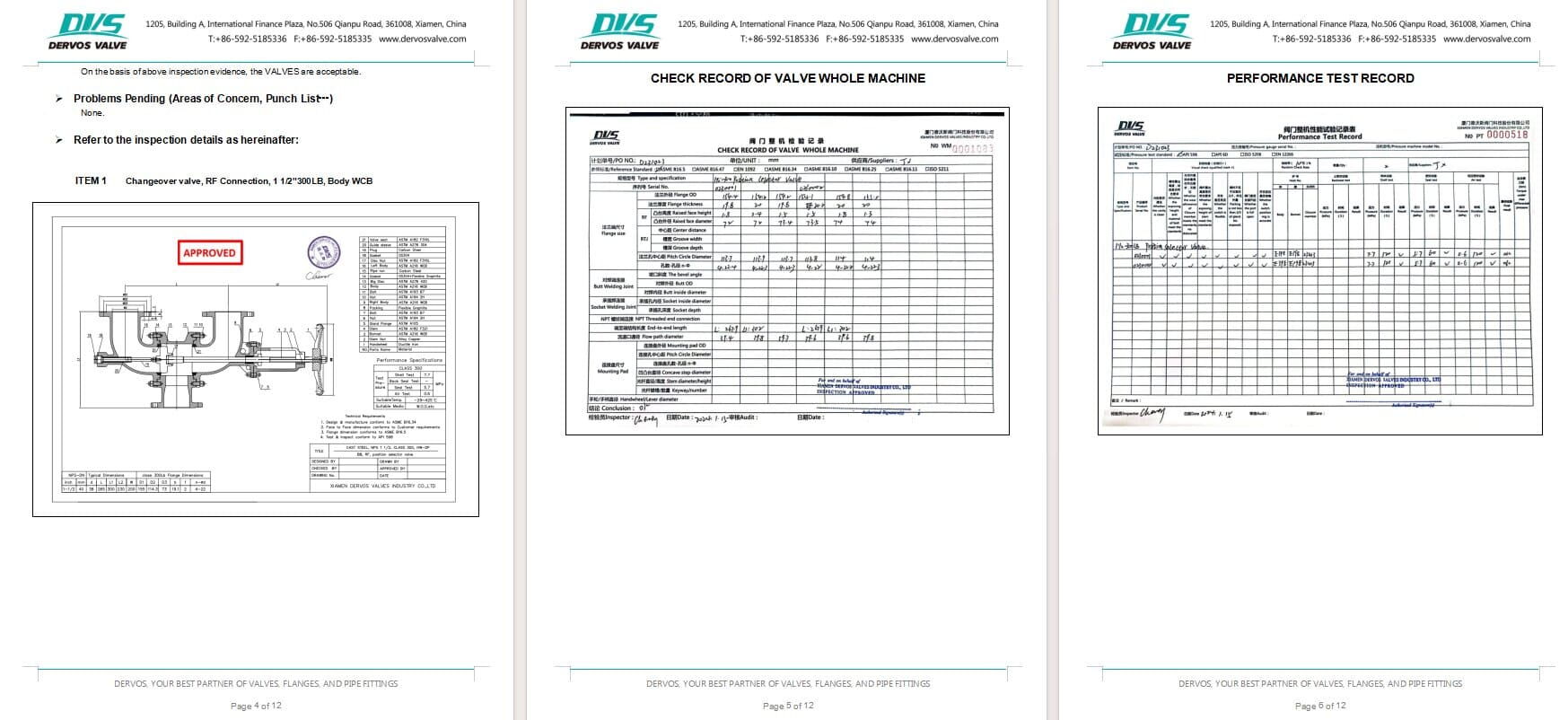

Inspection Report
Inspection Report
