API 520 Spring Loaded Safety Valve, A890 5A, CE3MN, 4 x 6 IN
Key Specifications / Features
The 4 in x 6 in spring-loaded safety valve, rated at Class 600 LB x 150 LB, is designed per API 520 and ASME VIII standards. Made from ASTM A890 5A (CE3MN) material, this valve features a fully open design and a spring-loaded mechanism, specifically engineered for seawater applications. It connects via a raised face (RF) in compliance with ASME B16.5 standards.
- Model No.: Kelly-SV-20241025-03
- Hits: 9
- Categories: Other Valve
- Tags: API 520 Safety Valve , Spring Loaded Safety Valve , CE3MN Safety Valve
Detail Information
Spring Loaded Safety Valves, API 520, CE3MN Body, RF Flanged.
Features
1. Simple Structure: It is designed for easy disassembly and maintenance, allowing for regular inspection and replacement of the spring to ensure optimal valve operation.
2. Versatile Application: Suitable for various industries, including petroleum, chemical, power, and pharmaceuticals.
1. Simple Structure: It is designed for easy disassembly and maintenance, allowing for regular inspection and replacement of the spring to ensure optimal valve operation.
2. Versatile Application: Suitable for various industries, including petroleum, chemical, power, and pharmaceuticals.

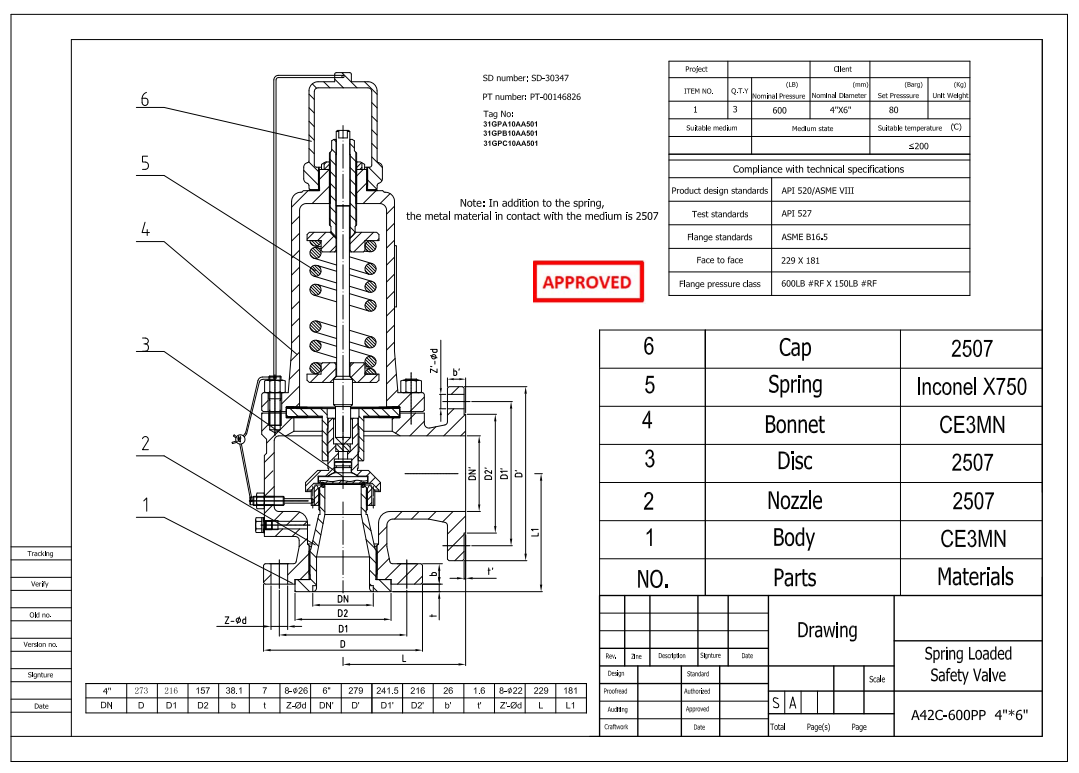

Technical Drawing

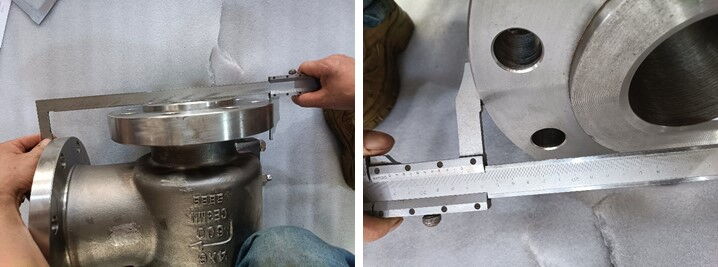

Dimension Checking

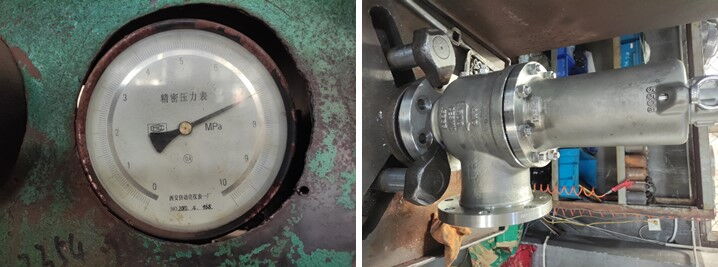

Pressure Testing

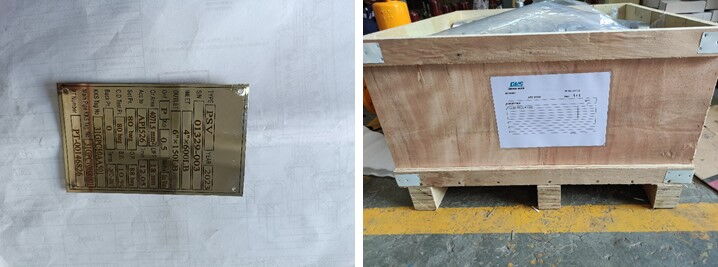

Nameplate & Packing

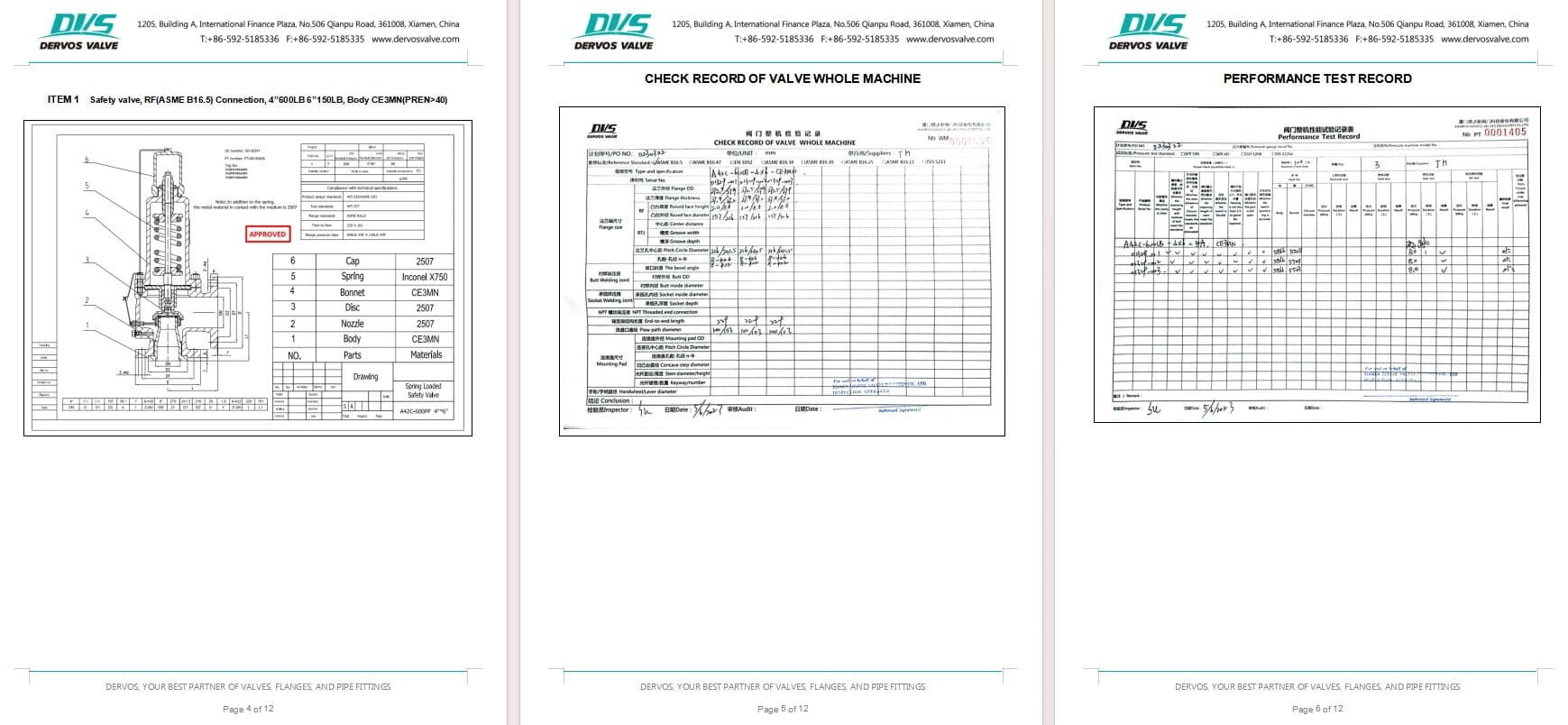

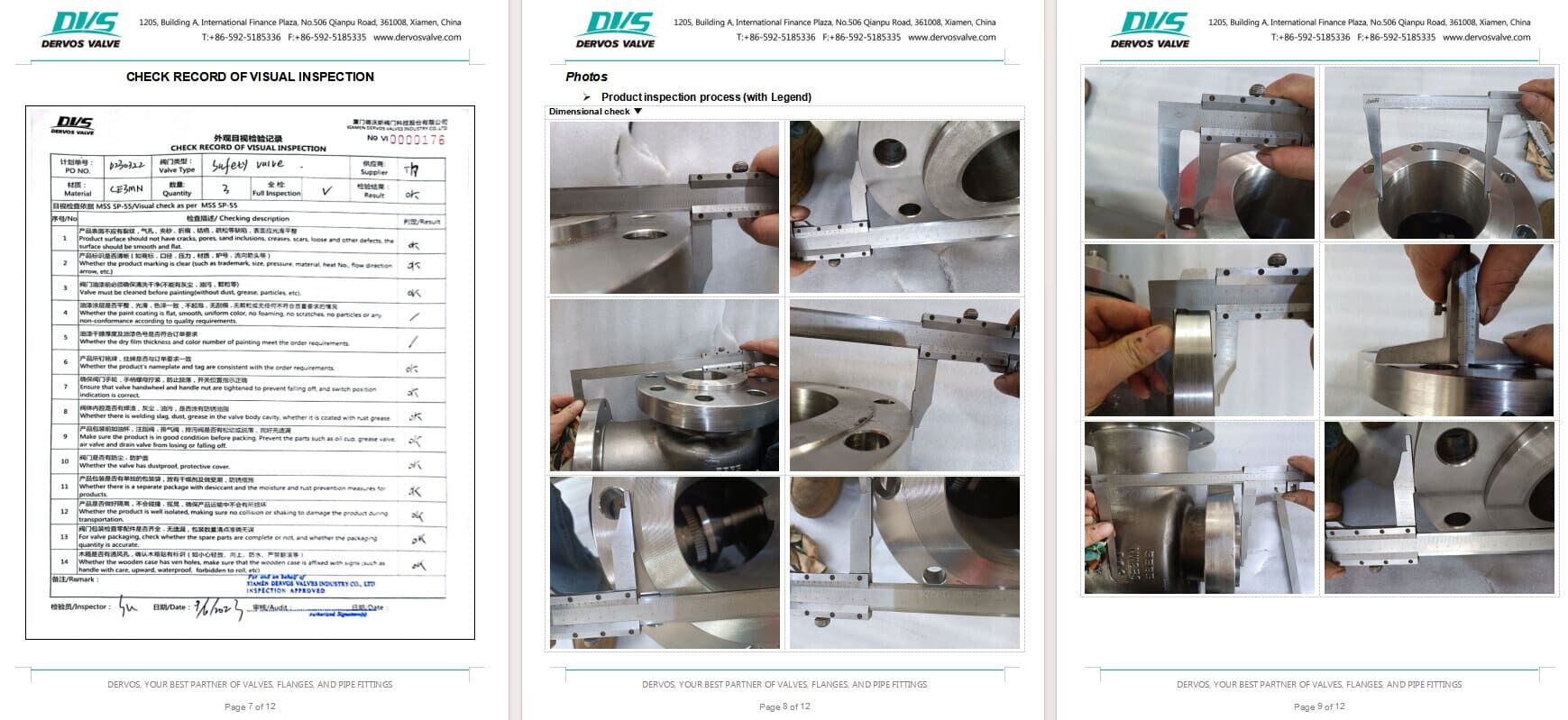

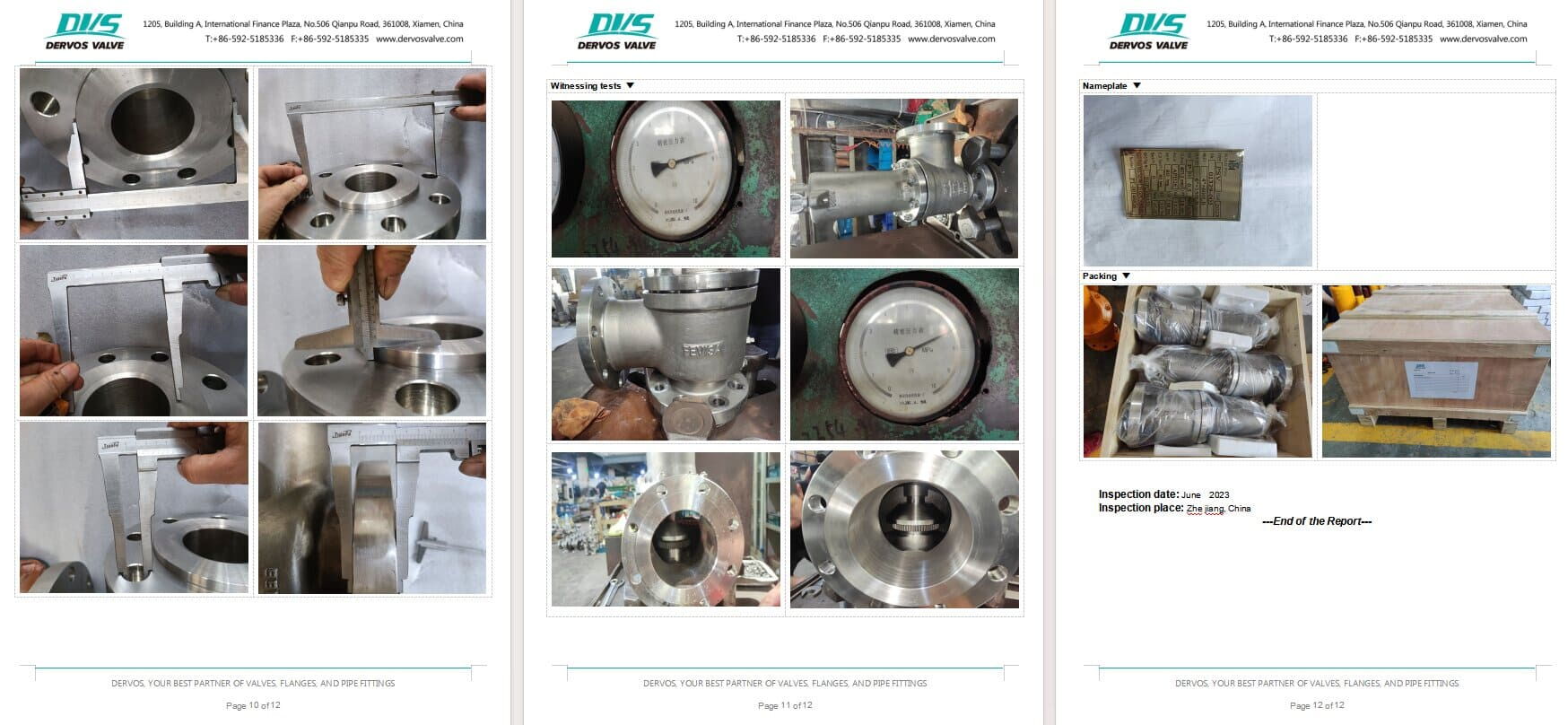

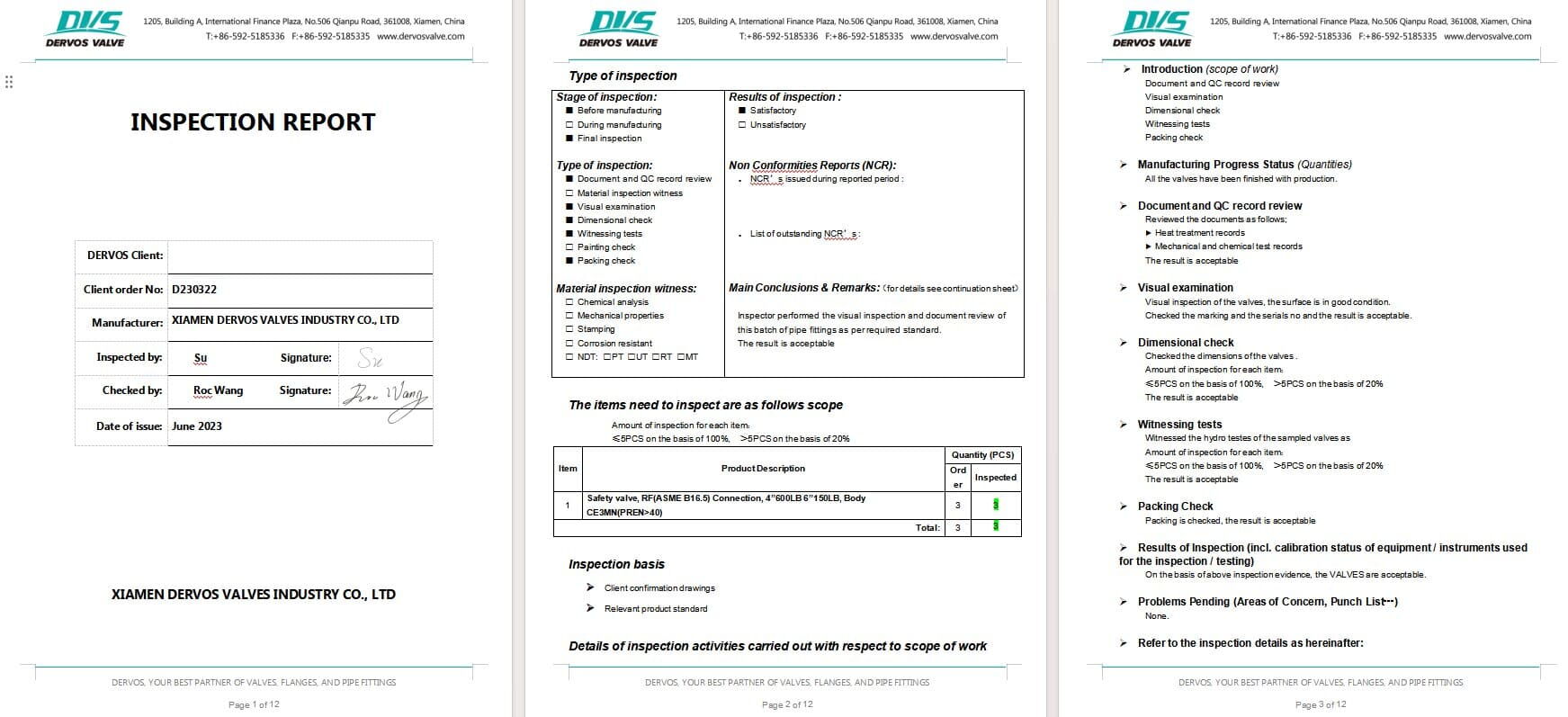

Inspection Report
