Thermodynamic Steam Trap Valve, LF2,GB/T 22654,1 IN 150 LB
Key Specifications / Features
The 1-inch 150 LB steam trap valve is built according to the GB/T 22654-2008 standard, with a valve body made from ASTM A350 LF2 CL1. Featuring a thermodynamic design, it is optimized for efficient steam trapping. The valve is designed with RF (raised face) connections, ensuring a secure and reliable installation. Its robust construction and effective performance make it ideal for managing steam flow in various applications.
- Model No.: Kelly-STV-20241108-02
- Hits: 9
- Categories: Other Valve
- Tags: Thermodynamic Steam Trap Valve , ASTM A350 LF2 Steam Trap Valve , 1 Inch Steam Trap Valve
Detail Information
Thermodynamic Steam Trap Valves, GB/T 22654, ASTM A350 LF2, RF Flanged.
Features
1. Simple internal structure and compact size, making it easy to install in pipeline systems with limited space.
2. Thermodynamic drain valve design effectively withstands water hammer impact, making it ideal for systems with fluctuating pressures.
1. Simple internal structure and compact size, making it easy to install in pipeline systems with limited space.
2. Thermodynamic drain valve design effectively withstands water hammer impact, making it ideal for systems with fluctuating pressures.

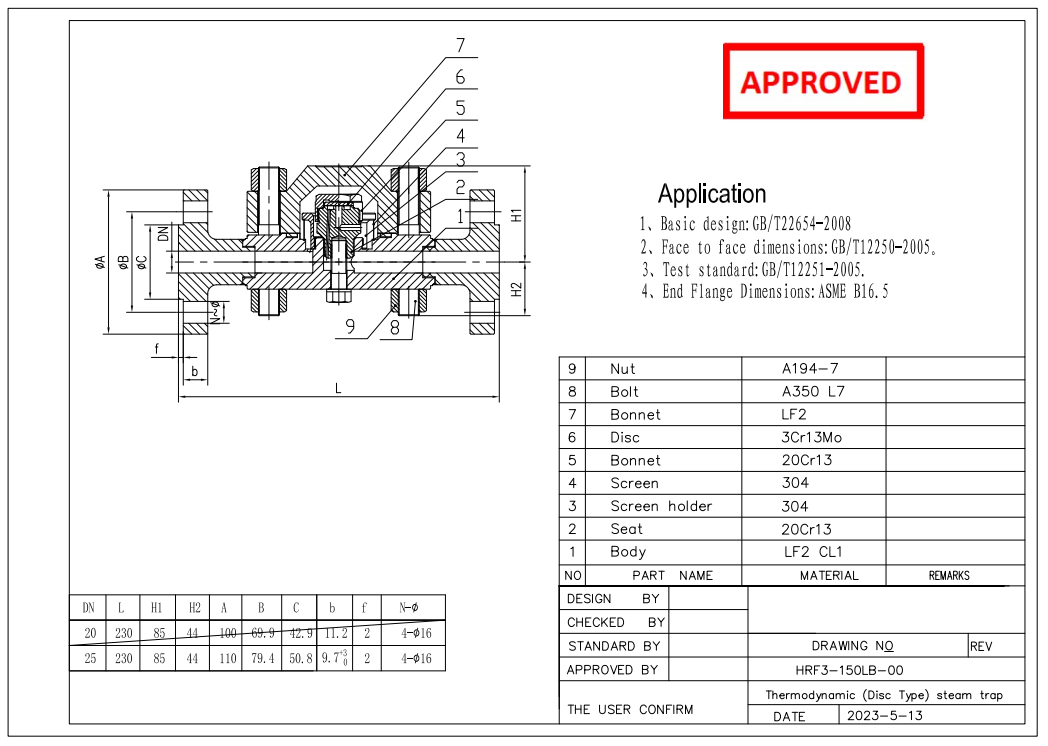

Technical Drawing

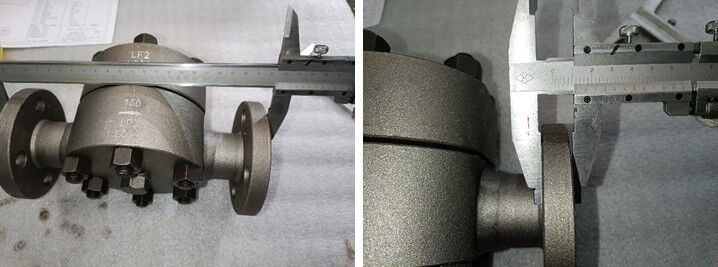

Dimension Checking

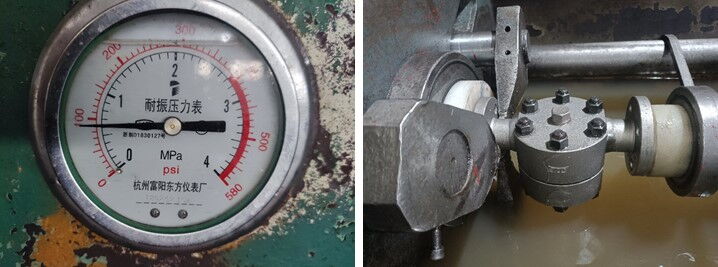

Pressure Testing

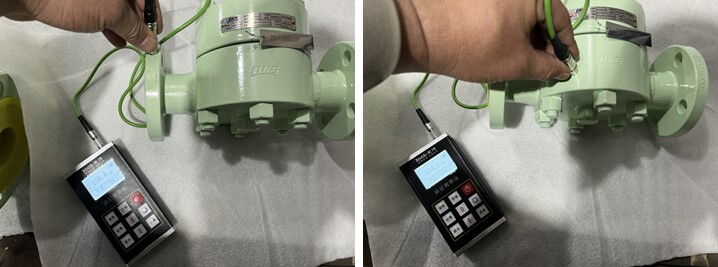

Painting

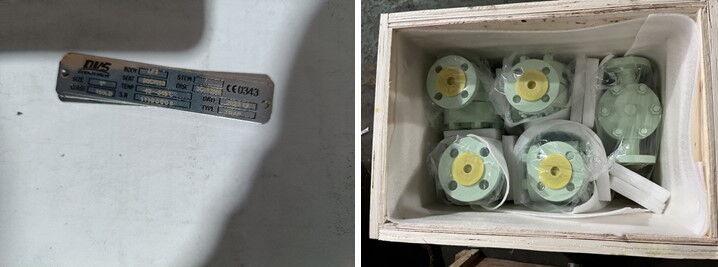

Nameplate & Packing

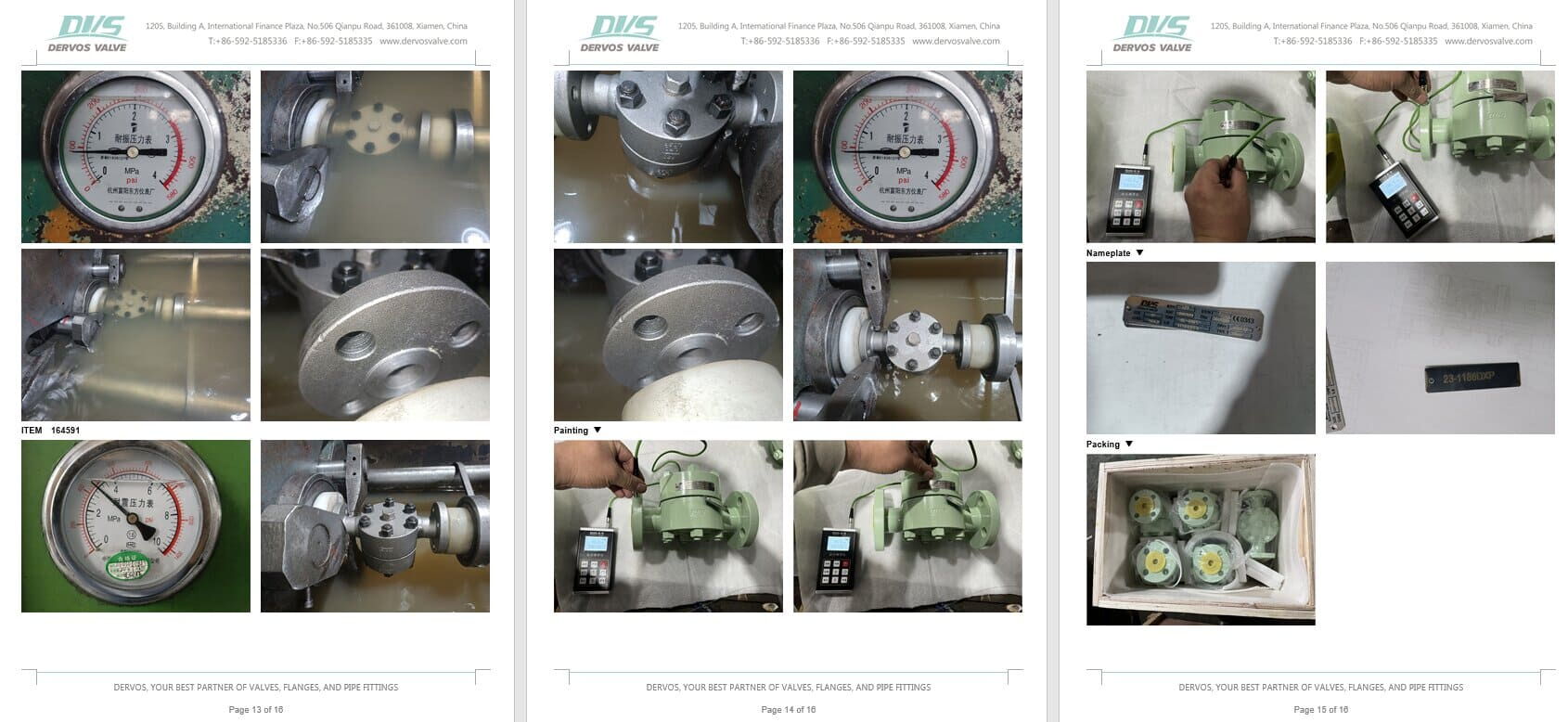

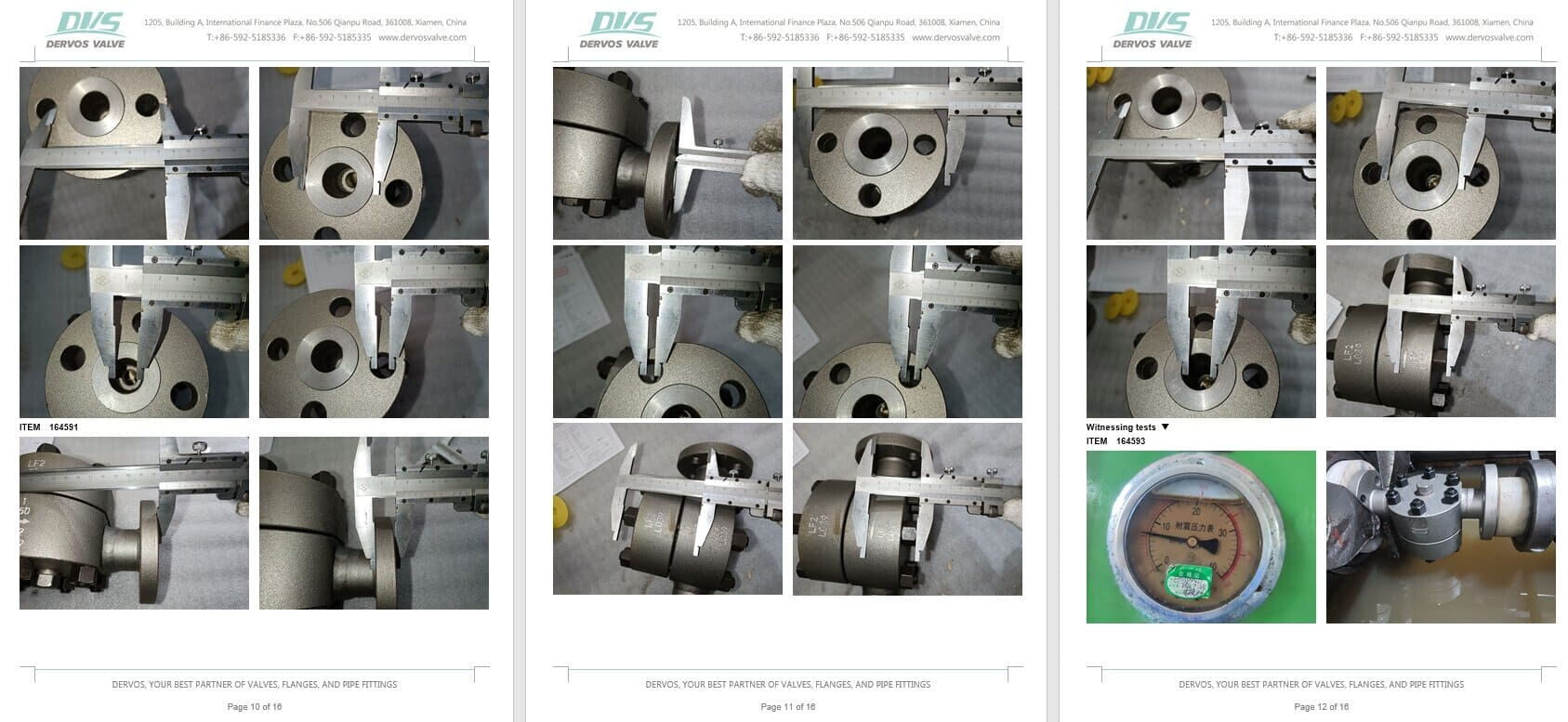

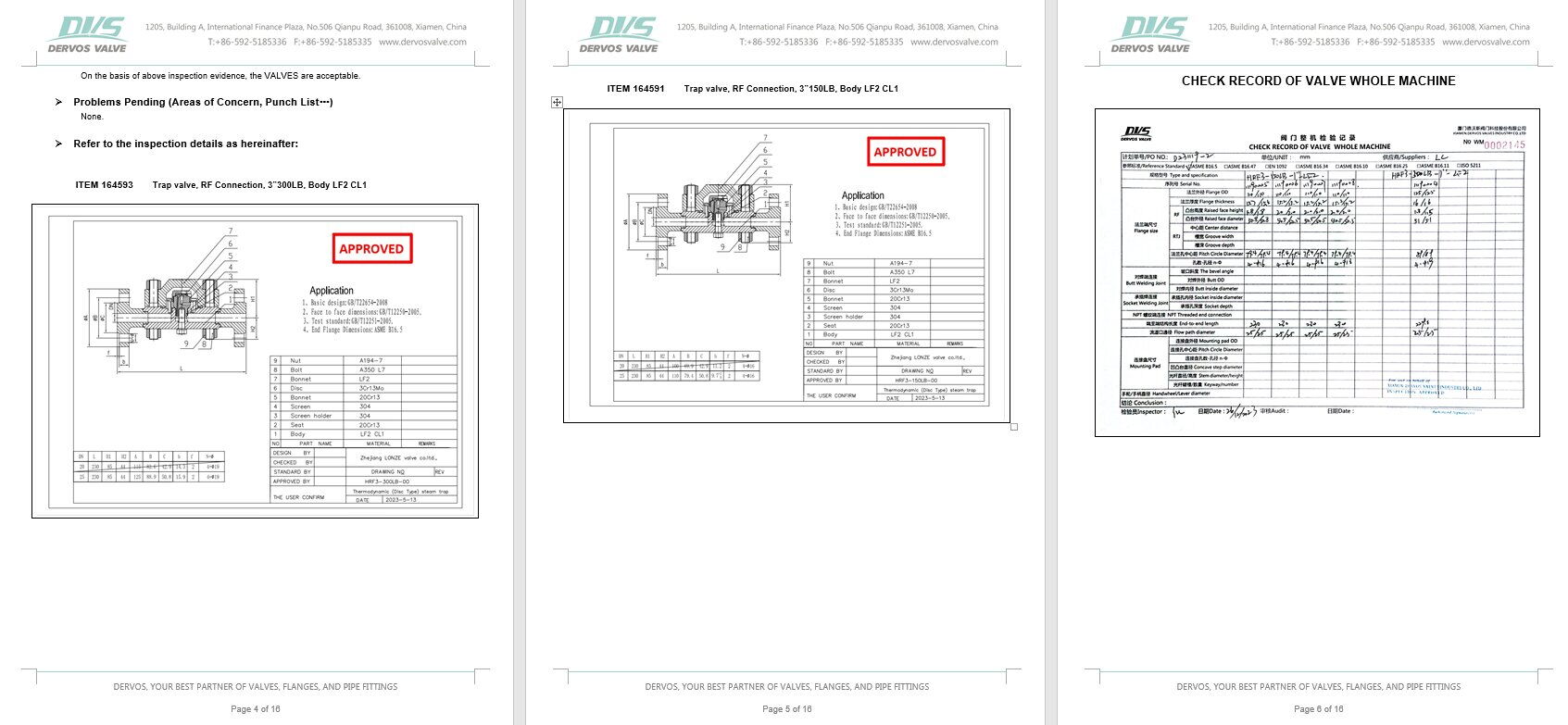

Inspection Report
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection Report
