API 6D 3-Piece Trunnion Ball Valve, A182 F316, 8 x 6 IN, RF
Key Specifications / Features
The 8-inch x 6-inch, Class 150 LB trunnion-mounted ball valve is built to API 6D standards and features a body made from ASTM A182 F316. This valve includes a fixed ball design with a reduced bore and a three-piece construction. It also boasts a fire-resistant design compliant with API 6FA standards. With RF connections and a worm gear mechanism, the valve offers reliable performance and smooth control for various industrial applications. As a leading ball valve manufacturer in China, we ensure our products meet the highest standards of quality and reliability.
- Model No.: Kelly-BV-20240906-03
- Hits: 19
- Categories: Trunnion Ball Valve
- Tags: API 6D Ball Valve , Trunnion Mounted Ball Valve , ASTM A182 F316 Ball Valve
Detail Information
On this page

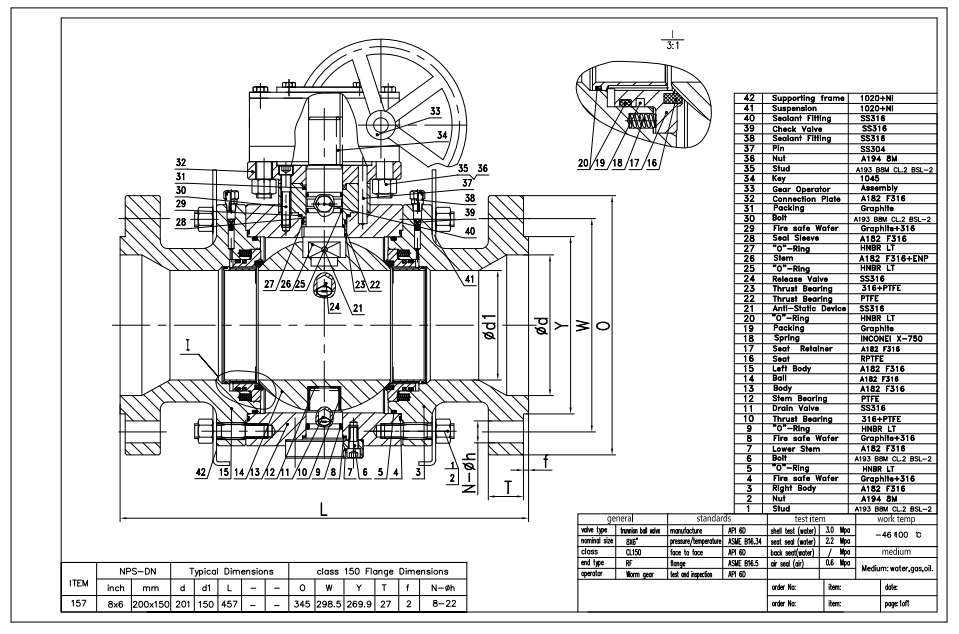

3-Piece Trunnion Mounted Ball Valve, ASTM A182 F316 Body, RF Flanged, Worm Gear Operation.
1. The three-piece fixed ball valve is known for its robust structure and precise design, which ensure a long service life and high reliability.
2. To address specific operating conditions, these valves often include features such as anti-fire and anti-static capabilities. These enhancements help prevent safety hazards in high-temperature or flammable environments.
2. To address specific operating conditions, these valves often include features such as anti-fire and anti-static capabilities. These enhancements help prevent safety hazards in high-temperature or flammable environments.
