API 602 Forged Steel Gate Valves, ASTM A105N, 3/4 IN, CL800
Key Specifications / Features
The 3/4-inch 800 LB forged steel gate valve is manufactured in compliance with API 602 standards. Constructed from ASTM A105N, it features a welded valve cover with a hardness rating of 225 HB, ensuring durability. The valve is equipped with a rigid gate plate and utilizes socket weld (SW) connections. Additionally, it operates via a convenient handwheel mechanism.
- Model No.: Kelly-GTV-20241025-02
- Hits: 9
- Categories: Gate Valve
- Tags: API 602 Gate Valve , Forged Steel Gate Valve , ASTM A105N Gate Valve
Detail Information
API 602 Forged Steel Gate Valve, ASTM A105N, SW.
Features
1. Compact Design: Streamlined for easy installation and connection, ideal for space-constrained piping systems.
2. Extended Service Life: Minimizes the need for frequent equipment replacement, significantly reducing maintenance costs.
1. Compact Design: Streamlined for easy installation and connection, ideal for space-constrained piping systems.
2. Extended Service Life: Minimizes the need for frequent equipment replacement, significantly reducing maintenance costs.

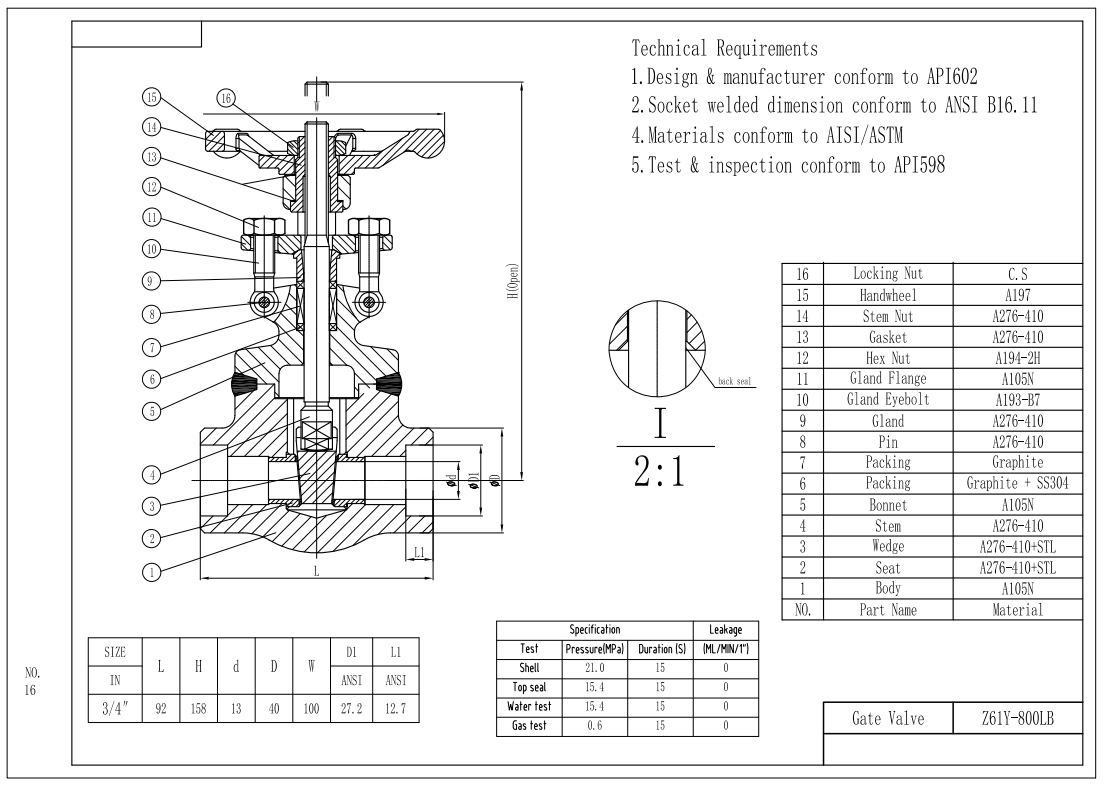

Technical Drawing

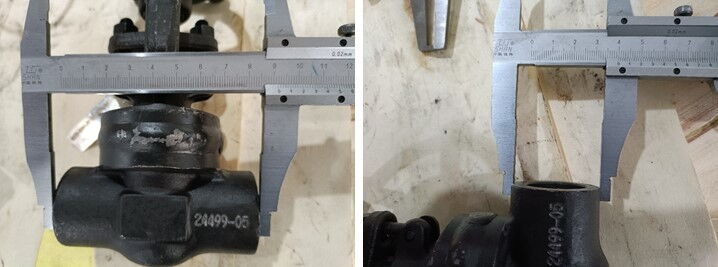

Dimension Checking

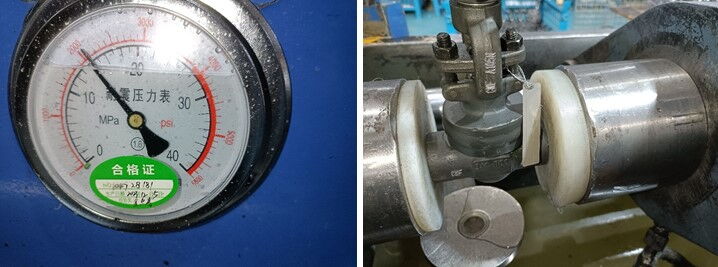

Pressure Testing

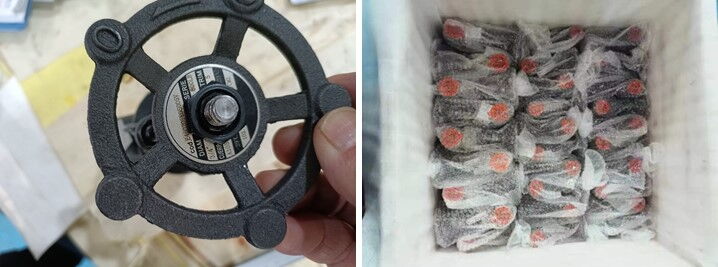

Nameplate & Packing
Nameplate & Packing

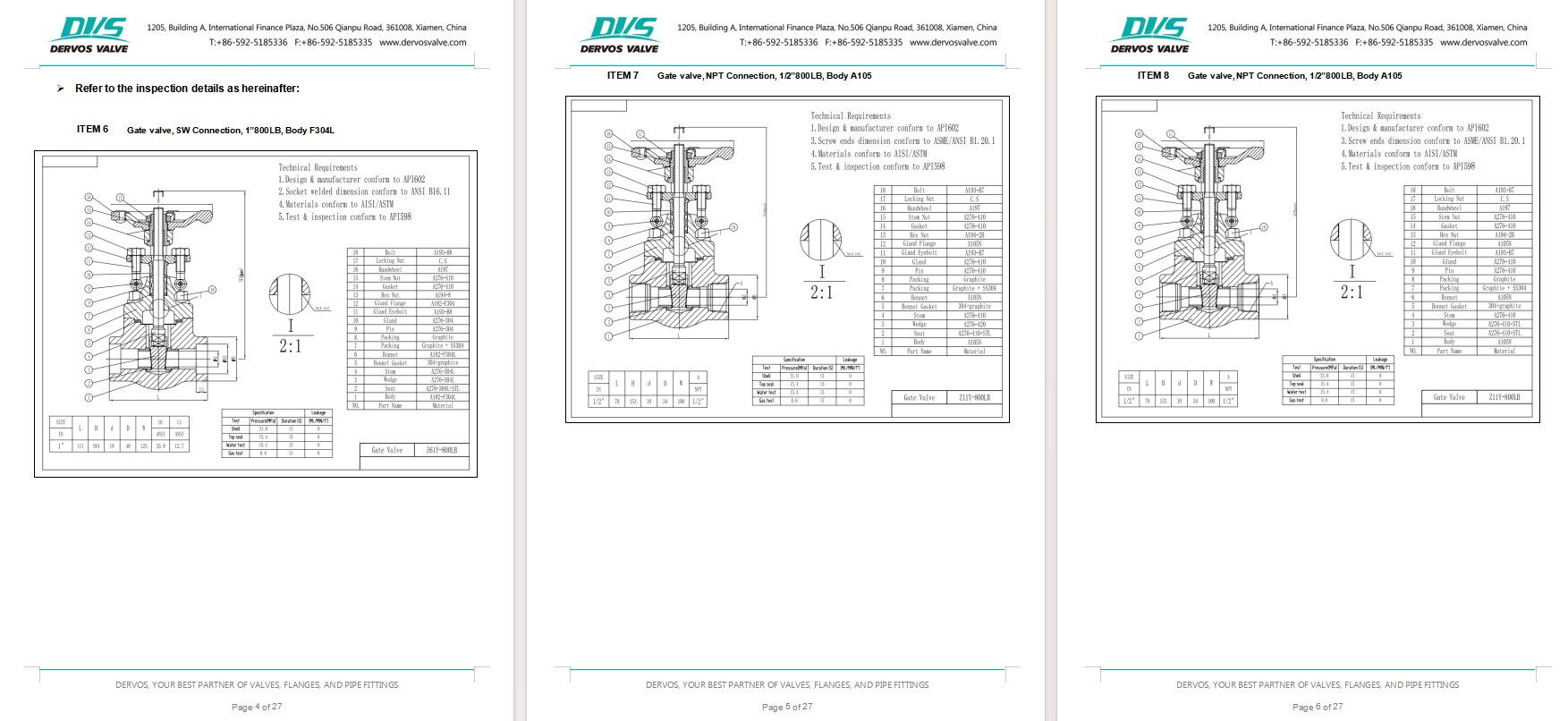

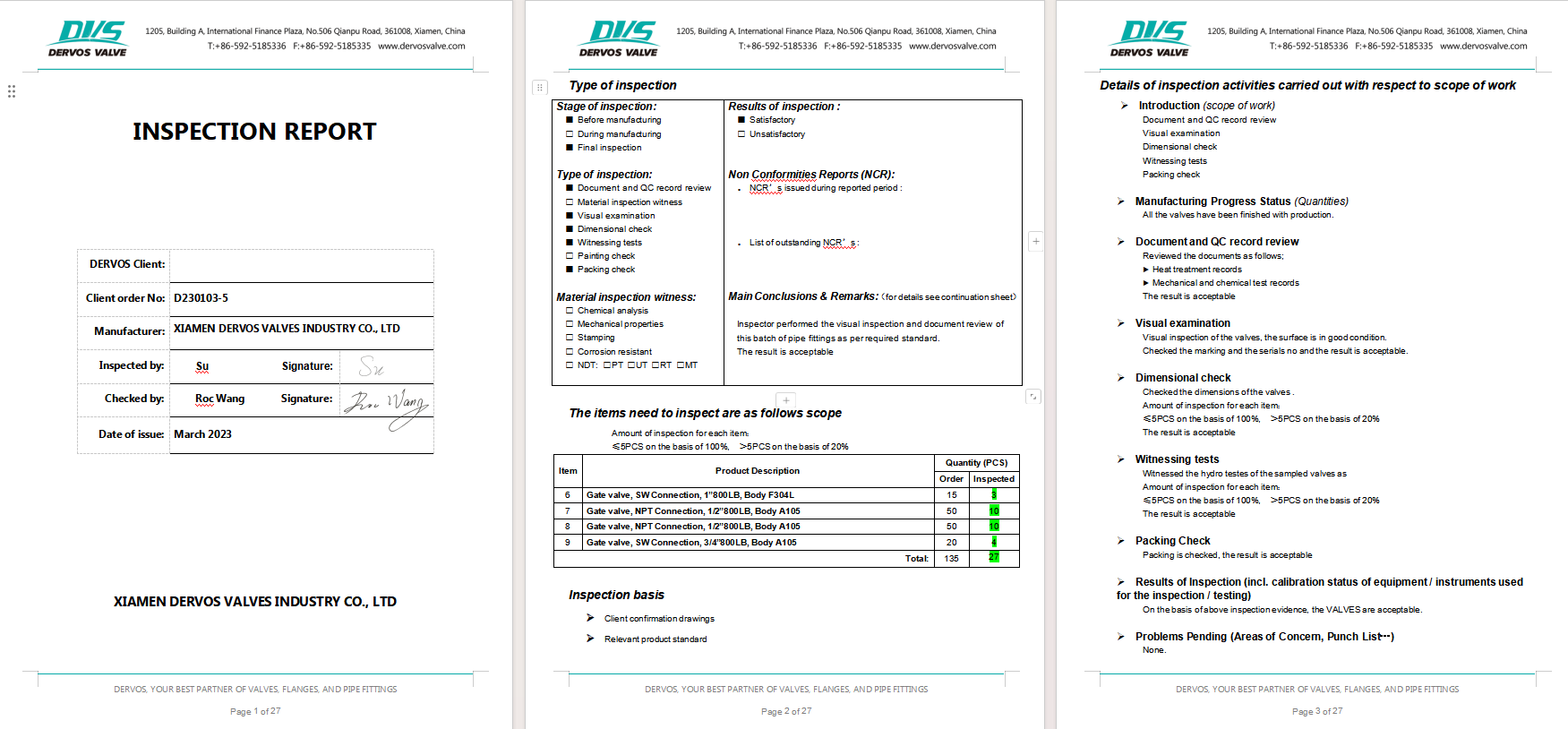

Inspection Report
