API 602 Forged Steel Gate Valve, ASTM A105, 2 IN, 800 LB, SW
Key Specifications / Features
The 2-inch class 800 LB forged steel gate valve is designed by API 602 standards, featuring a robust ASTM A105N body for reliable performance. Its structural design includes a bolted bonnet, rising stem, OS&Y configuration, and a reduced bore for efficient flow control. The valve is equipped with socket weld (SW) connections, providing a secure and leak-free fit. Operated by a handwheel, this valve offers precise and easy operation, making it an ideal choice for high-pressure industrial applications.
- Model No.: Kelly-GTV-20240927-03
- Hits: 6
- Categories: Gate Valve
- Tags: API 602 Gate Valve , Forged Steel Gate Valve , ASTM A105 Gate Valve
Detail Information
On this page

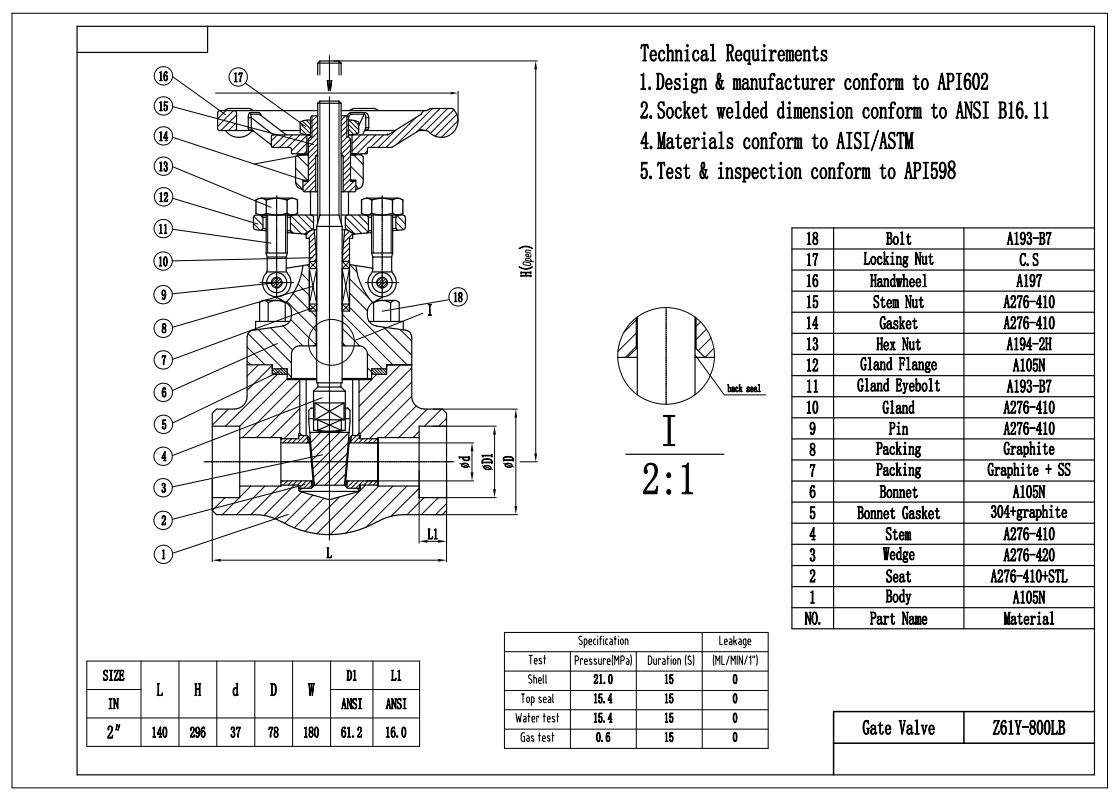

API 602 Forged Steel Gate Valve, ASTM A105, 2 Inch/DN50, Class 800 LB, Rising Stem.
1. Due to the forging process, the material structure is dense, and the sealing surface material is wear-resistant, so forged steel gate valves have a long service life and are suitable for long-term continuous operation.
2. There are various connection methods for forged steel gate valves, including threads, flanges, welding, etc., which can adapt to different pipeline system requirements.
2. There are various connection methods for forged steel gate valves, including threads, flanges, welding, etc., which can adapt to different pipeline system requirements.
