Key Specifications / Features
This 1/2-inch needle valve, rated for 6000 PSI, is manufactured to ASME B16.34 standards. Constructed with a durable stainless steel ASTM A182 F316 body, it features an inlet and outlet size of 1/2 inch (NPTM and NPTH, respectively), along with a 1/4-inch NPT discharge port. The valve is equipped with an NPT connection and is operated via a lever, providing reliable performance under high-pressure conditions.
- Model No.: Kelly-NDV-20241114-01
- Hits: 4
- Categories: Other Valve
- Tags: 6000 PSI Needle Valve , ASME B16.34 Needle Valve , ASTM A182 F316 Needle Valve
Detail Information
ASTM A182 F316 Needle Valve, ASME B16.34 Design, 6000 PSI, 1/2 Inch.
Features
1. Compact and Durable: Designed for exceptional earthquake resistance, ensuring the unit remains secure and unaffected by vibrations or impacts within the system.
2. Efficient and Versatile: Its simple structure and small size make it easy to install in any part of the system, making it ideal for space-constrained pipeline installations.

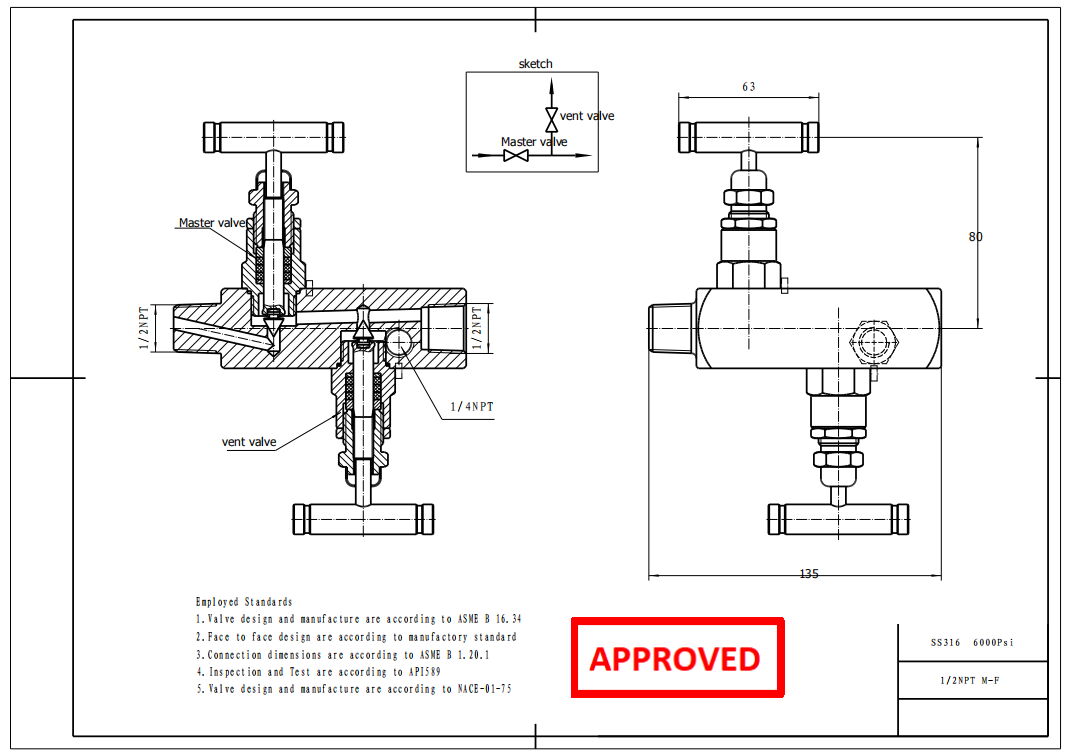

Technical Drawing

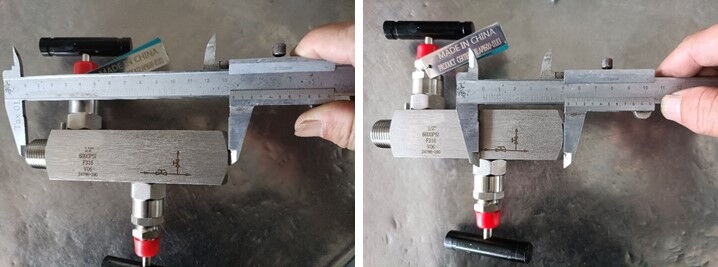

Dimension Checking

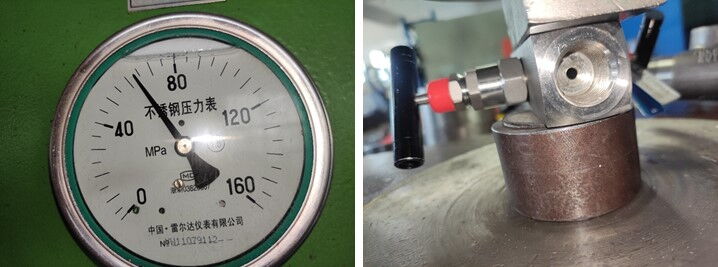

Pressure Testing

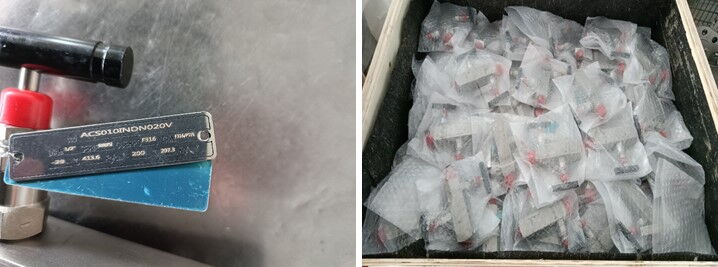

Nameplate & Packing

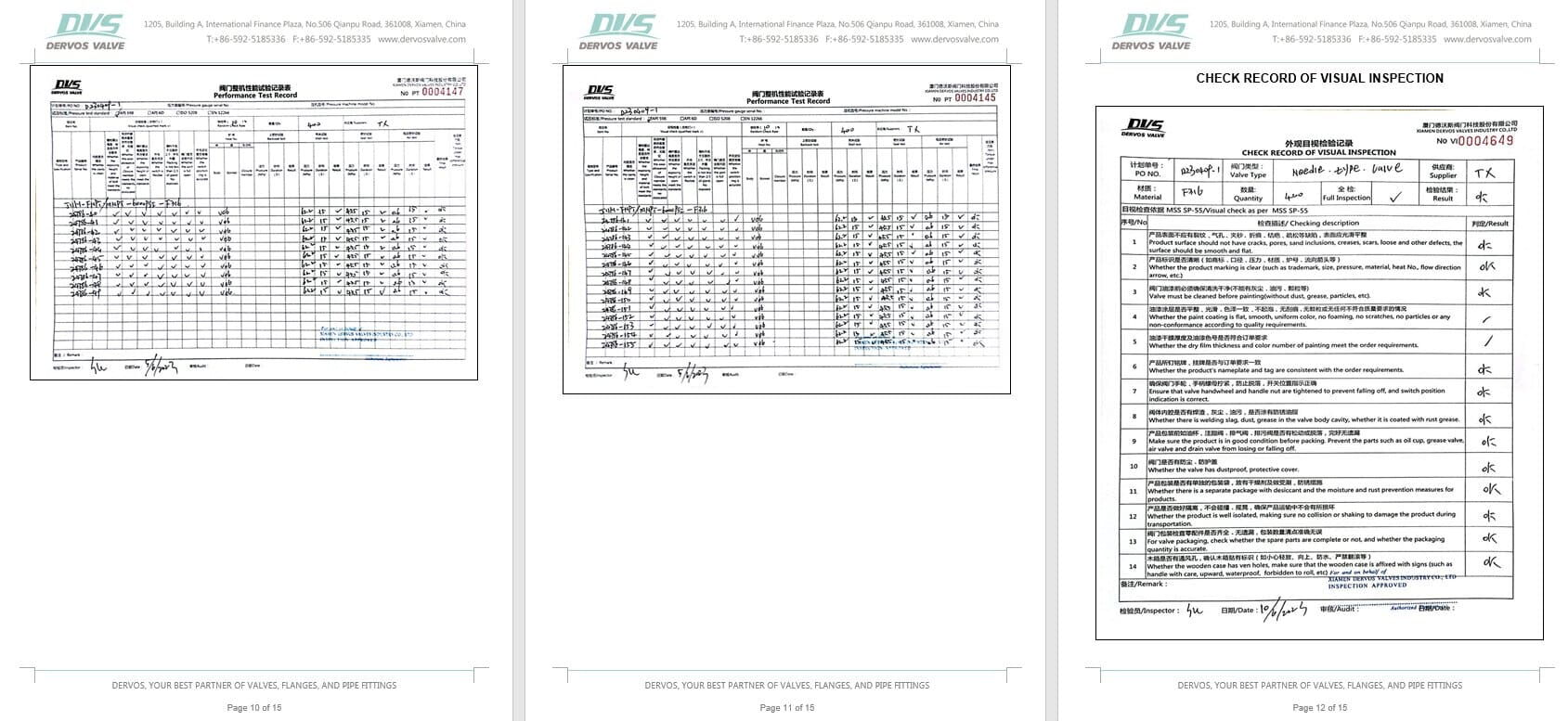

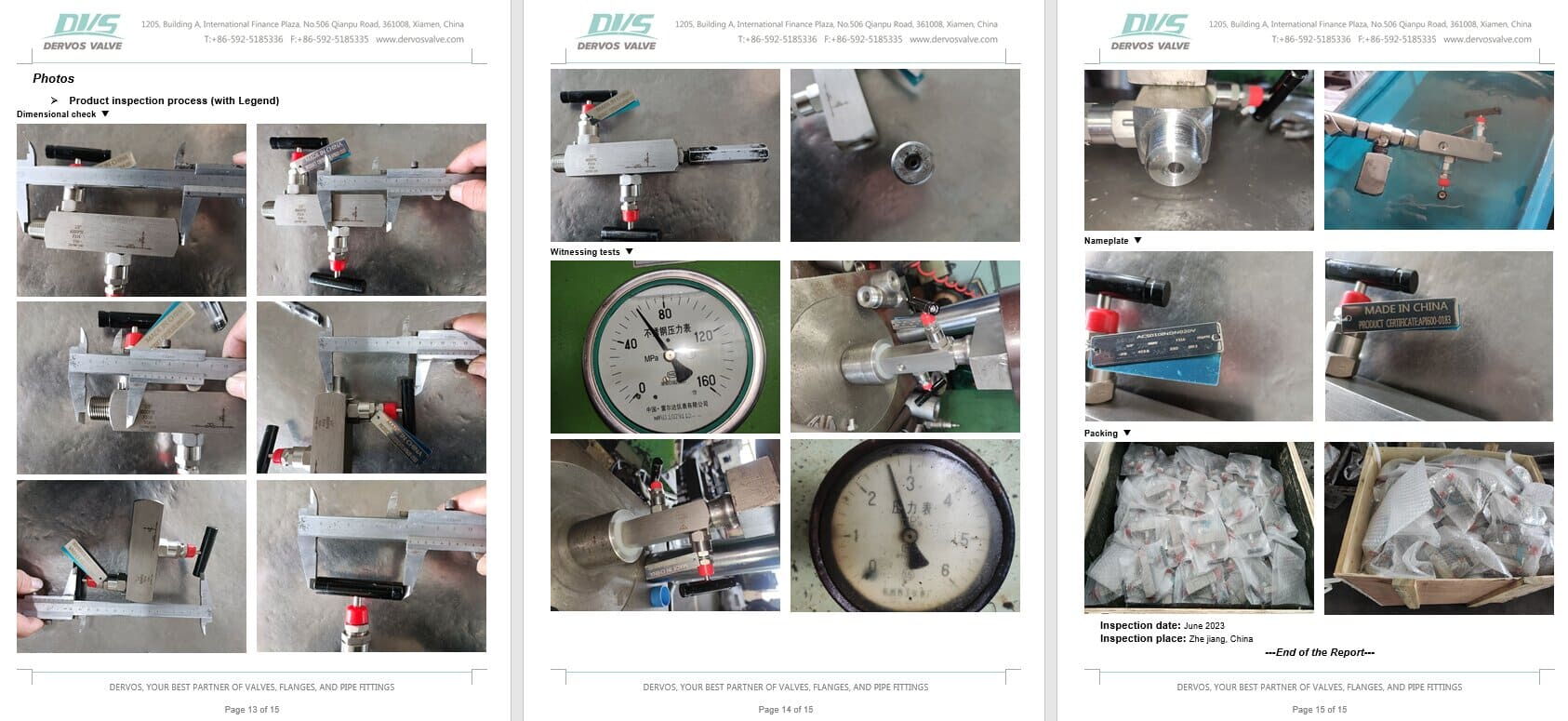

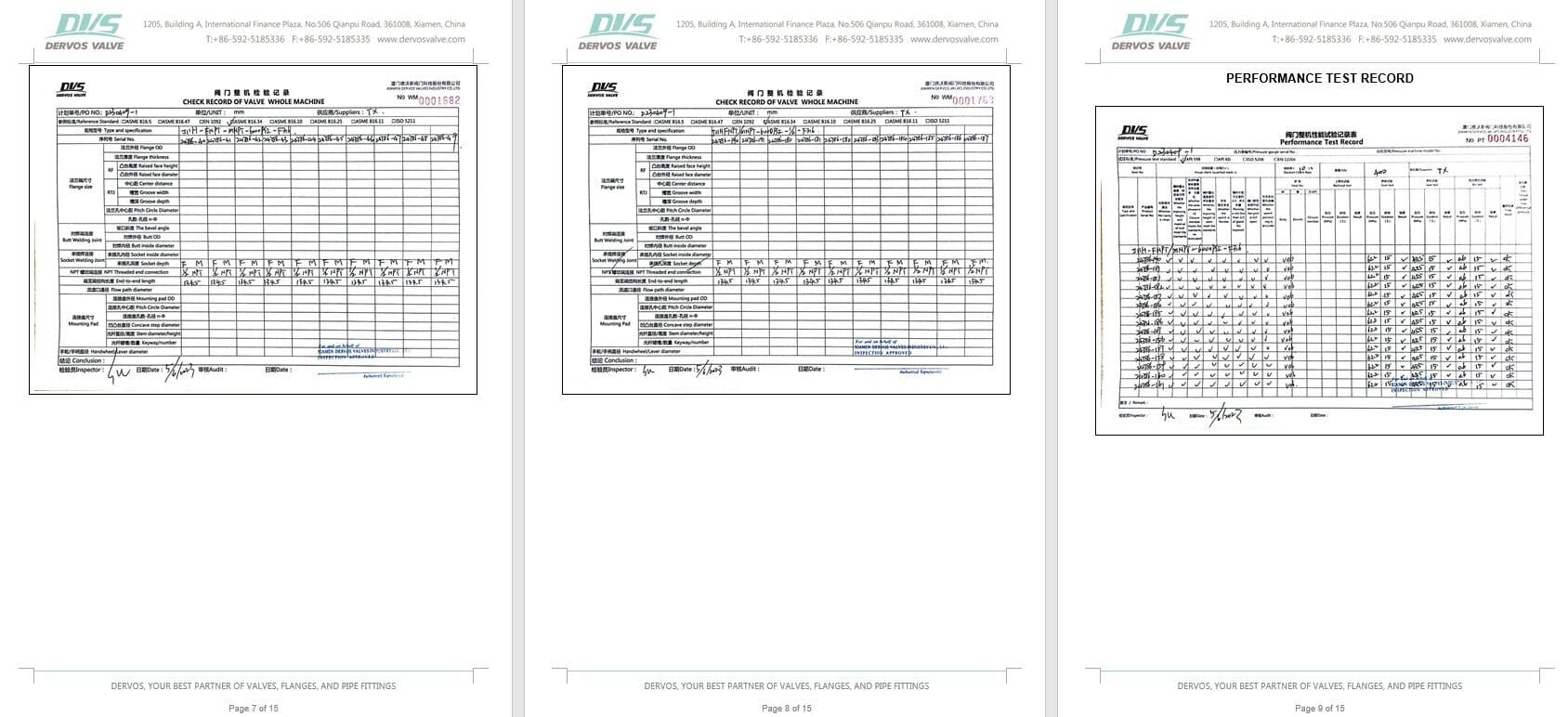

Inspection Report
1. Compact and Durable: Designed for exceptional earthquake resistance, ensuring the unit remains secure and unaffected by vibrations or impacts within the system.
2. Efficient and Versatile: Its simple structure and small size make it easy to install in any part of the system, making it ideal for space-constrained pipeline installations.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection Report
