Stainless Steel Pneumatic Diaphragm Valve, RF, DN25, PN10
Key Specifications / Features
Stainless Steel Pneumatic Diaphragm Valve Maker: Weir-type Pneumatic Diaphragm Valve, Bolted Bonnet, Stainless Steel ASTM A351 CF8, RF, DN25, PN10.
- Hits: 10
- Categories: Other Valve
- Tags: Bolted Bonnet Pneumatic Diaphragm Valve , ASTM A351 CF8 Pneumatic Diaphragm Valve , Weir-type Pneumatic Diaphragm Valve
Detail Information
DN25 PN10 Pneumatic Diaphragm Valve, RF, Stainless Steel.
Quick Detail
Weir-type diaphragm valves:
The weir-type diaphragm valve is one of the most common designs available. The raised lip/saddle design is best suited for small flow control and is kept leak-proof thanks to the bonnet over the diaphragm and actuator. This design is optimal for dangerous or corrosive liquid and gas, as any failure with the membrane will be kept contained by this bonnet.

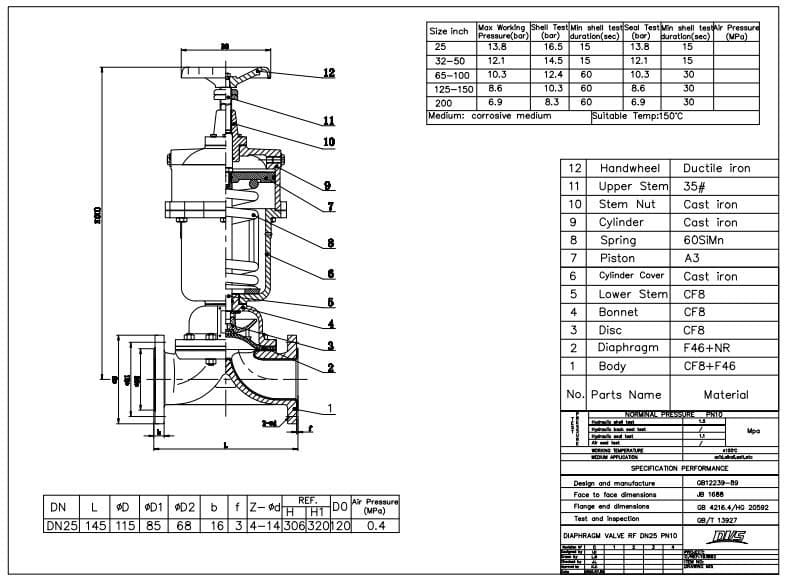

Technical Drawing

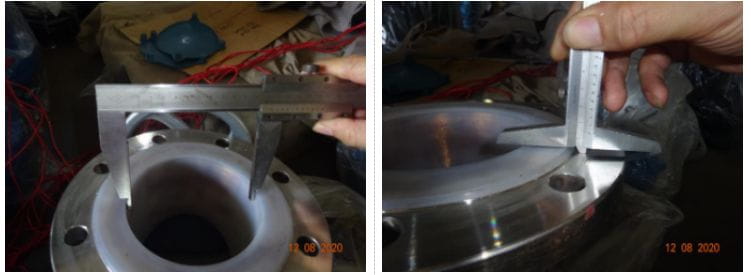

Dimension Check

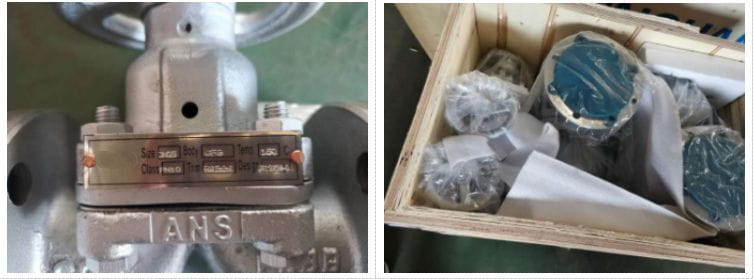

Nameplate & Packing
Kelly Inspection after Valve Assembly
Valve quality is one of perspectives we care about most. In Kelly, quality control starts from raw material, machining, assembly to pre-shipment inspection.
After assembly, the quality checking team will do visual checking, dimension checking, hydraulic testing and air testing. Every order must pass the test per inspection standards. Otherwise our quality checking team will not release the shipment.
Quick Detail
| Type | Diaphragm valve |
| Nominal Diameter | DN25 |
| Nominal Pressure | PN10 |
| Construction | Bolted Bonnet; Fluorine Lining Trim |
| Connection | RF |
| Design & Manufacture | GB12239-89 |
| F to F Dimension | JB1688 |
| Flange Dimension | GB 4216.4/HG 20592 |
| Test & Inspection | GB/T 13927 |
| Body Material | ASTM A351 CF8+F46 |
| Disc Material | ASTM A351 CF8 |
| Diaphragm Material | F46+NR |
| Temp. Range | ≤150℃ |
| Media | Corrosive Media |
Weir-type diaphragm valves:
The weir-type diaphragm valve is one of the most common designs available. The raised lip/saddle design is best suited for small flow control and is kept leak-proof thanks to the bonnet over the diaphragm and actuator. This design is optimal for dangerous or corrosive liquid and gas, as any failure with the membrane will be kept contained by this bonnet.
Technical Drawing
Dimension Check
Nameplate & Packing
Kelly Inspection after Valve Assembly
Valve quality is one of perspectives we care about most. In Kelly, quality control starts from raw material, machining, assembly to pre-shipment inspection.
After assembly, the quality checking team will do visual checking, dimension checking, hydraulic testing and air testing. Every order must pass the test per inspection standards. Otherwise our quality checking team will not release the shipment.
