BS 5156 Diaphragm Valve, DN25, PN10, ASTM A216 WCB, RF
Key Specifications / Features
DN25 PN10 diaphragm valve is made according to BS 5156 standard. The valve body is made of ASTM A216 WCB+IIR. It has the structural characteristics of direct diaphragm valve G46. Its connection mode is RF. And it has hand wheel operation mode.
- Hits: 8
- Categories: Other Valve
- Tags: PN10 Pneumatic Diaphragm Valve , RF Diaphragm Valve , ASTM A216 WCB Diaphragm Valve
Detail Information
Body WCB, DN25 PN10 Diaphragm Valve, BS 5156, RF Connection
Features
1. Reasonable flow channel design, low fluid resistance, low pressure loss, beneficial for energy conservation;
2. Simple structure, fewer components, convenient operation, reduced maintenance time and cost.

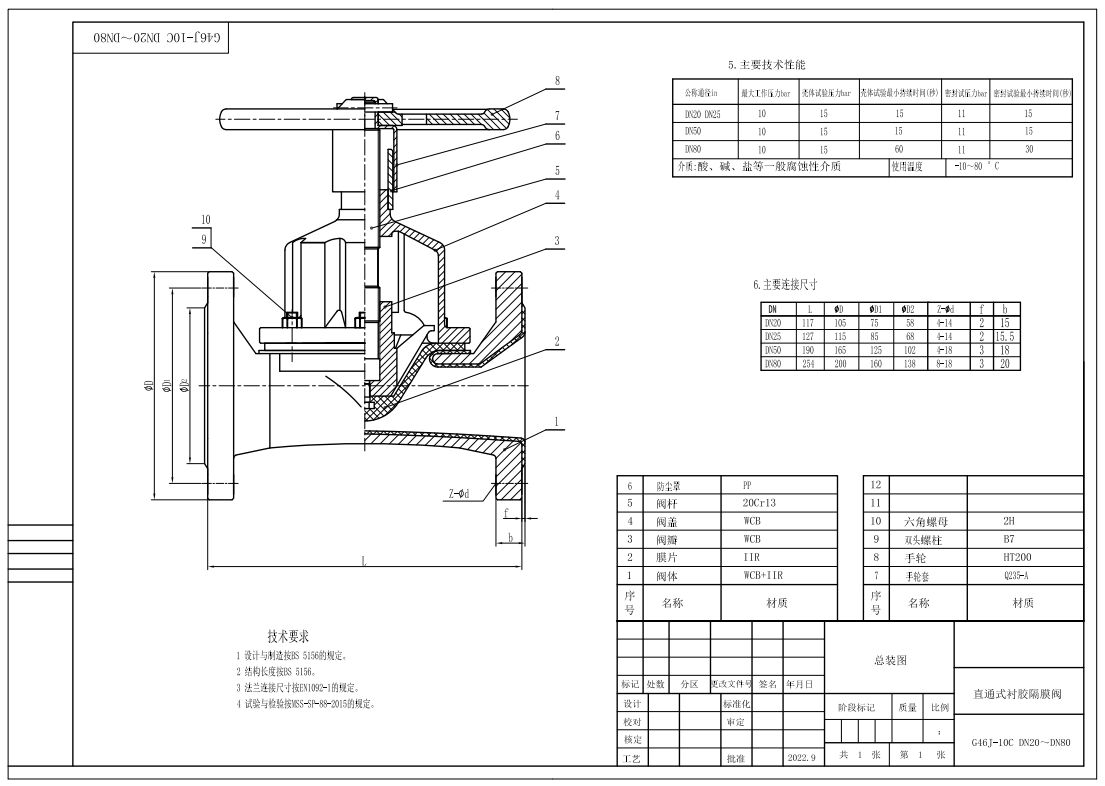

Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing

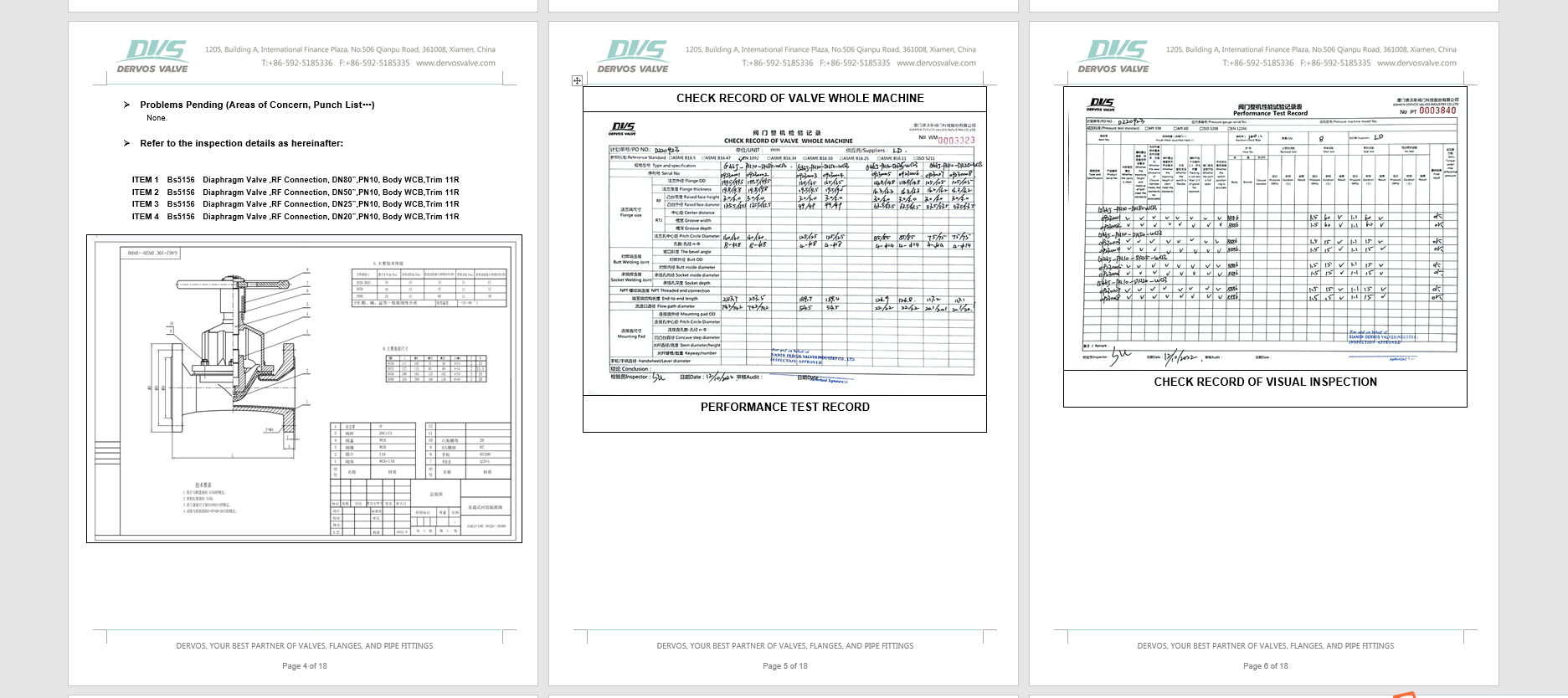

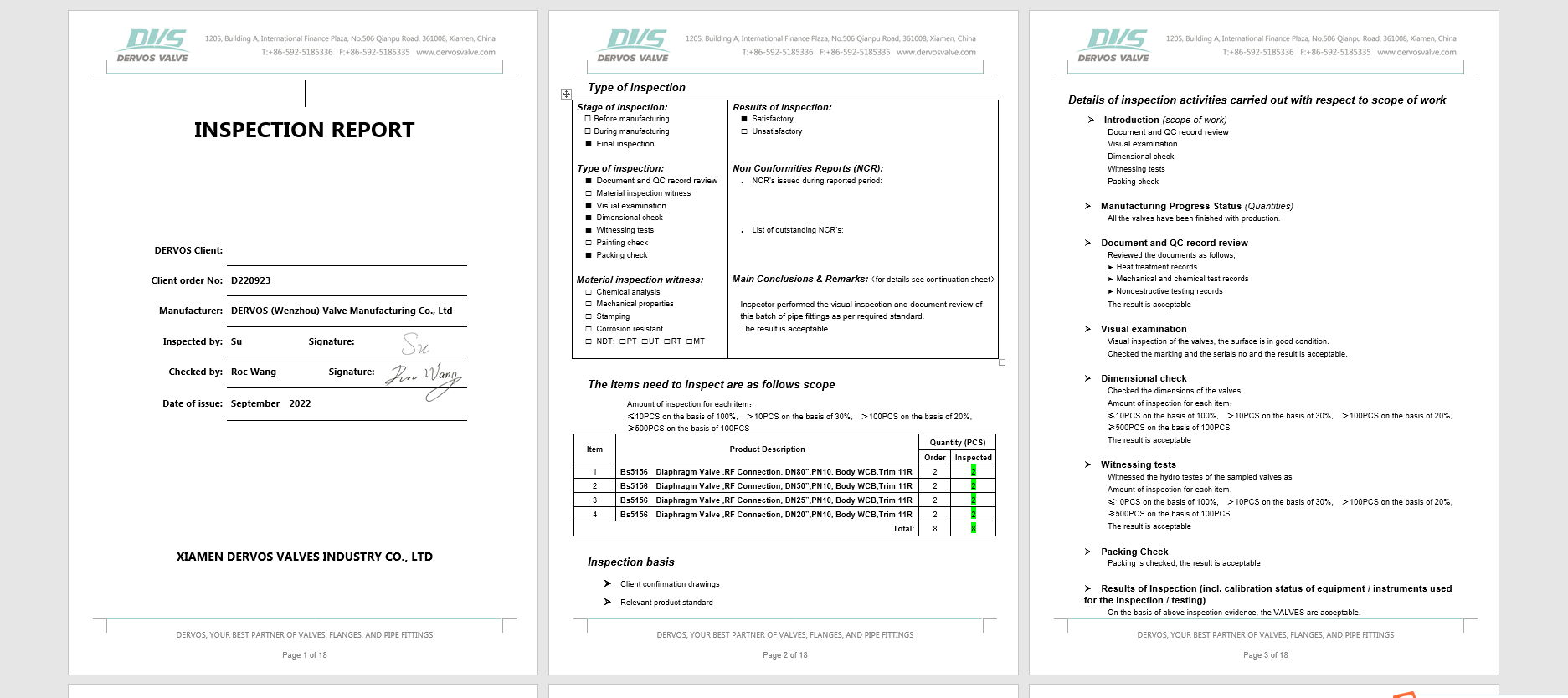

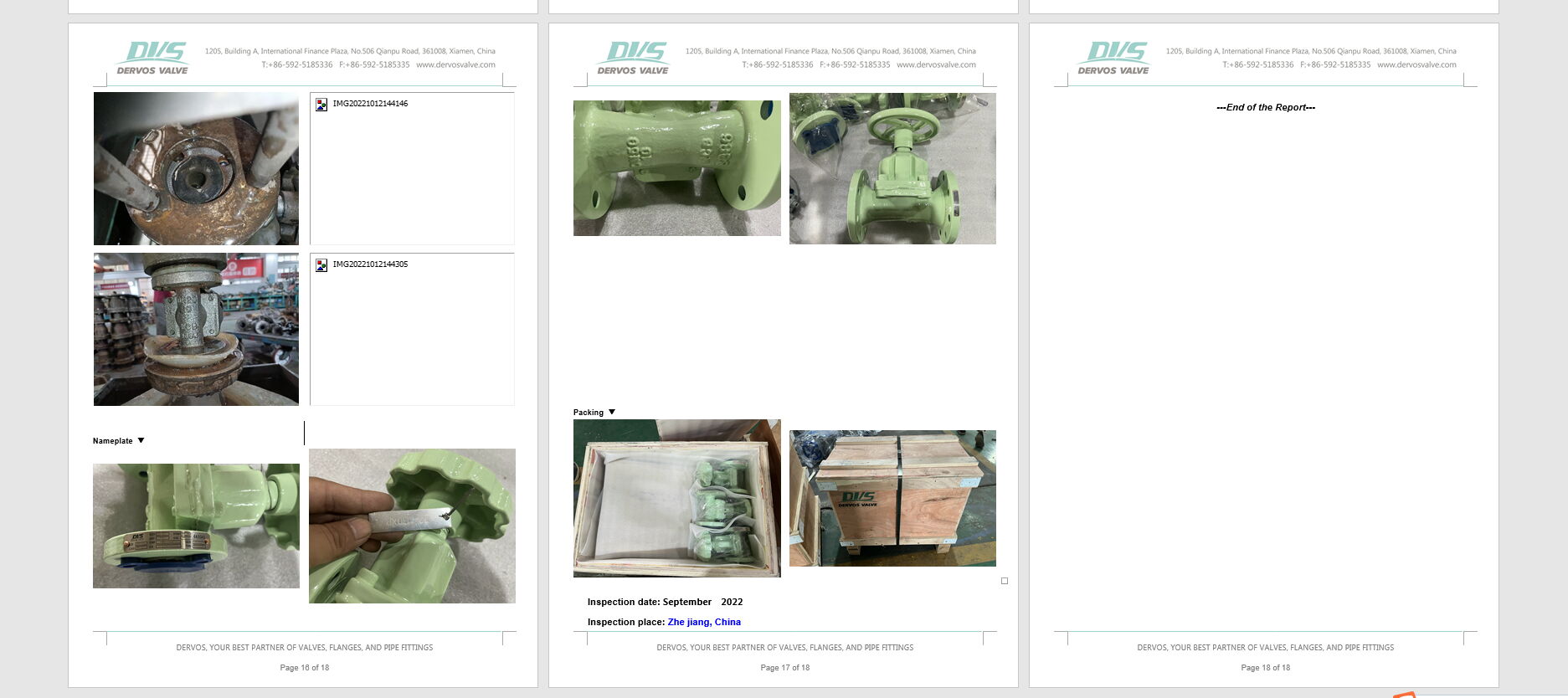

Inspection report
Features
1. Reasonable flow channel design, low fluid resistance, low pressure loss, beneficial for energy conservation;
2. Simple structure, fewer components, convenient operation, reduced maintenance time and cost.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
