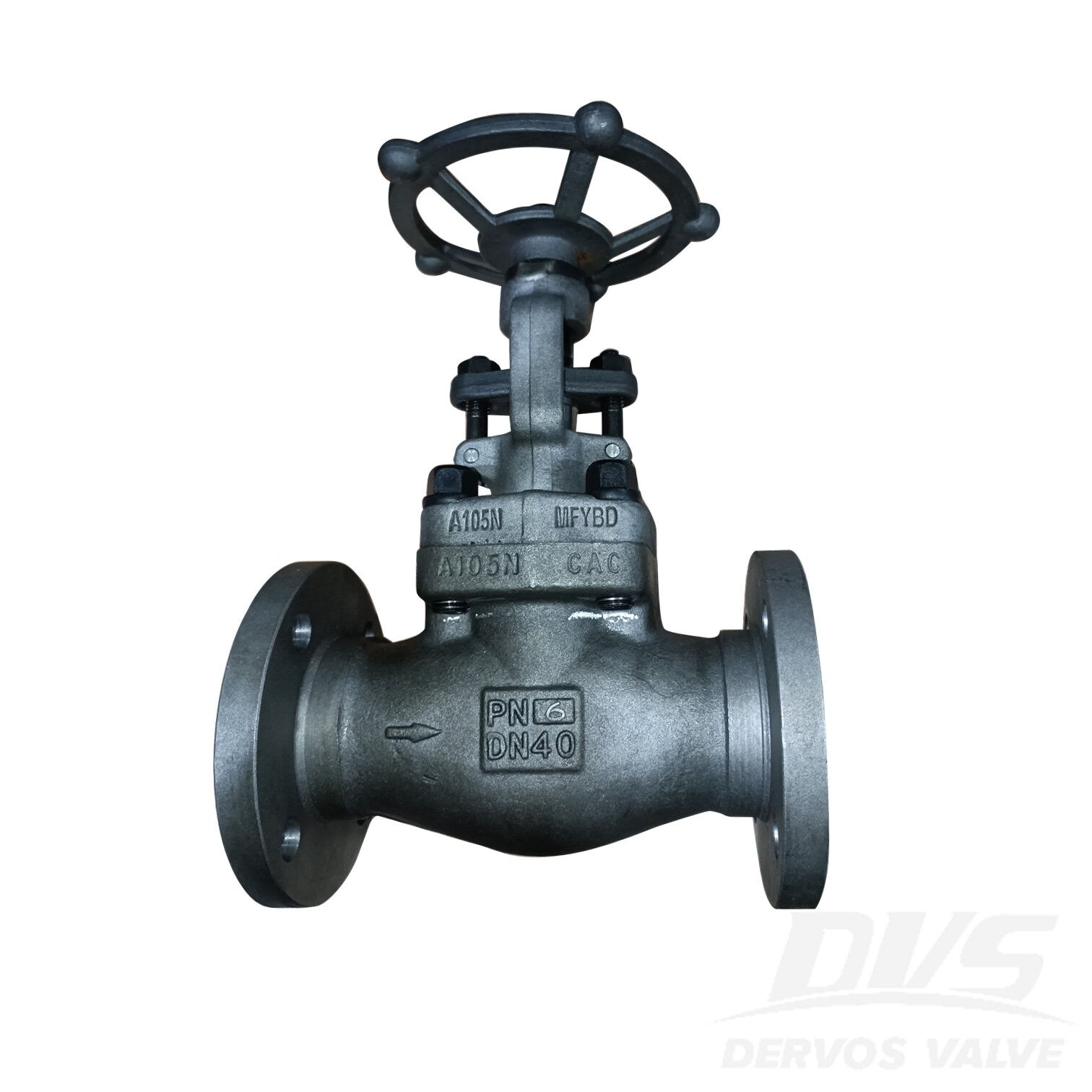

API 602 Forged Steel Globe Valves, A105N, DN40, PN6, OS&Y
Key Specifications / Features
The DN40 PN6 forged steel globe valve is manufactured to the API 602 standard, featuring a valve body made of ASTM A105N with STL. This valve is designed with a bolted bonnet (BB) and an outside screw and yoke (OS&Y) configuration. It has a raised face (RF) connection and operates with a handwheel for manual control, ensuring reliable performance in various industrial applications.
- Model No.: Kelly-GLV-20241123-02
- Hits: 37
- Categories: Globe Valve
- Tags: API 602 Globe Valve , Forged Steel Globe Valve , ASTM A105N Globe Valve
Detail Information
ASTM A105N Globe Valves, API 602, DN40, PN6.
Features
1. Crafted from forged steel, these valves provide exceptional mechanical strength and impact resistance, ensuring reliable performance in high-pressure and high-temperature environments for extended service life.
2. With a compact design, these valves are ideal for installation in confined spaces, making them highly versatile for both industrial and residential applications.

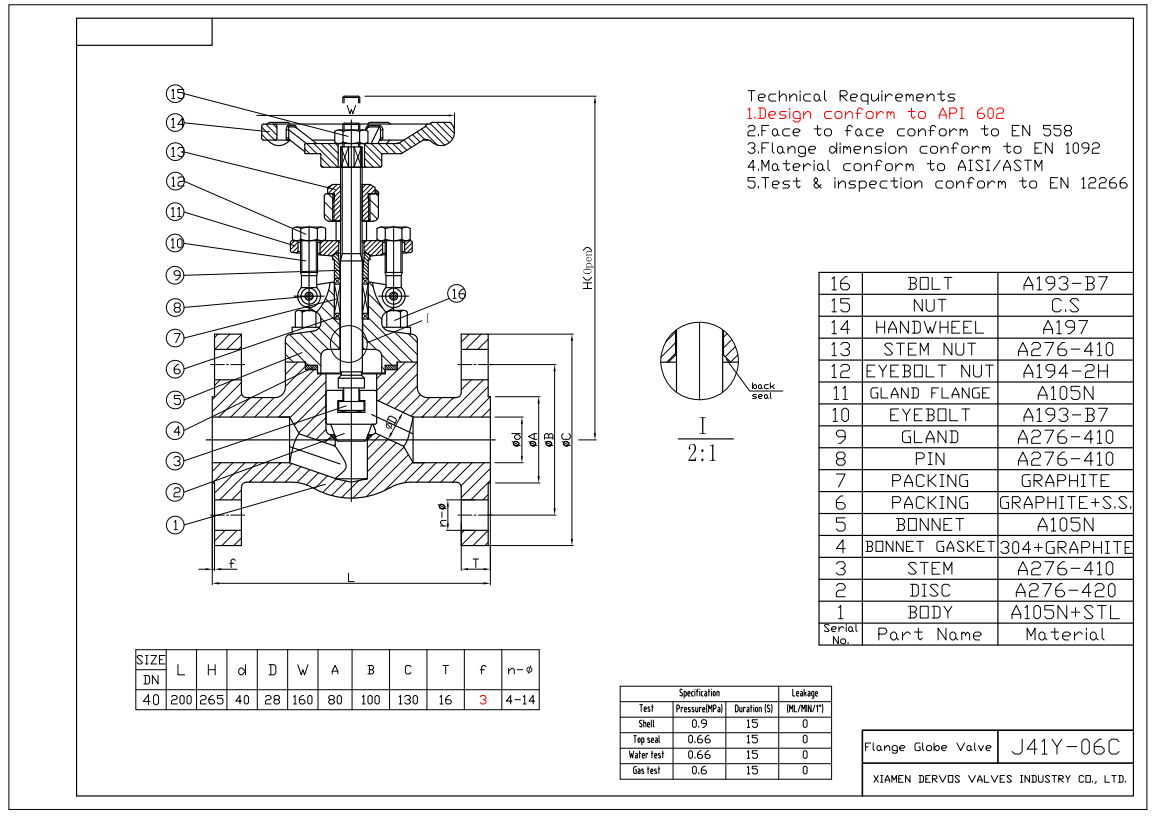

Technical Drawing

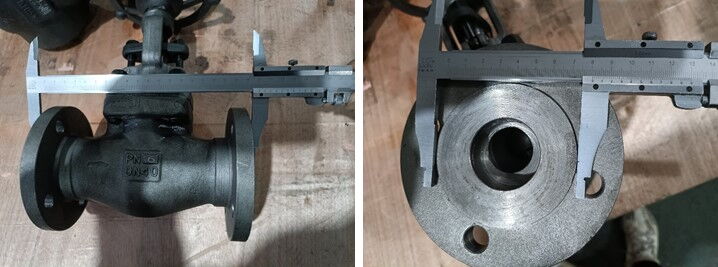

Dimension Checking

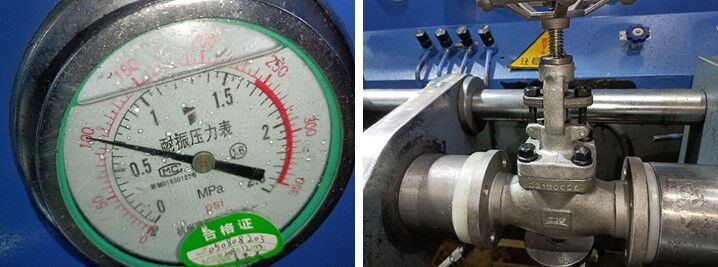

Pressure Testing

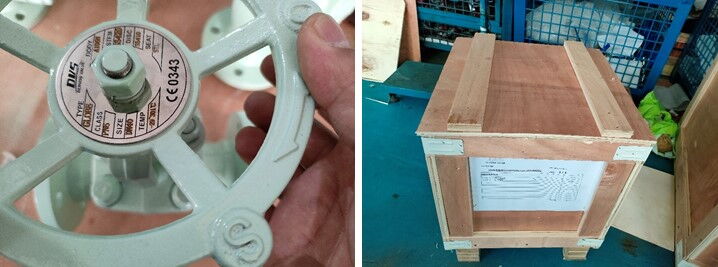

Nameplate & Packing

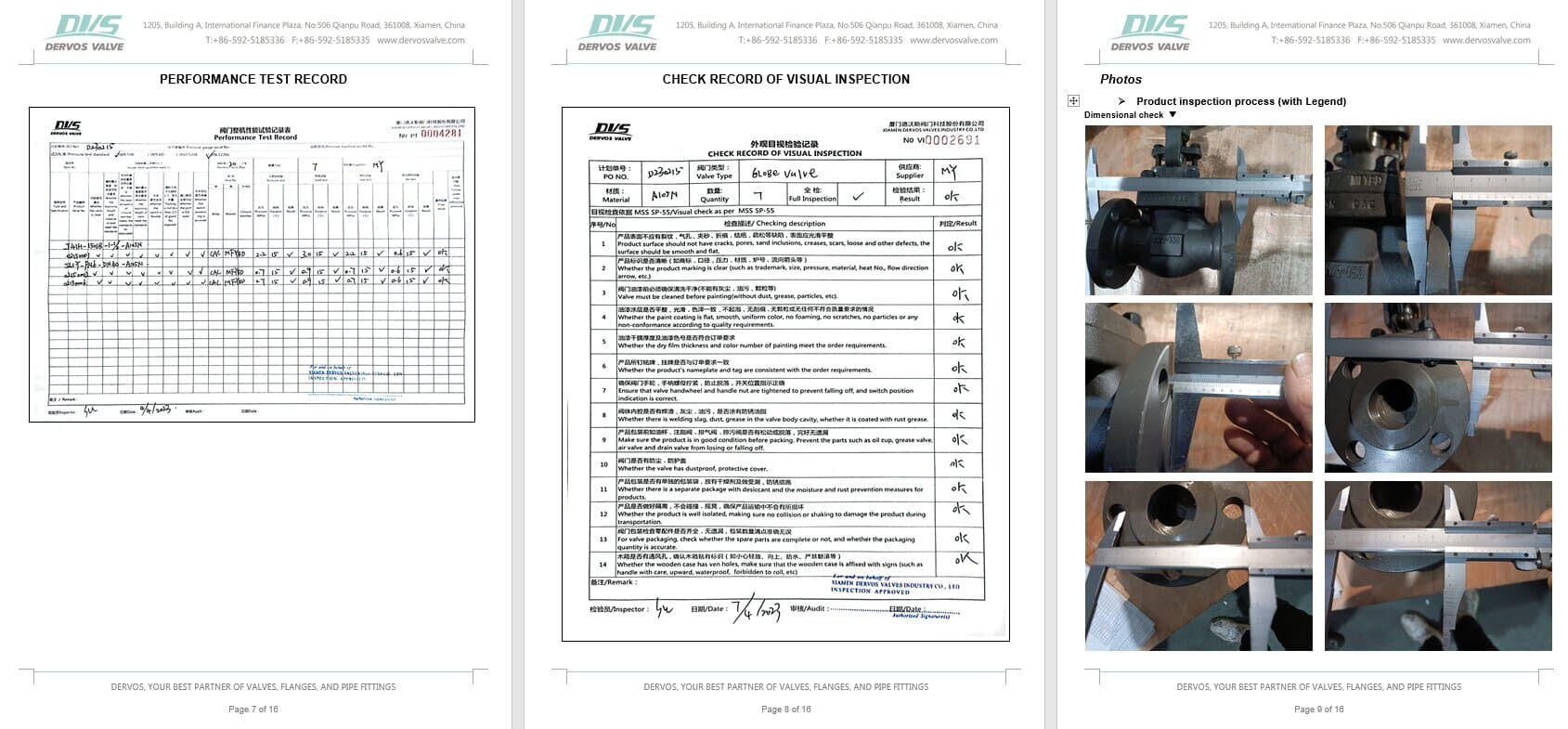

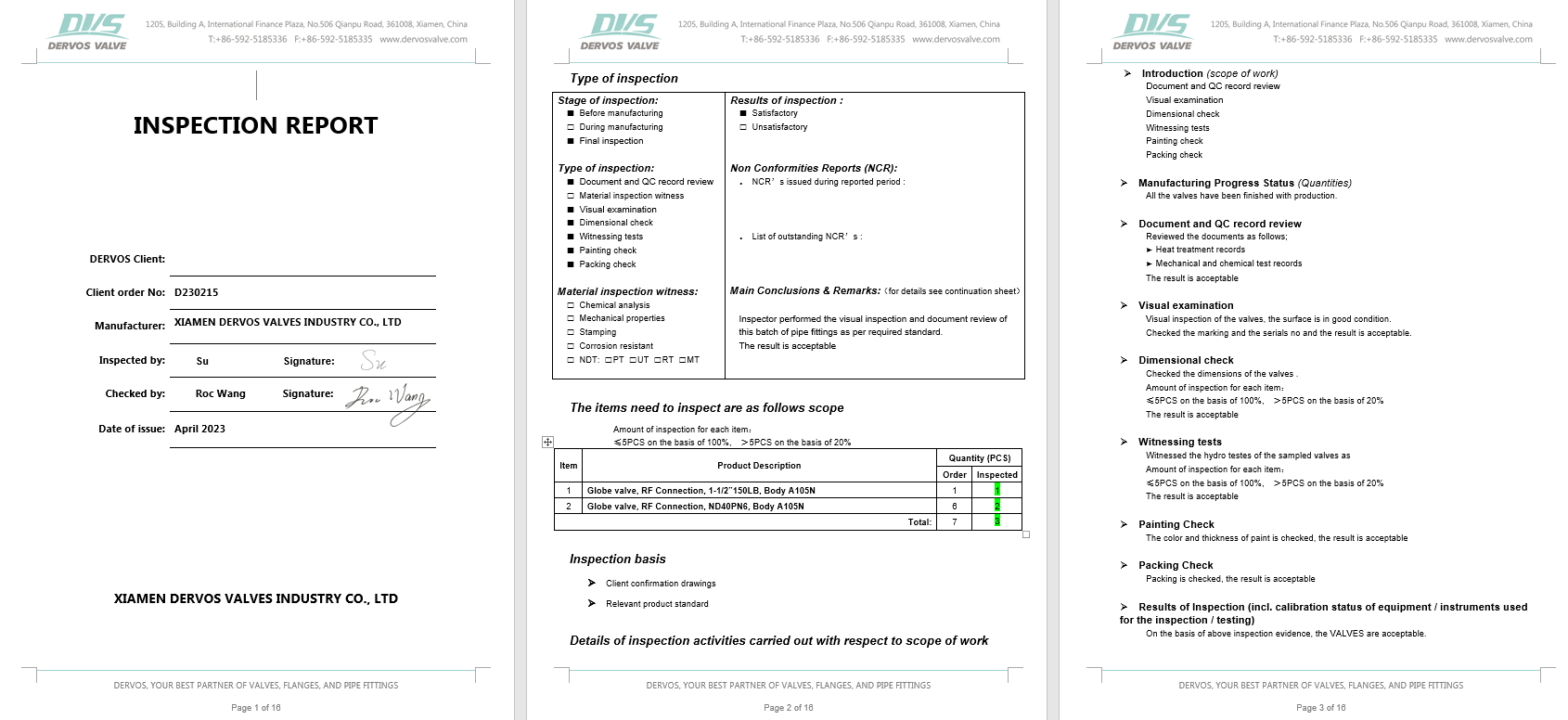

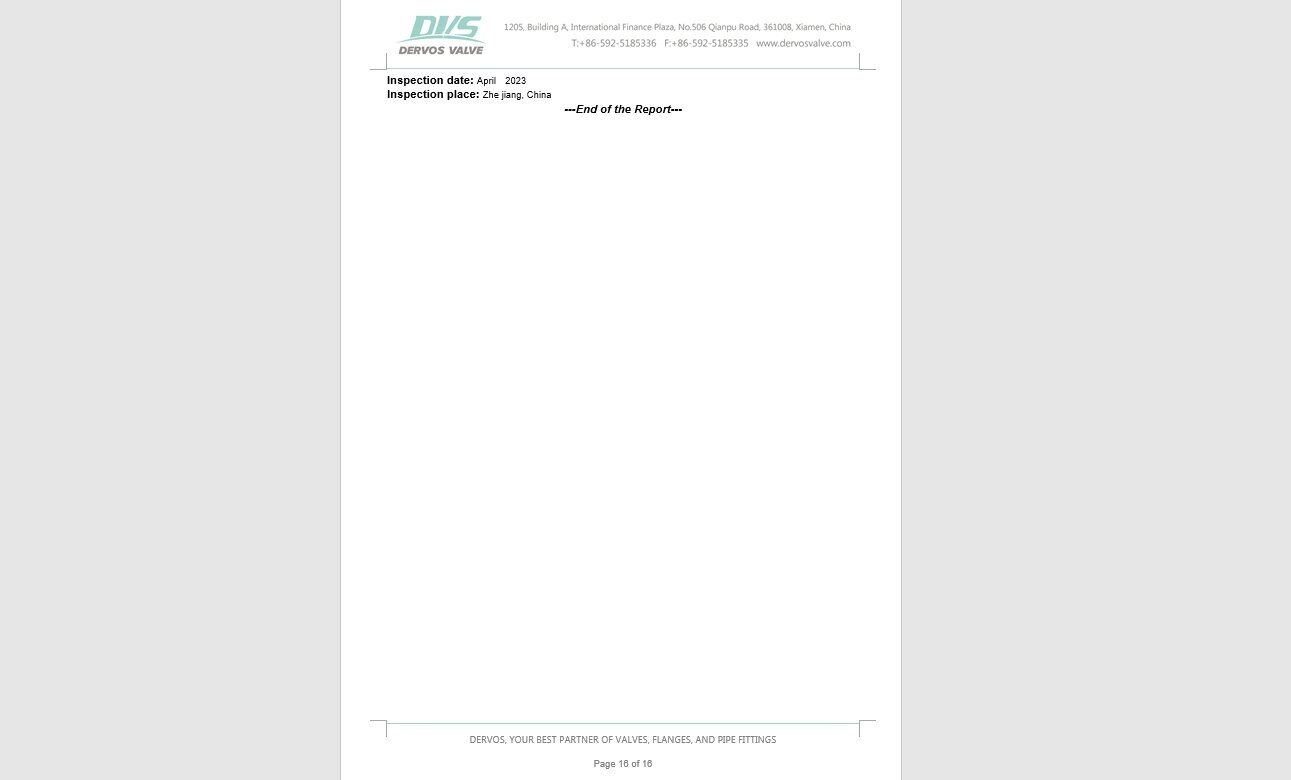

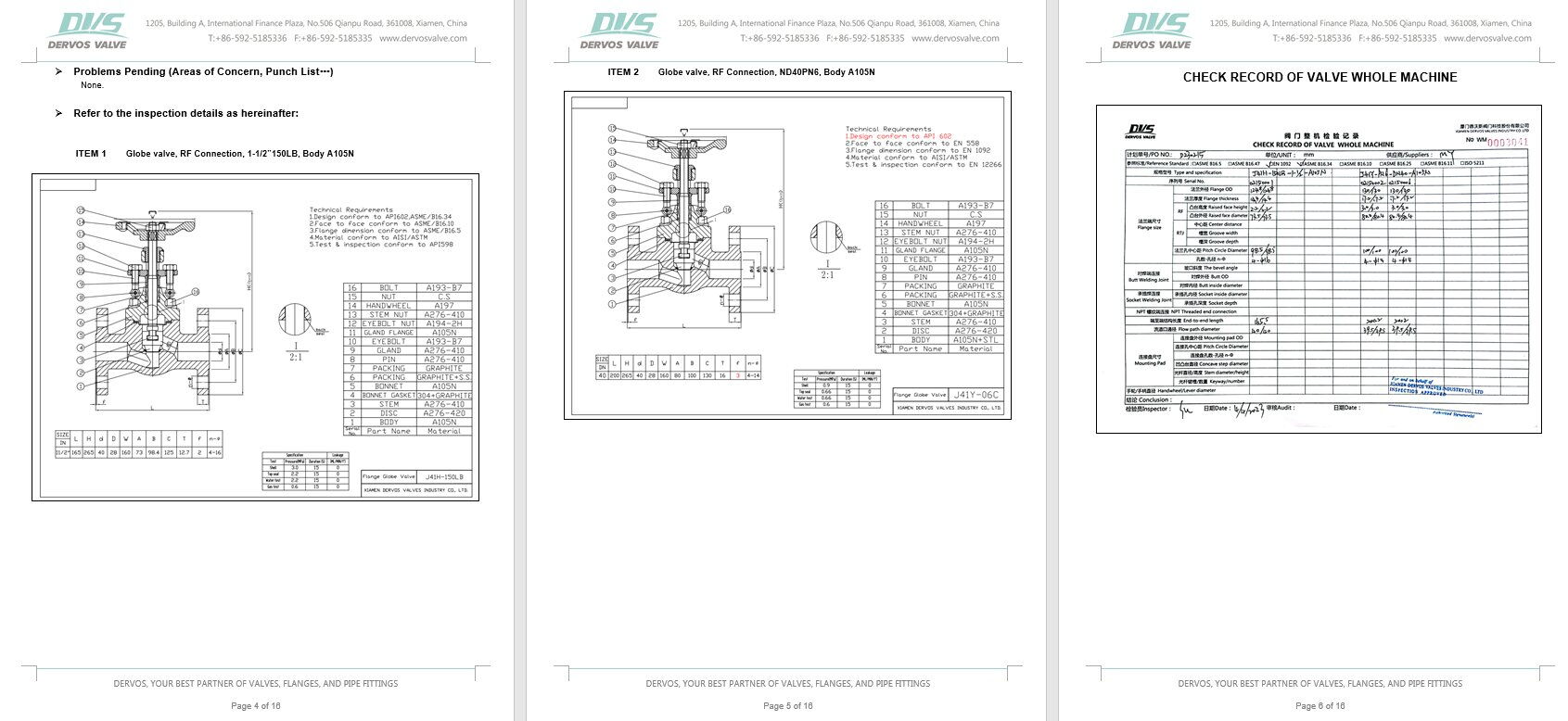

Inspection Report
1. Crafted from forged steel, these valves provide exceptional mechanical strength and impact resistance, ensuring reliable performance in high-pressure and high-temperature environments for extended service life.
2. With a compact design, these valves are ideal for installation in confined spaces, making them highly versatile for both industrial and residential applications.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection Report
