API 600 OS&Y Gate Valve, WCB, 2 Inch, Class 150, Handwheel, RF
Key Specifications / Features
China API 600 OS&Y Gate Valve Manufacturer Kelly Offers API 600 OS&Y Gate Valve, WCB, 2 Inch, Class 150, Bolted Bonnet, Handwheel, RF Flanged.
- Hits: 8
- Categories: Gate Valve
- Tags: 2 Inch Gate Valve , API 600 Gate Valve , ASTM A216 WCB Gate Valve
Detail Information
The 2 inch gate valve, designed as per API 600, has OS&Y and handwheel and other operation-friendly parts , making it easier to use and repair. The gate valve, which is made of carbon steel, will be connected with pipes by RF flange.
Quick Detail:

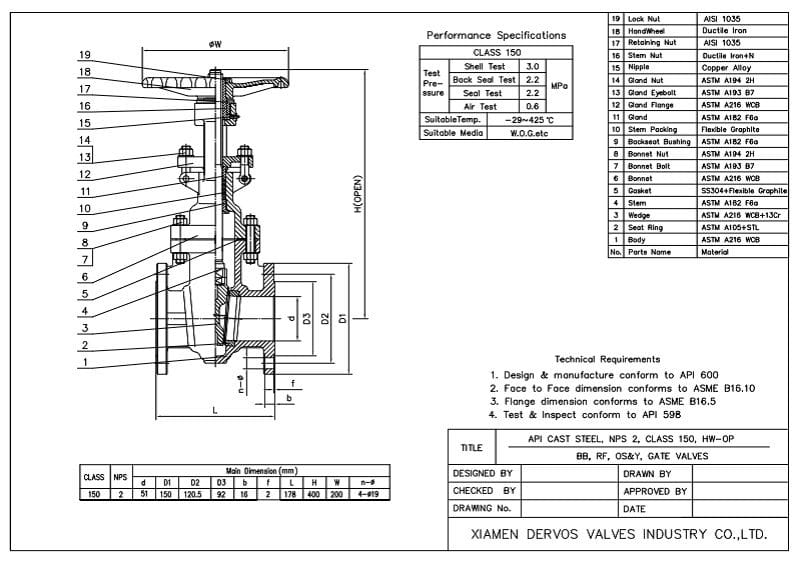

Technical Drawing:
Quality Checking
Quality means everything in Kelly. Quality checking team will do inspections according to standard procedure and provide reports. Our QC team will check valve quality from casting and forging, machining, pressure testing, dimension checking, painting & packing.
Quick Detail:
| Type | Gate valve |
| Nominal Diameter | 2 Inch |
| Nominal Pressure | Class 150 |
| Construction | OS&Y, Bolted Bonnet |
| Operation | Handwheel |
| Connection | RF Flange |
| Design & Manufacture | API 600 |
| End to End | ASME B16.10 |
| Flange End Dimension | ASME B16.5 |
| Test & Inspection | API 598 |
| Temperature Range | -29℃~+425℃ |
| Body Material | Carbon Steel |
| Wedge Material | ASTM A216 WCB+13Cr |
| Media | W.O.G. |
Technical Drawing:
Quality Checking
Quality means everything in Kelly. Quality checking team will do inspections according to standard procedure and provide reports. Our QC team will check valve quality from casting and forging, machining, pressure testing, dimension checking, painting & packing.
