ASTM A352 LCC Trunnion Ball Valve, API 6D, 2 Inch, 300 LB
Key Specifications / Features
2 Inch 300 LB ball valve is made according to API 6D standards. The valve body is made of ASTM A352 LCC. It has the structural characteristics of a full bore, fixed ball, anti-fire, anti-static and anti-flying valve stem design. Its connection mode is RF. And it has a lever operation mode.
- Hits: 5
- Categories: Trunnion Ball Valve
- Tags: ASTM A352 LCC Ball Valve , API 6D Ball Valve , 2 Inch Ball Valve
Detail Information
2 Inch 300 LB Trunnion Mounted Ball Valve RF LCC API 6D Lever
Features
1. Simple structure, small size, and lightweight;
2. Convenient operation, fast opening and closing, tight and reliable, and good sealing performance.

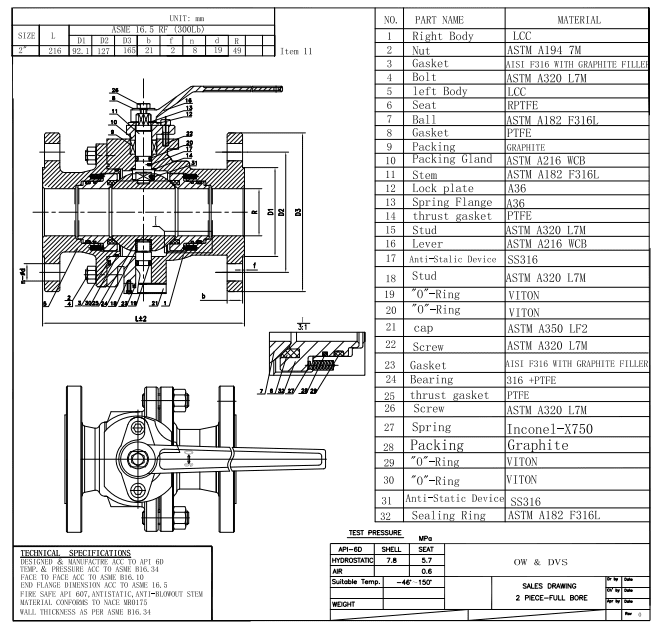

Technical Drawing

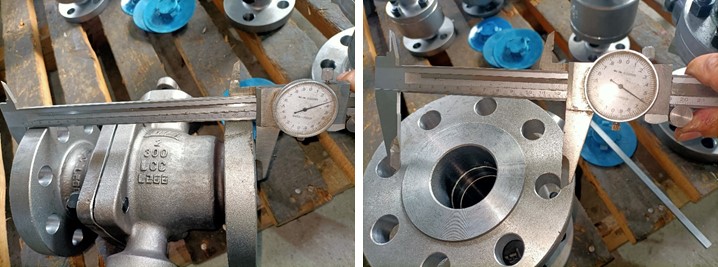

Dimension Checking

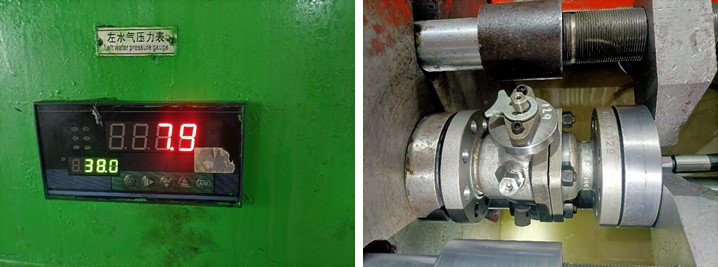

Pressure Testing

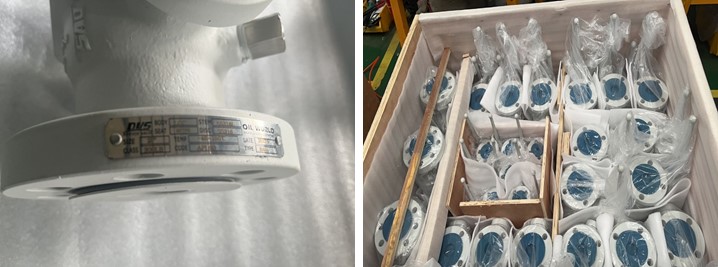

Nameplate & Packing

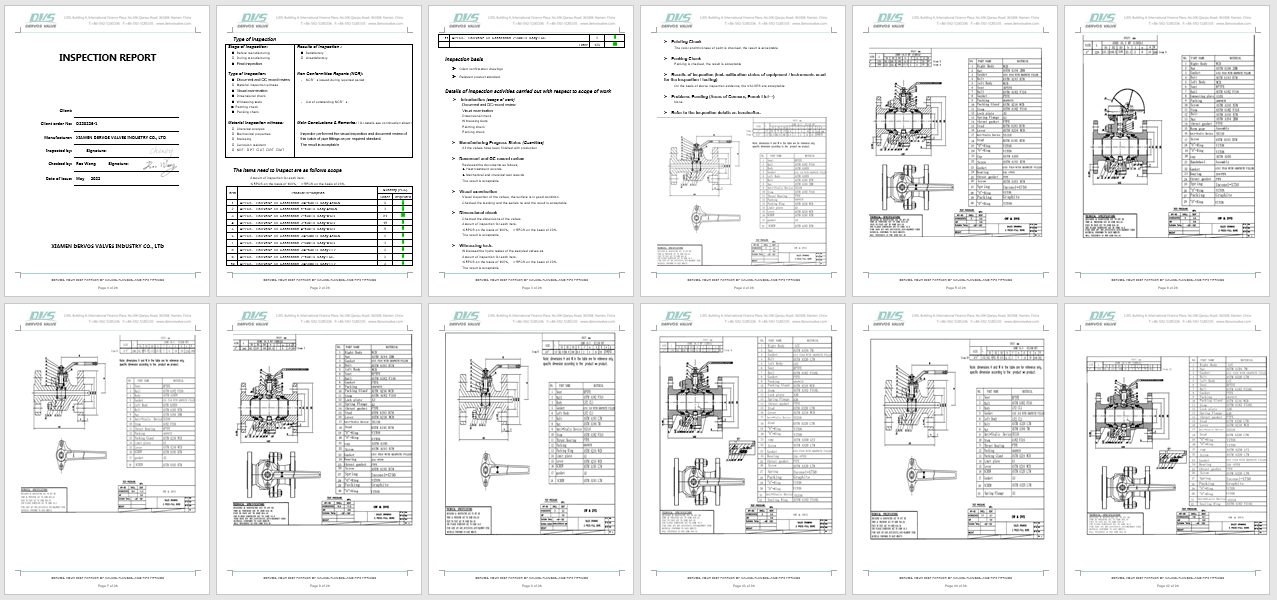

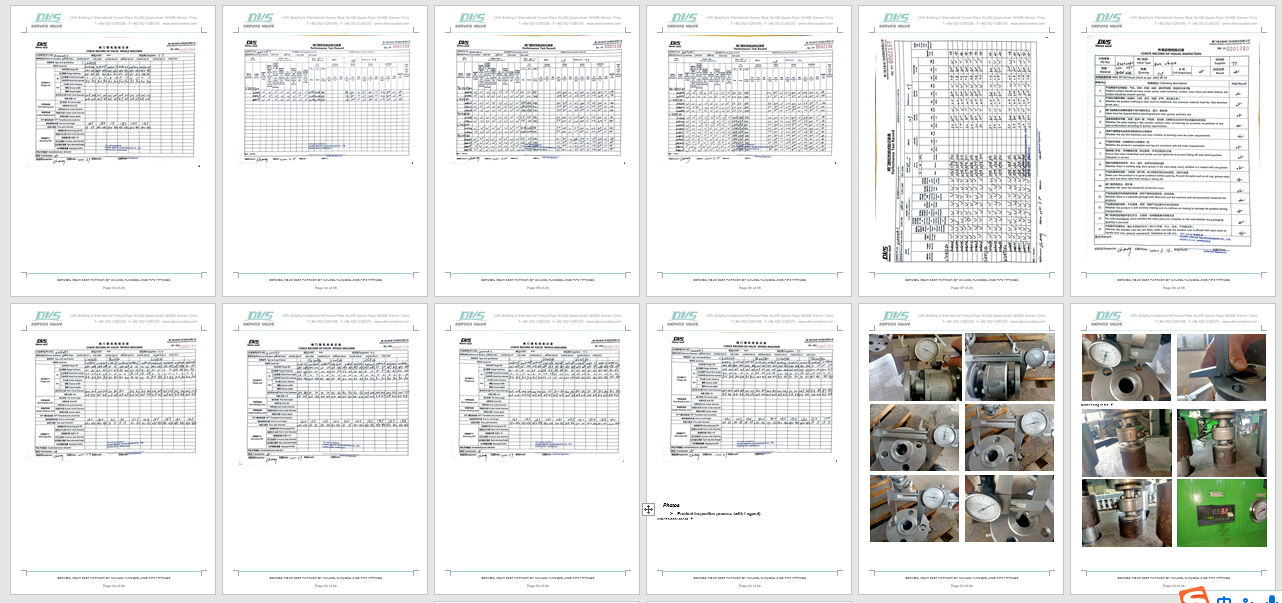

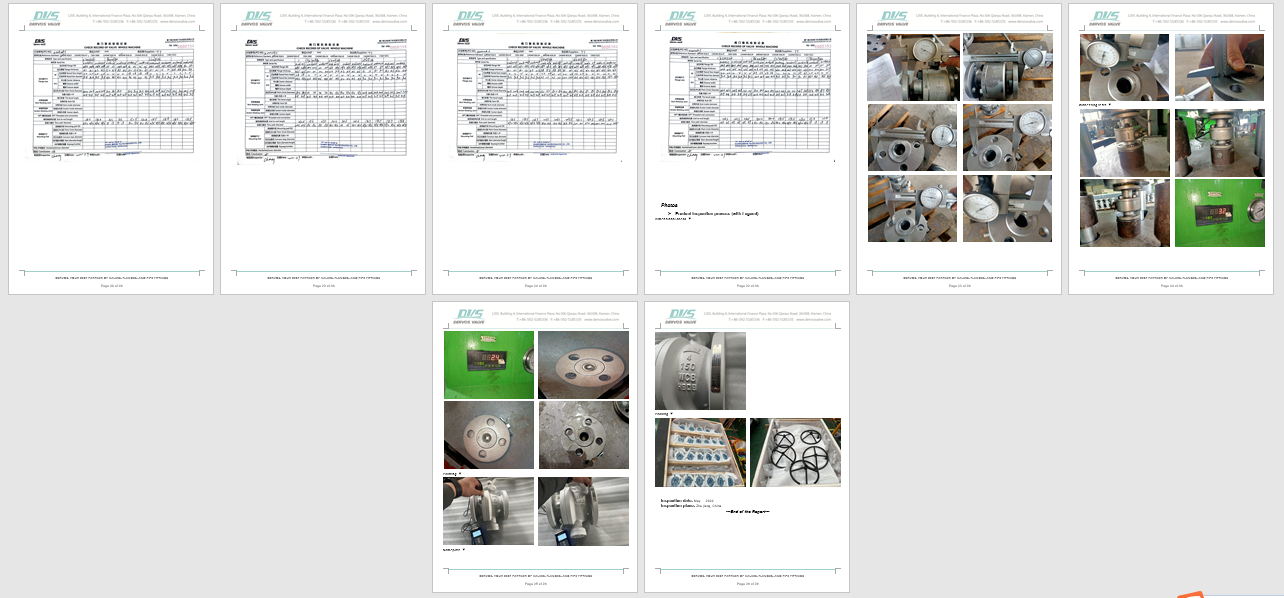

Inspection report
Features
1. Simple structure, small size, and lightweight;
2. Convenient operation, fast opening and closing, tight and reliable, and good sealing performance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
