API 6D Lubricated Plug Valve, 2 Inch, 300 LB, ASTM A216 WCB, RF
Key Specifications / Features
2 Inch 300 LB plug valve is made according to API 6D standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of an inverted pressure balancing type. Its connection mode is RF. It has a lever operation mode.
- Hits: 4
- Categories: Plug Valve
- Tags: Lubricated Plug Valve , API 6D Plug Valve , 2 Inch Plug Valve
Detail Information
2 Inch 300 LB Lubricated Plug Valve RF WCB API 6D Lever
Features
1. Inverted Pressure Balance: Valve design ensures balanced operation under pressure from different directions;
2. Utilizing special sealing structures to ensure effective prevention of fluid leakage when the valve is closed.

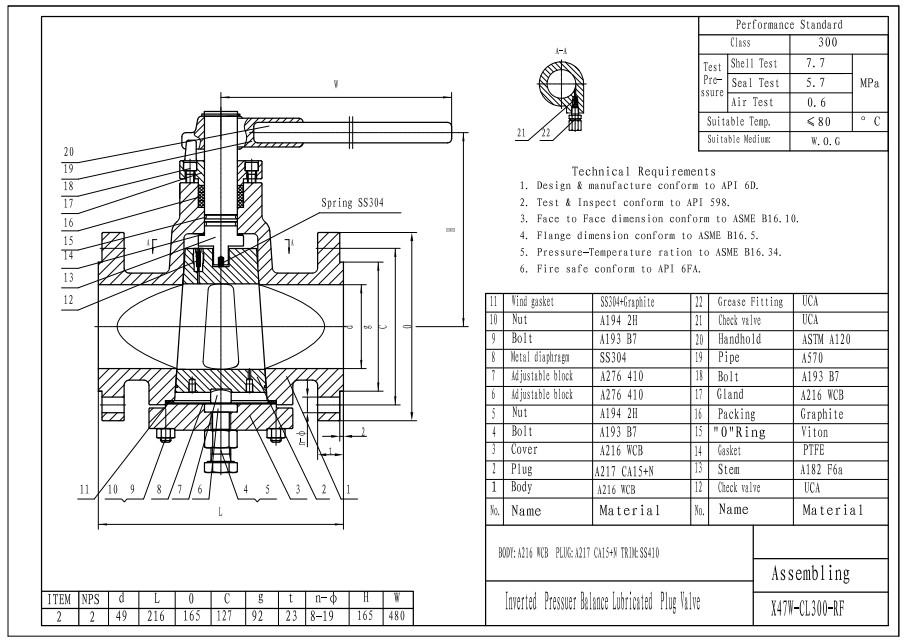

Technical Drawing

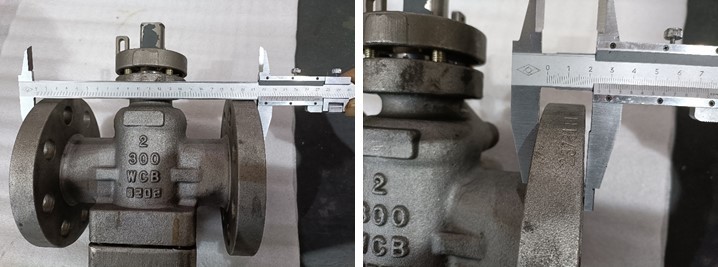

Dimension Checking

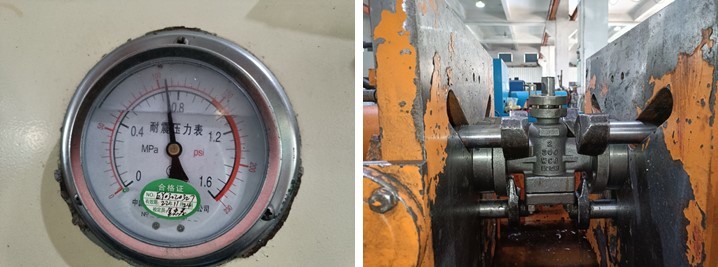

Pressure Testing

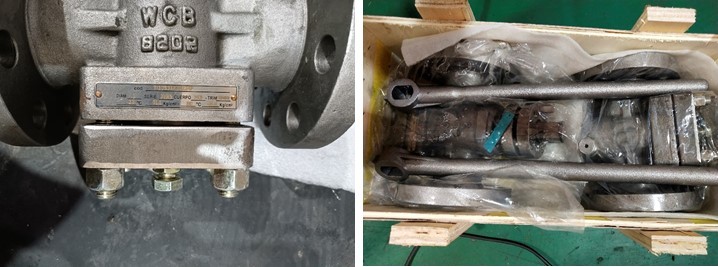

Nameplate & Packing

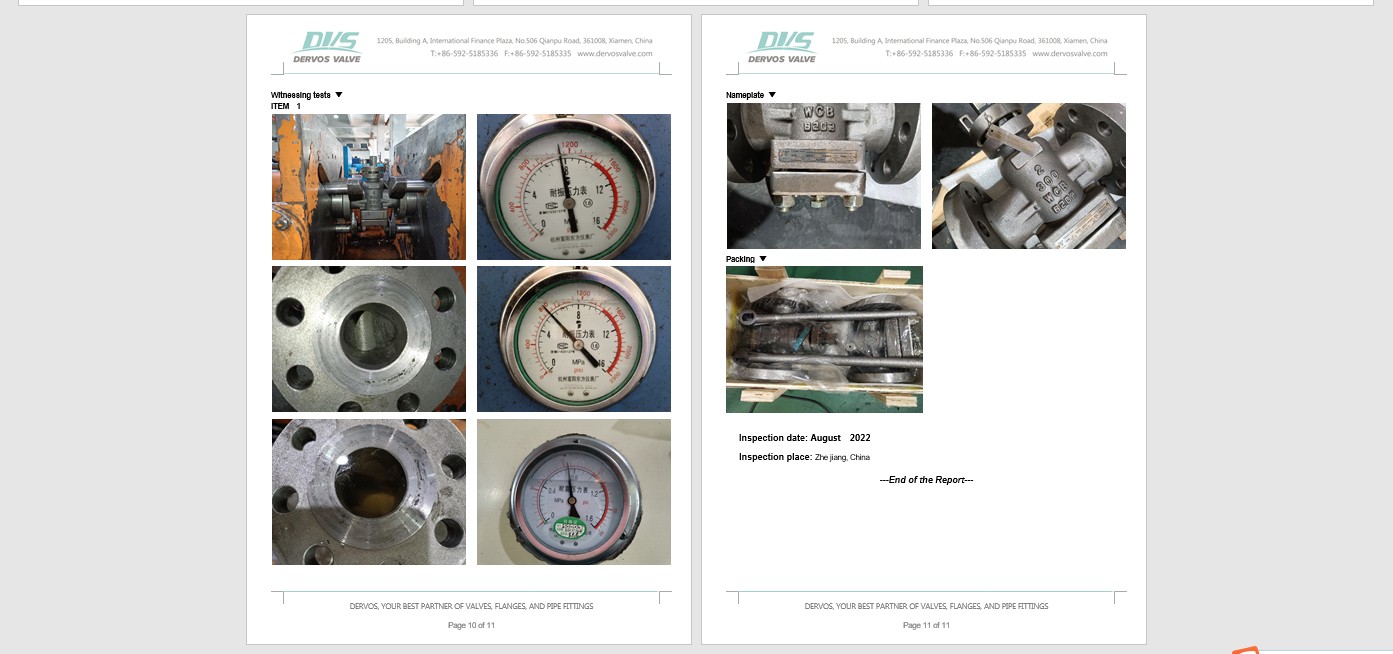

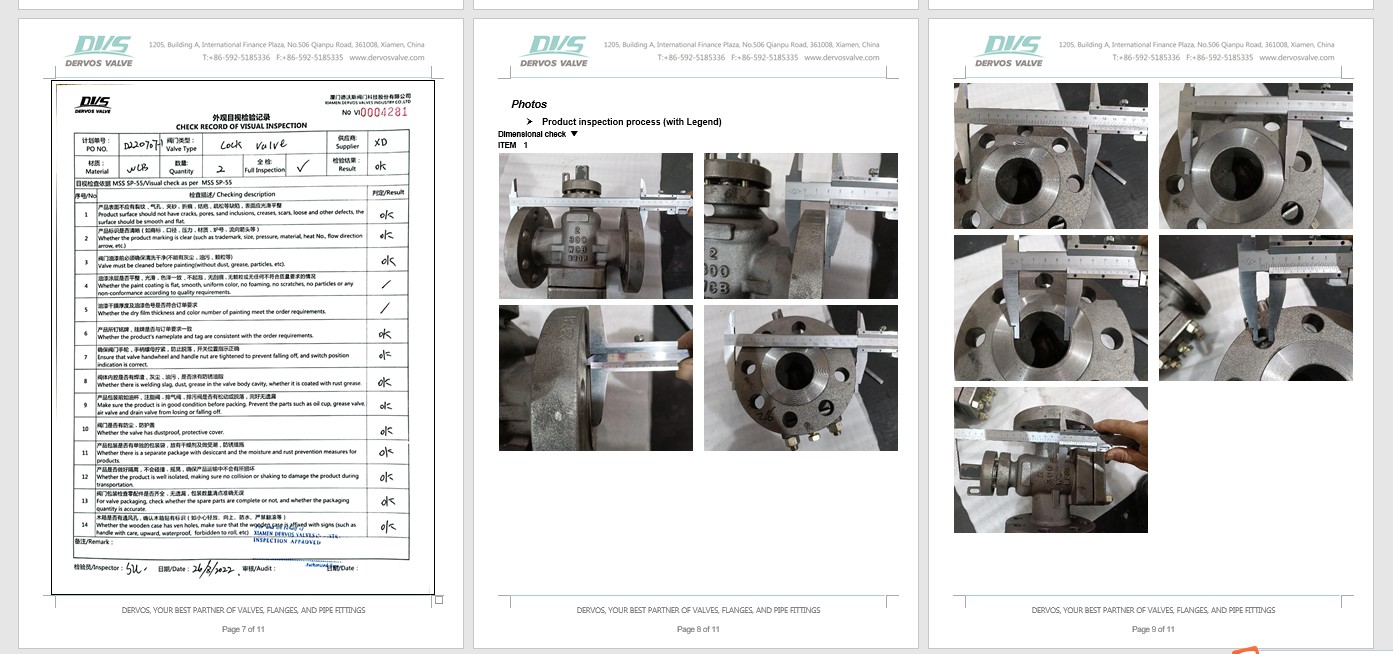

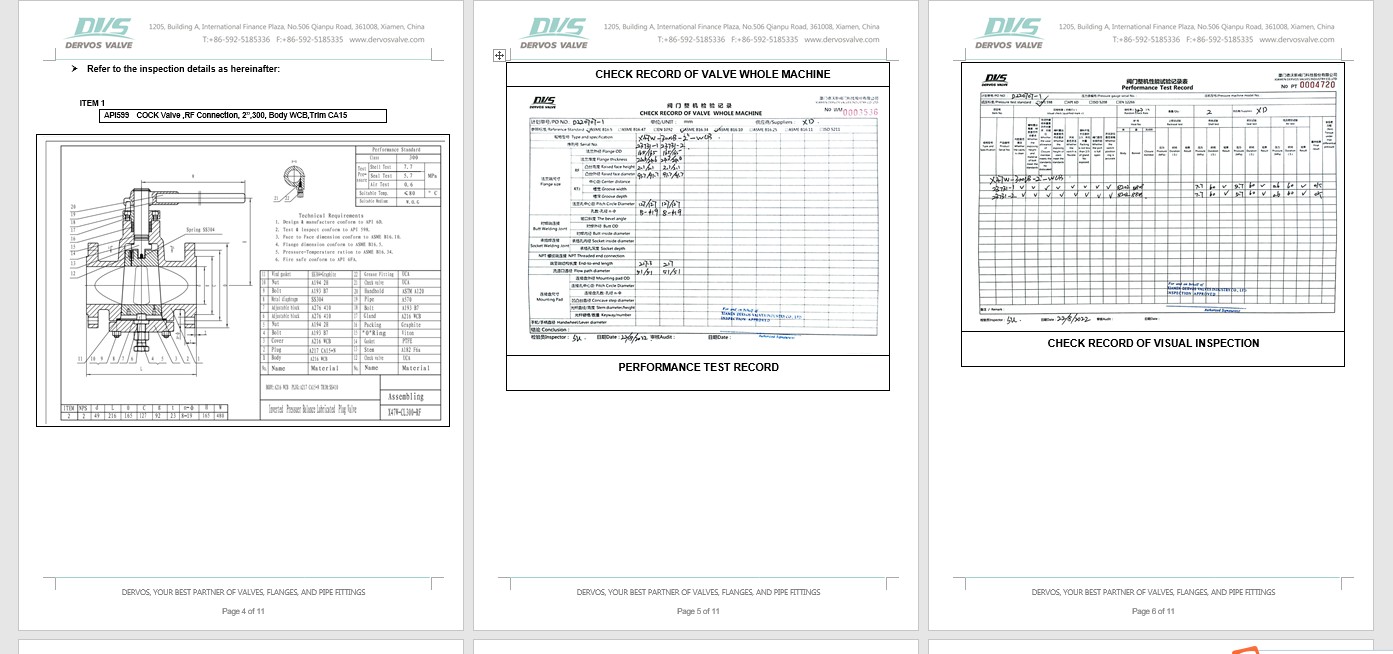

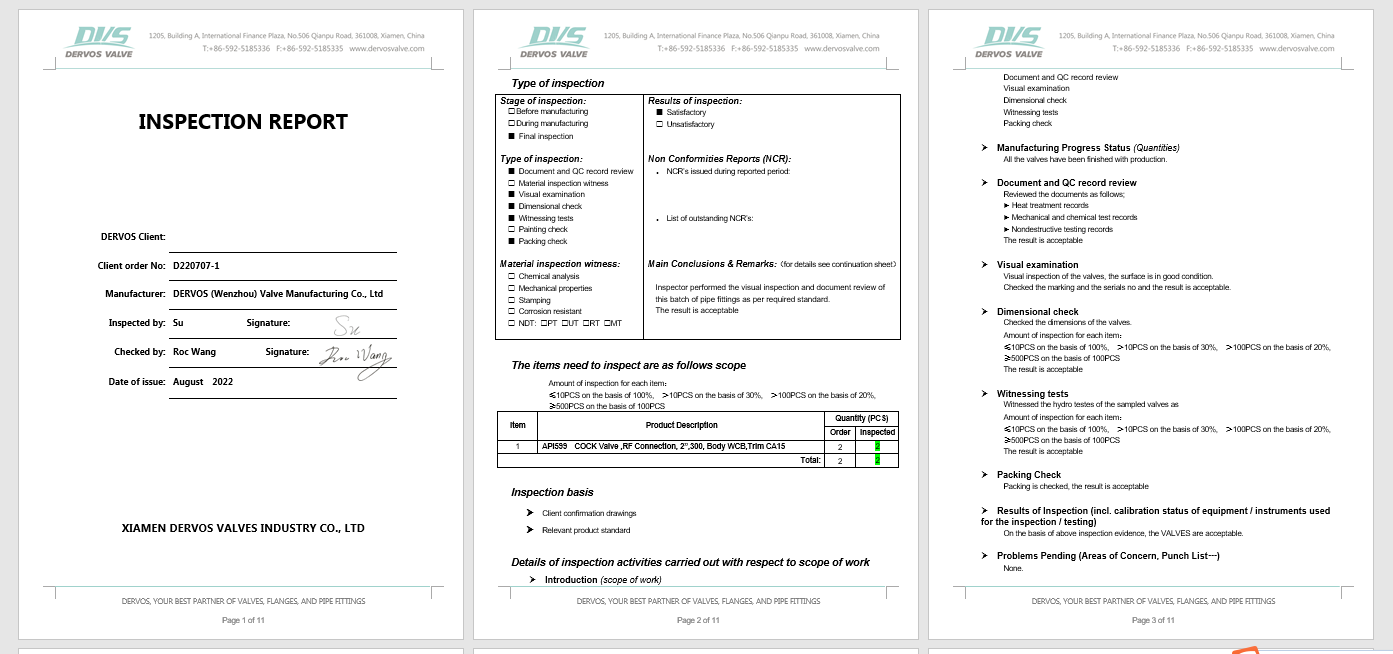

Inspection report
Features
1. Inverted Pressure Balance: Valve design ensures balanced operation under pressure from different directions;
2. Utilizing special sealing structures to ensure effective prevention of fluid leakage when the valve is closed.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
