Key Specifications / Features
ASTM A351 CF8M Trunnion Mounted Ball Valve Provider: 2PC Trunnion-mounted Ball Valves, Full Bore, RF, ASTM A351 CF8M, 2 Inch, Class 600 LB, Lever Operated.
- Hits: 3
- Categories: Cast Steel Ball Valve
- Tags: Trunnion Mounted Ball Valve , ASTM A351 CF8M Ball Valve , API 6D Ball Valve
Detail Information
| Type | Ball Valve |
| Nominal Diameter | 2 Inch |
| Nominal Pressure | 600 LB |
| Construction Type | 2 Piece Type, Trunnion-mounted Ball, Full Bore |
| Connection Type | RF |
| Operation Type | Lever |
| Body Material | ASTM A351 CF8M |
| Trim Material | ASTM A182 F316 |
| Design Code | API 6D |
| F to F Code | ASME B16.10, API 6D |
| Flange Dimension | ASME B16.5, ASME B16.47A |
| Test & Inspect | API 598 |
| Pressure&Temp. | ASME B16.34 |
| Medium | Water, Gas, Oil |
| Origin | China |
Features
FIRE SAFE DESIGN: Metal seat design provides a fire-safe shut-off per API 607. Additionally, graphite body seals and flexible graphite packing prevents leakage through the body joints and stuffing box, respectively.
ANTI-STATIC DEVICES: Standard anti-static devices ensure electrical continuity between the ball, stem, and body, eliminating the possibility of sparks within the valve created by static electrical charges.
BLOWOUT-PROOF STEM DESIGN: Valves are designed with stem/body connection preventing stem blowout under line pressure.

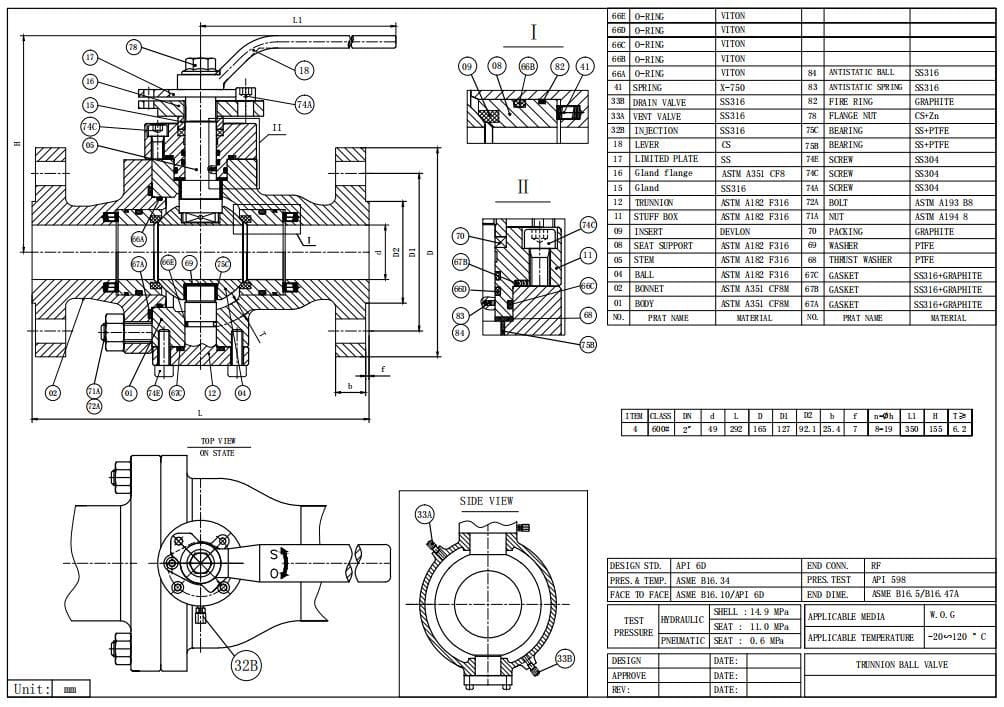

Technical Drawing
Dimension Check
Witnessing Tests

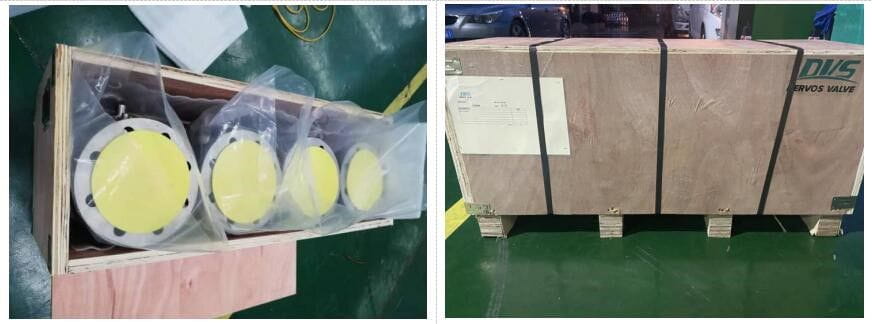

Packing
