ASTM A216 WCB Swing Check Valve, 4 Inch, 600 LB, API 6D
Key Specifications / Features
4 Inch 600 LB swing check valve is made according to API 6D standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of a bolt cover, swing type and external pin. Its connection mode is RF.
- Hits: 6
- Categories: Swing Check Valve
- Tags: ASTM A216 WCB Check Valve , 4 Inch Check Valve , Class 600 LB Check Valve
Detail Information
Body WCB, 4-inch 600 LB Swing Check Valve, RF Connection, API 6D
Features
1. Easy to operate, reliable in work, simple in design, easy to manufacture and maintain;
2. The valve disc design takes into account the impact force of the medium, ensuring that the valve can still operate reliably under high-speed fluid conditions.

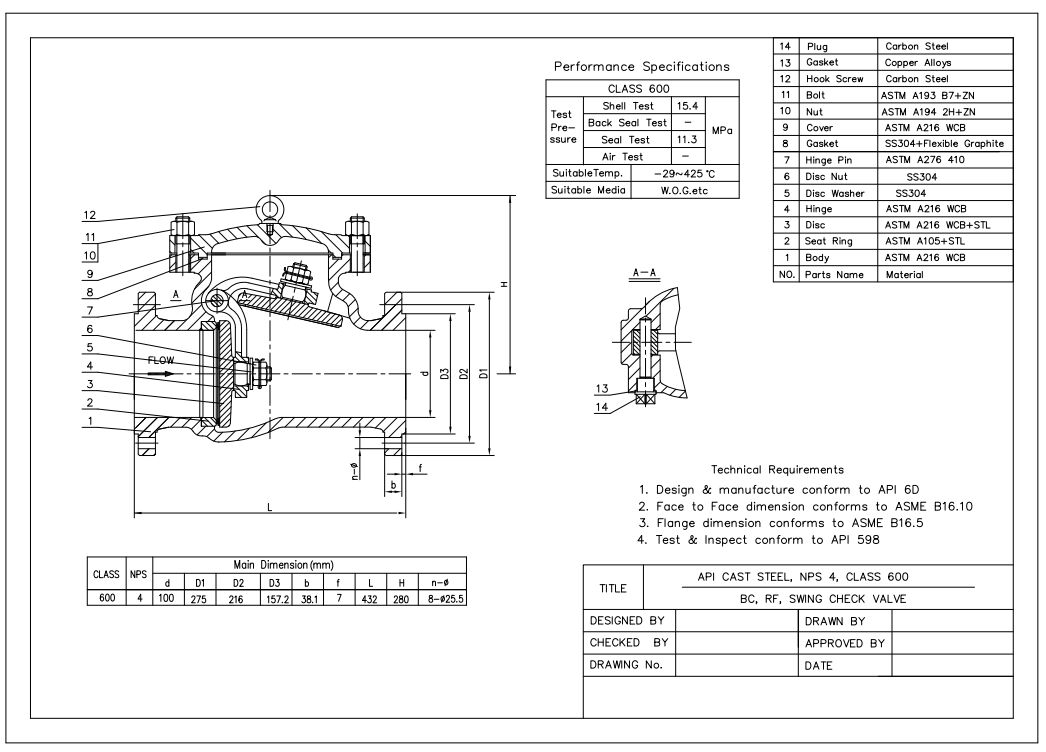

Technical Drawing

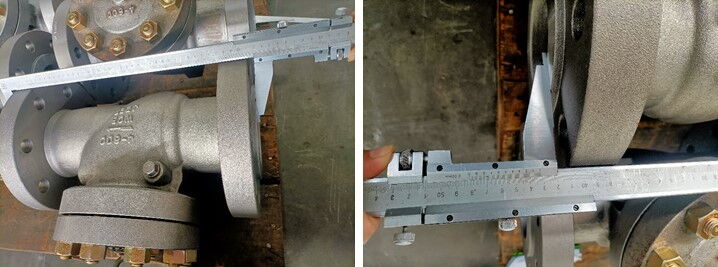

Dimension Checking

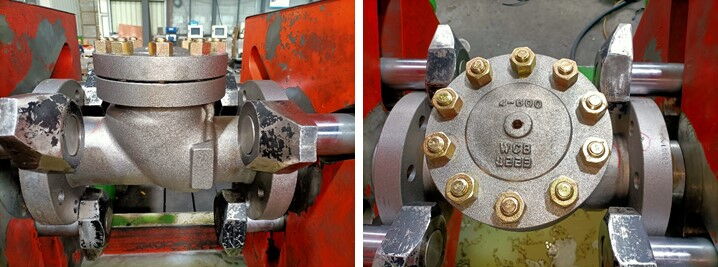

Pressure Testing

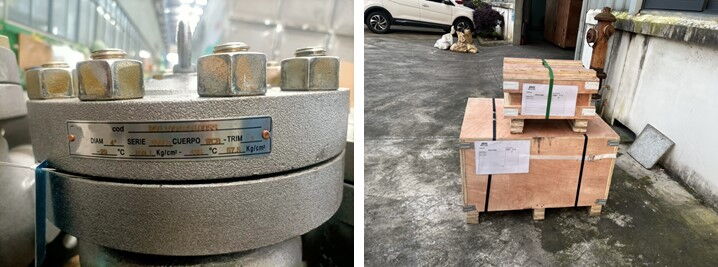

Nameplate & Packing

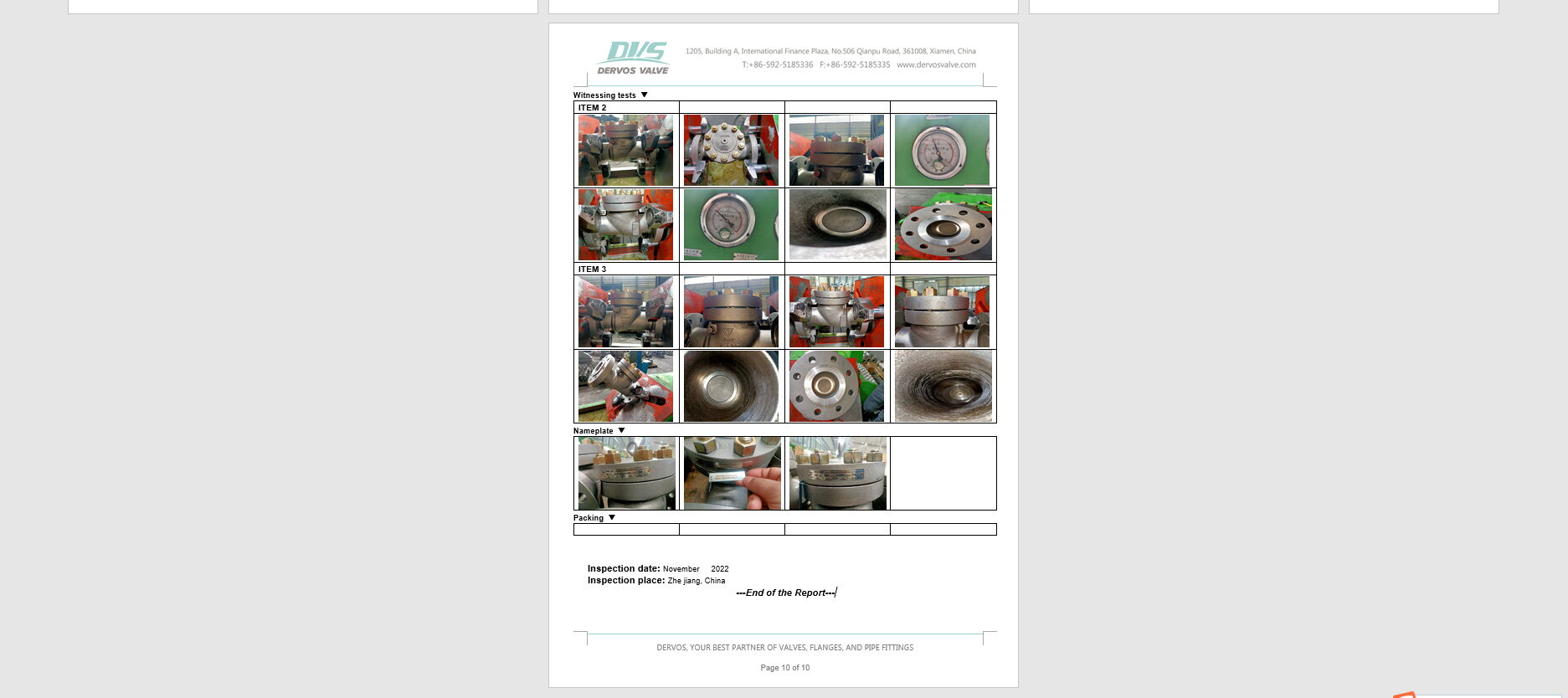

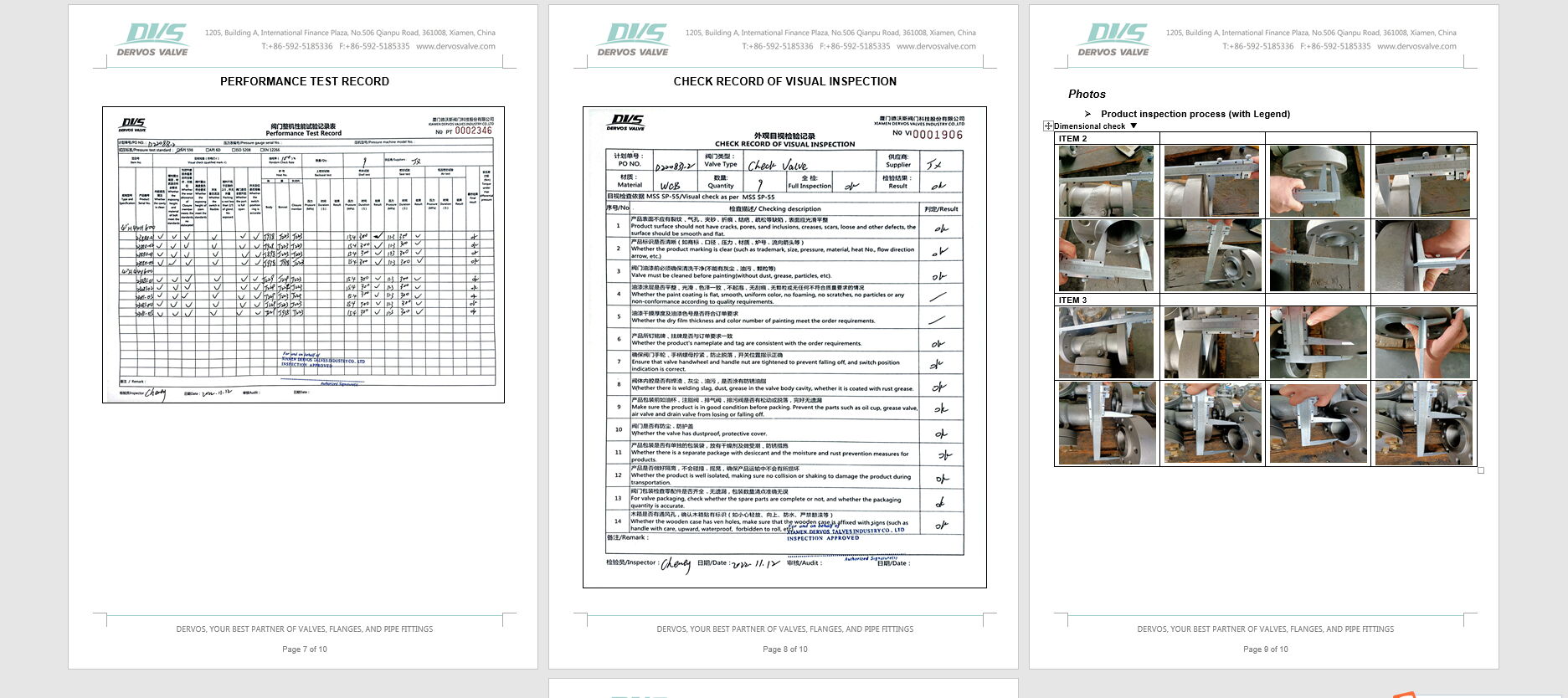

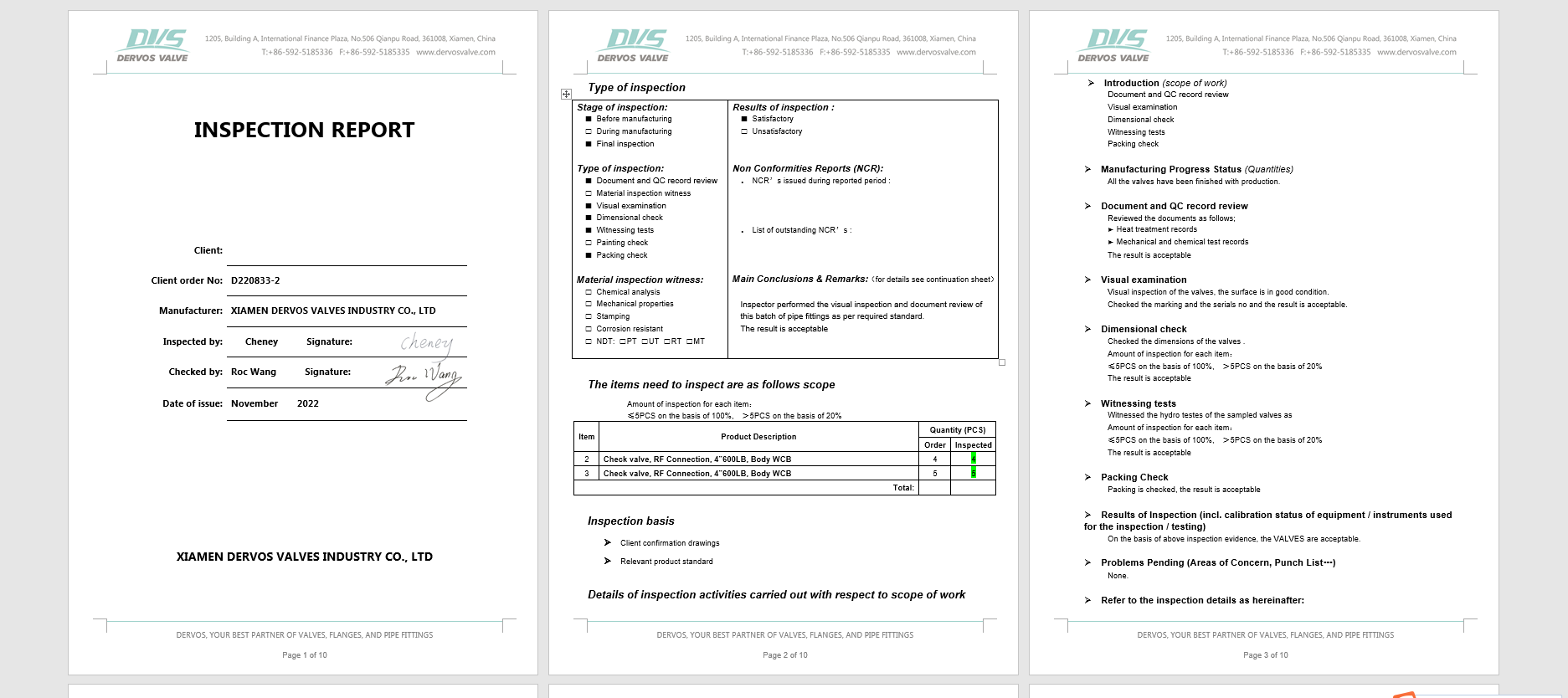

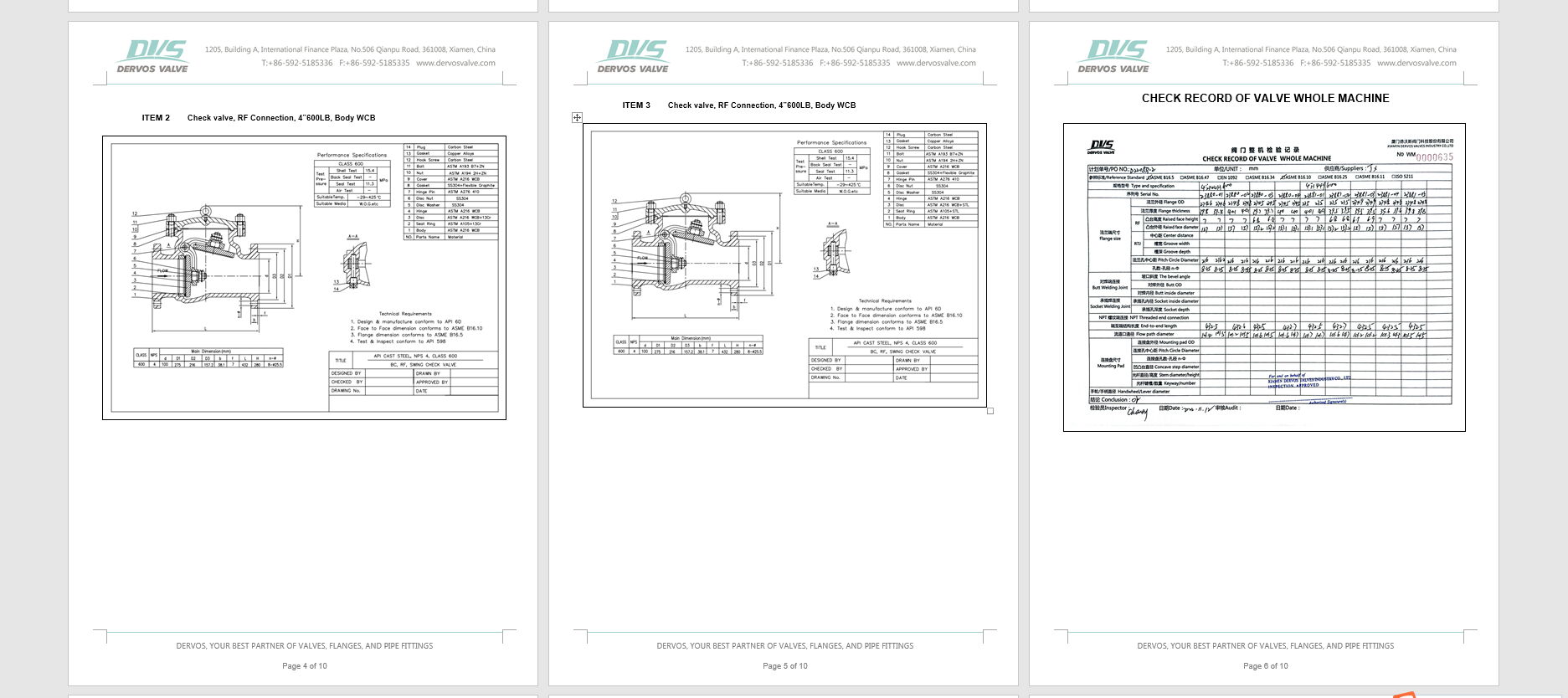

Inspection report
Features
1. Easy to operate, reliable in work, simple in design, easy to manufacture and maintain;
2. The valve disc design takes into account the impact force of the medium, ensuring that the valve can still operate reliably under high-speed fluid conditions.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
