ASTM A105 Trunnion Ball Valve, DN150, PN64, ISO 14313
Key Specifications / Features
DN150 PN64 ball valve is made according to ISO 14313 standard. The valve body is made of ASTM A105. It has the structural characteristics of fixed ball, full bore and structural length of 480 mm. Its connection mode is EN 1092-1. And it has turbine operation mode.
- Hits: 12
- Categories: Trunnion Ball Valve
- Tags: ASTM A105 Ball Valve , DN150 Ball Valve , PN64 Ball Valve
Detail Information
ISO 14313 Trunnion Ball Valve ASTM A105 Material DN150 PN64
Product Description
Features
1. Low fluid resistance, simple structure, small volume, and light weight;
2. Tight and reliable, with good sealing performance, it has also been widely used in vacuum systems;
3. Easy to operate, fast opening and closing, convenient for remote control.
Technical Drawing

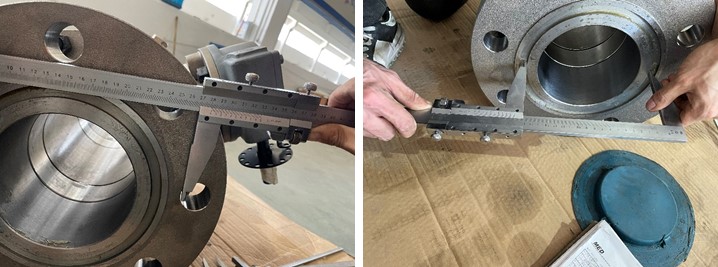

Dimension Checking

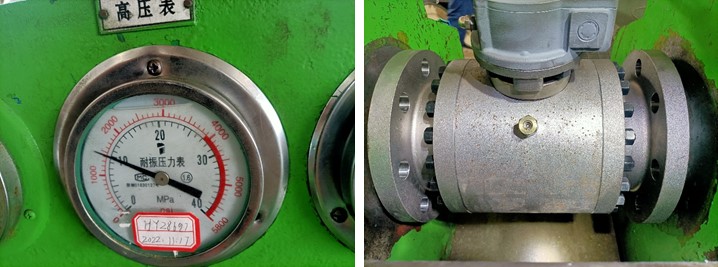

Pressure Testing

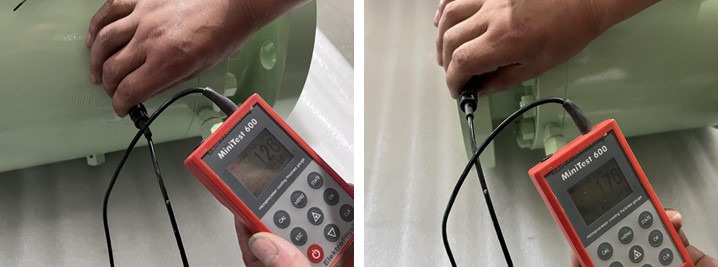

Painting

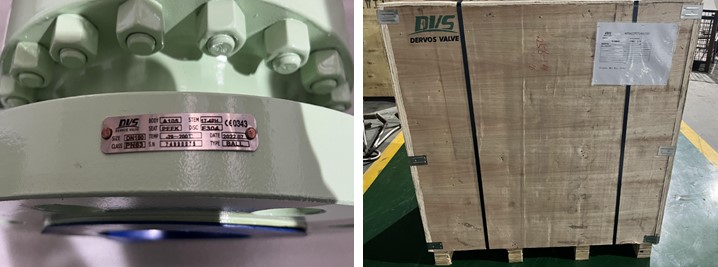

Nameplate & Packing

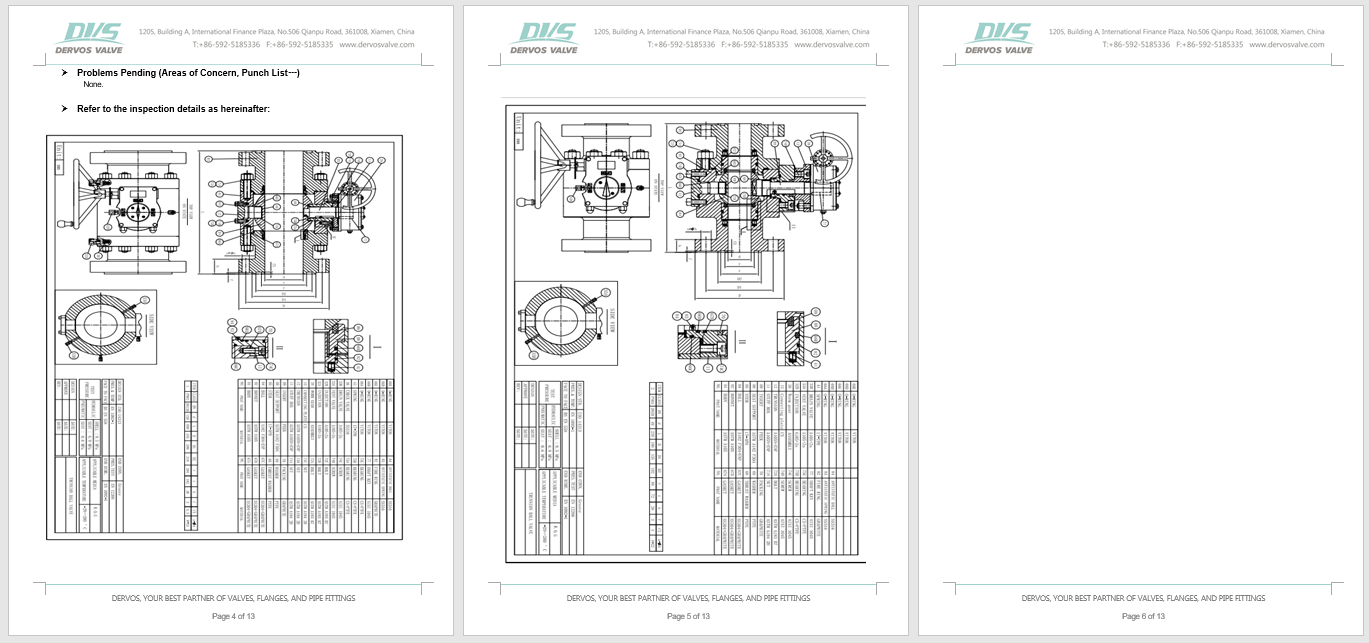

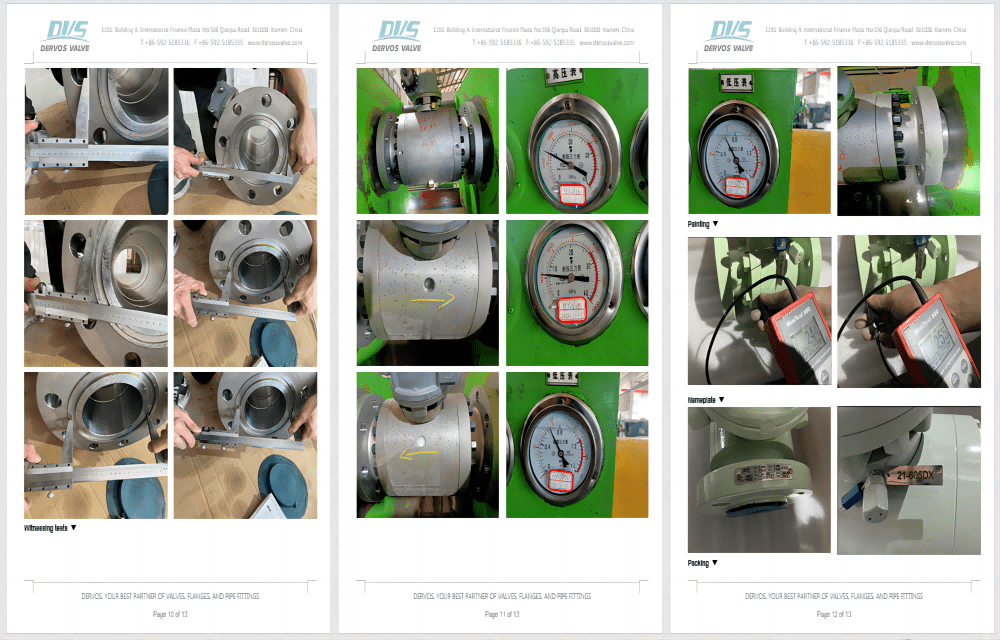

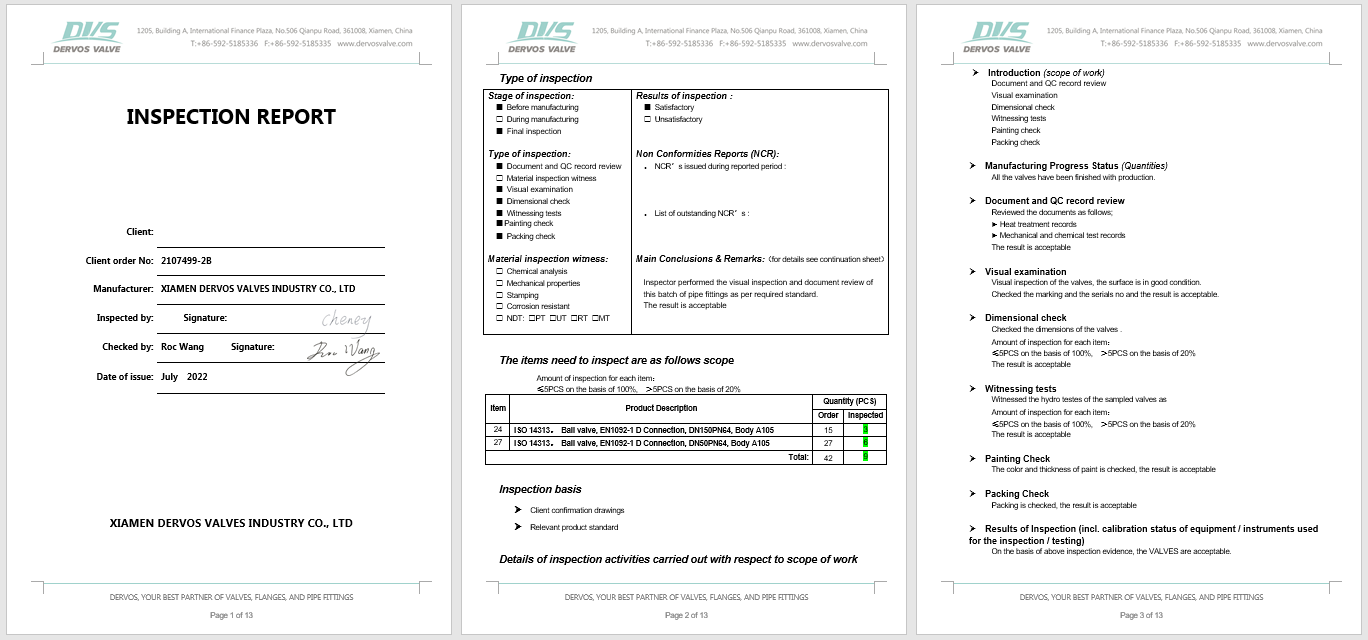

Inspection report
Product Description
| Type | Ball Valve |
| Size | DN150 |
| Pressure | PN64 |
| Connection | EN 1092-1 |
| Operation | Turbine Operation |
| Body Material | ASTM A105 |
| Design Norm | ISO 14313 |
| PRES.& TEMP. | EN 1092-1 |
| FACE TO FACE | BS EN 558 |
| END CONN. | Groove |
| PRES.TEST | EN 12266 |
| END DIME. | EN 1092-1 |
| Temperature | -29 ~ 200°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. Low fluid resistance, simple structure, small volume, and light weight;
2. Tight and reliable, with good sealing performance, it has also been widely used in vacuum systems;
3. Easy to operate, fast opening and closing, convenient for remote control.
Technical Drawing
Dimension Checking
Pressure Testing
Painting
Nameplate & Packing
Inspection report
