ASTM A105 Floating Ball Valve, API 6D, 150 LB, 3/4 Inch, RF
Key Specifications / Features
3/4 Inch 150 LB floating ball valve is made according to API 6D standard. The valve body is made of ASTM A105. It has the structural characteristics of full bore and floating ball. Its connection mode is RF. And it has lever operation mode.
- Hits: 18
- Categories: Floating Ball Valve
- Tags: 3/4 Inch Ball Valve , 150 LB Ball Valve , RF Ball Valve
Detail Information
ASTM A105 Floating Ball Valve, Full Bore
Features
1. The flow resistance is small, and the medium can flow almost without loss;
2. Small size, light weight, convenient for pipeline installation.

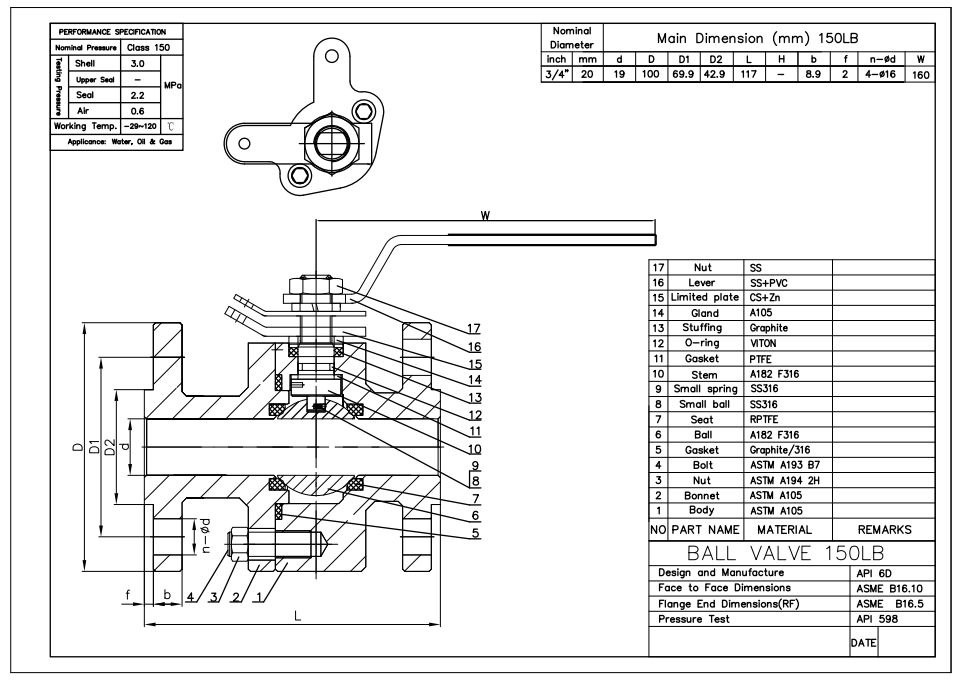

Technical Drawing

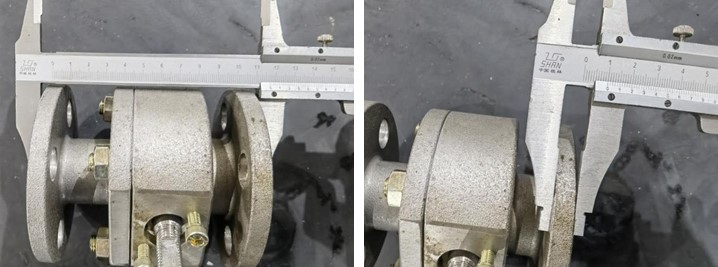

Dimension Checking

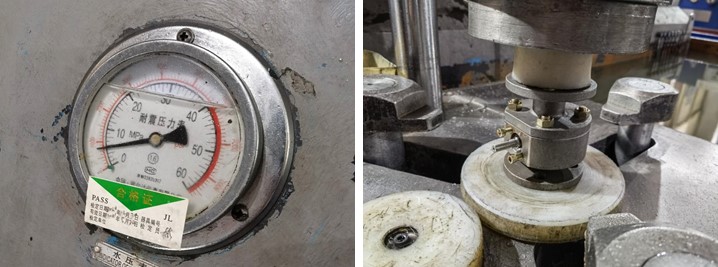

Pressure Testing

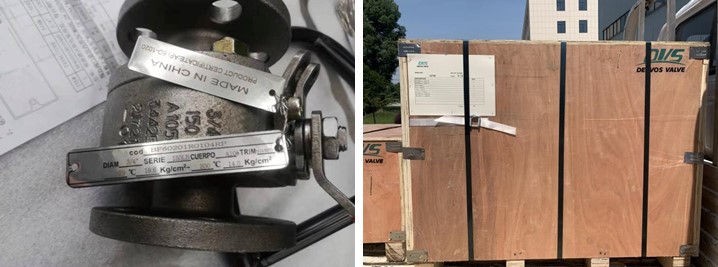

Nameplate & Packing

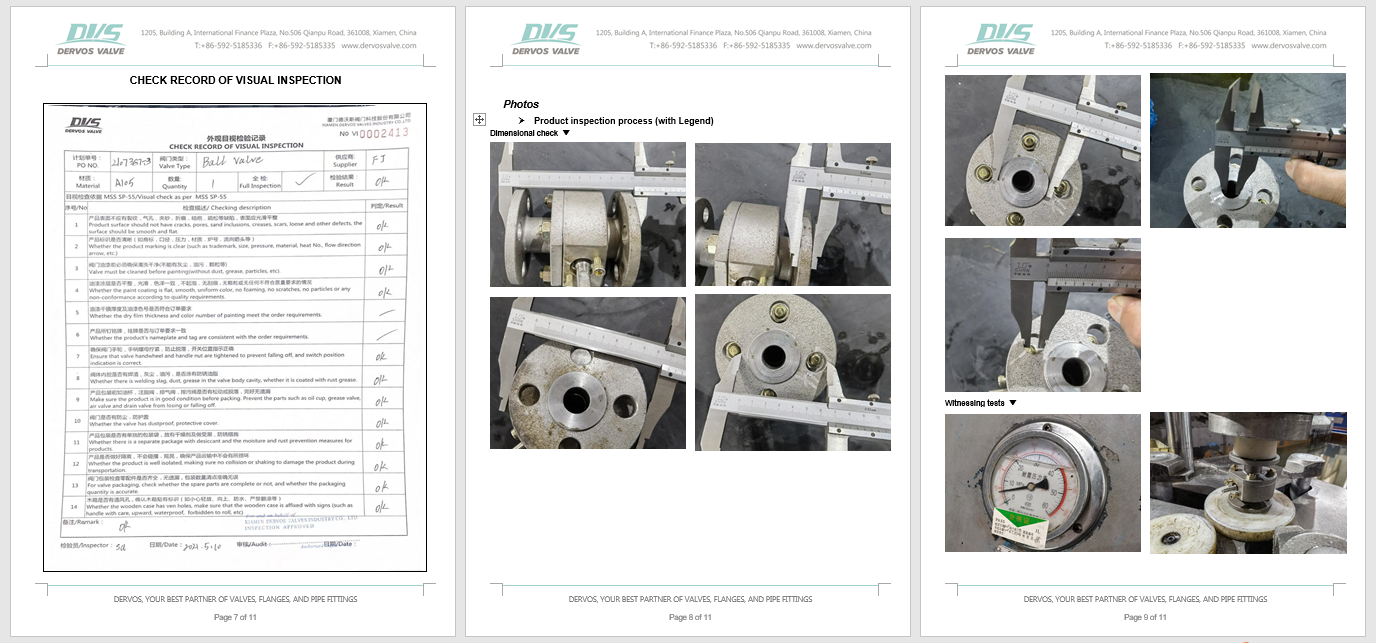

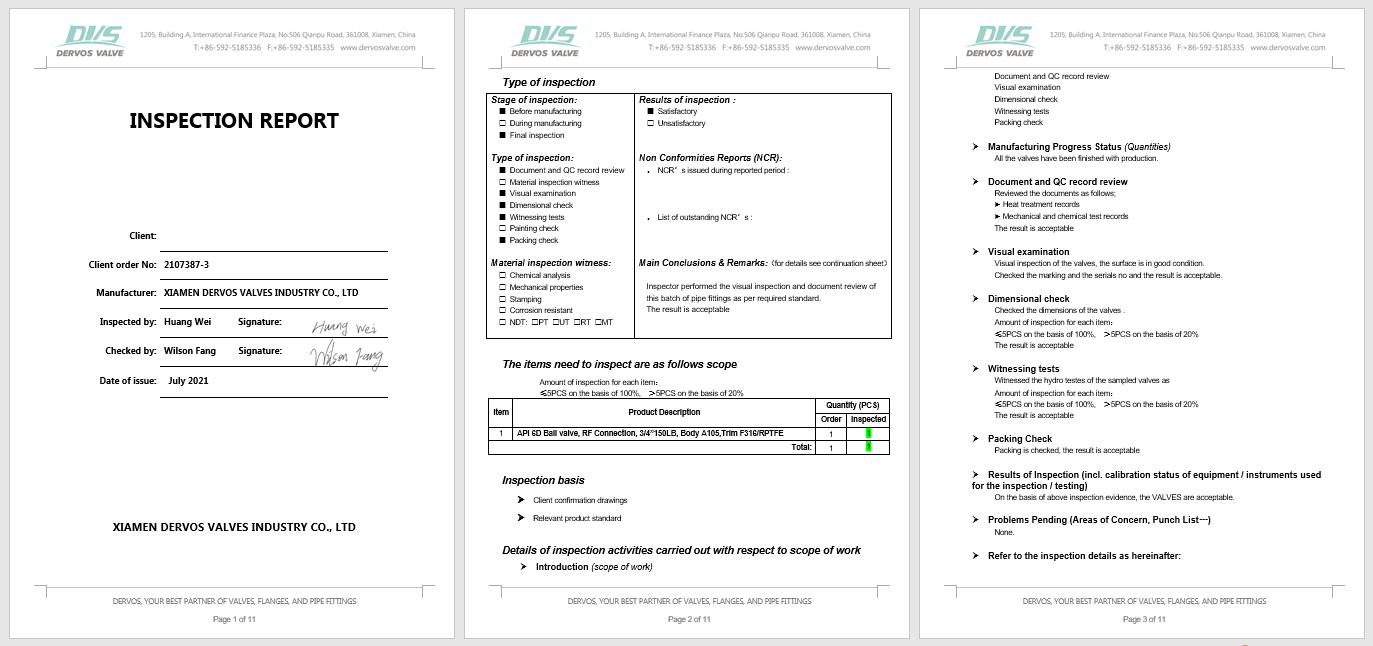

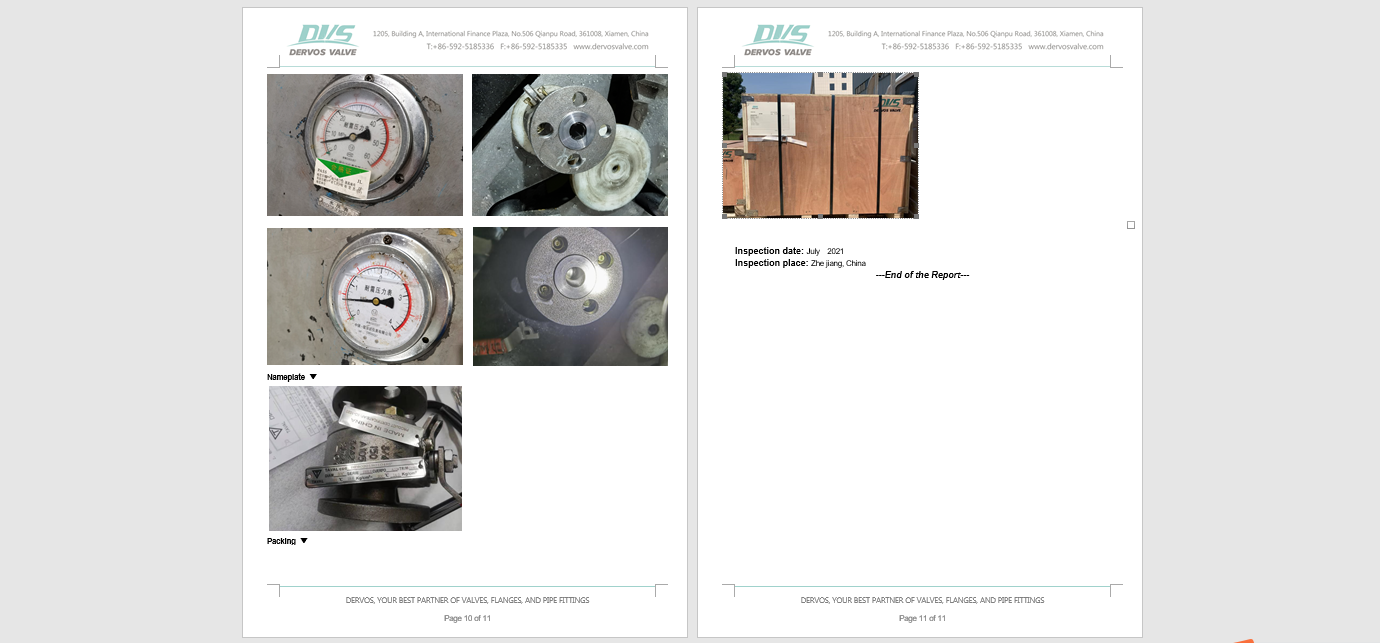

Inspection report
| Type | Floating Ball Valve |
| Size | 3/4 Inch |
| Pressure | 150 LB |
| Connection | RF |
| Operation | Lever |
| Body Material | ASTM A105 |
| Design Norm | API 6D |
| Face to Face Dimensions | ASME B16.10 |
| Flange End Dimensions(RF) | ASME B16.5 |
| Pressure Test | API 598 |
| Temperature | -29 ~ 120°C |
| Applicable Medium | Water, Oil and Gas |
Features
1. The flow resistance is small, and the medium can flow almost without loss;
2. Small size, light weight, convenient for pipeline installation.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
