ASTM A182 F316 Ceramic Ball Valve, 10 Inch, 150 LB, RF
Key Specifications / Features
10 Inch 150 LB ball valve is made according to GB/T 12237-2005 standard. The valve body is made of F316. The valve body bushing, flange bushing and seat are made of ceramic. It has the structural characteristics of a 3-piece, fixed ball and structural length according to ASME B16.10 standard. Its connection mode is RF (ANSI B16.5). And it has a smooth rod with ISO connection plate operation mode.
- Hits: 11
- Categories: Ceramic Ball Valve
- Tags: ASTM A182 F316 Ball Valve , 10 Inch Ball Valve , 150 LB Ball Valve
Detail Information
10 Inch 150 LB Ceramic Ball Valve F316 RF GB/T 12237-2005
Introduction
10 Inch 150 LB ball valve is made according to GB/T 12237-2005 standard. The valve body is made of F316. The valve body bushing, flange bushing and seat are made of ceramic. It has the structural characteristics of a 3-piece, fixed ball and structural length according to ASME B16.10 standard. Its connection mode is RF (ANSI B16.5). And it has a smooth rod with ISO connection plate operation mode.
Features
1. It has extremely high wear resistance, corrosion resistance, and erosion resistance performance;
2. Durable, high reliability, and long service life.

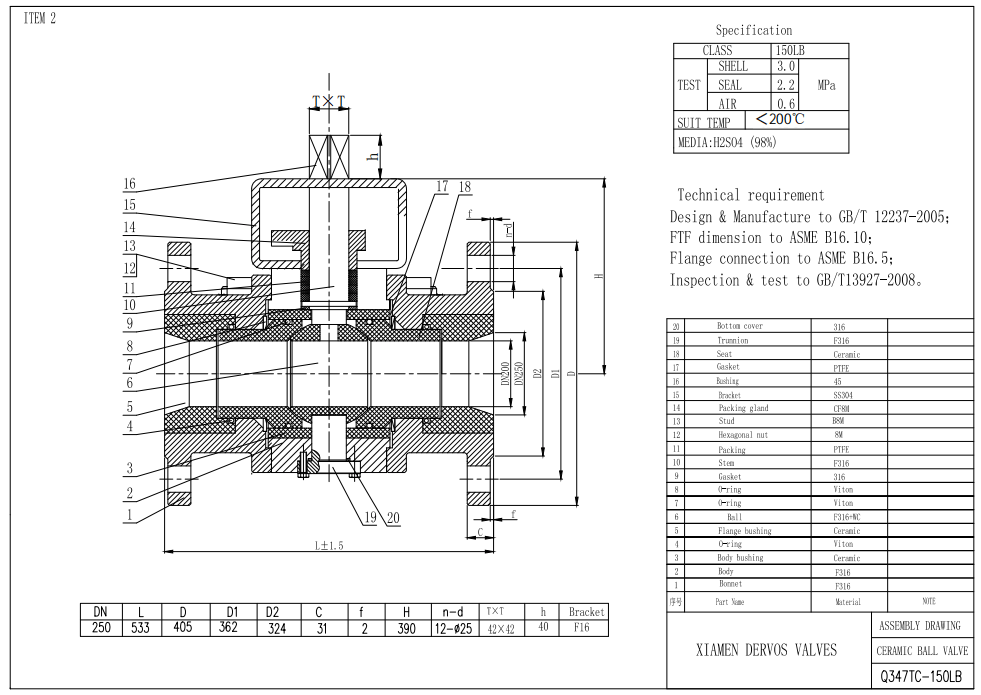

Technical Drawing

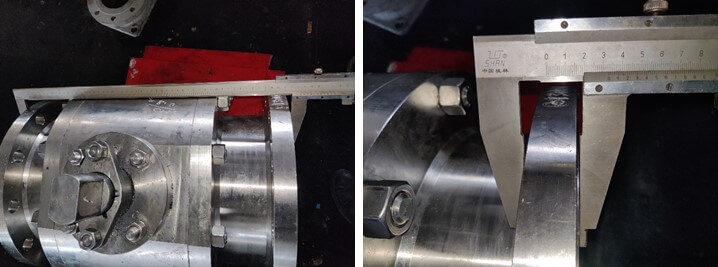

Dimension Checking

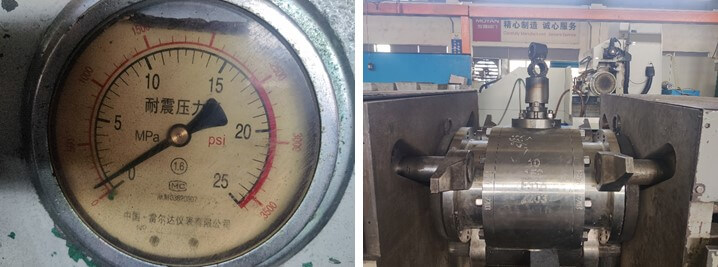

Pressure Testing

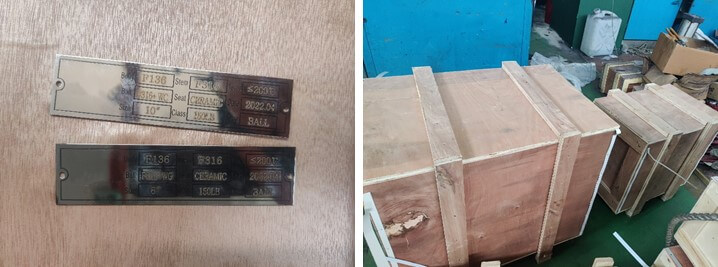

Nameplate & Packing

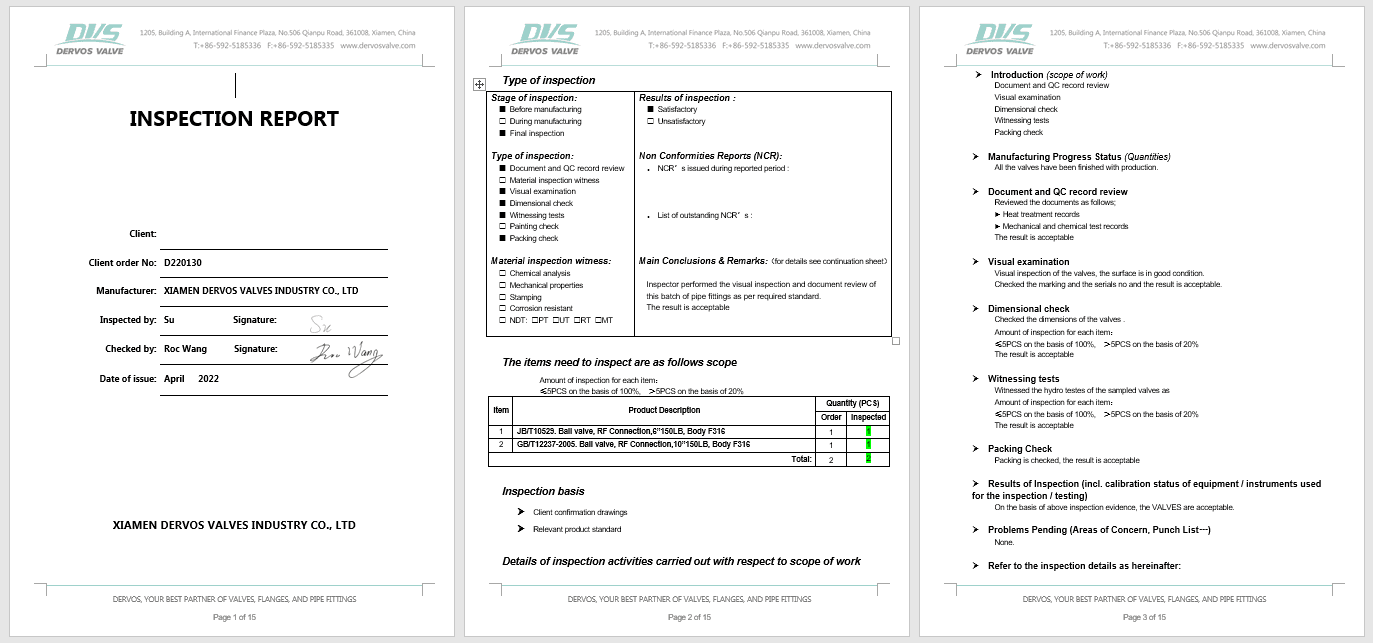

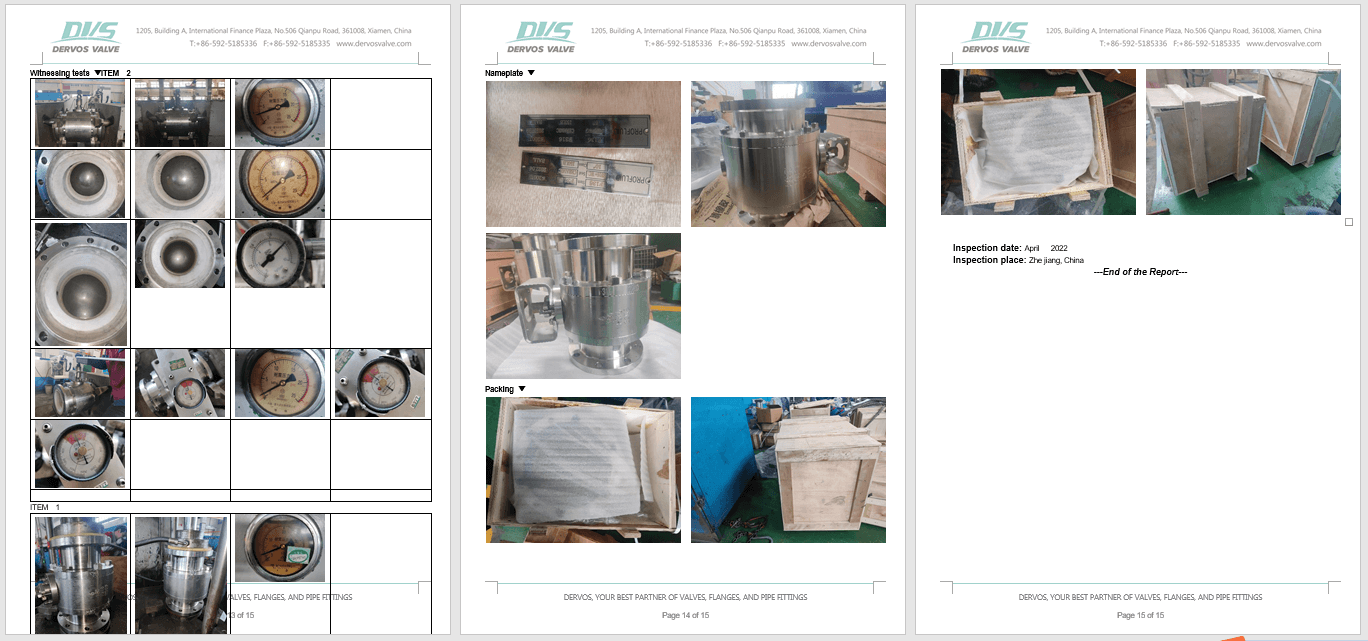

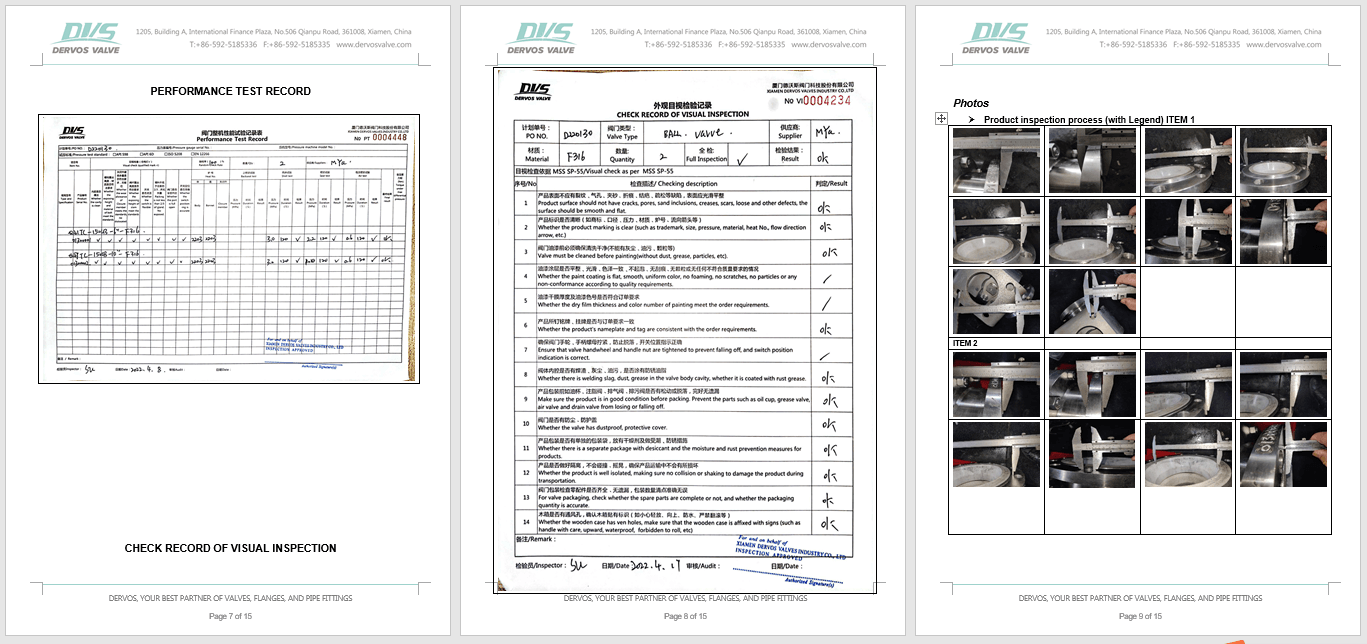

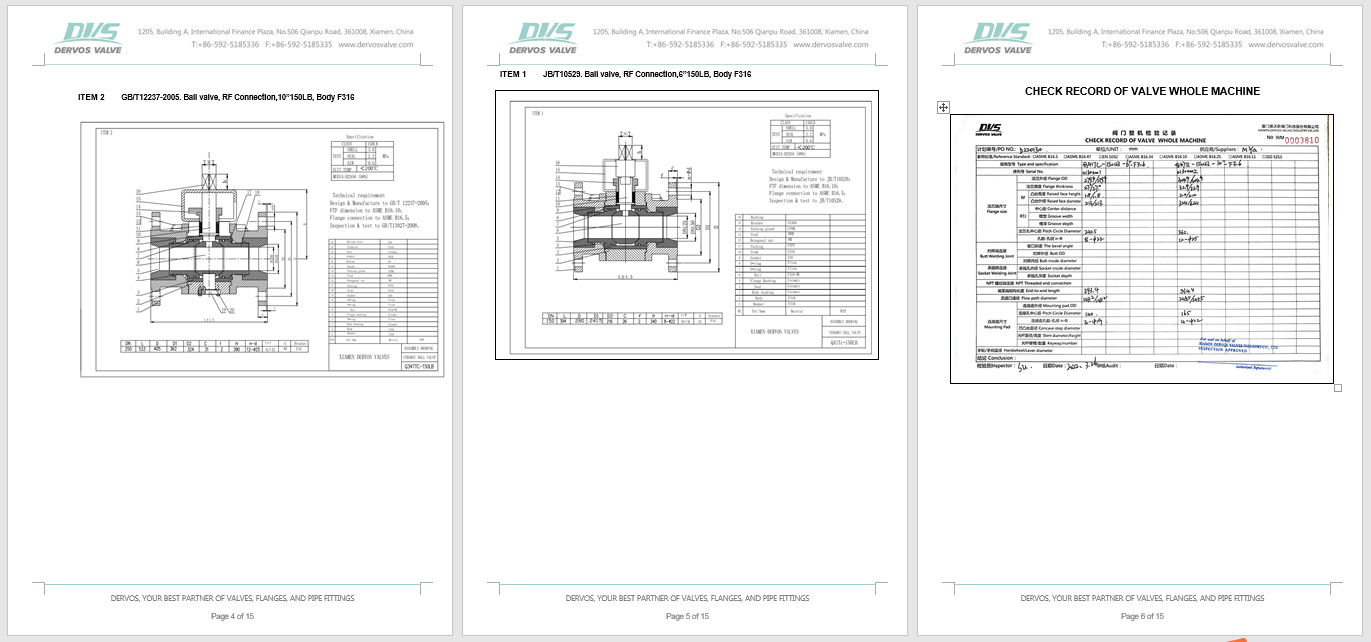

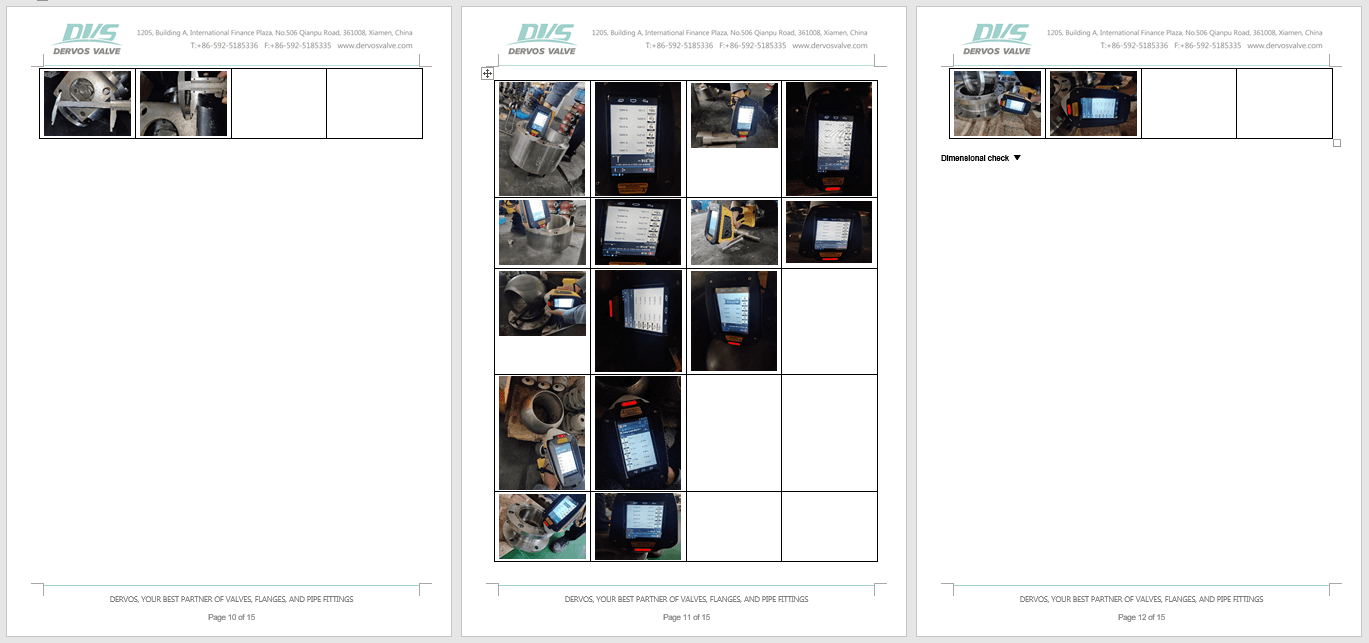

Inspection report
Introduction
10 Inch 150 LB ball valve is made according to GB/T 12237-2005 standard. The valve body is made of F316. The valve body bushing, flange bushing and seat are made of ceramic. It has the structural characteristics of a 3-piece, fixed ball and structural length according to ASME B16.10 standard. Its connection mode is RF (ANSI B16.5). And it has a smooth rod with ISO connection plate operation mode.
Features
1. It has extremely high wear resistance, corrosion resistance, and erosion resistance performance;
2. Durable, high reliability, and long service life.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
