API 599 Three Way Plug Valve, 50A, JIS 10K, A216 WCB, RF
Key Specifications / Features
50A JIS 10K plug valve is made according to API 599 standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of three-way type and L-type. Its connection mode is RF.
- Hits: 3
- Categories: Plug Valve
- Tags: API 599 Plug Valve , ASTM A216 WCB Plug Valve , RF Plug Valve
Detail Information
50A JIS 10K Three Way Plug Valve RF WCB API 599
Features
1. Low fluid resistance, suitable for frequent operation, quick and lightweight opening and closing;
2. Simple structure, relatively small volume, lightweight, and easy maintenance.

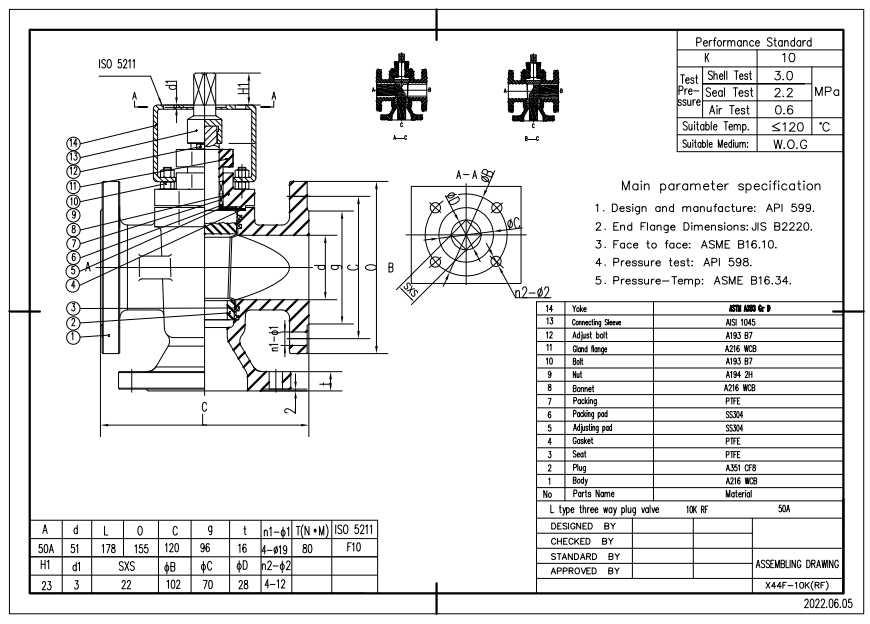

Technical Drawing

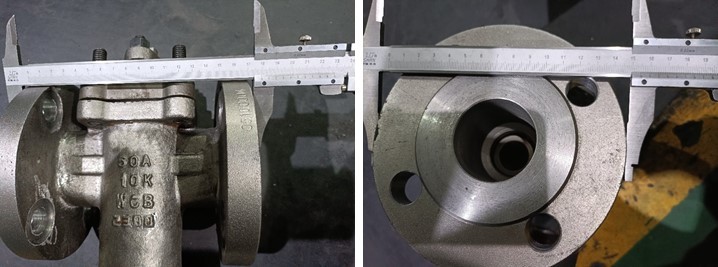

Dimension Checking

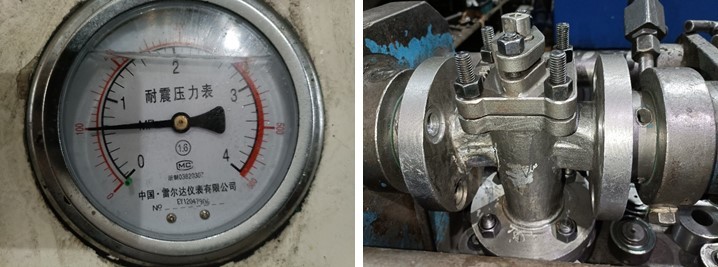

Pressure Testing

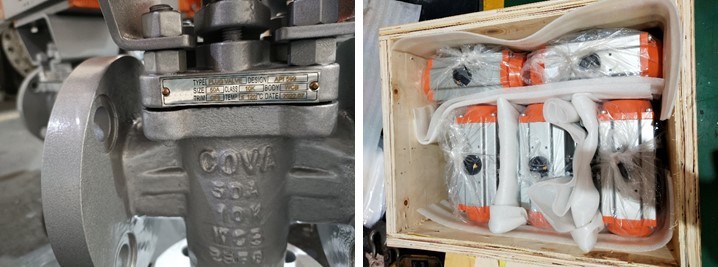

Nameplate & Packing

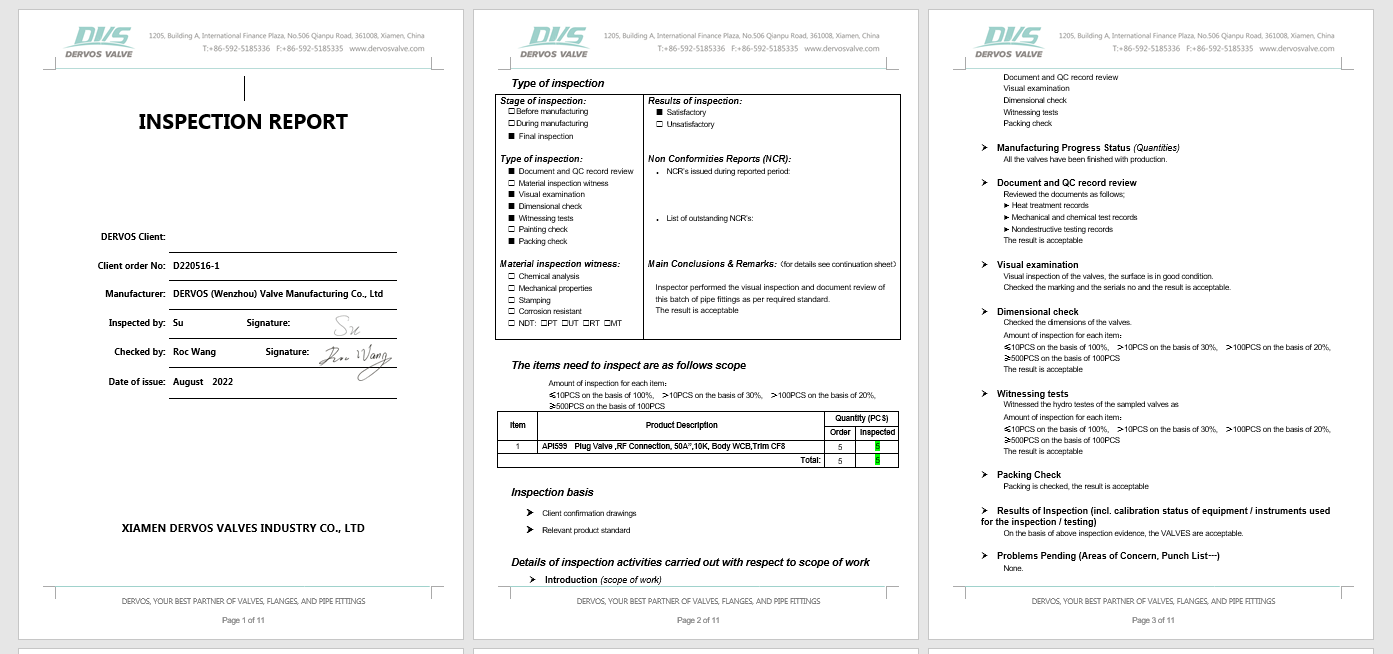

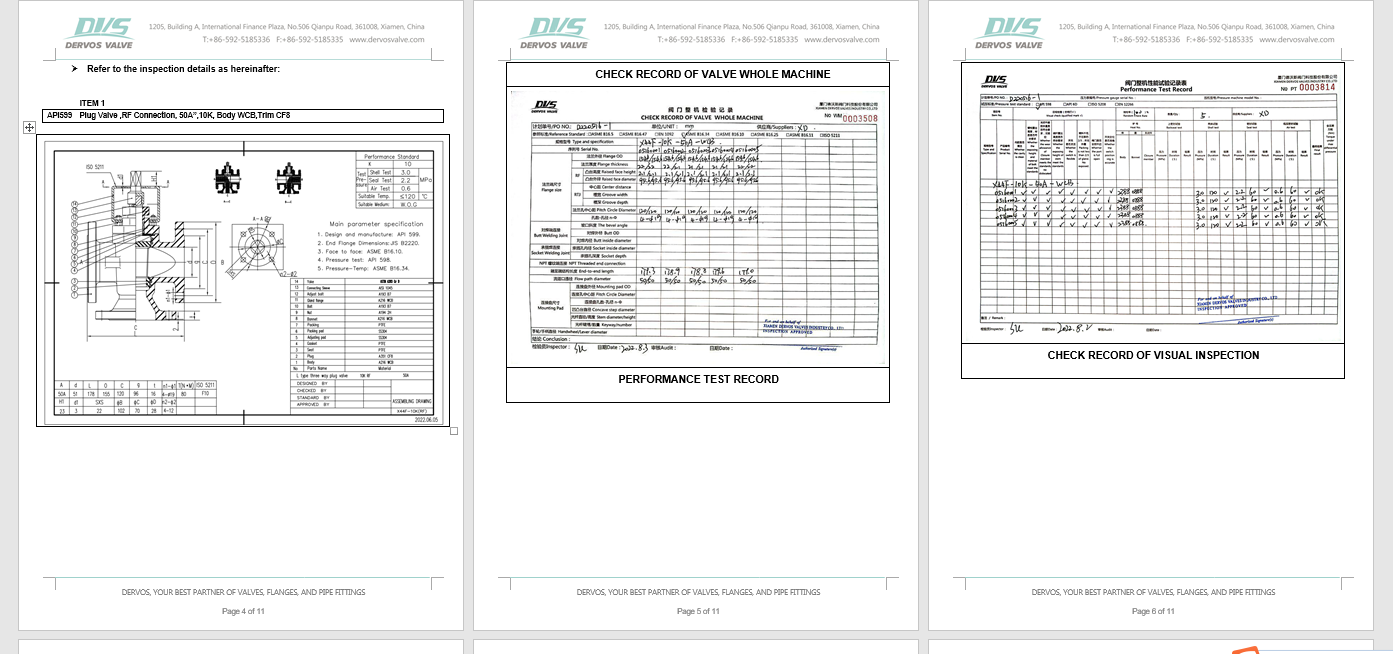

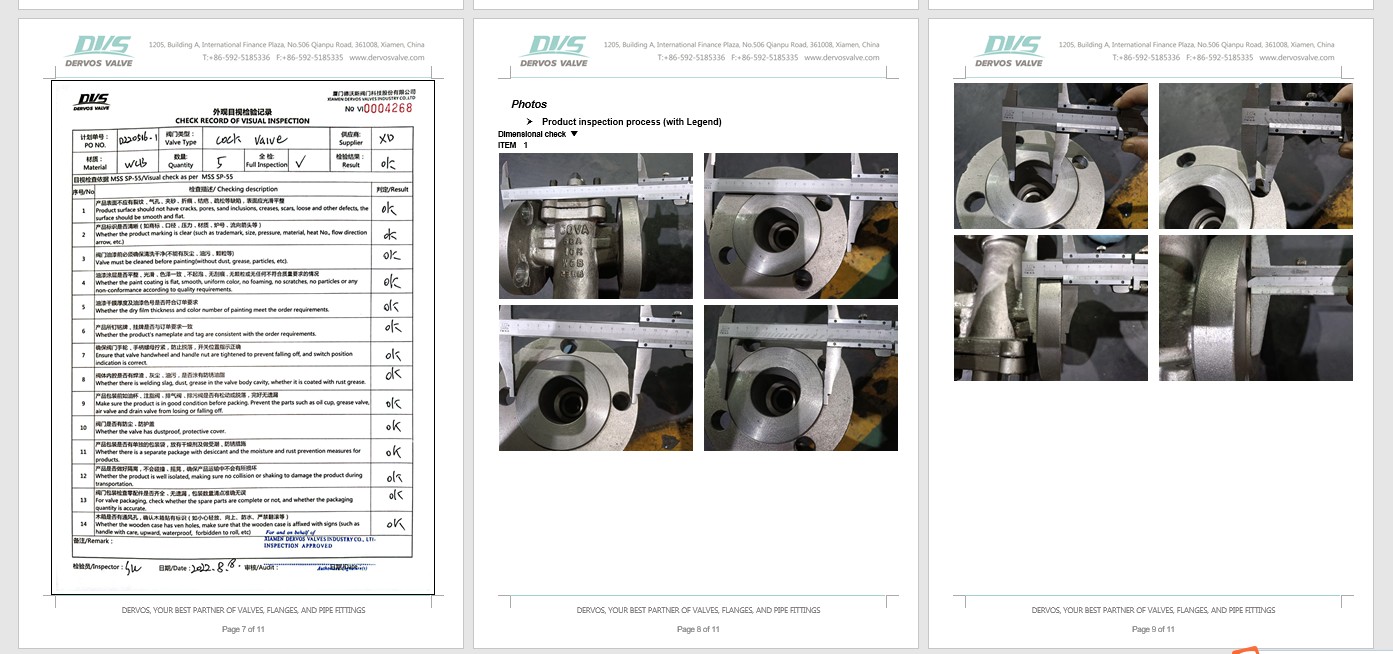

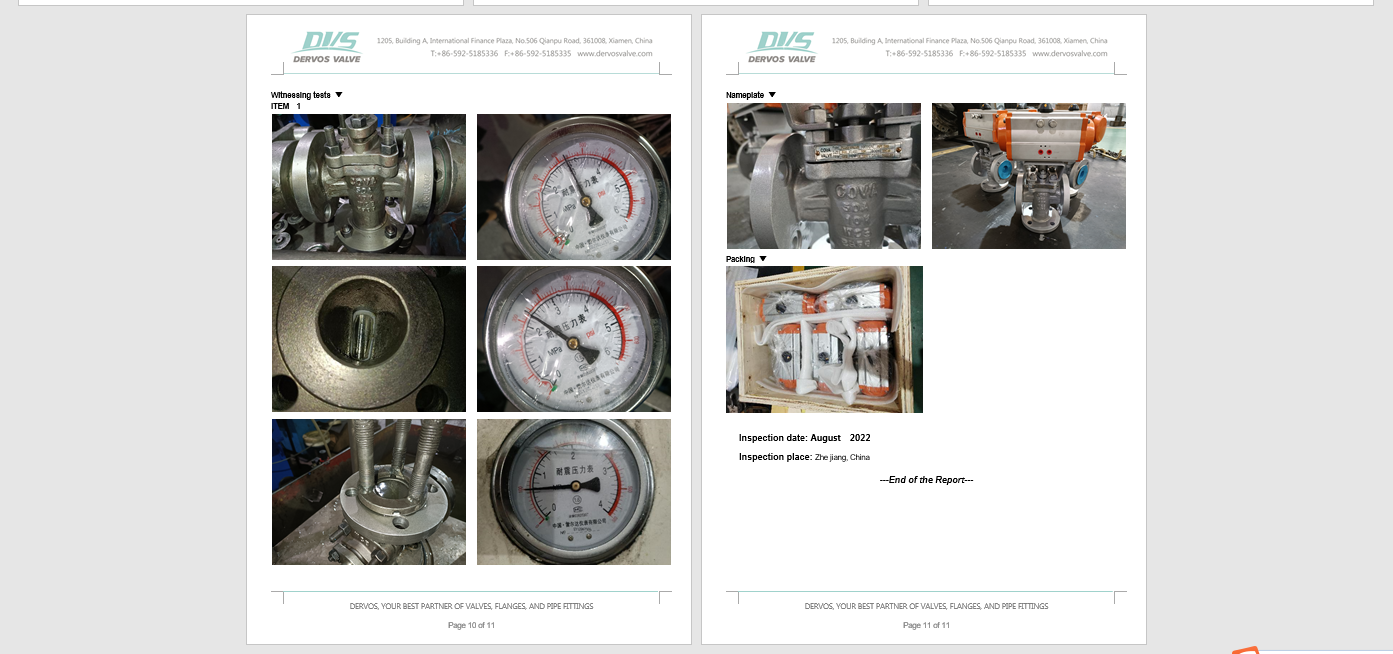

Inspection report
Features
1. Low fluid resistance, suitable for frequent operation, quick and lightweight opening and closing;
2. Simple structure, relatively small volume, lightweight, and easy maintenance.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
