API 609 Concentric Butterfly Valves, DI, 14 Inch, 200 PSI
Key Specifications / Features
This 14-inch, 200 PSI concentric butterfly valve is designed to meet API 609 standards. Constructed with a durable ductile iron (DI) valve body, it features pressure self-sealing, an elastic gate, and a compact structural length of 711mm. The valve is equipped with lug-type connections and operates smoothly with a turbine actuation system, ensuring reliable performance in various applications.
- Model No.: Kelly-BTV-20250116
- Hits: 18
- Categories: Butterfly Valve
- Tags: API 609 Butterfly Valve , Concentric Butterfly Valve , Ductile Iron Butterfly Valve
Detail Information
Ductile Iron Concentric Butterfly Valve, API 609, Turbine Operation.
Features
1. The Concentric Butterfly Valve boasts a straightforward design, featuring a circular valve disc and body with the valve shaft centrally located within the valve body. This design ensures ease of operation and maintenance.
2. Its compact structure is ideal for applications with limited space, allowing for hassle-free installation and removal.

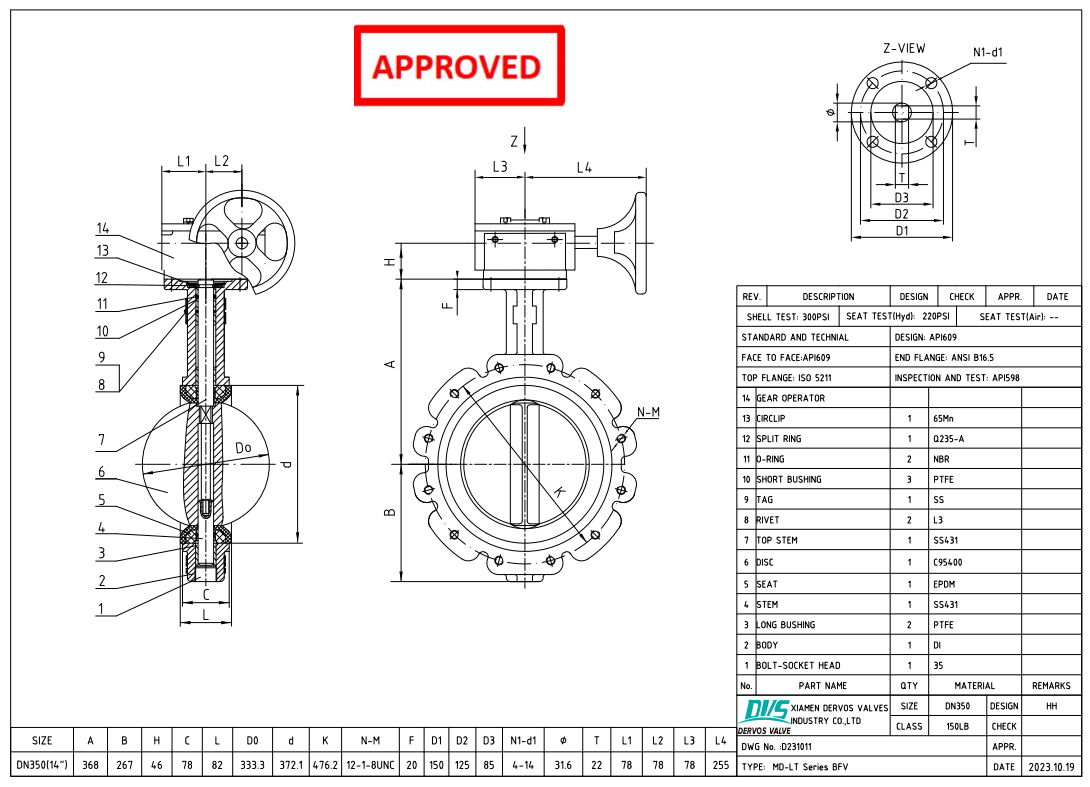

Technical Drawing

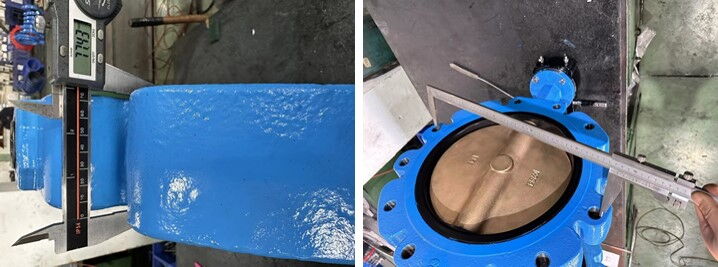

Dimension Checking

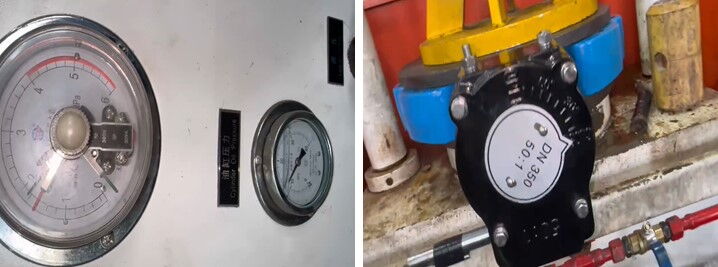

Pressure Testing

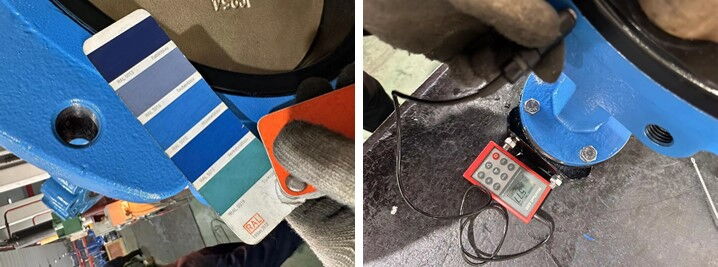

Painting

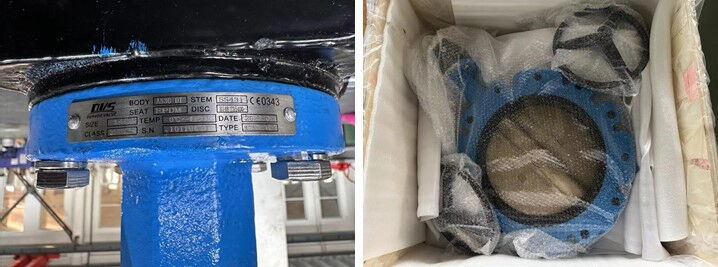

Nameplate & Packing

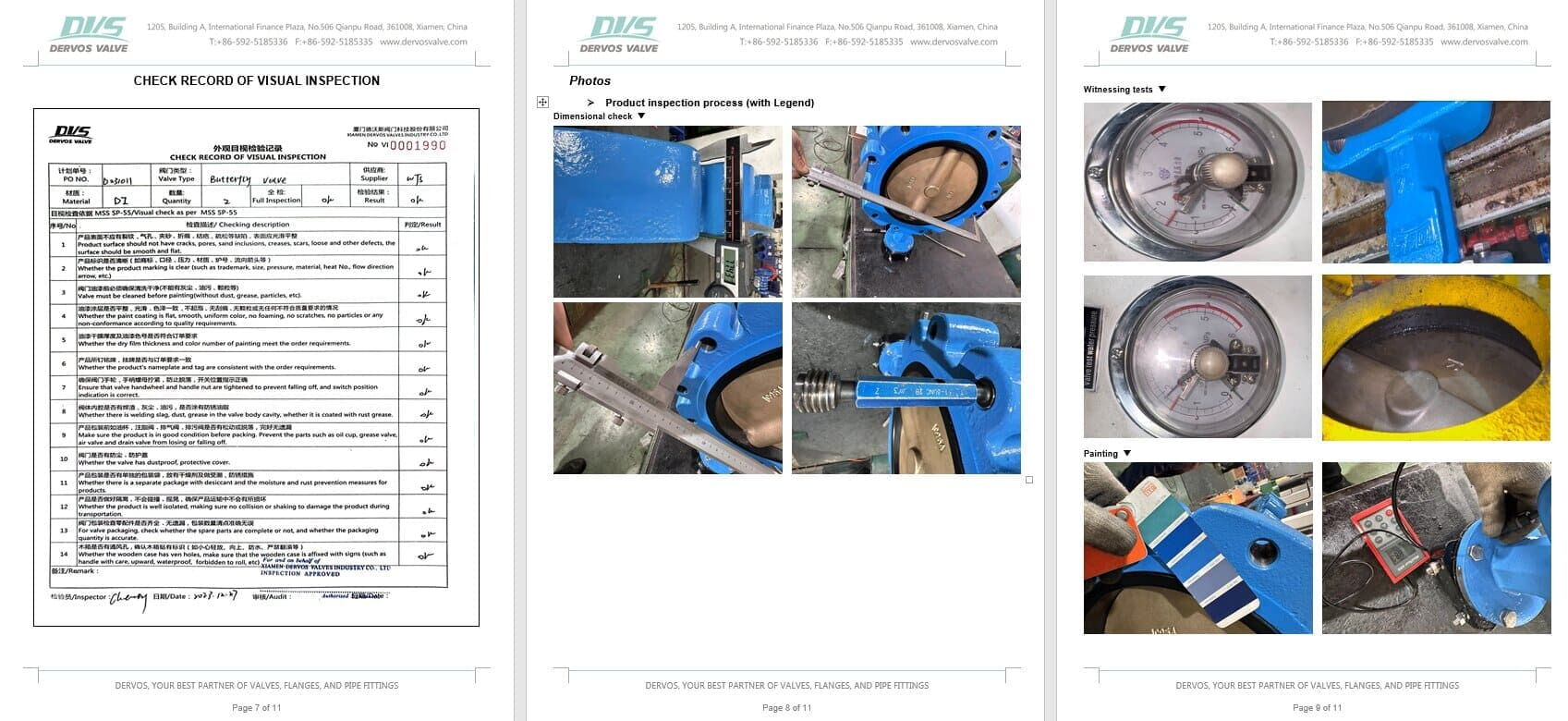

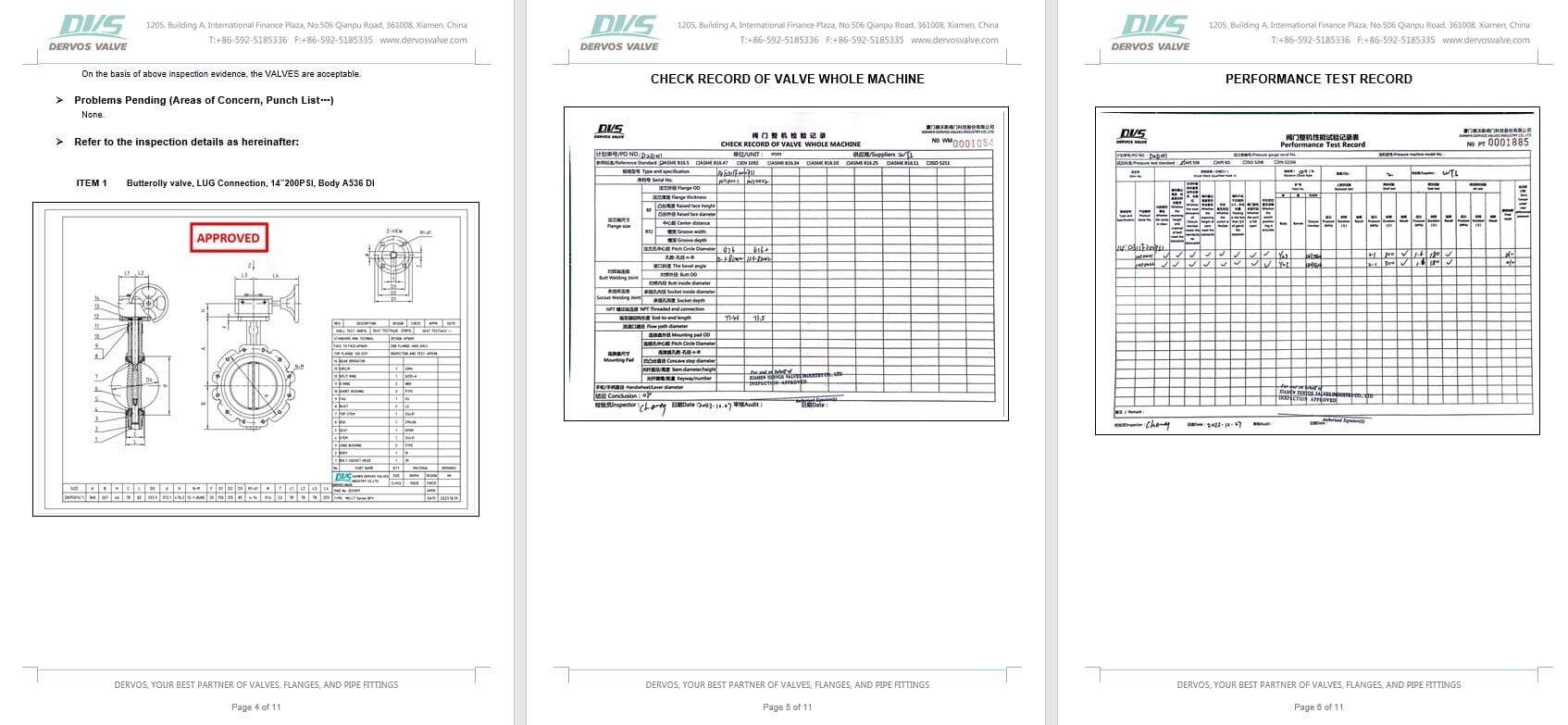

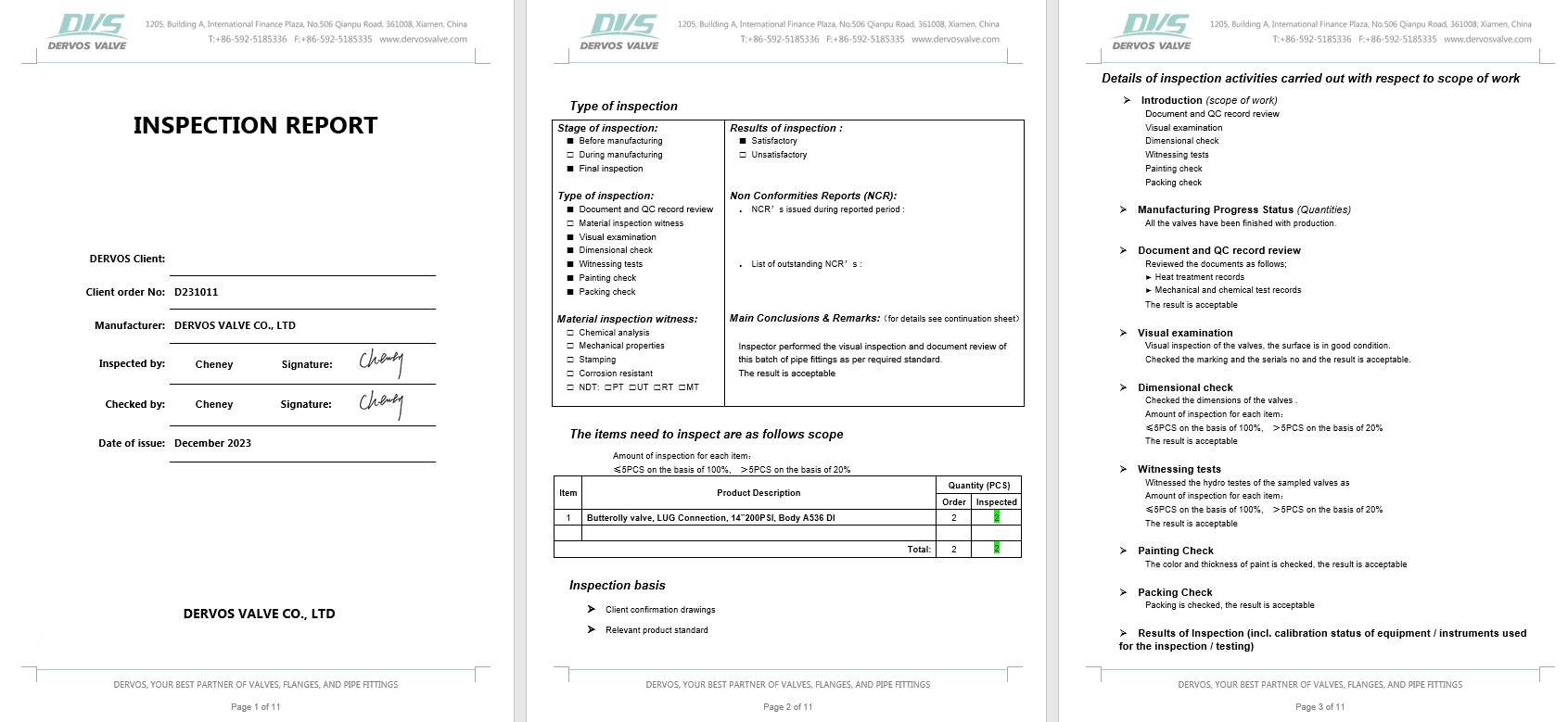

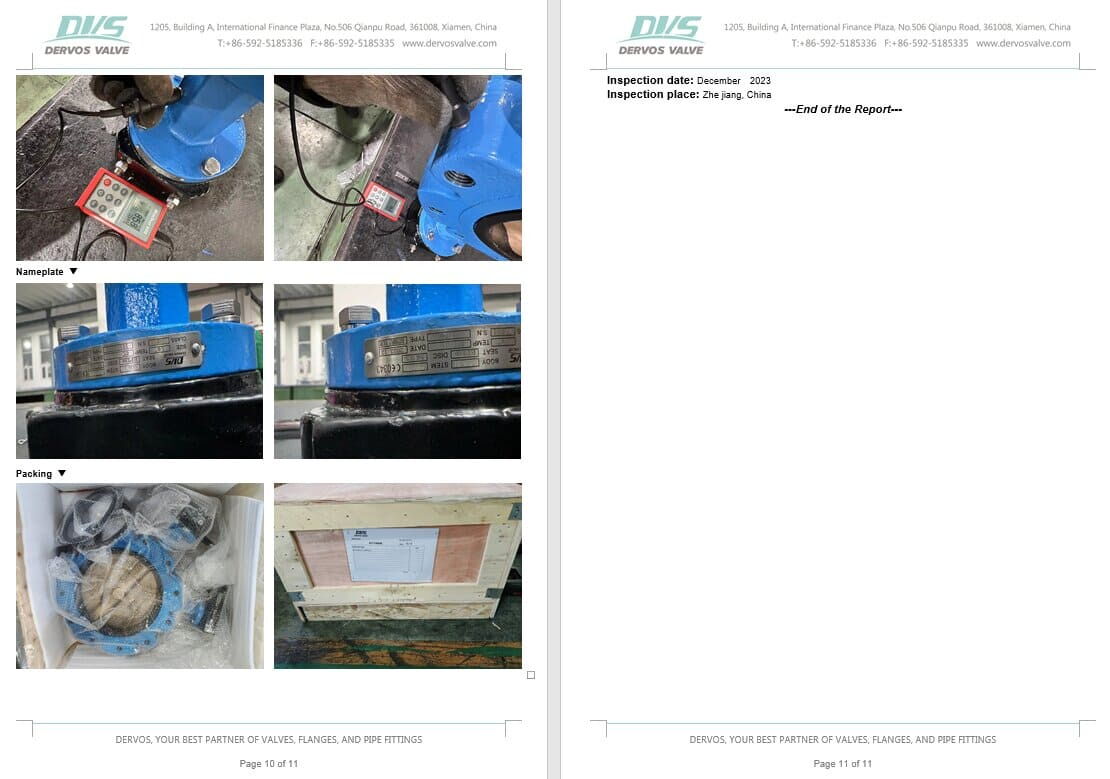

Inspection Report
