API 594 Dual Plate Check Valve, 14 Inch, 150 LB, WCB, Wafer
Key Specifications / Features
14-inch 150 LB dual plate wafer check valve is made according to API 594 standards. The valve body is made of ASTM A216 WCB. It has the structural characteristics of a double disc and a structural length of 184mm. Its connection mode is wafer.
- Hits: 7
- Categories: Wafer Check Valve
- Tags: API 594 Check Valve , 14 Inch Check Valve , Class 150 LB Check Valve
Detail Information
14 Inch 150 LB Dual Plate Wafer Check Valve, Body WCB, API 594
Features
1. Adopting a clamp style design, compact structure, lightweight, and small space occupation, suitable for situations with limited installation space;
2. Low fluid resistance, low-pressure loss, and improved system efficiency.

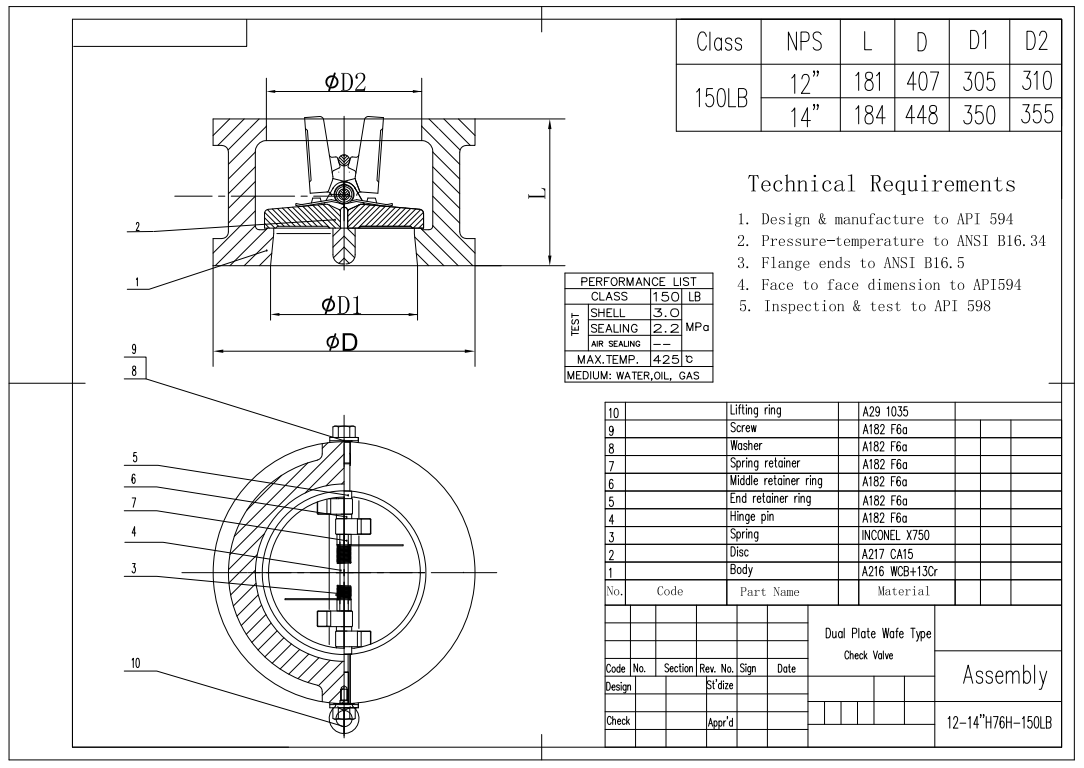

Technical Drawing

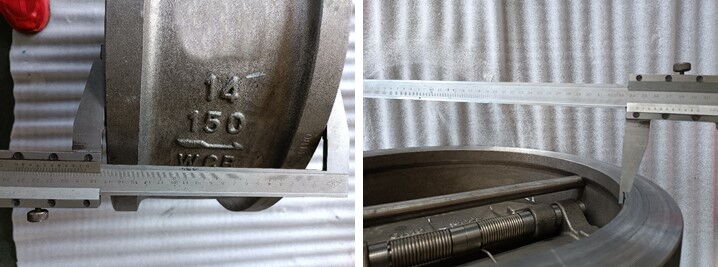

Dimension Checking

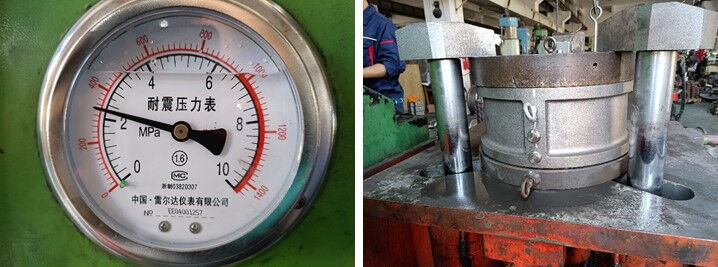

Pressure Testing

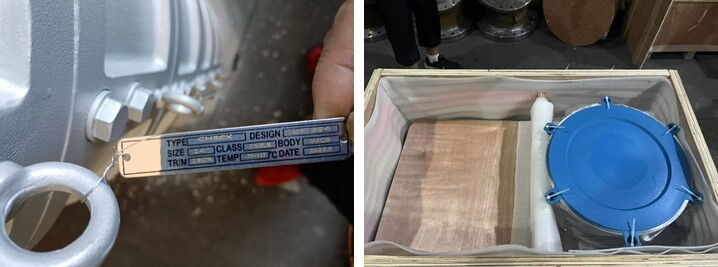

Nameplate & Packing

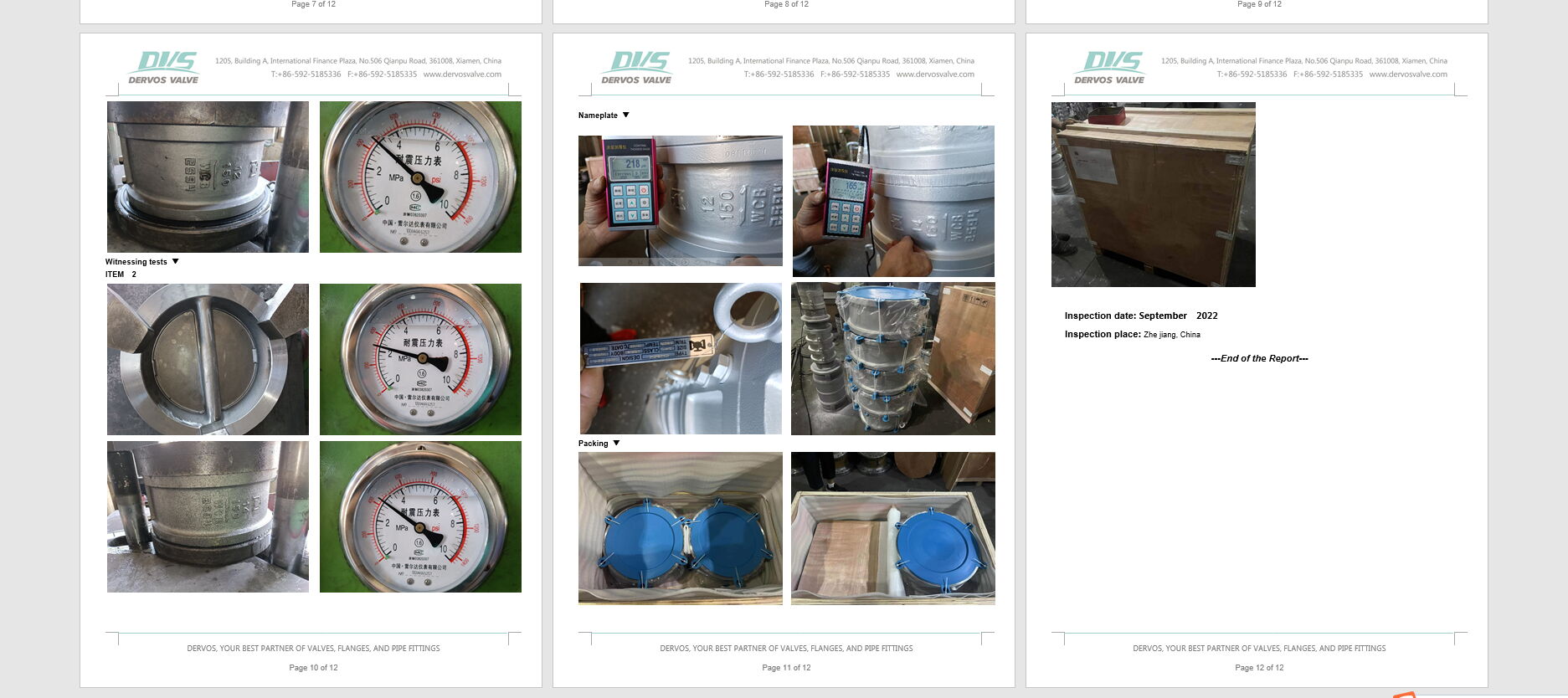

Inspection report
Features
1. Adopting a clamp style design, compact structure, lightweight, and small space occupation, suitable for situations with limited installation space;
2. Low fluid resistance, low-pressure loss, and improved system efficiency.
Technical Drawing
Dimension Checking
Pressure Testing
Nameplate & Packing
Inspection report
